Automatic particle board mdf production line
- Category: Wood Based Panels Machinery >>>
- Supplier: Linyi,Shengyang,Wood-Based,Panel,Machinery,Factory
Share on:
Product Overview
Description
Automatic particle board mdf production line

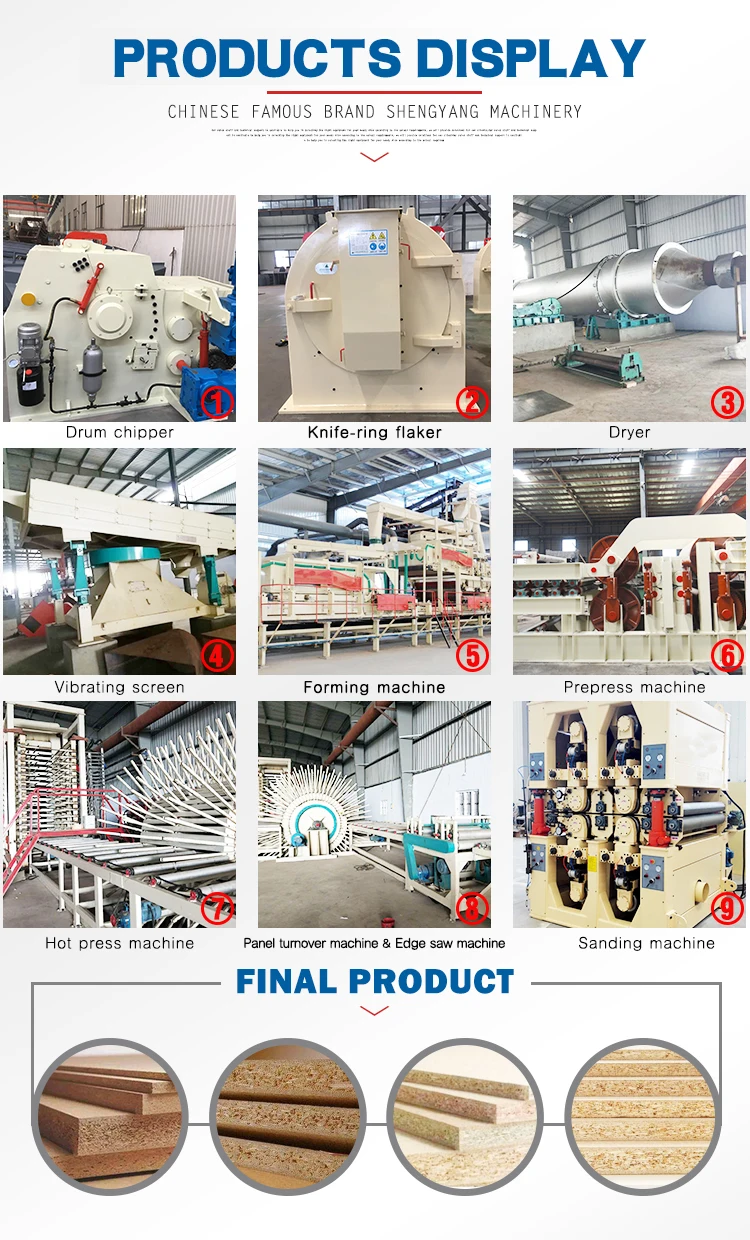

Product Display
Information in detail of Semiautomatic particle board production line
| Chipper Process | Glue Process | ||||||
| Equipment No. | Name | Description | Pcs | Equipment No. | Name | Description | Pcs |
| SY-A001 | drum chipper | BX218 | 1 | SY-C001 | glue vat | 6000mm x Φ2000mm supplied by | 1 |
| SY-A002 | belt conveyer | 10000 x 500mm | 1 | SY-C002 | glue pump | 0.7KW | 2 |
| SY-A003 | magnet | \\ | 1 | SY-C003 | glue blender | 3000 x Φ1600mm, 5.5KW | 2 |
| SY-A004 | chip silo | 50m³supplied by customer | 1 | SY-C004 | belt conveyer | 1000mm | 2 |
| Flake Process | Forming & Pressing Process | ||||||
| Equipment No. | Name | Description | Pcs | Equipment No. | Name | Description | Pcs |
| SY-B001 | belt conveyer | 500 x 6000mm | 1 | SY-D001 | forming machine | 12000mm x 2000mm x 2400 | 1 |
| SY-B002 | pulverizer | 37KW | 2 | SY-D002 | belt conveyer | 1500 x x2800mm | 1 |
| SY-B003 | flake pipeline | 7000mm | 2 | SY-D003 | belt conveyer with centering device | \\ | 1 |
| SY-B004 | flake silo | 480m³supplied by customer | 1 | SY-D004 | pre-press | Width 2400mm | 1 |
| SY-B005 | hopper | 10000 x 8000 x 2000mm | 1 | SY-D005 | belt conveyer | 1500 x 1500mm | 1 |
| SY-B006 | screw feeding out pipe | 4000mm | 1 | SY-D006 | edge trim saw for mat-board | 2.2KW-2 | 2 |
| SY-B007 | belt conveyer | 6000mm | 1 | SY-D007 | cut saw | 2.2KW-2 | 1 |
| SY-B008 | magnet | \\ | 1 | SY-D008 | belt conveyer | 1500 x 3000mm | 1 |
| SY-B009 | screen | 6000mm x 1500mm | 1 | SY-D009 | accelerate belt conveyer | 1500 x 4000mm | 1 |
| SY-B010 | belt conveyer of unqualified flake | 6000mm | 1 | SY-D010 | belt conveyer | 1500 x 3000mm | 1 |
| SY-B011 | belt | 4000mm | 1 | SY-D011 | scale | 1500 x 3000mm | 1 |
| SY-B012 | Dryer | 12000mm x Φ1600mm | 1 | SY-D012 | unqualified board collect system | 800 x 6000mm | 1 |
| SY-B013 | sieve | 1500mm x Φ6000mm | 1 | SY-D013 | belt conveyer | 1500 x 3000mm | 1 |
| SY-B014 | hopper | \\ | 1 | SY-D014 | accelerate belt conveyer | 1500 x 4000mm | 1 |
| SY-B015 | belt conveyer | 8000mm | 1 | SY-D015 | board carrier and baffler | 3KW | 1 |
| SY-B016 | core flake silo | 350m³supplied by customer | 1 | SY-D016 | high temperature resistant no plate | \\ | 1 |
| SY-B017 | surface flake silo | 50m³supplied by customer | 1 | SY-D017 | loader | 4200mm | 1 |
| SY-B018 | belt | 4000mm | 1 | SY-D018 | hot press | hot platen size:2700 x 1580 x 90mm hot | 1 |
Boiler process | SY-D019 | same time closing device | \\ | 1 | |||
| Equipment No. | Name | Description | Pcs | SY-D020 | unloader | 4000mm | 1 |
| SY-E001 | oil boiler | 1600000 kca/h | 1 | SY-D021 | roller conveyer | 1000 x 2200mm | 1 |
| SY-D022 | Turner cooler | 2900mm | 1 | ||||
| SY-D023 | Turner conveyer | \\ | 1 | ||||
| SY-D024 | edge trim saw for finished board | 5.5KW x 4 | 1 | ||||
| SY-D025 | roller platform conveyer | \\ | 1 | ||||
| SY-D026 | lifter | 3KW | 1 | ||||
Hot Sale Products
Our Clients
Company Information
Certificates
Packaging & Shipping
Contact Us
FAQ
1. Can you customize products for clients?
Yes, We can customize and produce woodworking machines according to the customer’s requirements or drawings.
2. How can we trust your factory?
We recommend that you come to our factory to see the goods, to verify the real situation of the products, and know more about our factory.
3.Why does the price often change?
The price depends on the latest prices of the raw materials.
4. What about the contract signing?
If you’re satisfied with the products and our service, you can sign the contract with us, pay the deposit. Then we’ll produce the machines as soon as possible. If you are far away, we can sign the contract by fax. We will ensure the quality of the products and the accessories are complete.
5. How about delivery?
when the product is ready, it can be delivered to you after your full payment. We’ll provide technical guidance.
