wifi led driver 2.4g led dimming driver 130mA 5W, 150mA 6W, 180mA 7W CE, RoHS approval
- Category: >>>
- Supplier: Shenzhen Hoion Lighting Co. Limited
Share on (60799802651):
Product Overview
Description
wifi led driver 2.4g led dimming driver 130mA 5W, 150mA 6W, 180mA 7W CE, RoHS approval
Product Description

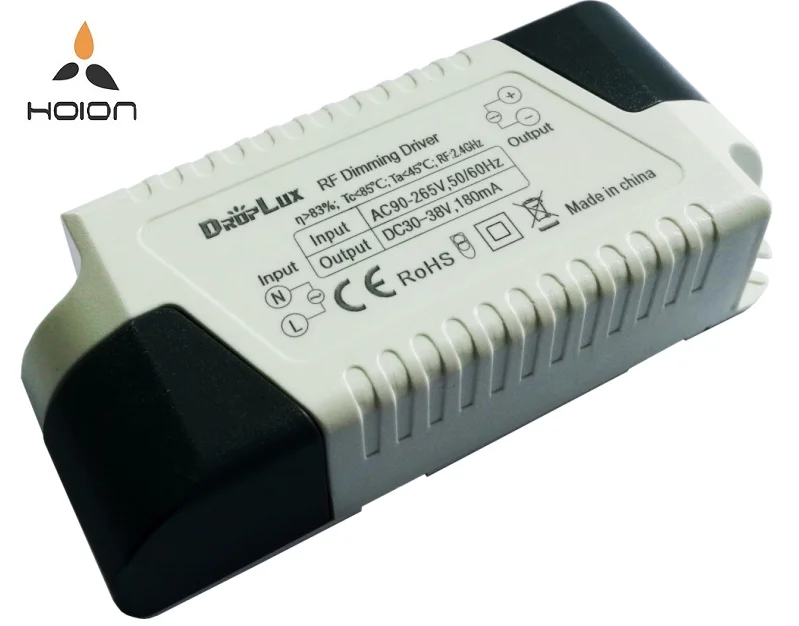

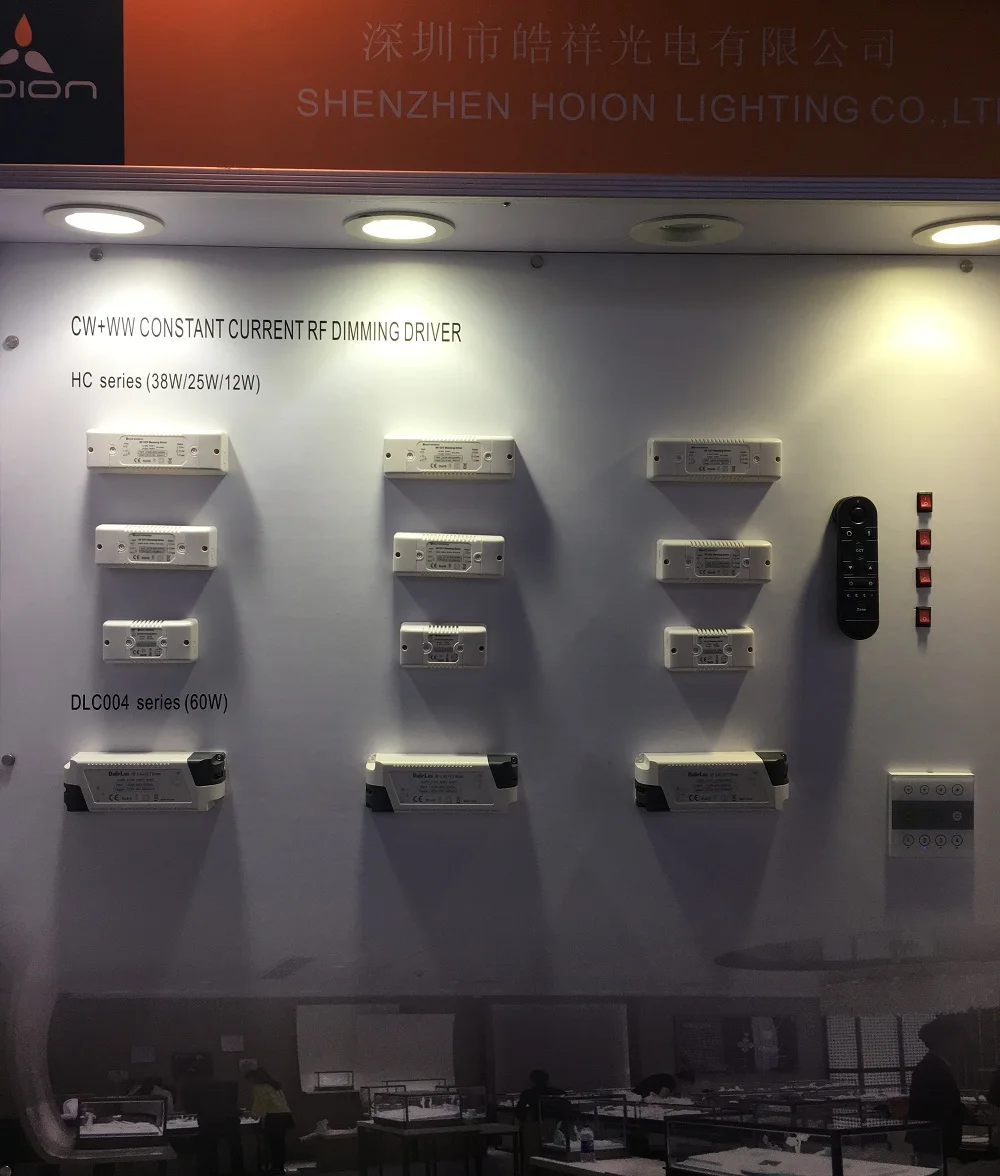

1. Product Picture
2. Product Feature
1) Isolated power supply
2) Adopt PWM technology
3) High efficiency/High PF/ flicker-free
4) Protected from miswire, over loading, over voltage, short circuit.
5) High quality smooth dimming(1024 grades)
6) Memory function
7) 2.4GHz wireless control,Air Self-inspection Sync control
8) Compatible with Freelighting Control system,realized phone WIFI smart control
9)Applicable lamps LED panel, LED ceiling lamps, LED down light and others constant current lights
10) Applicable place:Home, Shop, Hotel, Office and so on household/commercial indoor lighting
11) Certification:CE/EMC/RED /Rohs
12) Warranty 3 years

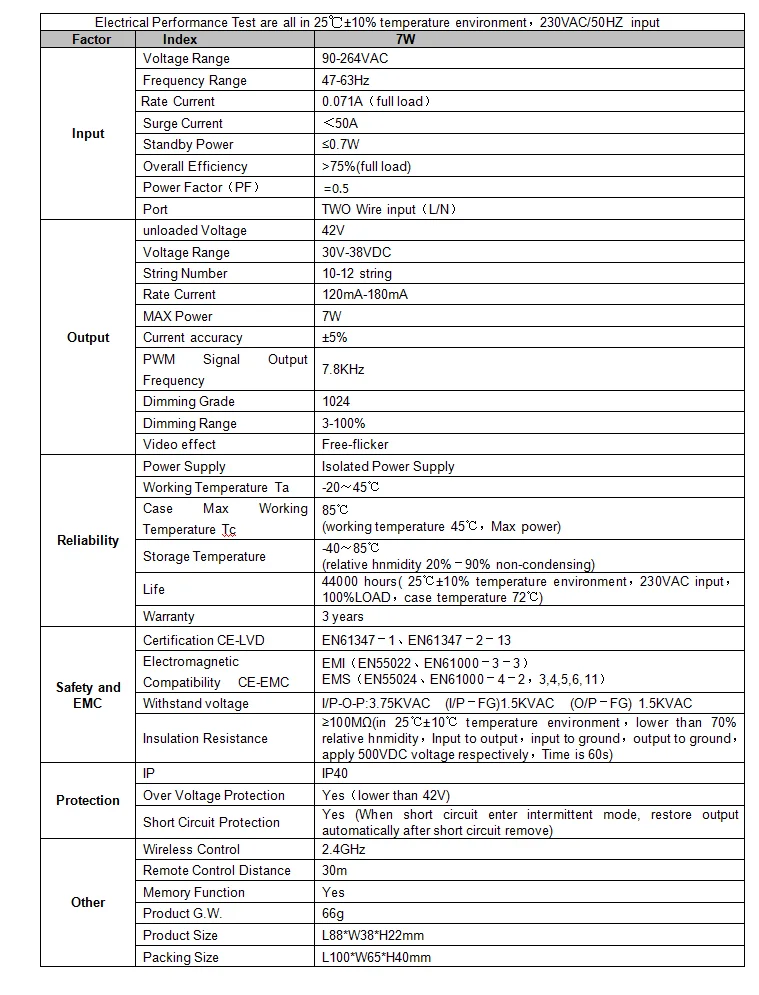

3. Driver Technical Parameters

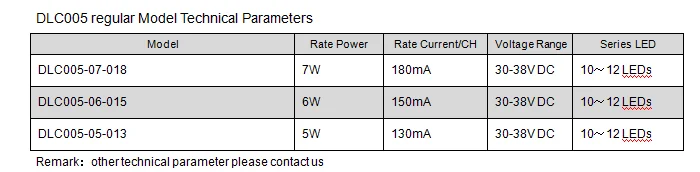

4. Regular Model Driver Technical Parameters

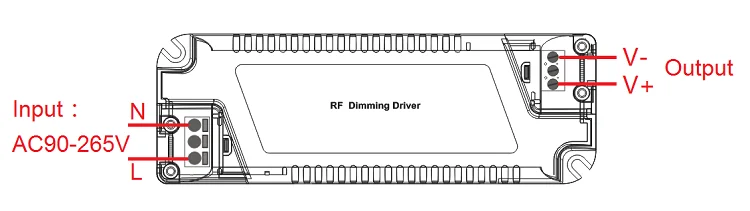

5. Port Instruction

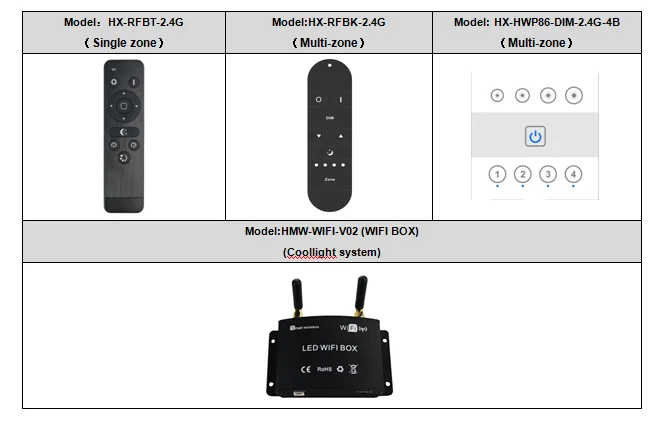

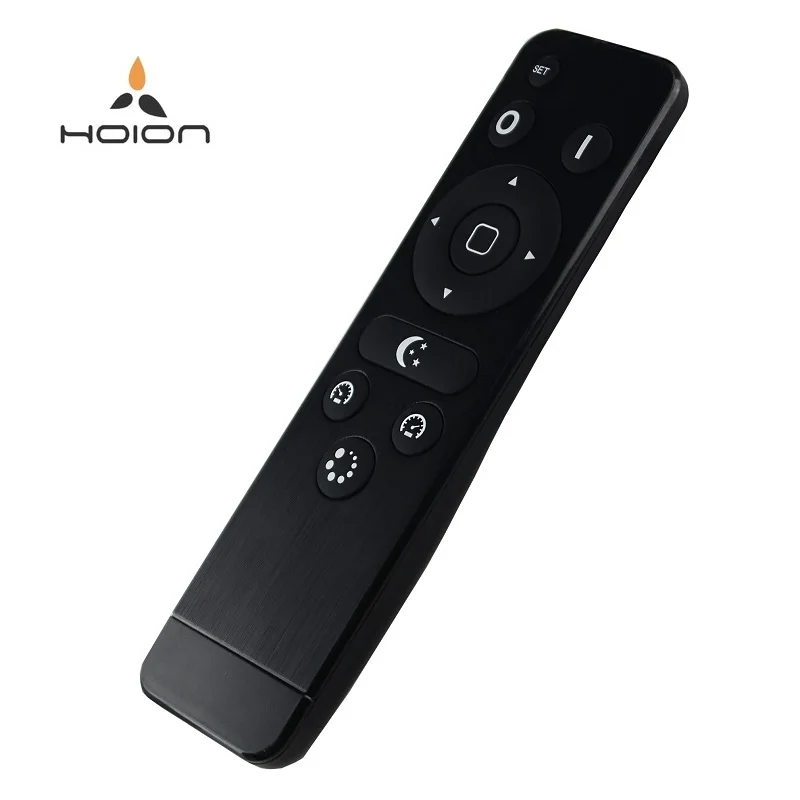

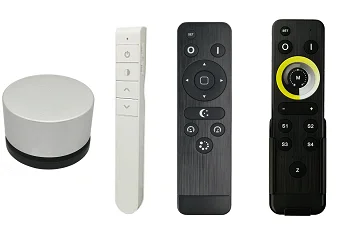

6.Product Compatibility(Applicable for remote)
7. Typical Application
1) Compatible with a variety of models of remote control at the same time, could be matched according to project situation
2)Air Self-inspection Sync control not only make the product more advantaged than similar product in wireless sync function, but also make 1 remote controller out of limitation of remote control distance, theoretically achieve controlling numerous drivers wireless connection sync control function.

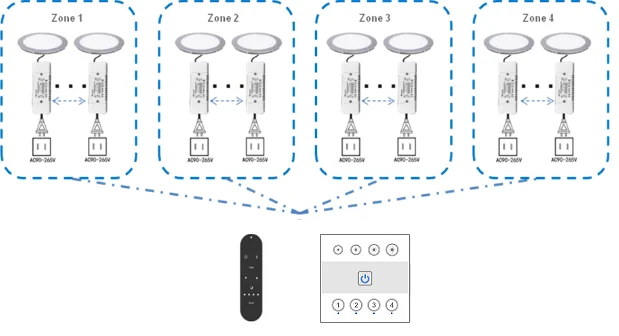

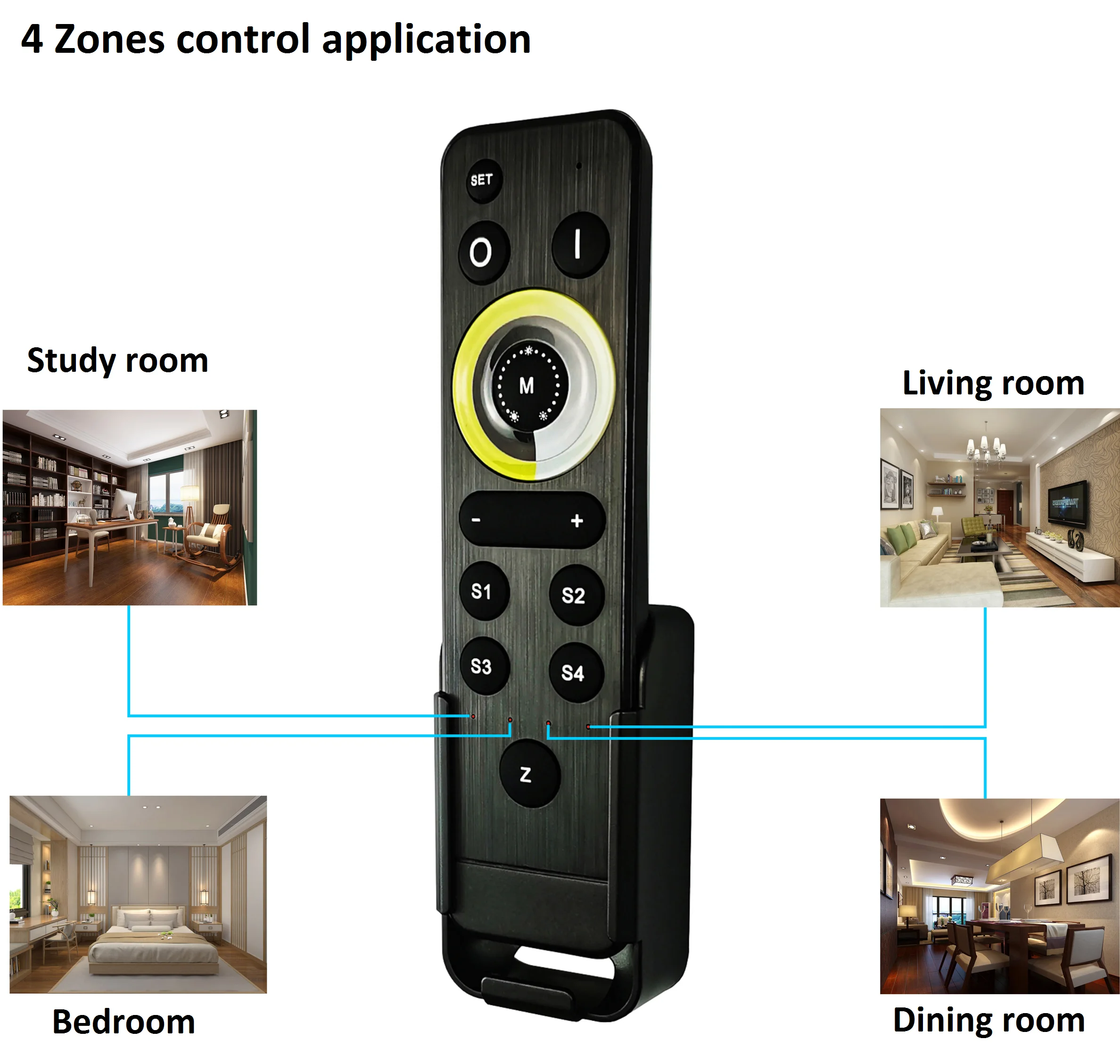

(3) 4 zones remote typical application, multi drivers could be controlled in each zone. 4 zones could be respectively and allover controlled
(4)This wireless driver also could be match with our Wifi Box to achieve phone smart control, Max achieve 10 zones to control separately.
9. Tips:
1)If the lamp turned off by remote control, it also can restart the lamp directly by the AC power switch(No-flicker driver need to restart after turn off the power switch and discharge for 5s.
2)If the lamp is light up without any operation in 167 hours, the driver will turn off the lamp automatically. It will recount the time if there is any operation from power switch or remote control.
3)Each driver can save unique RF codes(for remote control) and unique wifi code(for wifi control). You can copy the RF code between remotes when more than one remote are needed. Please get the operation instruction from the remotes specification.
4)Memory function, each time power-on reserve the mode which stop in the last power-down.
