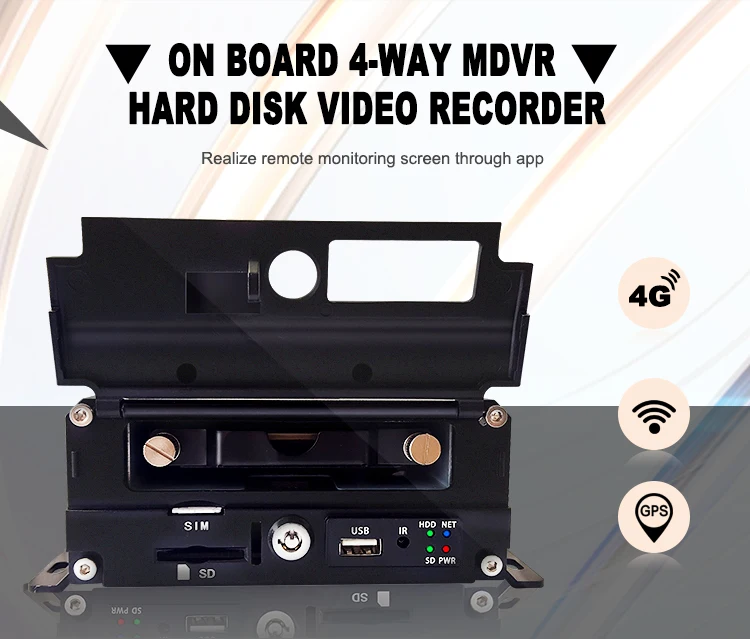

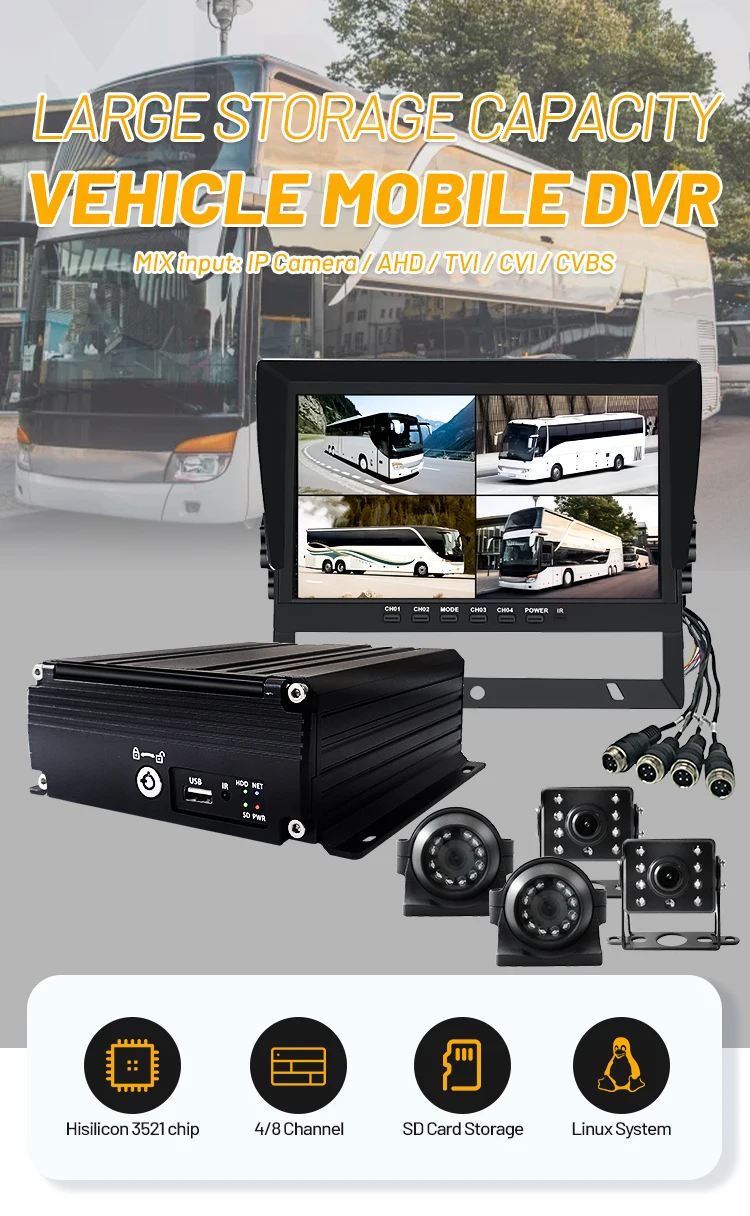

4CH AHD 1080P Hybrid Input VGA RJ45 Output GPS/3G/4G/WIFI with AI Option Fleet Management HDD SD Card Mobile DVR

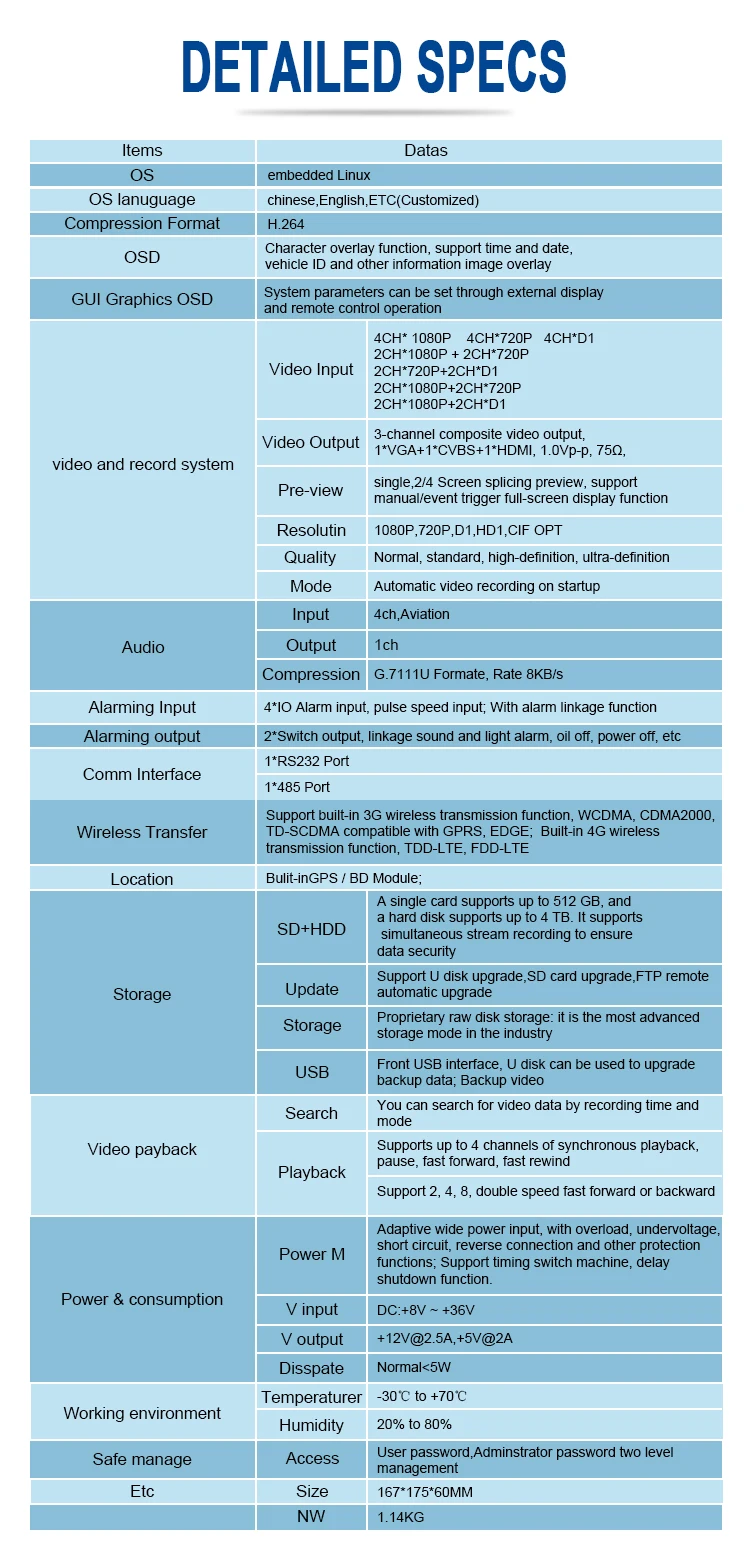

Item

specification

OS

Linux

Language

Chinese/English/Others (can be customized)

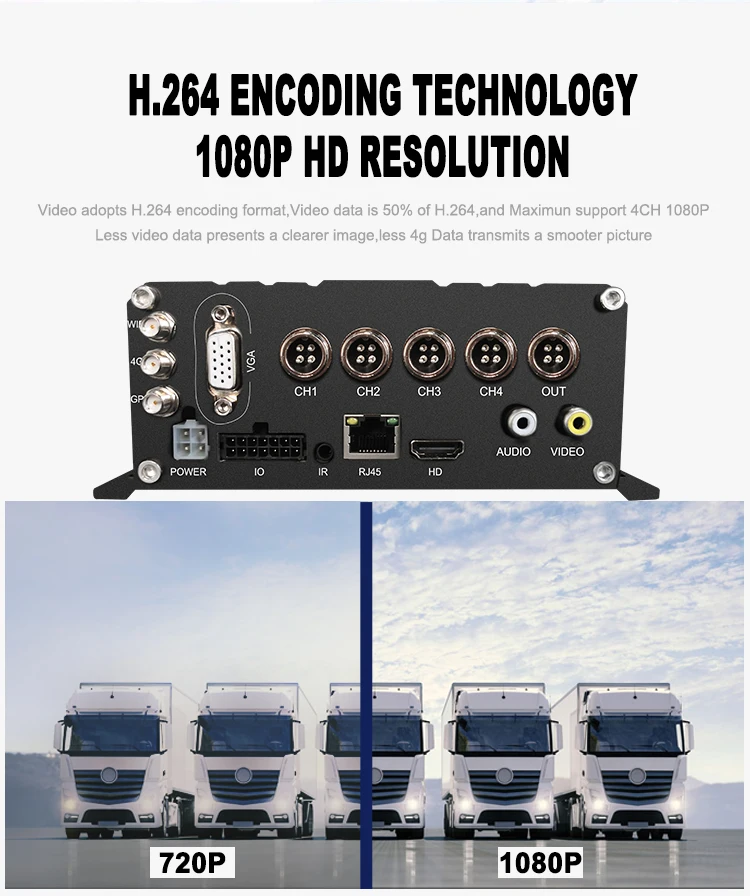

Video Compression

H.264

OSD

Overlays information such as date time and vehicle ID

GUI

Graphical User Interface

Can connect to external LED screen. Setup system parameters with the remote control.

Video Record System

Video Input

4CH* 1080P    4CH* 1080N  4CH*720P  4CH*D1
2CH*1080P     2CH*720P

2CH*720P+2CH*D1

2CH*1080P+2CH*720P

2CH*1080P+2CH*D1

Video Output

2CH video output (1CH AV video, VGA output for optional.)

Preview

Support 1 channel and 4 channels preview., support Manual/Alarm Trigger full screen preview

Resolution

Support 1080P/960P 720P/D1/CIF, MAX:4channel 1080P

Video Quality

0-7 levels, 0 is the highest level, 7 is the lowest level.

Video Standard

PAL: 100f/s , CCIR625 line,50field;

NTSC: 120f/s, CCIR525 line,60field;

CIF: 256Kbps ~ 1.5Mbps, multi levels video quality optional;

HD1: 600Kbps ~ 2.5Mbps, multi levels video quality optional;

D1: 800Kbps ~ 3Mbps, multi levels video quality optional;

720P : 1Mbps~4Mbps, multi levels video quality optional;

1080P: 1Mbps~8Mbps, multi levels video quality optional;

Record Mode

The default setting is auto recording after power on. Timed recording, alarm trigger recording and manual recording are supported.

Audio

Audio Input

4 channel avigation Plug

Audio Output

1channel

Compression

G.726 compression, 8KB/s speed

Alarm Input

4CH IO Alarm Input, Support alarm linkage function

Alarm Output

2CH Relay Alarm Output, Support the linkage acousto-optic alarm, cut off fuel oil/power,etc

Communication Interface

1CH RS232, support extension device, such as POS machine, Oil Fuel sensor, LED advertising screen , etc.

1CH 485 interface, can connect PTZ,etc.

Wireless transfer

Support Built-in 3G network, WCDMA,CDMA2000,TD-SCDMA compatible with GPRS,EDGE; Support Built-in 4G network, TTD-LTE, FDD-LTE

Position

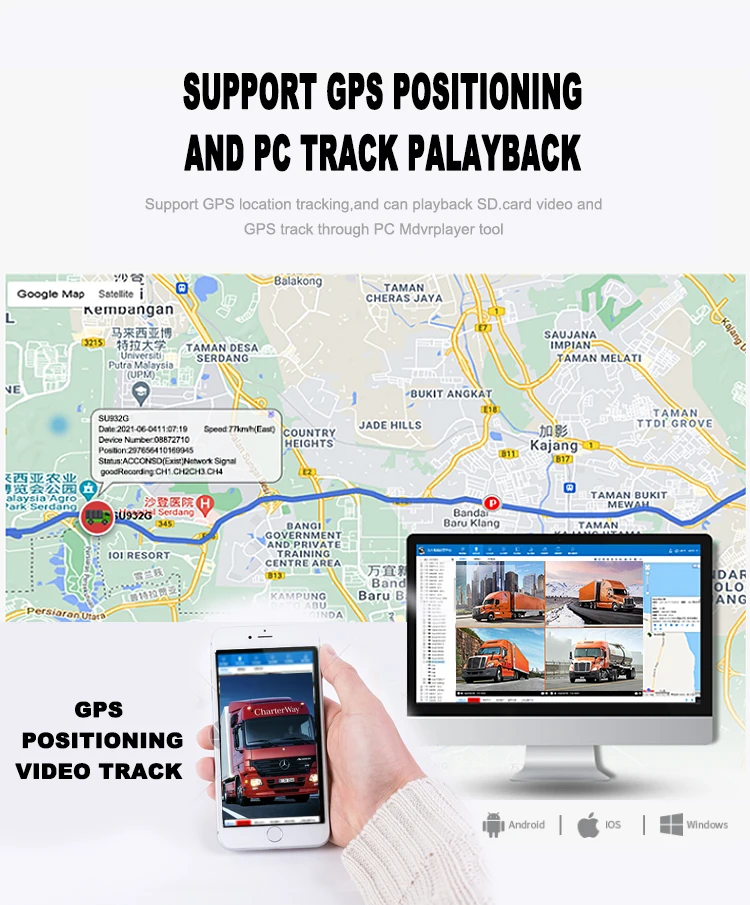

Support Built GPS/BD Module,can make playback analysis of vehicle routing

Video Storage

Storage

128GB SD Card + 2TB HDD mirror recording to protect data from loss

Upgrade

Support USB flash disk  updating SD card upgrade , OTA remote upgrade automatically

File Format

H.264

File System

Special Car system File System

USB

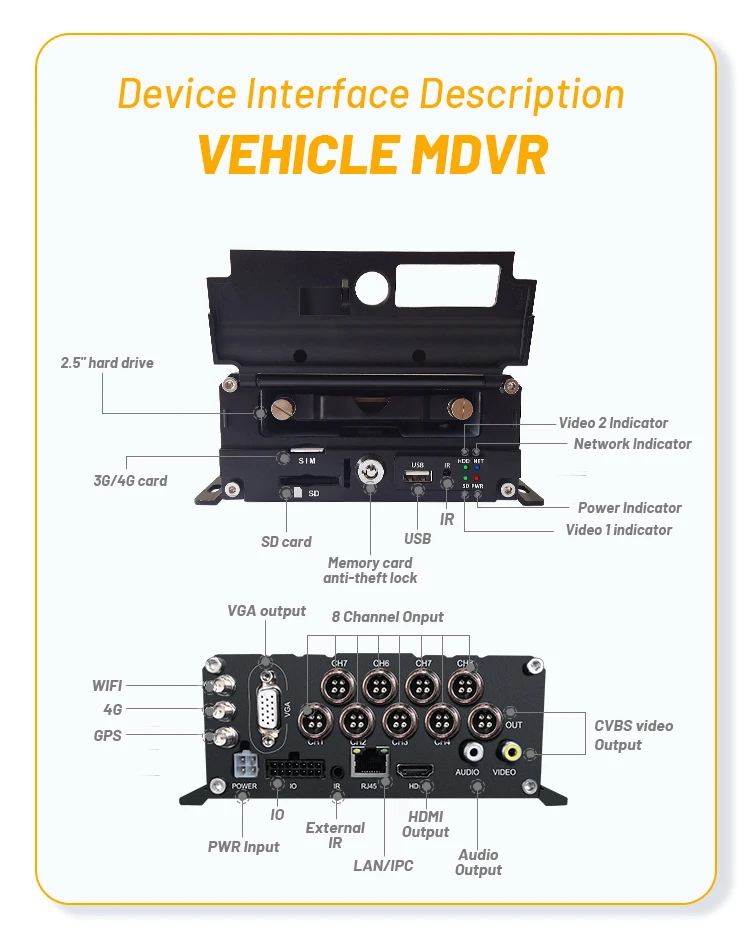

Front panel supports USB port, support USB flash disk upgrade to backup; hard disk box USB port, can back up video data

Video Playback

Video Search

Search video by Record Time/Record Type etc

Playback

Max support 4CH Replay /Stop/Fast Forward/Fast Reverse at same time

Support x 2,x4,x8,x16. fast forward or fast backward play

Voltage &Power Consumption

Power Management

Adaptive wide power input, support Wide Voltage, Over-load,Over-voltage,Short Circuit,Reverse Protection..Support Time Setting/Delay power off

Voltage Input

DC:+8V ~ +36V

Voltage Output

+12V 2.5A

Power Consumption

Normal Working <5W

Working Environment

Temperature

-20℃ to +70℃

Humidity

20% to 80%

Safety Management

Safety enter

user/Admin 2 Levels Different Passwords ,

others

Size

205 * 210* 68 mm

Net Weight

2 Kg
