Product Overview

Description

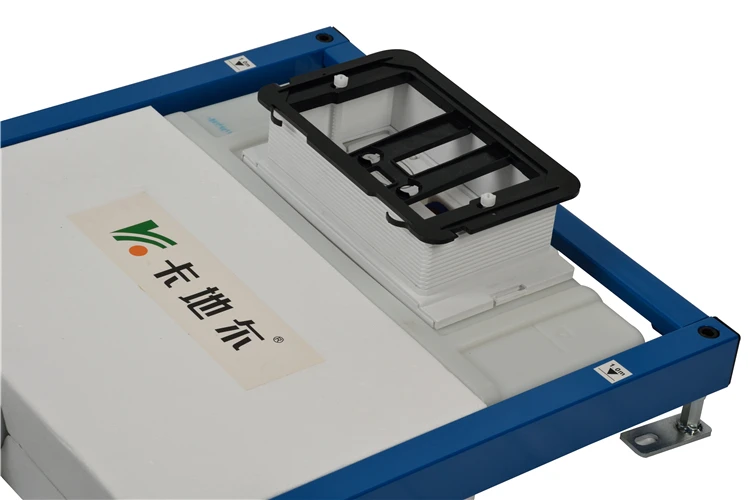

CE  90mm super slim in wall toilet concealed cistern support frame for wall hanging toilet














































































Speical points


Super slim High class D frame Concealed Flush Tank with 95mm tank body thickness, slim wall needed


Model NO.


011D


Certificate approval


CE


Dimension(mm)


1119x525x105


Flush pipe diameter


90mm


Carton Size (mm)


542x105x1100


Suit for


Bathroom wall hung toilet


Need wall thickness


≥120mm


Material


HDPE +metal frame


For wall


dry wall;pre-wall;dry half wall;pre-half wall


Flush volumn


3L/ 6L max. 8L


Panel size(mm)


250x165


Panel choices


Q/W/M/H/F/A/B/C/D


Panel color


chrome/satin/white/black/gold/ silver etc


Flushing


Dual flush


Frame undertake(kgs)


≥400


Delivery Time


LCL 7-10 days ,20GP & 40HQ need 20-25days


MOQ


50 PCS


Port of loading


SHUNDE,CHINA / SHENZHEN,CHINE/ GUANGZHOU,CHINA


Payment term


30% deposit and balance before delivery or against BL copy ; more than 40HQ make LC at sight


Price term


LCL-EXW SHUNDE,CHINA ;20GP & 40HQ : FOB SHUNDE,CHINA;If FOB SHENZHEN/GUANGZHOU need to add 200USD/container


Package details


Carton packing ,1set/ctn ;All fittings, include flush plate,frame,tank body with inner fittings and flush pipe.flush pipe packing size : 605x430x508mm (12pcs/ctn)


Loading qty


cistern : 0.0632CBM/CTN Flush pipe : 0.132CBM/CTN( 12pcs/ctn) Total : 0.0742CBM/SET 20GP: 350 sets 40GP: 770sets 40HQ: 890sets






Special point  :





With high class metal frame super slim concealed cistern for wall hung toilet use

With 90mm flush pipe for standard fitting ,also can choose 110mm if require

Cistern tank body with 96mm thickness ,can fix in 110mm thickness slim wall

If need more economic similar item can choose 011A ,if like another foot fixing way ,can choose 011T









































Metal frame installation guide
















We have Multiple choices push panels to decorate your bathroom ,ABS & stainless steel & Aluminium & Acrylic etc material ;and have multiple colors for choice,detals as below











The Technical size standard requirement and installation guide of Wall hung toilet.











Concealed cistern installation effect







Kardier Advantage




1.We are manufacturer factory ,mass production available .
2.One-stop procurement ,time and energy saving .
3.Founded in 1999 and now have export to 80 countries all over the world .
4.Fast delivery speed ,big enough storage space .
5.CE & WRAS & WATERMARK & WELS approval .
6.From material to finish products almost one shop production .
7.Quick response to inquiry .












Kardier New Showroom











Kardier Team











Kardier Fair & Customer Visit











Kardier Warehouse & Delivery Arrangement











Why to choose Kardier concealed cistern ?





1. Water saving: Save water by adjusting flush volume 3L-8L,even can be 3/4.5L .

2. Quiet : Tank body with foam & with silent fill valve & flush valve to debase noise.

3. Strong : Steel tube size 50x30mm ,frame undertake ≥400kg weight

4. Durable: HDPE tank body & painted metal frame is corrosion resistant and durable, using life over 50 years; fill valves & flush valves have 5 years guarantee and they can be easy buy after sales fittings and easy change .

5. Easy maintenance: replace and maintain the inner fittings through the flush plate hole ,no need to break wall ,and easy to install & uninstall fittings by hand without tools .

6. Space-saving: 011 series cistern can be hidden in the wall of 110mm thickness.







1. Is there the risk of leakage?

A: Our cistern tank is one piece out and implemented full-inspection, there are 0.01% risk of leaking. Tank body and fill valves and flush valves are 100% tested and finish products are sampling inspection,the risk less than 0.1% of leaking normally.

2. How to solve the after-sales problem?

A: we provide free spare parts for each shipment of 1% cistern order qty. If any quality problem , small problem provide spare parts and big problem we replace the cistern and pay for rebuild fee.

3.There are two choice of flush pipes ,how to choose ?

A: We have 90mm and 110mm two sizes flush bend pipes ,normally 011 series with 90mm flush pipe for the thin wall use ,all other items use 110mm flush pipe .

More questions ,pls feel free to contact with us .
