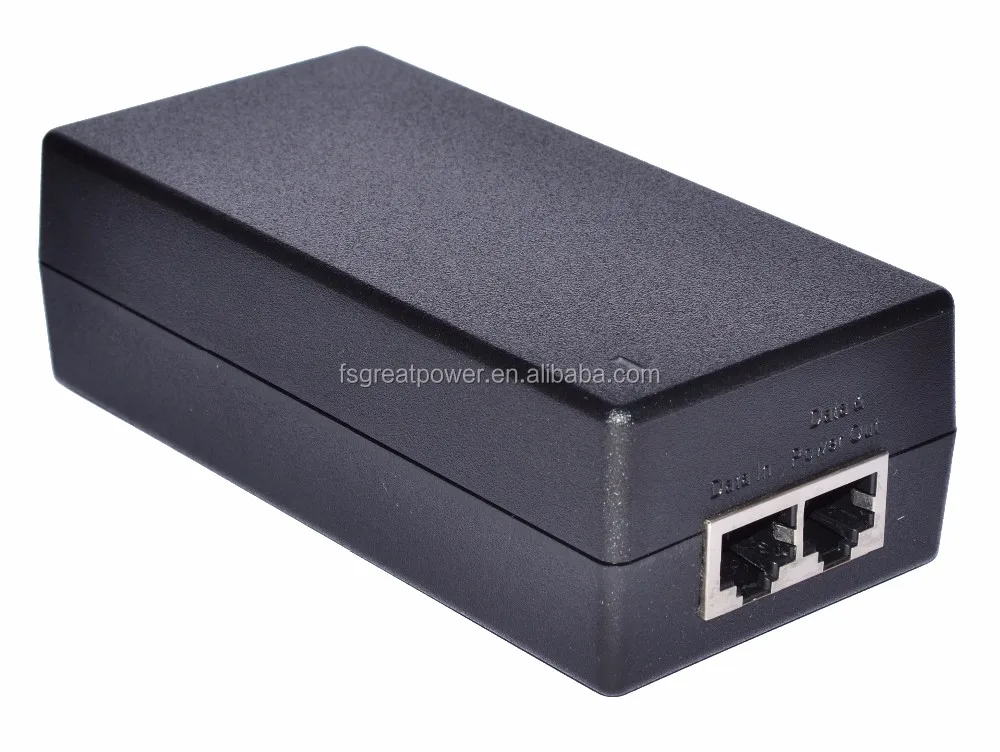

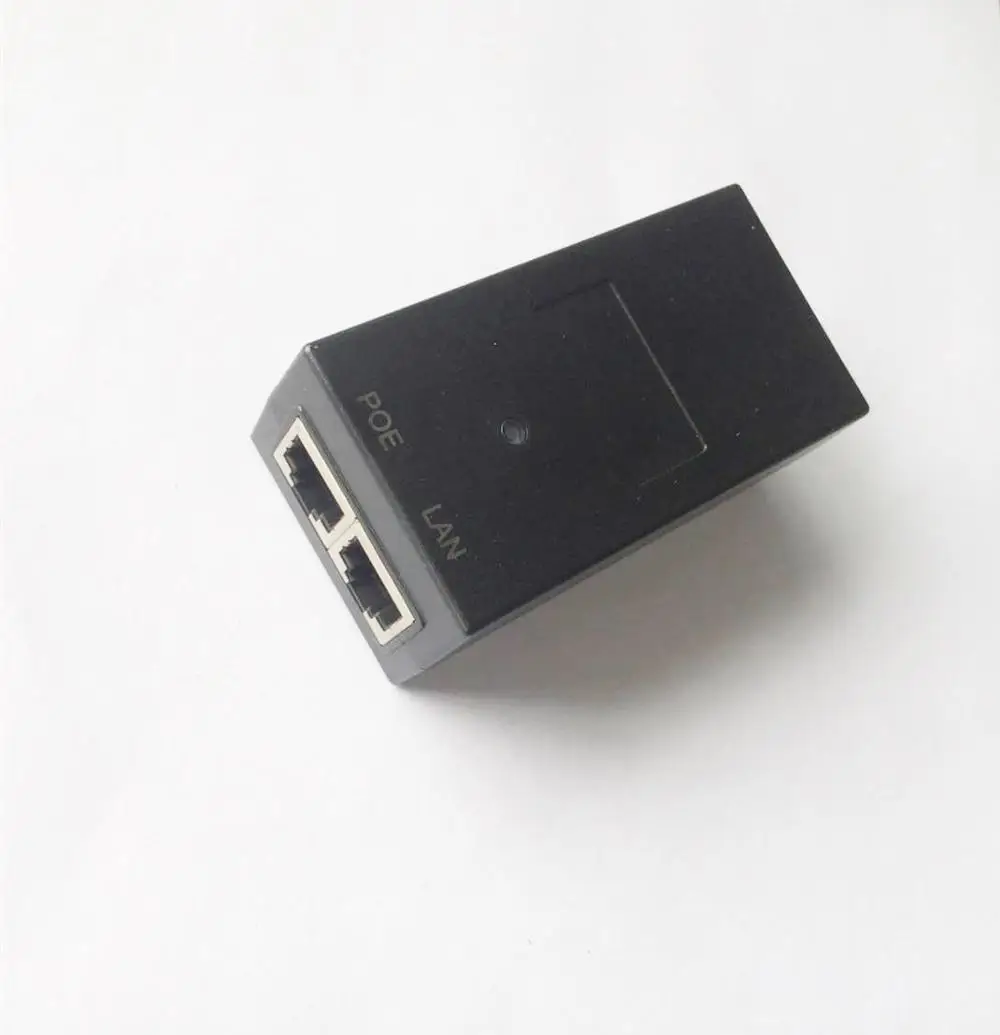

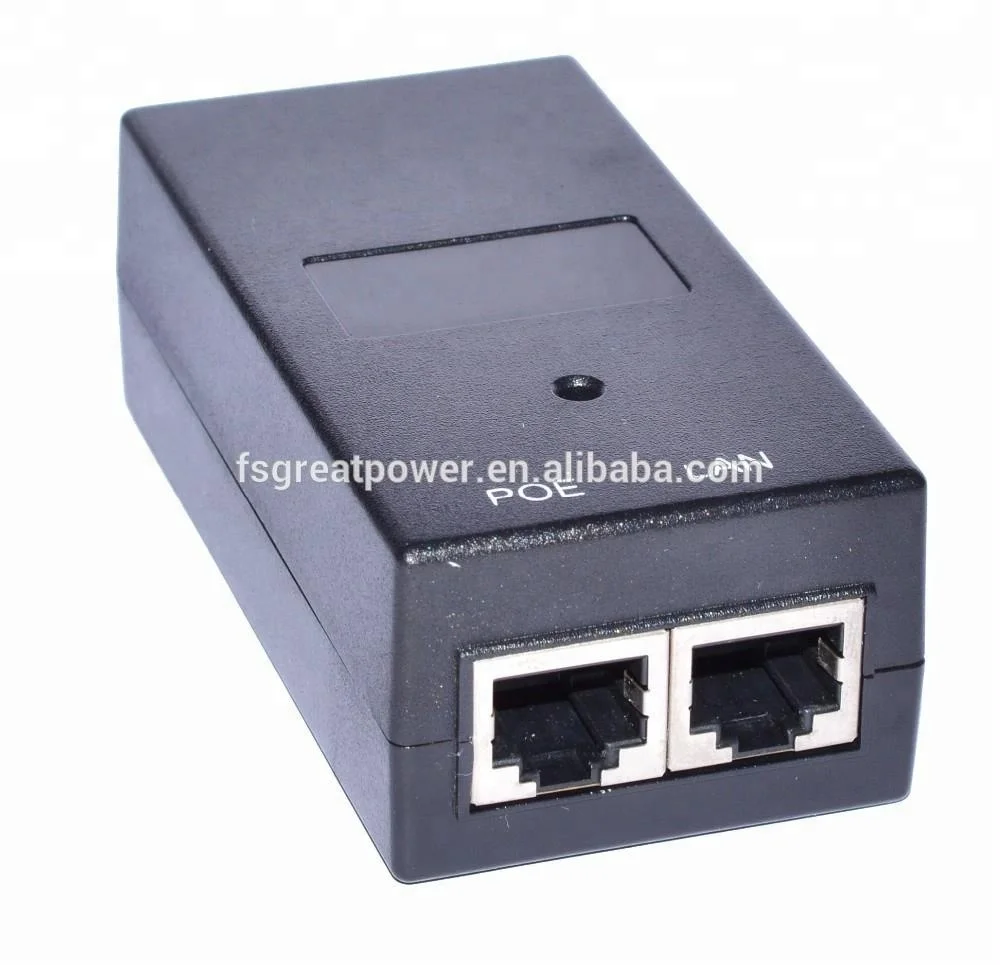

Пассивный Инжектор POE 12 Вт, 24 В постоянного тока, 0,5 А, разъем RJ45, настольный Wi Fi адаптер для быстрого Ethernet, переключатель POE 12 В, 36 В, 48 В
Пассивный Инжектор POE 12 Вт, 24 В постоянного тока, 0,5 А, разъем RJ45, настольный Wi-Fi адаптер для быстрого Ethernet, переключатель POE 12 В, 36 В, 48 В
Пассивный Инжектор POE 12 Вт, 24 В постоянного тока, 0,5 А, разъем RJ45, настольный Wi-Fi адаптер для быстрого Ethernet, переключатель POE 12 В, 36 В, 48 В
Пассивный Инжектор POE 12 Вт, 24 В постоянного тока, 0,5 А, разъем RJ45, настольный Wi-Fi адаптер для быстрого Ethernet, переключатель POE 12 В, 36 В, 48 В

Пассивный Инжектор POE 12 Вт, 24 В постоянного тока, 0,5 А, разъем RJ45, настольный Wi Fi адаптер для быстрого Ethernet, переключатель POE 12 В, 36 В, 48 В

Share on (60799884100):


Price:

Quantity:


Product Overview

Description


Product Description
\t
Model Number
\t
GRT-240050(POE20)
\t
Efficiency
\t
≥80%
\t
Input Voltage
\t
100-240Vac, 50~60Hz (92~264Vac)
\t
Response Time
\t
<1ns
\t
Input Current
\t
0.6A(RMS) max.
\t
Combined Load Regualtion
\t
±3%
\t
Input Type
\t
Desk-top type, IEC320-C6 or C8
\t
Combined Line Regualtion
\t
±5%
\t
Output Voltage / Power
\t
24Vdc 0.5A 12W
\t
LED indicator
\t
Power on, Green (With Plastic enclosure)
\t
Output type
\t
Single output
1*RJ45 connector ---POE
1*RJ45 connector ----LAN
\t
Operating Temp
\t
0 to 40℃ (32 to 104℉)
\t
Ethernet speed
\t
10/100Mbps:
Pin 12/36 or 45/78,2 pairs 10/100/1000Mbps:
Pin 12/36 or 45/78, 2 pairs
\t
Storage Temp
\t
(-)20 to 85 ℃ ( -22 to 158 ℉)
\t
IEEE802.3 standard
\t
Non-compliance IEEE802.3AF/802.3AT protocol standard
\t
Operating Humidity
\t
10~ 90% Non condensing
\t
Material
\t
Plastic
\t
Shipment
\t
By Sea or By Air
Express:DHL/UPS/TNT/FEDEX etc
\t
Approval
\t
CE/ROHS/FC /UL
\t
Package
\t
Inner white box + Outer box
\t
Warranty
\t
2 years
\t
Carton Size
\t
460*390*200mm (L*W*H)
\t
Output Ripple
\t
1% Max
\t
Qty/ Carton
\t
50pcs

* Support long distance for data, up to 100meters

* Data and Power passed by the ethernet cable

* Full protection:Overload/Over current/ Over voltage/ Short circuit

* Application: IP Phone, Voip Phone, Wireless Networks Access Points, IP print servers, Blue tooth access points , Security Cameras, smart door systerm and more
