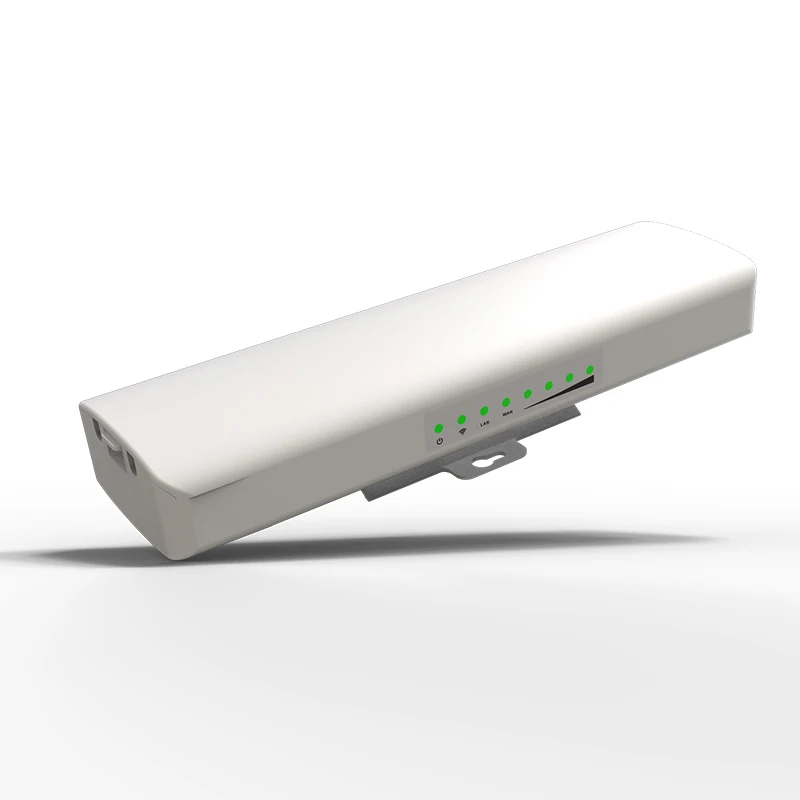

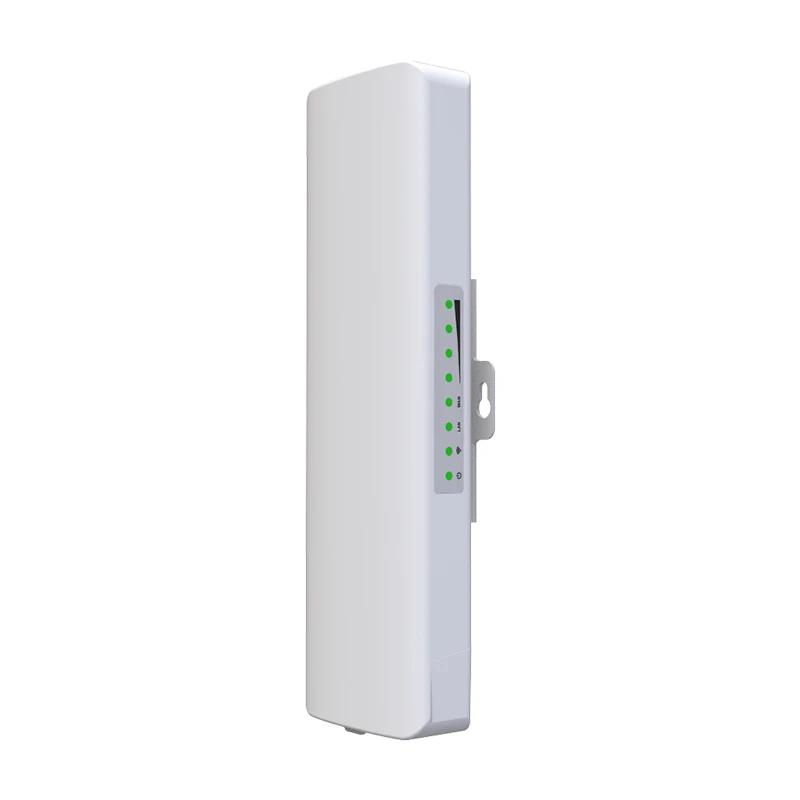

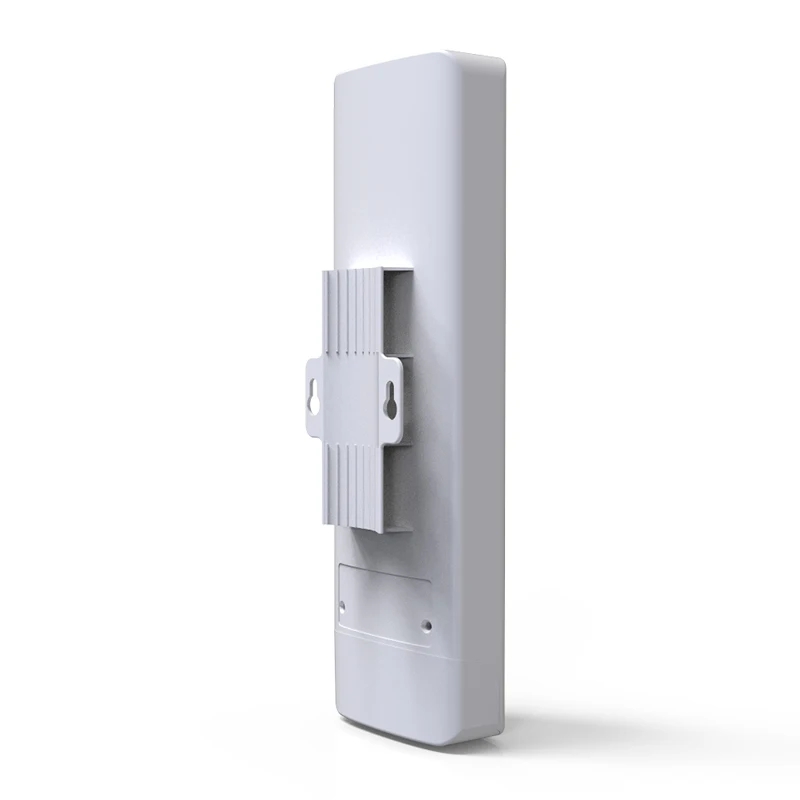

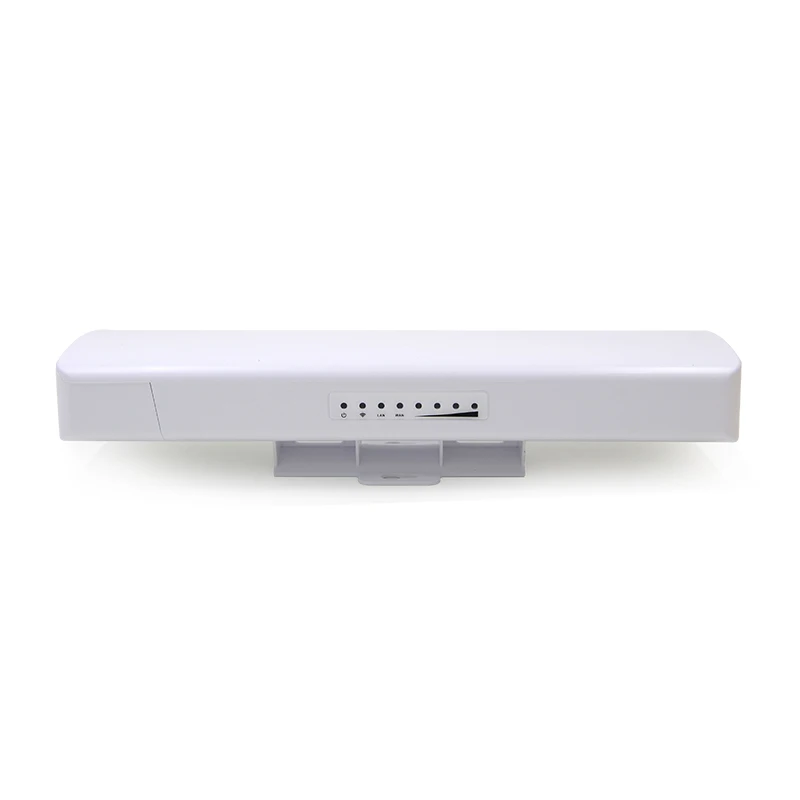

Comfast CF E314N 3KM 5KM 10KM outdoor wireless cpe wireless device long range powerful antennas 300Mbps outdoor CPE 2.4Ghz P2P
- Category: >>>
- Supplier: Shenzhen Sihaijialan Electronic Technology Co. Ltd.
Share on (60799885120):
Product Overview
Description
Comfast CF-E314N 3KM 5KM 10KM outdoor wireless cpe wireless device long range powerful antennas 300Mbps outdoor CPE 2.4Ghz P2P
Product Description
Comfast CF-E314N, the high-efficient 14dBi directional with polarization antenna provides an optimum, extended real outdoor throughput performance via point to point and multi points transmission in long range distances. The good waterproof ability with compact, robust design can be diversely configured and operated in the extremely harsh outdoor environment. Its advanced multi-operation modes (WDS Bridge, AP, WISP, Router) can offer variety uses in constructing scalable wireless network of lots possible applications.
Features
| Hardware Specification | Qualcomm QCA9531 650Mhz, Industrial Grade CPU; DDR: 64MB; Flash: 16MB; |
| Antenna | Built-in 14dBi Antenna |
| Wireless Standard | IEEE802.11b/g/n |
| RF Parameters | Output Power (Max): 500mW (27dBm); |
| Receiving Sensitivity (Max): -96dBm; | |
| Frequency:802.11b/g/n:2.3GHz-2.7GHz | |
| Modulation Mode | DSSS: DBPSK@ 1Mbps, DQPSK@ 2Mbps, CCK@ 5.5/11Mbps; |
| OFDM: BPSK@ 6/9Mbps, QPSK@ 12/18Mbps, 16-QAM@ 24Mbps, 64-QAM@ 48/54Mbps; | |
| MIMO-OFDM: MCS 0-15 | |

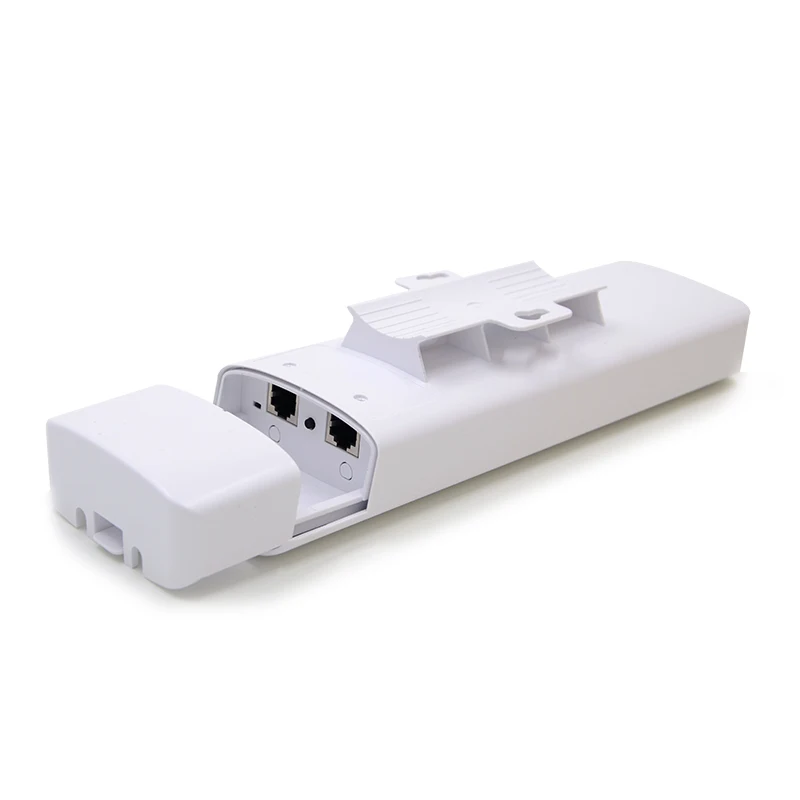

| Physical Ports | 1* 10/100Mbps WAN RJ45 Ethernet Port; |
| 1* 10/100Mbps LAN RJ45 Ethernet Port; | |
| 1* POE Output Slide Switch; | |
| 1* RESET Button | |
| Indicator | 8* Indicators:Power/WAN/LAN/WiFi/Signal Strength |
| Power | Power Supply: Support 802.3af/at; |
| Power Adapter: 24V/48V POE Power Adapter | |
| Power Consumption(Max) | <5W |
| IP Index | 2KV Lightning Protection; IP63 |
| MTBF | >250000H |
| Installation Way | Wall-mounted/Pole-mounted/Rack-mounting |
| Case | Plastic Case (Imported ABS Material) |
| Physical Features | Size: 262*80*53MM; Weight: 0.32KG |
| Working Environment | Working Temperature: -40 C~55 C; |
| Storage Temperature: -50 C~75 C; | |
| Working Humidity: 10%~90%RH Non-condensing; | |
| Storage Humidity: 5%~90%RH Non-condensing |
Company Information
Shenzhen Four Seas Global Link Network Technology Co. Ltd. established in 2009, located in Shenzhen, adjacent to HK, with several years hard working, we have built up a worldwide recognized brand"COMFAST"in Wireless Network Products industry.
Our products are mainly wireless usb adapters, wireless access point, wireless router, switches, wireless antenna,etc.
Most of them have been approved by CE/ROHS/FCC. We have been exporting our devices to over 50 countries. We have our own R&D team with more than 15 engineers. Provide OEM and ODM service. We are proud to be the selected reliable supplier in Wireless Network Products for Europe, America, Middle East, Asia and Australia etc.
“Be Excellent, Be Creative” has always been our company’s spirit. We will stick to it and provide better products and service for our esteemed customers.
CONTACT
For more details, pls feel free to contact us, thanks
Louis Zou
Whatsapp/ WeChat/ Mob: +86 13590226909
Website: //www.szcomfast.com
Please kindly let us know the models and specs you need, so we can better recommend you the correct models, also can support OEM & ODM services;
Thanks for checking our page, have a nice day:) Cheers
