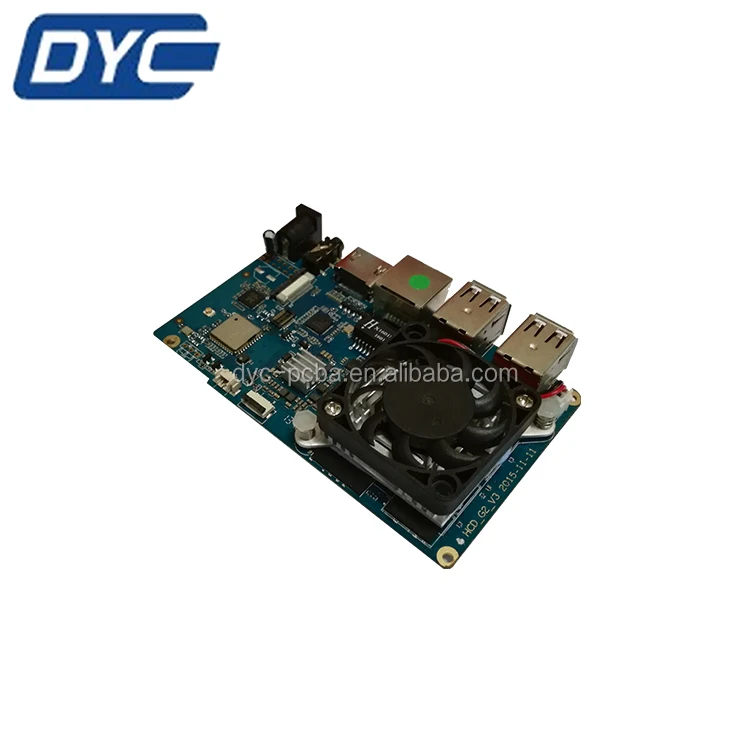

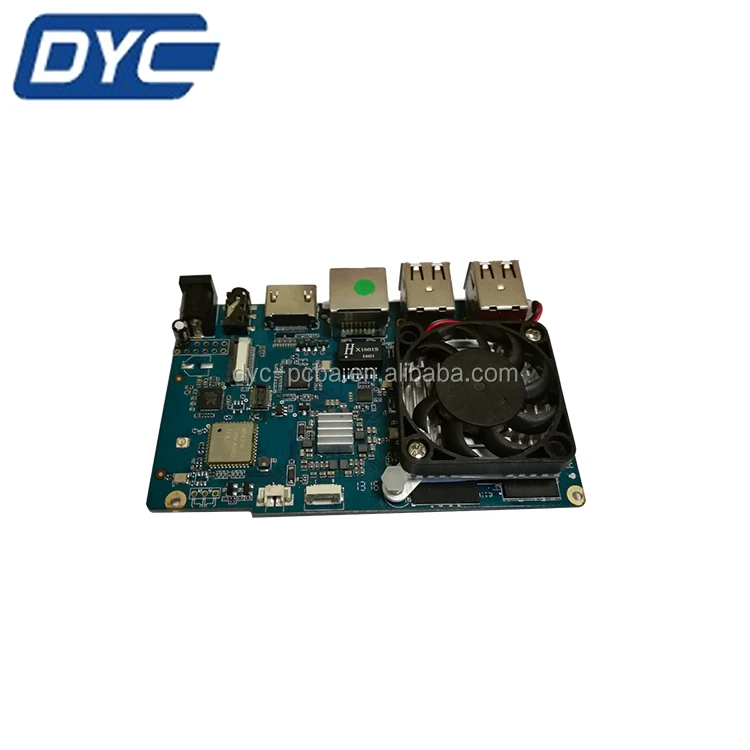

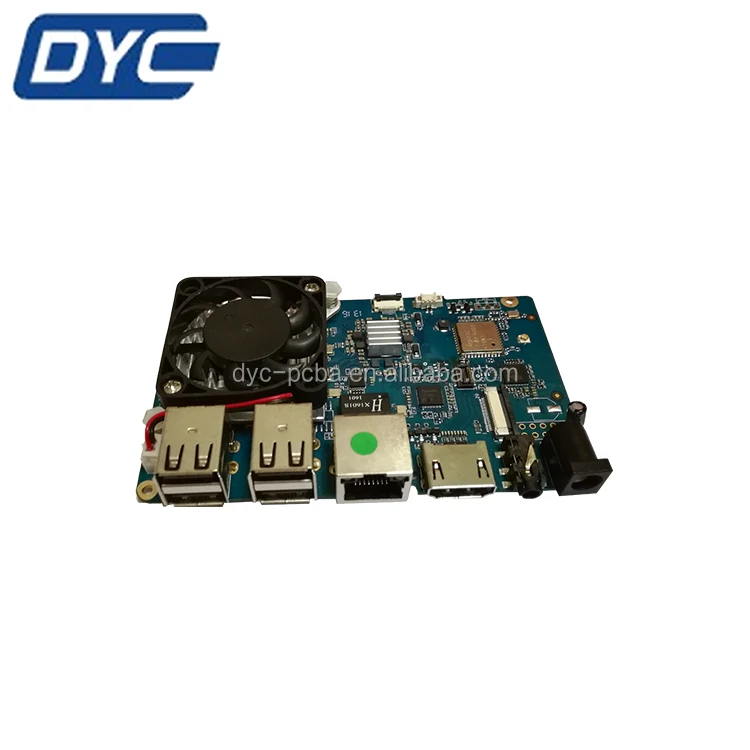

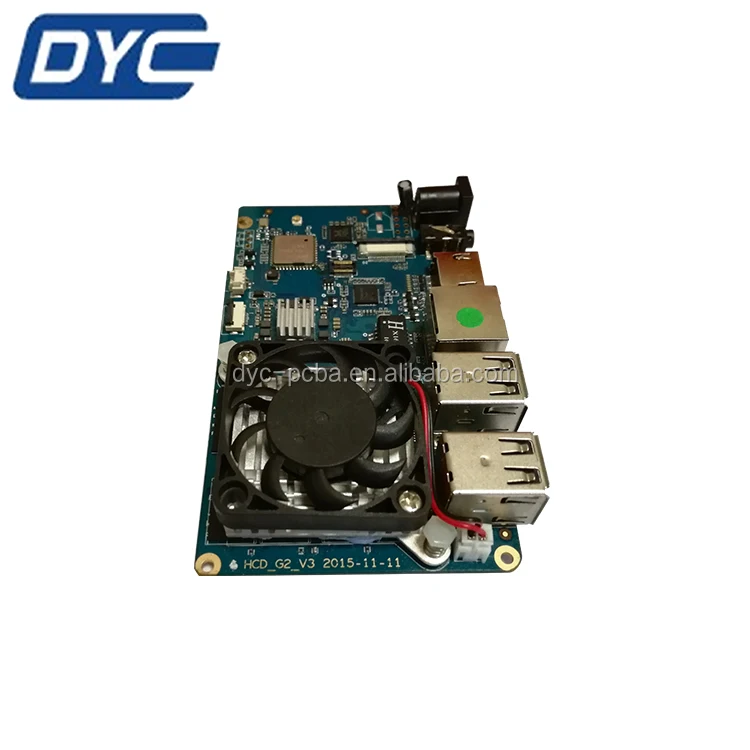

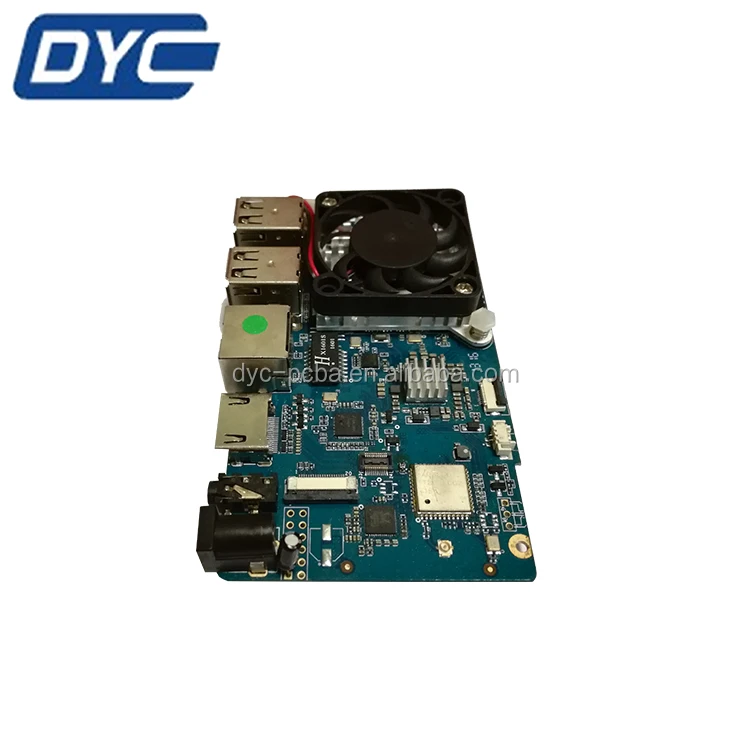

shenzhen electronic board and power amplifier circuit board
- Category: Rigid PCB >>>
- Supplier: Shenzhen Dyc Electronic Technology Co. Ltd.
Share on (60799886443):
Product Overview
Description
shenzhen electronic board and power amplifier board
Our Services
1. PCB design ,PCB clone and copy ,ODM service.
2. Schematic design and Layout
3. Fast PCB&PCBA prototype and Mass Production
4. Electronic Components Sourcing Services
5. PCB Assembly Services:SMT,DIP&THT,BGA repair and reballing
6. ICT, Constant Temperature Burn-in and Function Test
7. Stencil,Cables and Enclosure building
8. Standard Packing and On time Delivery
Product Description
Our PCBA and PCB Capability
Layer:1~30 layers
Materials: FR-4, CEM-3, Teflon, Aluminum, Rogers, High Tg
Surface finished:Lead Free HASL,Immersion Gold/Tin/Silver, OSP, Gold Finger Plating, Selective Immersion Gold,Gold Plating
| PCB Assembly Manufacturing | Available PCB Assembly Services | PCB Assembly Machines |
| 5 SMT lines | Up to 12 layers, blind and buried via, impedance, heavy copper, HDI. | YAMAHA YS12F series SMT |
| mounters | ||
| 2 DIP lines | SMT/DIP | Auto solder paste screen printer |
| 0201 component | In circuit test | Reflow ovens with 10 zones |
| 0.25mm BGA | Function circuit test | Auto optical inspection |
| SMT 5 million spot daily | Burn in test | Wave soldering (lead-free) |
| DIP 1 million spot daily | Box Building | PCB assembly test room |
| English | Metric | |||
| 1 | Max. Panel Size | 22" x 26" | 550 x 650mm | |
| 2 | Mechanical Drill | |||
| Min. Finished Holes Size | 0.004" | 0.10mm | ||
| Finished Holes Tolerance | PTH | ±0.003" | ±0.075mm | |
| NPTH | ±0.002" | ±0.050mm | ||
| Press Fit | ±0.002" | ±0.050mm | ||
| Aspect Ratio | 9:01 | 9:01 | ||
| 3 | Laser Drill | |||
| Microvias diameter | 0.004" - 0.006" | 0.10 - 0.15mm | ||
| Aspect Ratio | 1:01 | 1:01 | ||
| 4 | Min. Line Width/Spacing | ½oz / 18um | 0.003" / 0.003" | 0.075 / 0.075mm |
| 1oz / 35um | 0.006" / 0.006" | 0.15 / 0.15mm | ||
| 2oz / 70um | 0.008" / 0.008" | 0.20 / 0.20mm | ||
| 3oz / 105um | 0.010" / 0.010" | 0.25 / 0.25mm | ||
| 5 | Registration | |||
| Solder Mask | ±0.003" | ±0.075mm | ||
| Layer to Layer | ±0.0024" | ±0.060mm | ||
| Copper Feature to Holes(Outer) | ±0.003" | ±0.075mm | ||
| Min. Plated Drills to Copper (inner) | 2L - 8L | 0.010" | 0.25mm | |
| 10L -30L | 0.012" | 0.30mm | ||
| 6 | Board Outline | |||
| Edge to Edge Tolerance | ±0.004" | ±0.10mm | ||
| Holes to Edge Tolerance | ±0.004" | ±0.100mm | ||
| Min. Copper to Edge distance | Outer | 0.010" | 0.25mm | |
| Inner | 0.016" | 0.40mm | ||
| 7 | Max. Copper Thickness | 4oz | 140μm | |
| 8 | Max. Board Thickness | 0.189" | 4.80 mm | |
| 9 | Min Board Thickness | 2L | 0.008" | 0.20mm |
| 4L | 0.016" | 0.40mm | ||
| 6L -30L | 0.020" | 0.60mm | ||
| 10 | Min. Core Thickness | 0.004" | 0.10mm | |
| 11 | Min. Soldermask Dam | 0.004" | 0.10mm | |
| 12 | Controlled Impedance (Ohm) | ±7% - 10% | ±7% - 10% | |
Production Flow Chat
Why choose DYC?
1,24 hours online one-stop service
2,Quick response and delivery.
3,Strict quality management
4,Professional engineering and technical team
5,Electronic components from the original.
6,Long - term cooperative shipping company
7,Free samples
8,Excellent after-sales service
FAQ
Q1: How do you make sure the quality of the PCBs?
A1: Our PCBs are all 100% test including Flying Probe Test, E-test or AOI.
Q2: What is the lead time?
A2: Sample needs 2-4 working days, mass production needs 7-10 working days. It depends on the files and quantity.
Q3: Can I get the best price?
A3: Yes. To help customers control cost is what we are always trying to do. Our engineers will provide the best design to save PCB material.
Q4: What files should we provide for a customized order?
A4: If only need PCBs, the Gerber files are needed; If need PCBA, both Gerber files and BOM are needed;If need PCB design,all requirement details are needed.
Q5:Can I get a free sample?
A5:Yes, Welcome to experience our service and quality.you need make the payment at first,and we will return the sample cost when your next bulk order.
Any other questions please contact us directly.As a global supplier of PCB /PCBA,we will meet the needs of customers world wide,with professional technology and sincere spirit of service and reasonable price, delivery on time. We look forward to your visit and establish long-term cooperation.
