Product Overview

Description


Product Description Product Description
Hidden toilet flush cistern tank system for wall hunging toilet
Speical points
High class T frame Concealed Toilet Tank with 127mm tank body
Item No
009T
Certificate approval
CE
Dimension(mm)
512x127x1054mm
Flush pipe size
110mm
Carton Size (mm)
523x150x1100
Suit for
Wall hung pan
Need wall thickness
≥155mm
Material
HDPE +T metal frame
Panel (mm)
250x165
Panel choices
Q/W/M/H/F/A/B/C/D
Panel color
satin/white/black/chrome/gold/ silver etc
Flushing
Dual flush
Frame undertakes
≥400kgs
Delivery Time
LCL 7-10 days ,20GP & 40HQ need 20-25days
MOQ
50 PCS
Port of loading
SHUNDE,CHINA / SHENZHEN,CHINE/ GUANGZHOU,CHINA

Special point:



High class metal frame with bearing over 400kg weight ,the foot of fixing way different from 009D

If you want the super slim item ,please choose 011A or 011D or 011T .

with 110mm HDPE material black color flush bend pipe , 90mm flush bend pipe also be accepted

Suit for wall hung toilet.

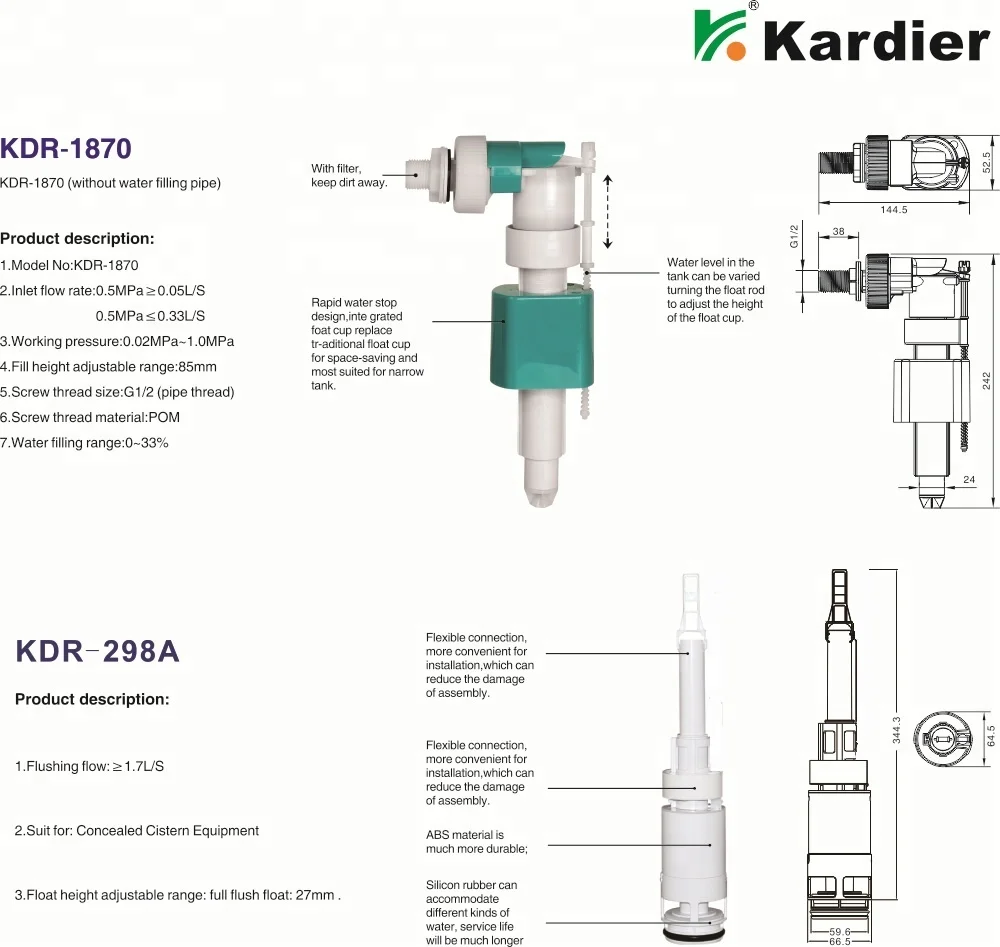

Malfunction and solve way of flush valve :

Problem 1 : cannot flush water

Reason 1 : The flush pole distortion or break , Solve way : replace the flush pole

Reason 2 : The working water level too low ,Solve way : Adjust the working water level

Problem 2: Appear Leak

Reason 1: The sealed rubber can not seal water ,Solve way : Replace the sealed rubber

Reason 2 :The movement of flush valve is blocked ,Solve way : Wash the dirt of flush valve

Product Details Product Details

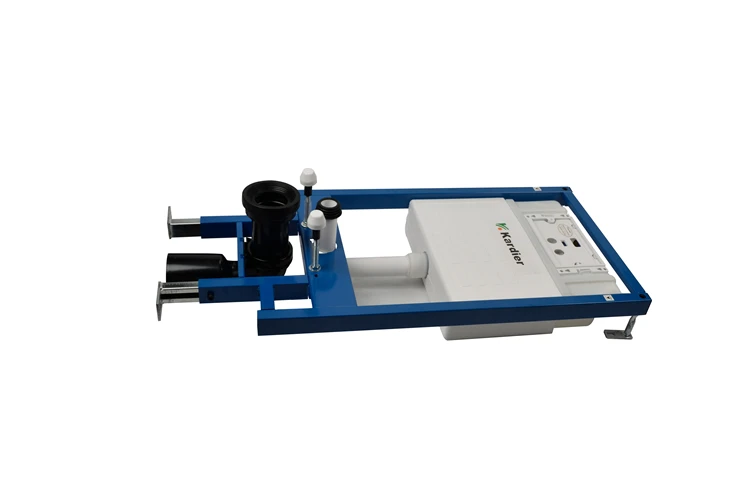

Metal frame installation guide

We have Multiple choices push panels to decorate your bathroom ,ABS & stainless steel & Aluminium & Acrylic etc material ;and have multiple colors for choice,detals as below

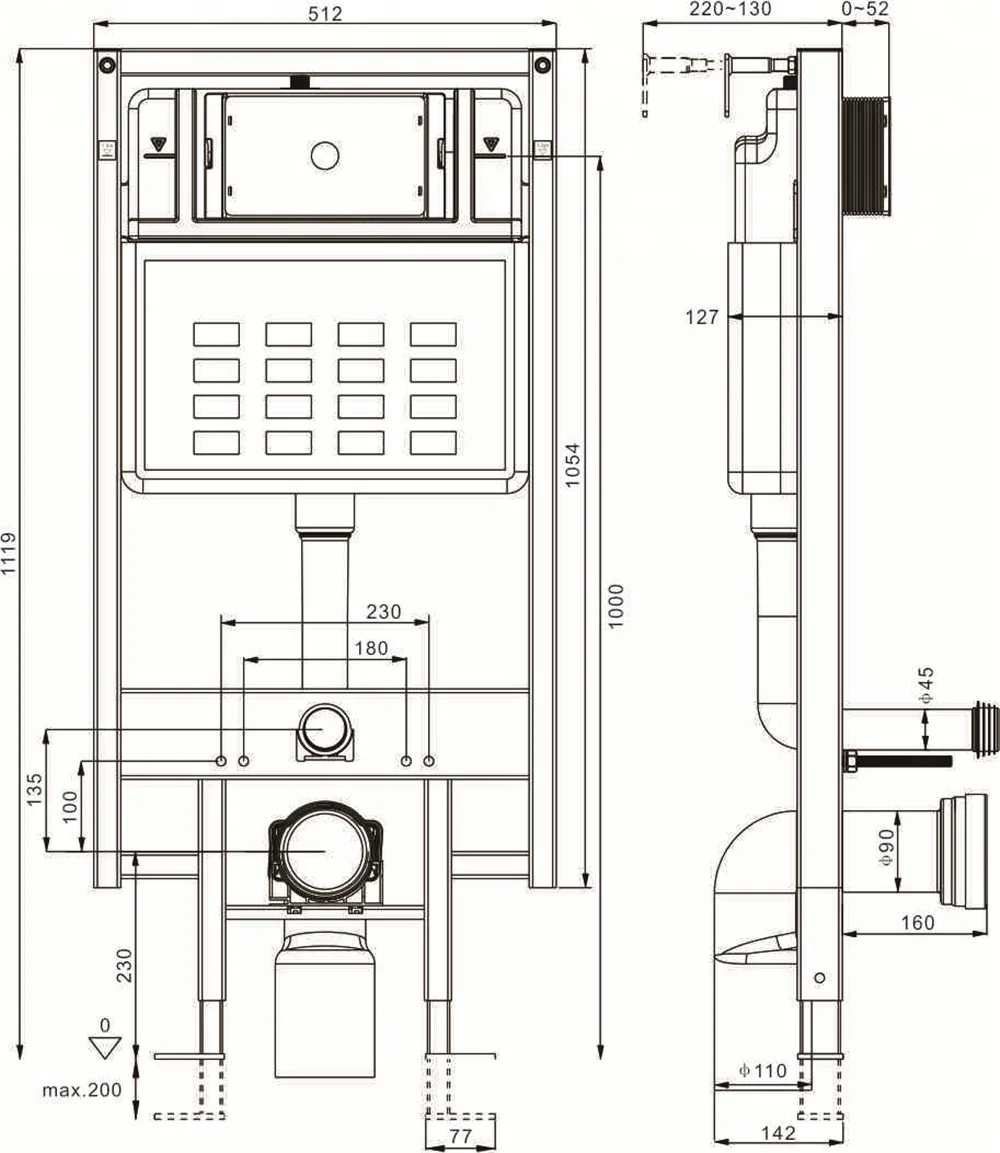

The Technical size standard requirement and installation guide of Wall hung toilet.




Factory Introduce Factory Introduce

Kardier Advantage

1.We are manufacturer factory ,mass production available .
2.One-stop procurement ,time and energy saving .
3.Founded in 1999 and now have export to 80 countries all over the world .
4.Fast delivery speed ,big enough storage space .
5.CE & WRAS & WATERMARK & WELS approval .
6.From material to finish products almost one shop production .
7.Quick response to inquiry .

Kardier New Showroom


Kardier Warehouse & Delivery Arrangement


Kardier Products Range


Why choose us Why choose us
Why to choose Kardier concealed cistern ?



1. Clean: Pretty easy to clean the bathroom without missing corner.

2. Water saving: Save water by adjusting flush volume 3L-8L,even can be 3/4.5L .

3. Quiet : Tank body with foam & with silent fill valve & flush valve to debase noise.

4. Strong : Steel tube size 50x30mm ,frame undertake ≥400kg weight

5. Durable: HDPE tank body & painted metal frame is corrosion resistant and durable, using life over 50 years; fill valves & flush valves have 5 years guarantee and they can be easy buy after sales fittings and easy change .

6. Easy maintenance: replace and maintain the inner fittings through the flush plate hole ,no need to break wall ,and easy to install & uninstall fittings by hand without tools .


FAQ FAQ

1. What is the difference between A & D & T frame cistern ?
A: A frame is more economic, D & T frame is more high class and stronger. D frame and T frame with different shape ,but function and quality exactly the same ,can choose either item you like .



2. How to choose the item suitable for me ?
A: We have a table to tell you how to choose , pls kindly check or just contact with us to explain you .

3. What certifications do we have?
A: Most of our concealed cisterns with CE & WRAS & WATERMARK & WELS certificates approval .pls kindly check our certificate item table for your reference ,or just contact with us for more details .


4.Can i get better price ?
A: Yes ,there are different price for LCL,20GP and 40HQ qty .take more qty then with more discount ,pls kindly let us know your purchase qty for us give you the best price .

5. How long is the delivery time?
A: Under normal conditions, LCL just need around 7~10days and 20GP & 40HQ need 20 to 25 days. The first time OEM order as need to confirm all package and logo drawings will need more time .


6. What is the push panel size?
A: 250x165mm for all 009 & 011 series cisterns ; 228x140mm for 010 series cistern

7. Do you offer OEM service?
A: Yes, but you need provide certification of trademark authorization and trademark registration certificate.

8. Does it have the noise avoiding?
A: Tank body with foam & with silent fill valve & flush valve to debase noise.

9.There are two choice of flush pipes ,how to choose ?
A: We have 90mm and 110mm two sizes flush bend pipes ,normally 011 series with 90mm flush pipe for the thin wall use ,all other items use 110mm flush pipe .

More questions ,pls feel free to contact with us .
