Пресс для фильтров и пластин из нержавеющей стали

Product Overview

Description

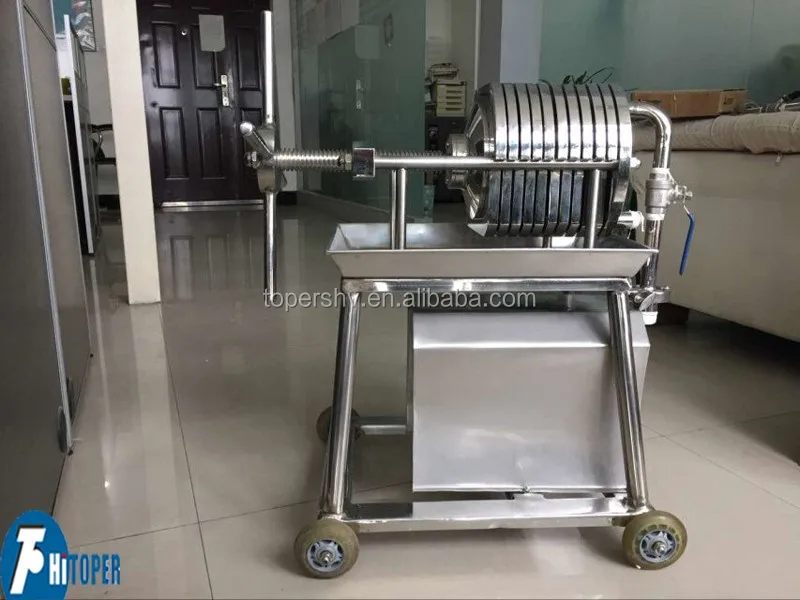

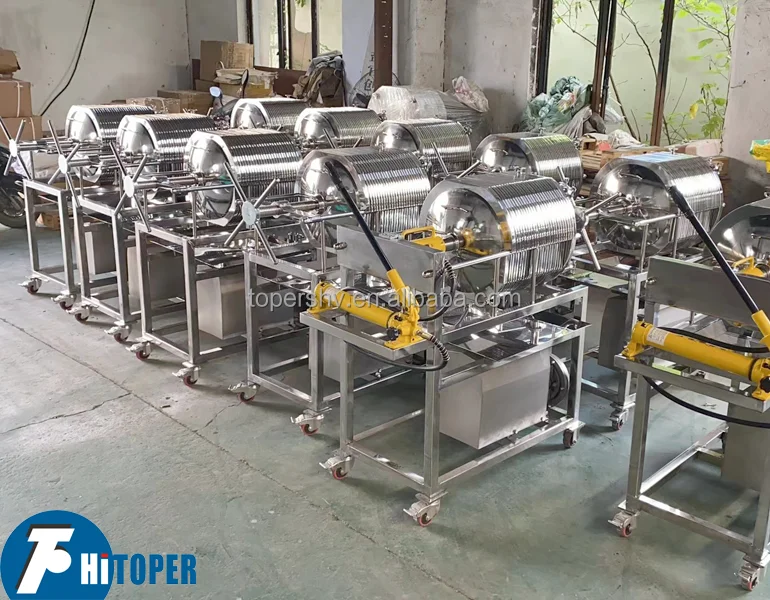

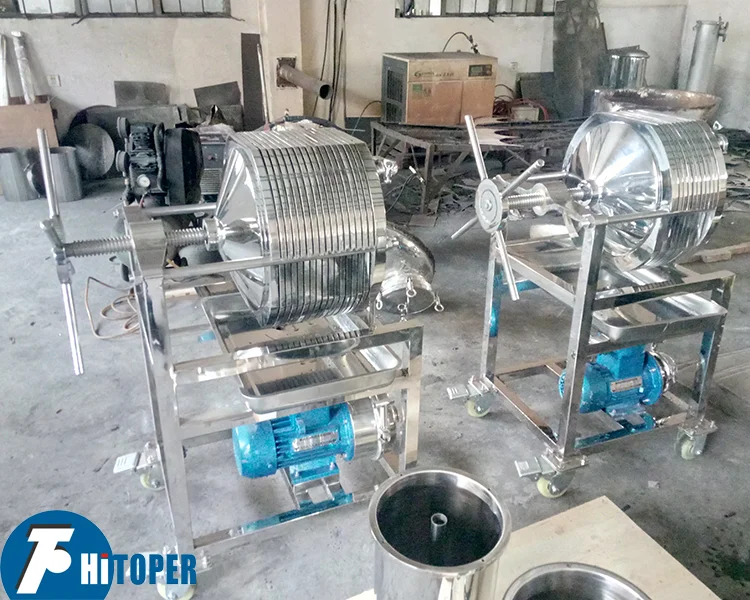

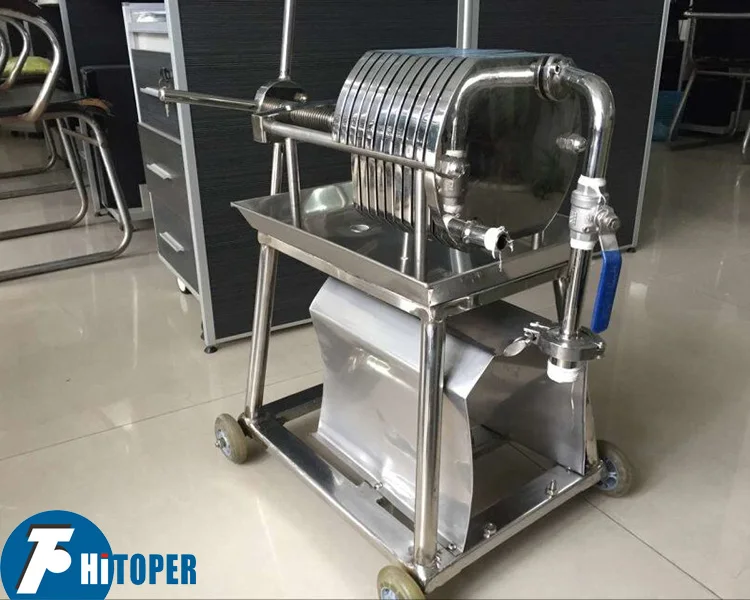

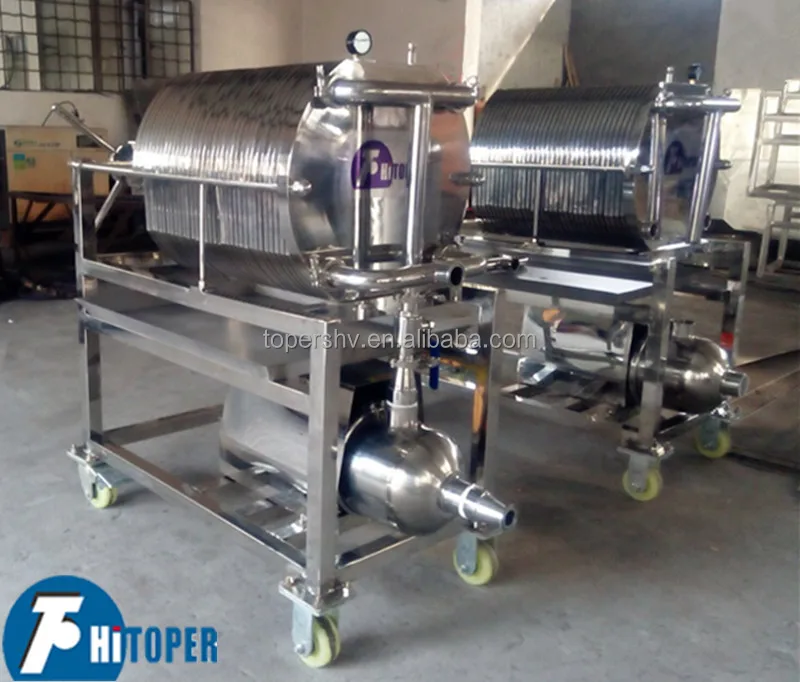

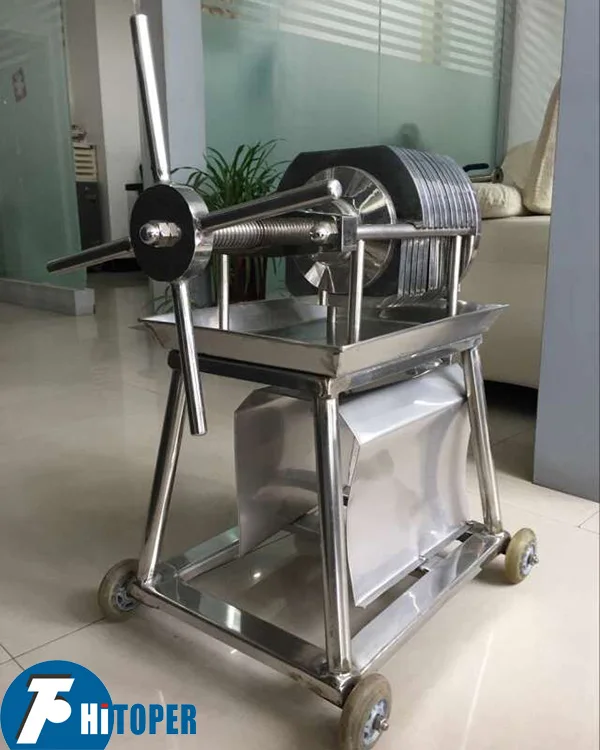

Stainless steel multi-layer plate and frame sheet filter press









The machine is stainless steel multi-layer plate and frame sheet filter. It is fit for enclosed filter in liquids with concentration 50%, low viscosity and little slag so as to meet precision filter and half-precision filter requirements like refining, sterilization and clarification. By directly using microporous membrane, material can achieve aseptic filtration without passing microporous membrane filter.



Characteristics:

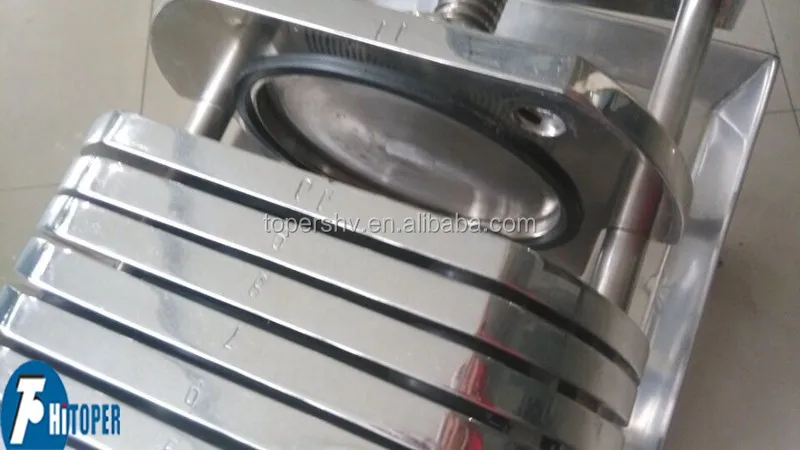

This machine is made by SUS304 or SUS316L high grade stainless steel with corrosion resistance. Filter plate is designed screw structure ,can change different filter material according to different filter medium and productive technology. also can increase or decrease the quantity of layer according to your filter flow. When it is working, it filtrates with pressure seal, no lose of liquid and good clearity. You can customize multistage filter device, first stage is rough filter stage, secondary is fine filter stage, then can safe time , increase your filter ratings. The sealing part of this machine is silica gel seal with high-temperature resistance, non-poisonous and no leakage.



Technical paramaters:

Model	Layer	Filter  area(m2)	The size of filter material(mm)	Filter medium(μm)	Filtration pressure (Mpa)	Water flow (t/h)	Motor power (kw)	Overall dimension (mm)
DZCR-100	10	0.078	φ100	0.8	0.15	0.8	0.55	600x300x600
DZCR-150	10	0.17	φ150	0.8	0.15	1.5	0.75	650x380x650
DZCR-200	10	0.34	φ200	0.8	1.5	2	1.1	650x400x700
DZCR-300	10	0.7	φ300	0.8	0.15	4	1.1	700x500x800
DZCR-400	10	1.25	φ400	0.8	0.15	6	1.1	900x600x1000
DZCR-400	16	2	φ400	0.8	0.15	9	1.5	1000x600x1000
DZCR-400	20	2.5	φ400	0.8	0.2	10	1.5	1100x600x1000
DZCR-400	32	4	φ400	0.8	0.3	13	2.2	1320x600x1000
DZF-200	10	0.4	200X200	0.8	0.15	3	1.1	650x380x650
DZF-300	10	0.9	300X300	0.8	0.15	6	1.1	700x500x800
DZF-400	10	2	400x400	0.8	0.15	10	1.5	900x600x1000
DZF-400	20	3	400x400	0.8	0.15	12	1.2	1100x600x1000
DZF-400	26	4	400x400	0.8	0.2	15	2.2	1150x600x1000
DZF-400	32	5	400x400	0.8	0.2	18	2.2	1200x600x1000
DZF-400	38	6	400x400	0.8	0.3	21	2.2	1300x600x1000
DZF-400	44	7	400x400	0.8	0.3	23	3	1350x600x1000

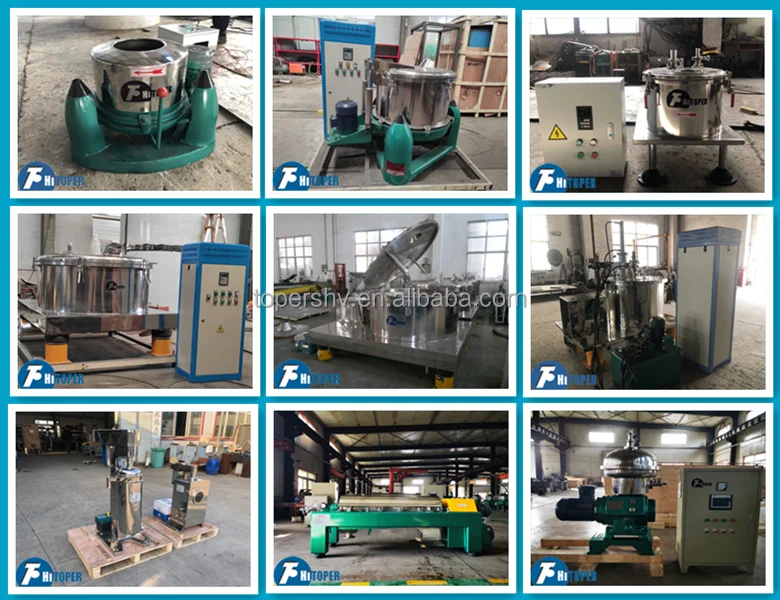

Various filter and separate machinery in our factory.





If any you are interested in, contact our person Joycee Chen with below infos.
