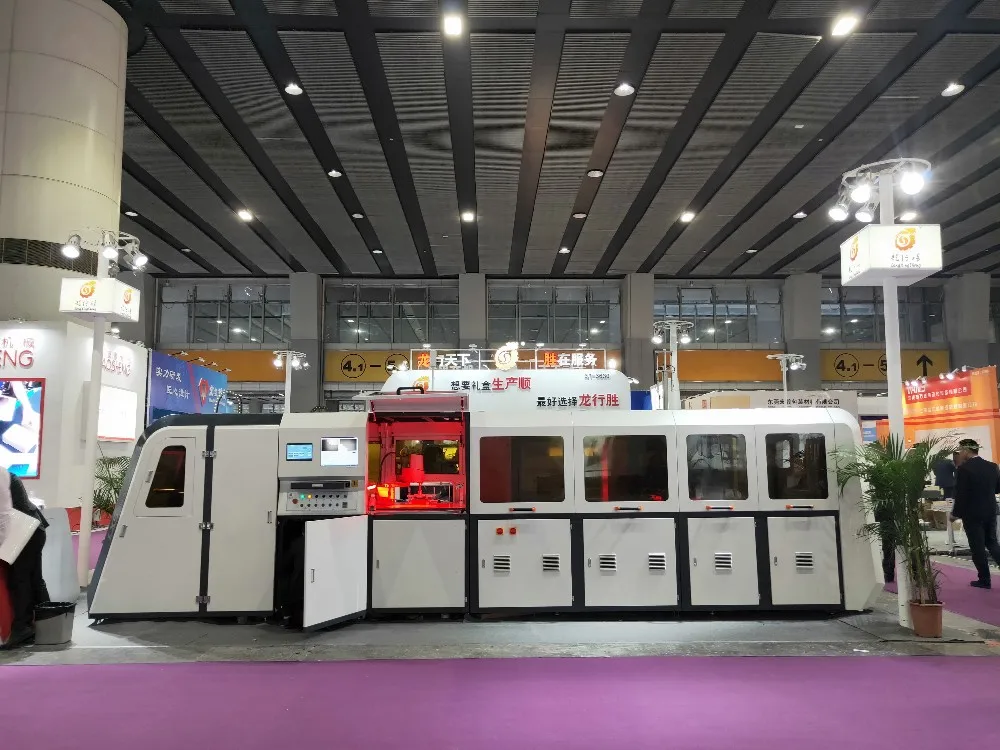

Fully Automatic Rigid Box Making Machine for perfume box
- Category: >>>
- Supplier: Dongguan Longxingjian Intelligent Equipment Co. Ltd.
Share on (60799956007):
Product Overview
Description
Products Description
Main features
1. Full cover, bullet train type cover, anti dust, low noise, able to control the temperature by built-in air conditioner.
2. High Speed, Suitable for big orders. especially for the orders which are more than 50,000 pcs at one time for the same size,because one line can make around 14000 pcs/ day. Better service for long-term and stable orders
3. Dual-forming stations, box forming has divided into two forming stations, increasing whole line working speed.
4. Pick up box system, can avoid to scraping cover paper, suitable for making high-end boxes
5. YAMAHA Robotic arm
6. Double Germany cameras (1000 pixels)
7. Mitsubishi servo motor
8. Panasonic PLC
9. Anti-leaking gluing system
10.Servo motor feeding system
11. Storage function for the positioning part, easy to adjustment.
7. Mitsubishi servo motor
8. Panasonic PLC
9. Anti-leaking gluing system
10.Servo motor feeding system
11. Storage function for the positioning part, easy to adjustment.
Price vary with raw material cost, please contact our sales for lastest prices.

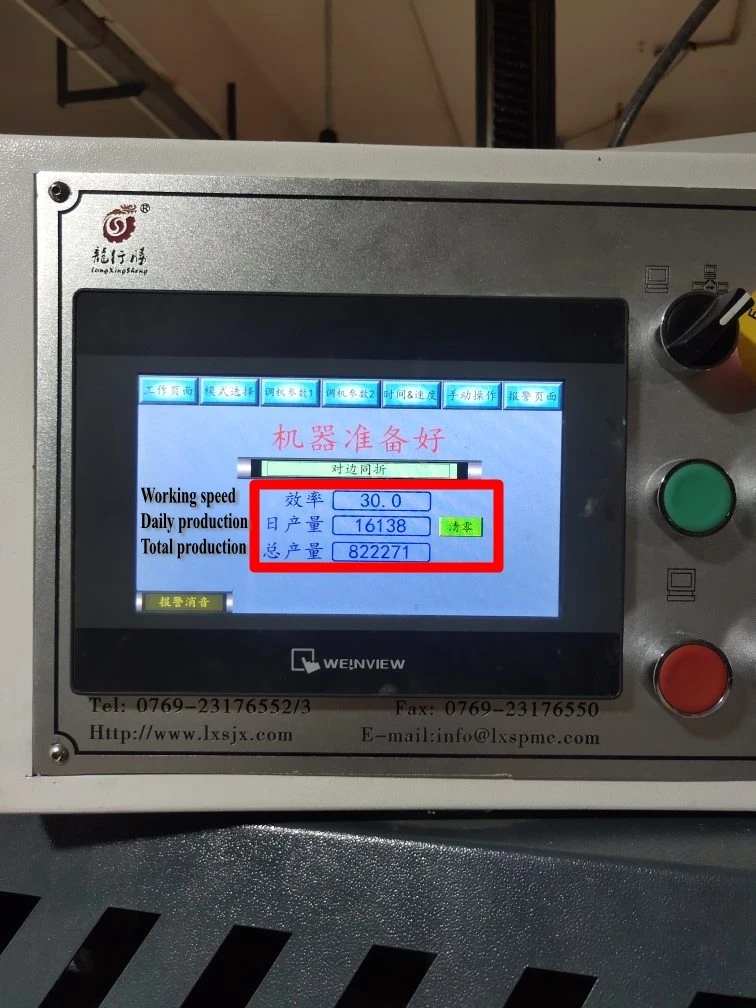

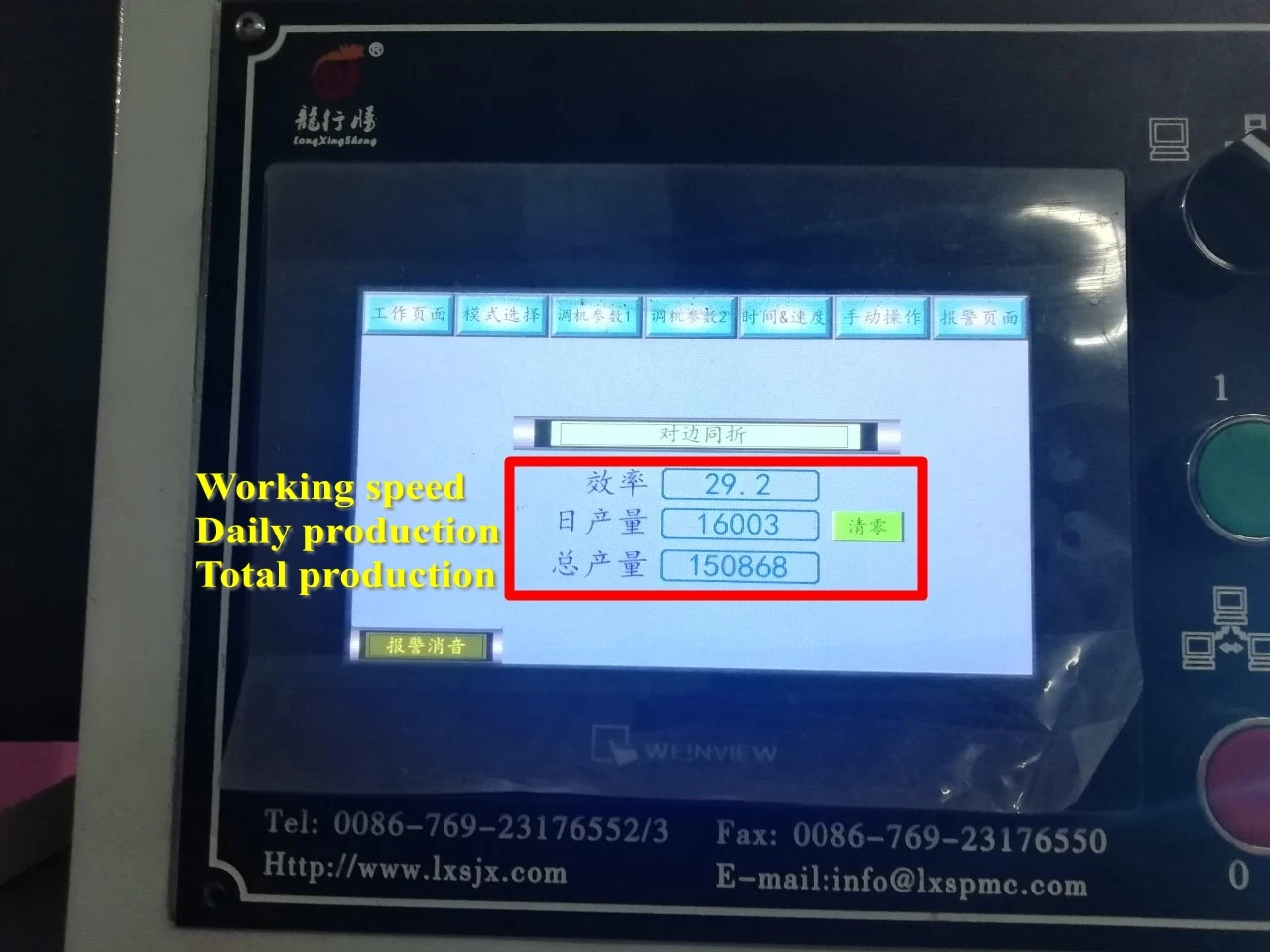

High Speed Performance

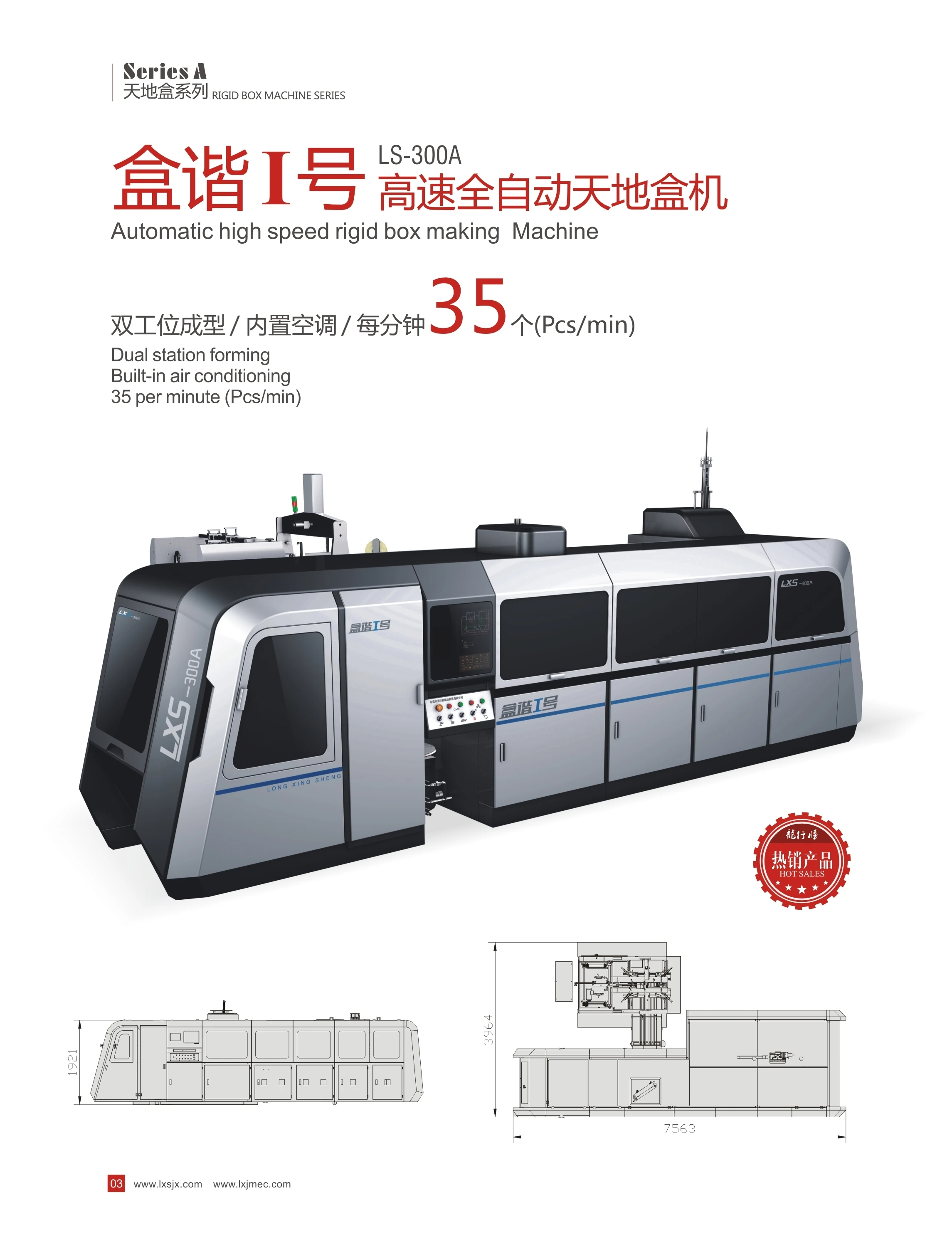

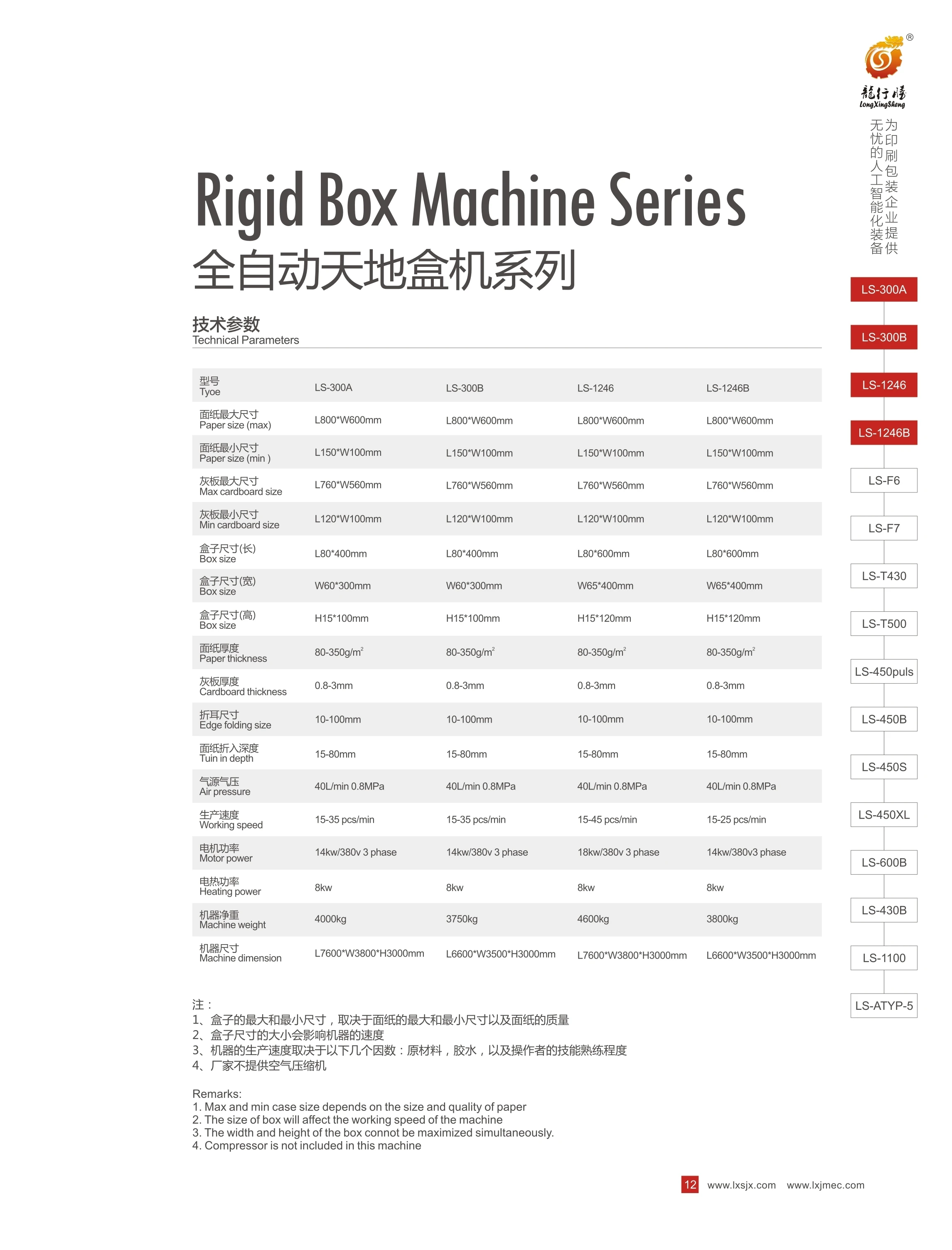

Specification of LS-300A/B Fully automatic rigid box making machine | ||||
Type | LS-300A | LS-300B | ||
Paper size(max) | L800*W600mm | L800*W600mm | ||
paper size(min) | L150*W100mm | L150*W100mm | ||
Box size(length) | L 80-400mm | L80-400mm | ||
Box size(width) | W 60-300mm | W60-300mm | ||
Box size(height) | H 15-100mm | H15-100mm | ||
Paper thickness | 80-350g/㎡ | 80-350g/㎡ | ||
Cardboard thickness | 0.8-3mm | 0.8-3mm | ||
Edge folding size | 10-100mm | 10-100mm | ||
Turn in depth | 15-80mm | 15-80mm | ||
Working speed | 15-35 pcs/min | 15-35 pcs/min | ||
Positioning accuracy | ±0.1 mm | ±0.1 mm | ||
Motor power | 14kw/380v 3 phase | 14kw/380v 3phase | ||
Heating power | 8 kw | 8kw | ||
Air pressure | 40L/min 0.8Mpa | 40L/min 0.8MPa | ||
Weight of machine | 4000kg | 3750kg | ||
Machine dimension | L7600*W3800*H300 0mm | L6600*W3500*H3000mm | ||

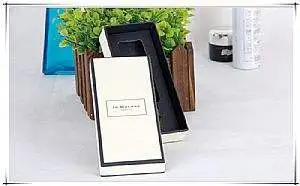

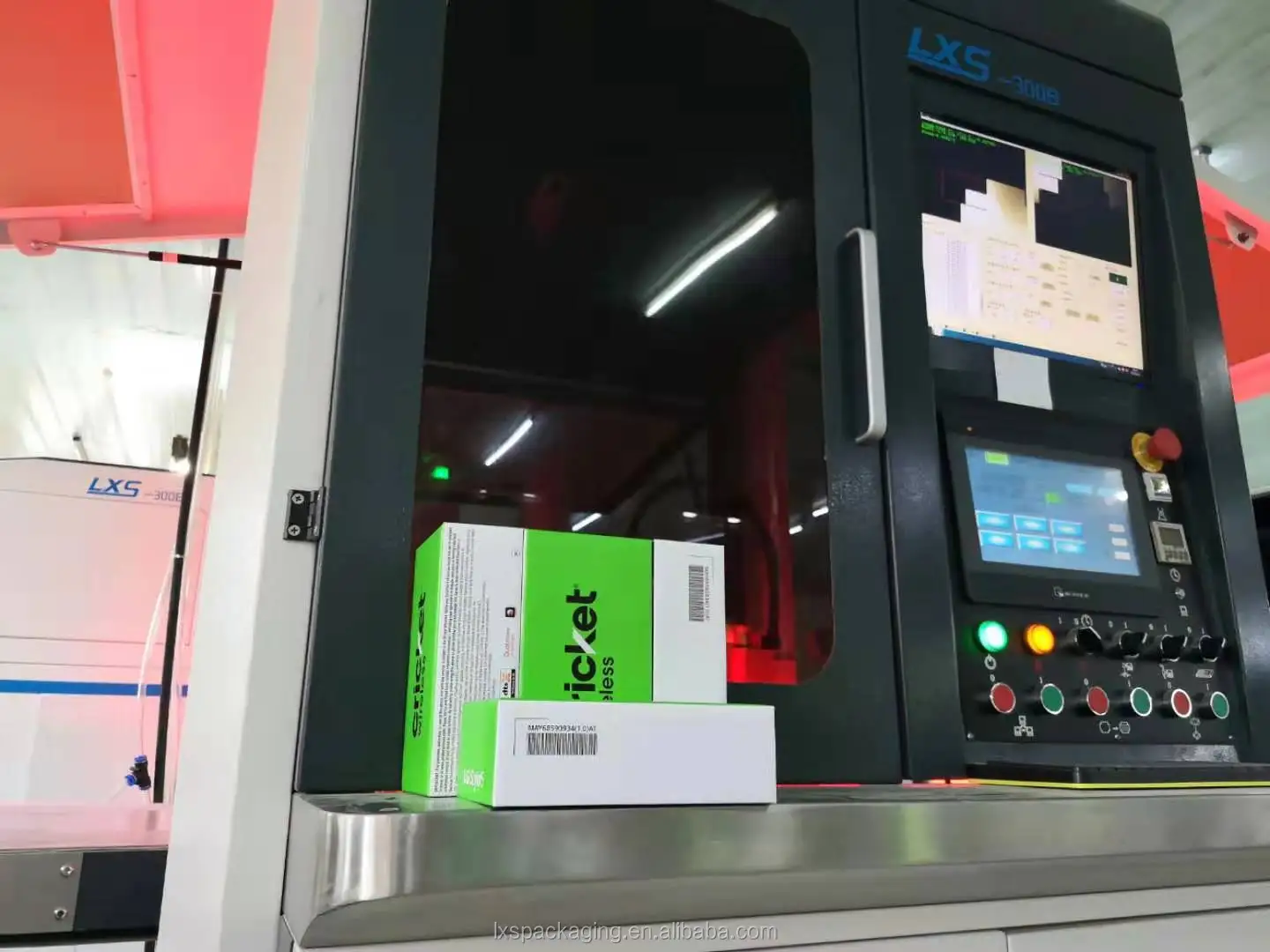

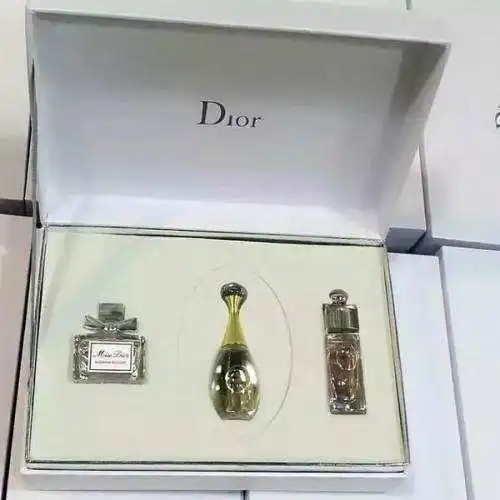

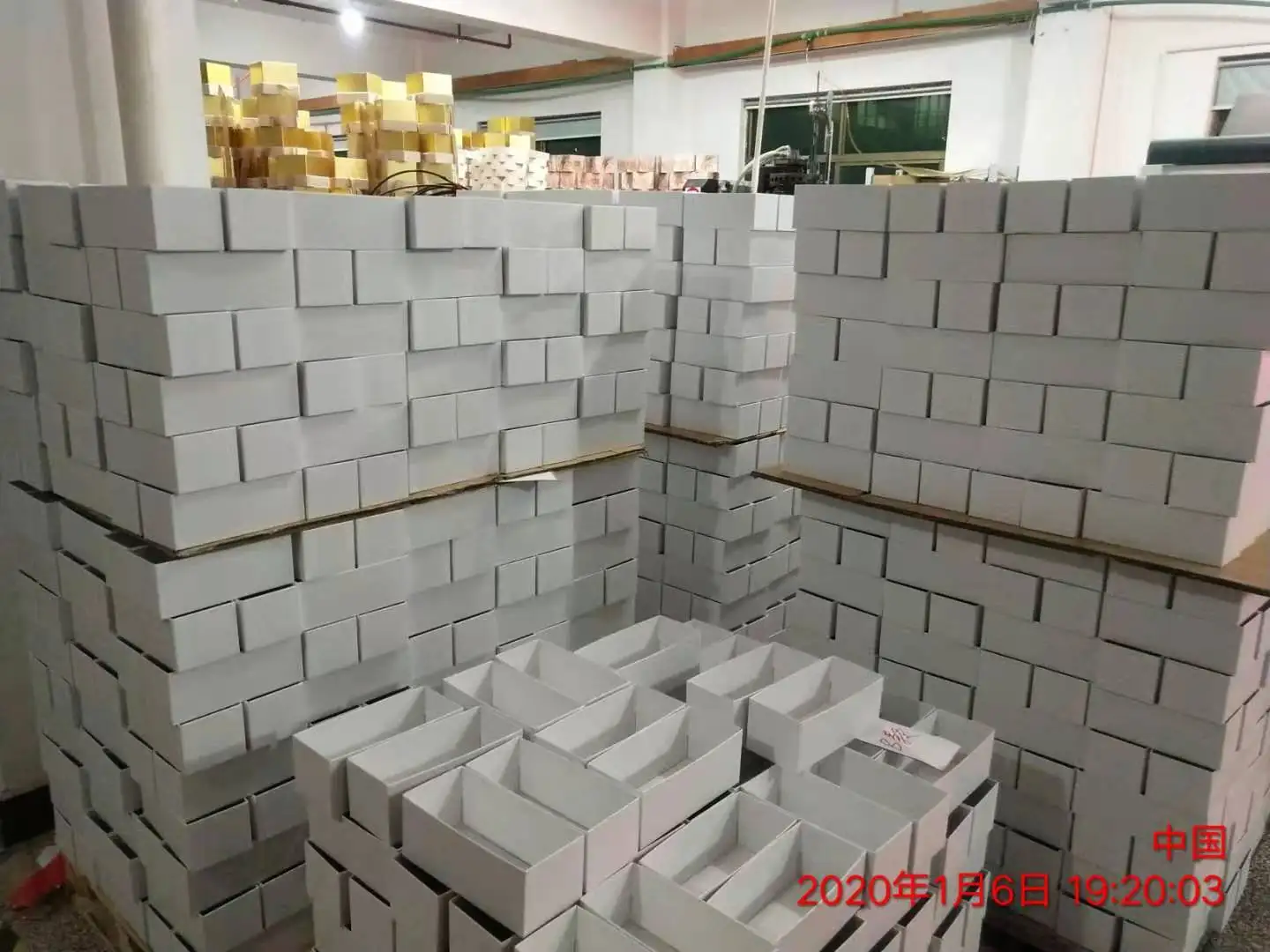

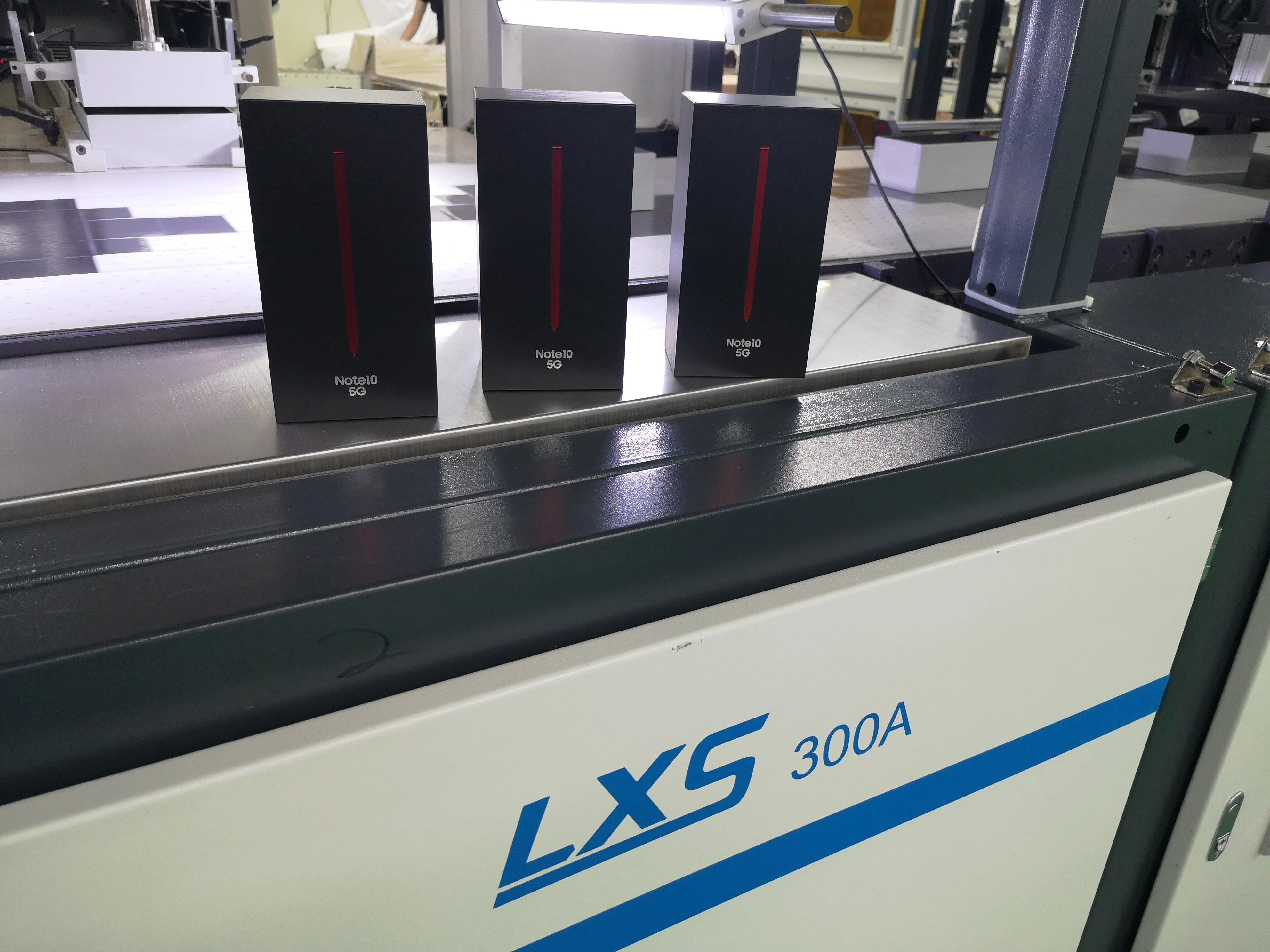

Finished products by LS-300A

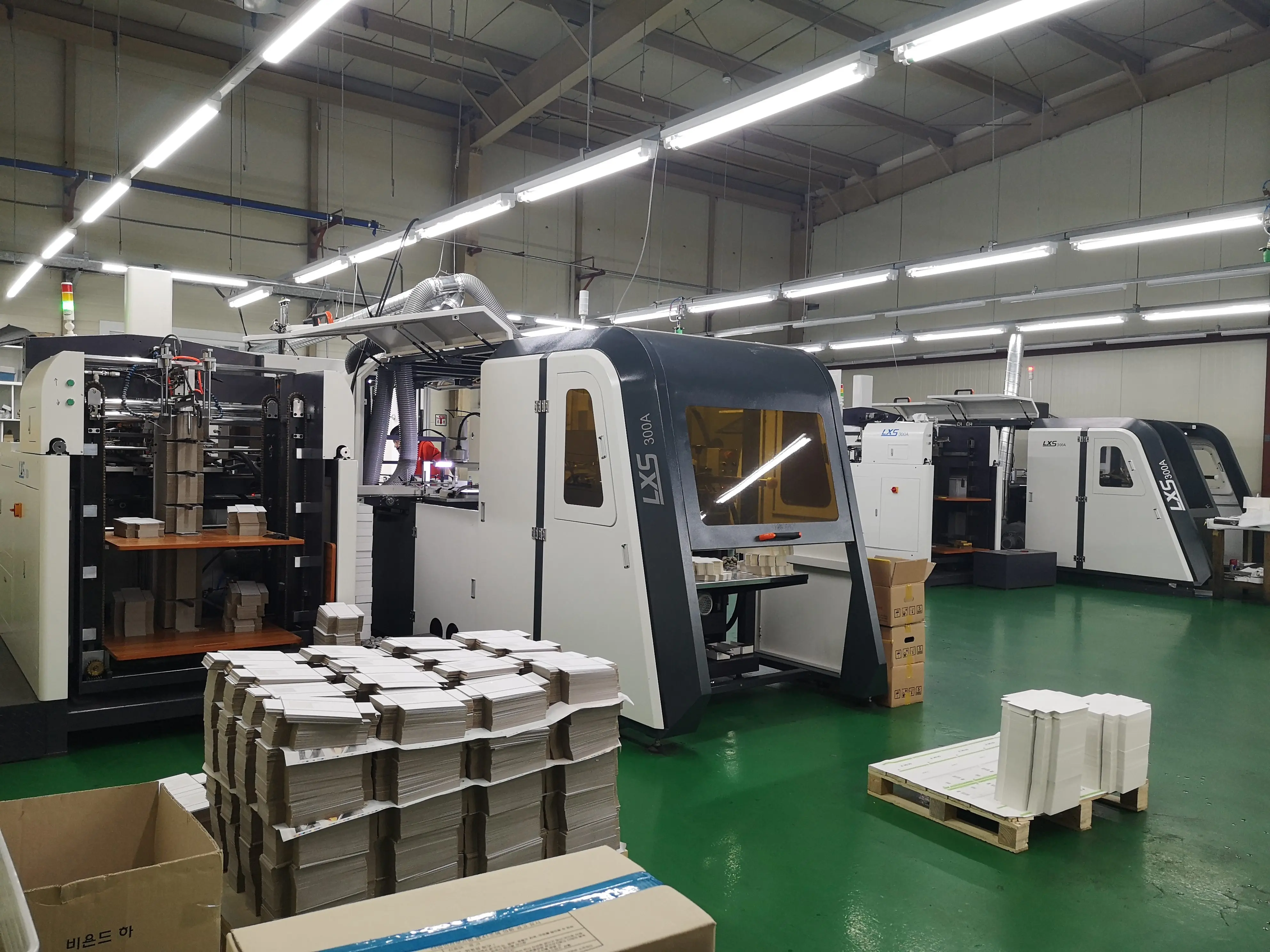

Machine installation
Optional function
Automatic Air Pressing Machine (Optional device)
For higher quality products, such as cellphone boxes, ensure the paper paste on the cardboard tightly before it dried.
Glue Viscosity Device (Optional device)
Automatic detecting the hot melt glue thickness
Local Language Operation System (Optional )
Local language operation system avialable, including Korea, Vietness, Spanish, Russian, Turkish etc.
Air Operated Double Diaphragm Pump (Optional device)
Applied in white glue pumping.

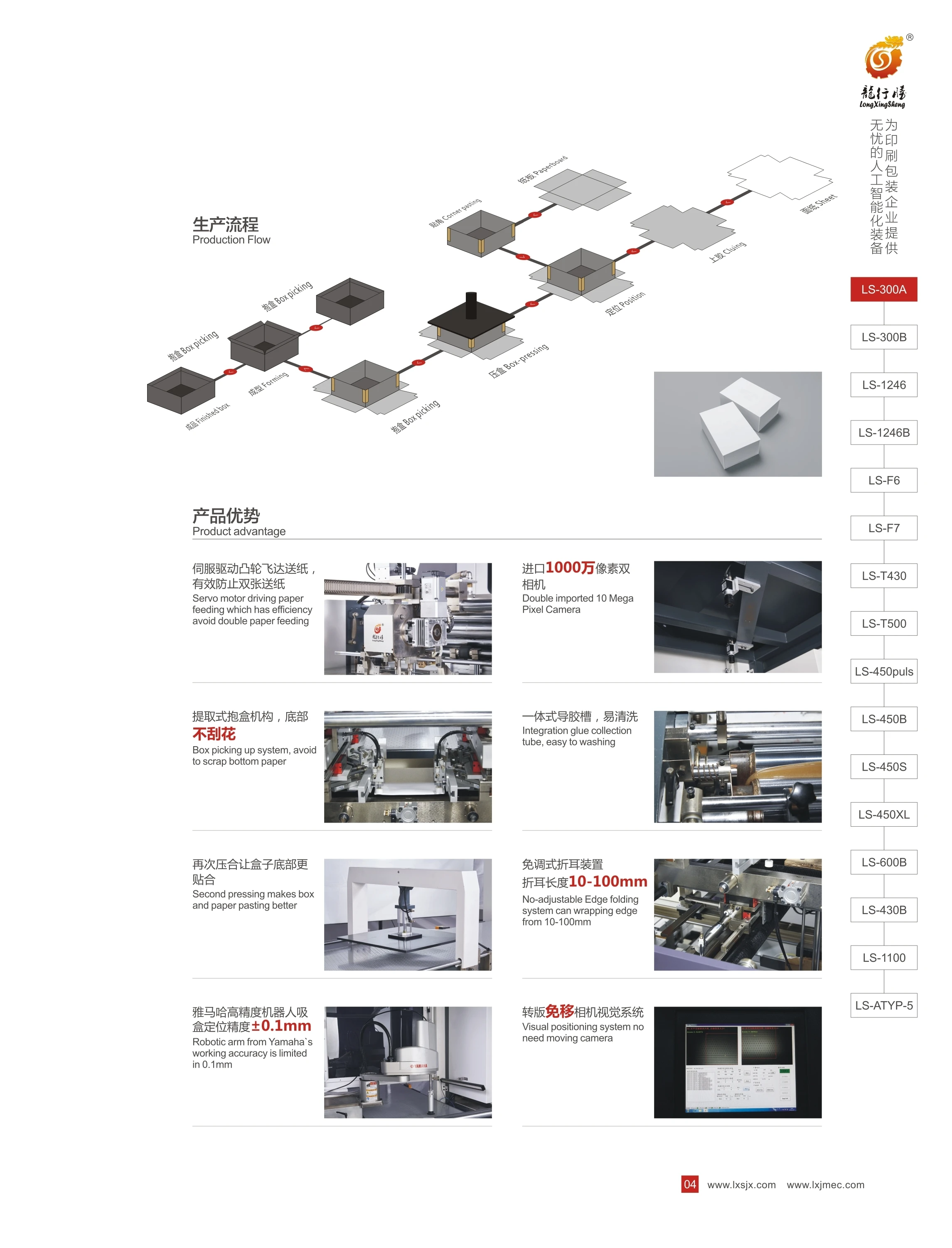

Machine parts
1. Servo motor paper feeding device
2. High accuracy gluing system
3. Corner pasting devices
4. Double fixed camera
5. Positioning part
6. Second pressing device
7. Box feeding device
8. Box forming parts
9. Tucking in and air pressing

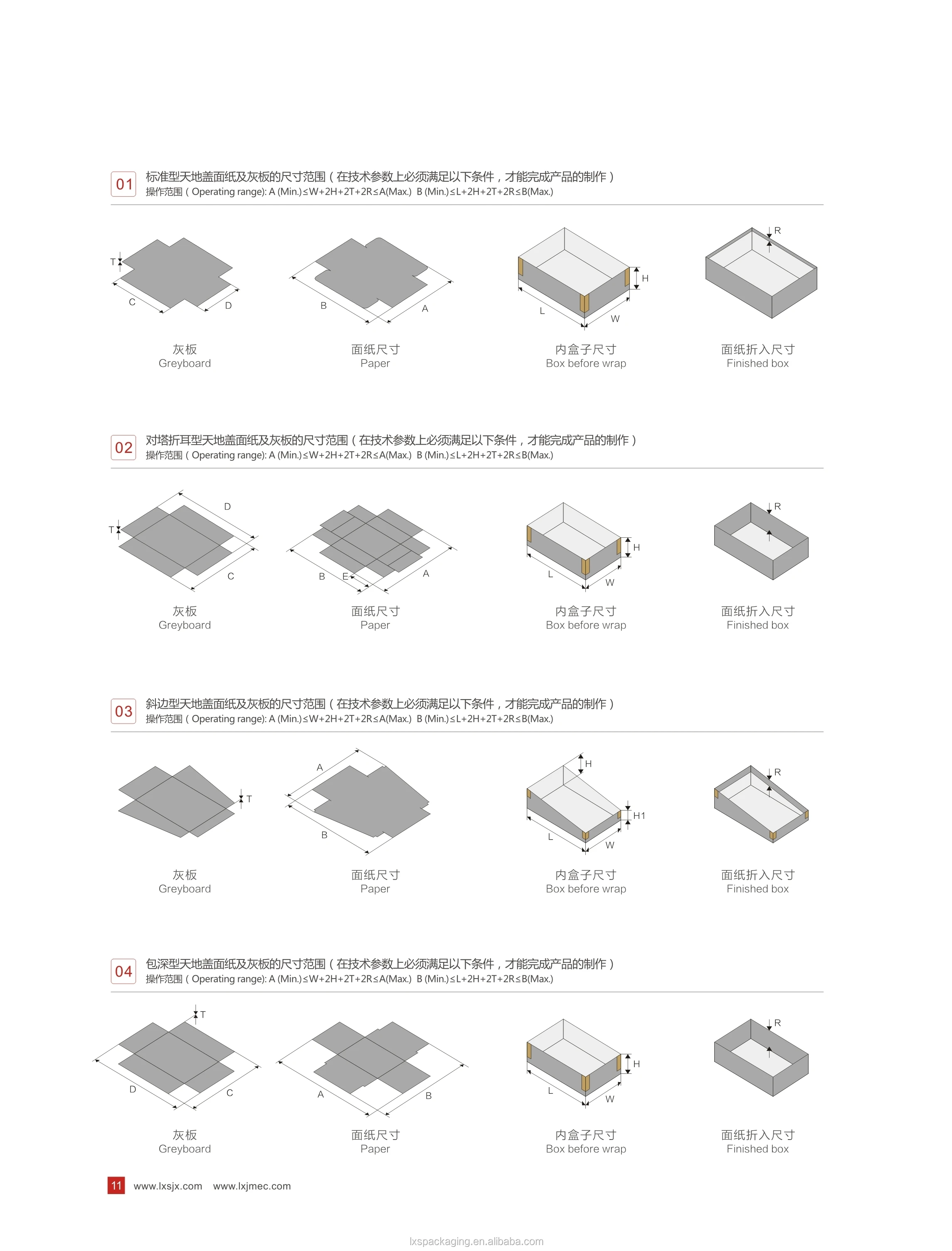

Required material for new boxes
Hot melt glue
Depend on products
White glue
Depend on products, require white glue pump when need feeding glue automatically.
Thin wrapping paper
Thickness at 80-250 gsm
Carton paper
Thickness at 250-350 gsm, required die punching or v-slots grooving for better appearance.
Grooved cardboard
Depend on products
Die-cutted cardboard
Depend on products
Tape
Including plastic tape, kraft tape and paper tape.
Corner pasting mold
One set mold
Forming mold
Three sets mold
Certifications

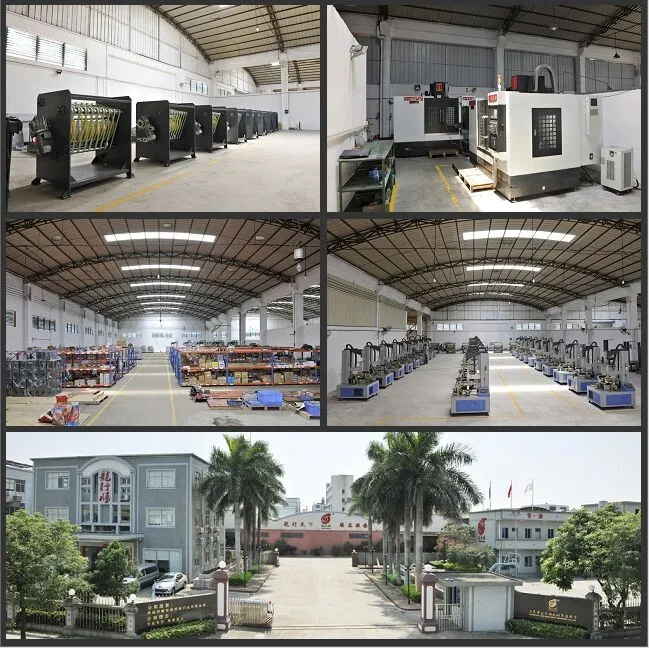

Our Company
LONGXINGJIAN INTELLIGENT EQUIPMENT CO.,LTD
Longxingjian Intelligent Equipment CO.,Ltd located in the famous manufacturing city - Dongguan City,China.
We are one of the leading & professional manufacturer of Automatic/Semi-automatic Rigid Box Making Machines & cardboard grooving machine for varies rigid box making, such as cardboard boxes, luxury boxes, jewelry boxes,calendar, gift boxes, sweet boxes, shoes boxes, watch boxes, mobile phone boxes, high-end boxes and etc.
Our company has been established since 2006,we have our own independent R&D Department whichis led by Tsinghua University Doctor. Up to now,we have got more than 10 patents including practical patents, appearance patents & technology-based patents.With years experience of post press machinery's research,development,manufacturing and selling,our products are provided to everywhere of countries,especially Europe,Asia,Mid-east and America.
We are much appreciated & treasure our customers' trusting & supporting,
and we will always keeping providing high quality products & good after-sales service to you !
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* One year overseas warranty.
FAQ
1.What is LXS company machine warranty?----1 year including spares ( consumables are not included)
2.Does your machine with CE certificate?----Yes.We have CE ,ISO9001 .
3.What is the production time while placing order?---- Within 7-30 workdays.
4.Do you have stock product to sell?----Normally we do,it depends on which models you inquired .
5.What is your lead time?----Within 5-30 workdays ,we will arrange your order upon receiving your 30% deposit on order and ship out the machine before receiving your 70% remaining payment.
6.Can LXS company handle shipping for customers?----Yes.(Please provide us your requested sea port and we can check the shipping charge from logistic company and arrange shipping for you.
7.Does the packing strong?----Yes, of course! All of our export packing is with strong wooden case,all are confirm to export packing standard.
8.How about after-sales service process?----When your machine has problem, just contact your sales and we will solve your problem ASAP.
9.Can your engineer come to us for installing the machine & handle problems?---Yes,we can.And it is free-cost for the installing & training for 7 work days,you just need to pay for the air tickets & accommodation for our engineer.
10.Are you a manufacturer?----Yes, we are a manufacturer with over 10 years professional experience .Welcome the exclusive agents in Europe/Asia/Africa/America to join us.
11.What is the minimum quantity for order?----1 set, we done business step by step with high quality products and excellent services.
12.Do you inspect the finished products?----Yes, each step of production products will be inspection by our QC department and the running inspection video will be sent to to you for your verification before shipping.
13.What's the payment term?---FOB/CIF terms,payment by T/T 30% in advance,70% balance before shipping.(It is negotiable)
If you have any inquiry, please don't hesitate to contact us. We will reply you at the first time as we can.
Best and regards,
Longxingsheng Packaging Technology CO.,Ltd
Be with customers
Packing & Delivery
Packaging | ||
Size | 7000(L) * 4000 (W) * 3200 (D) | |
Weight | 1.2 T | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
