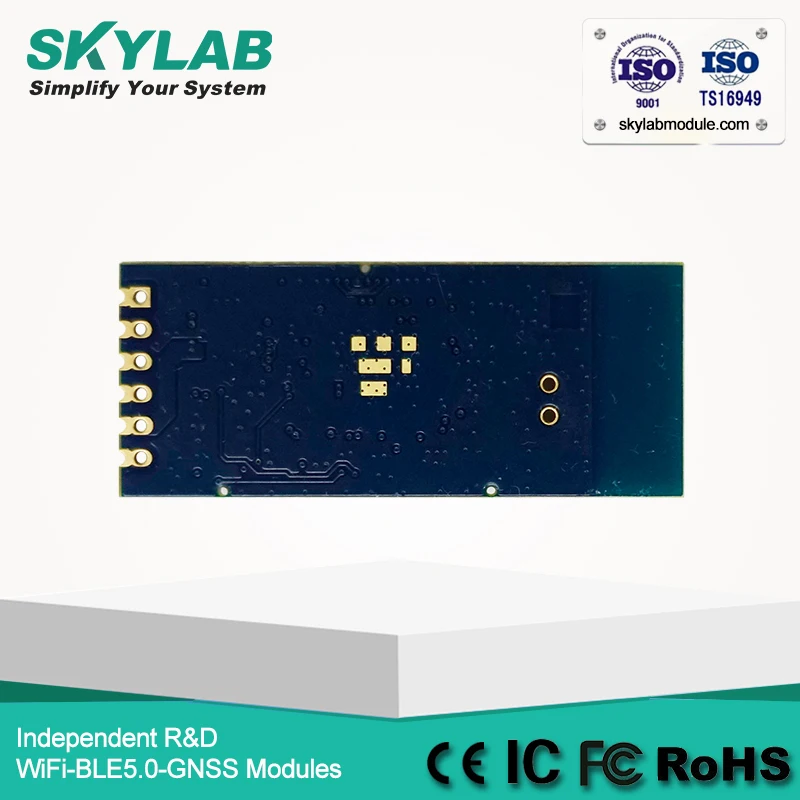

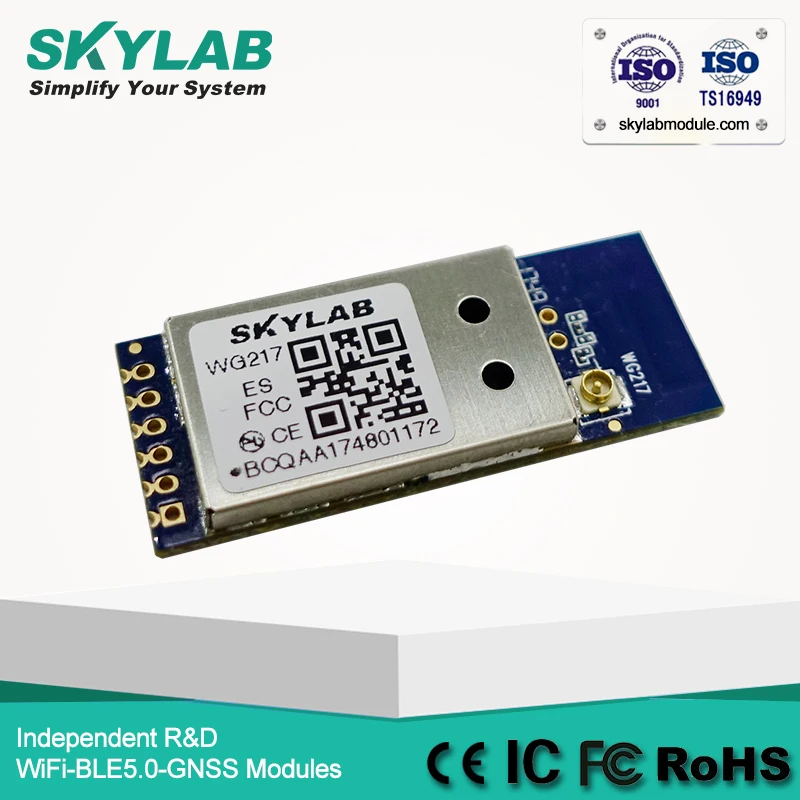

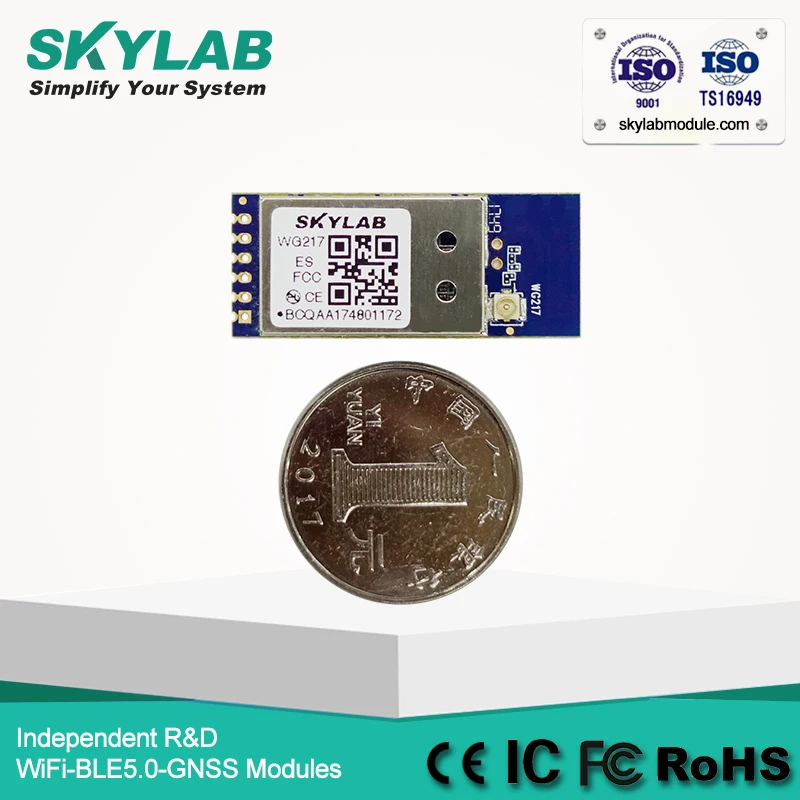

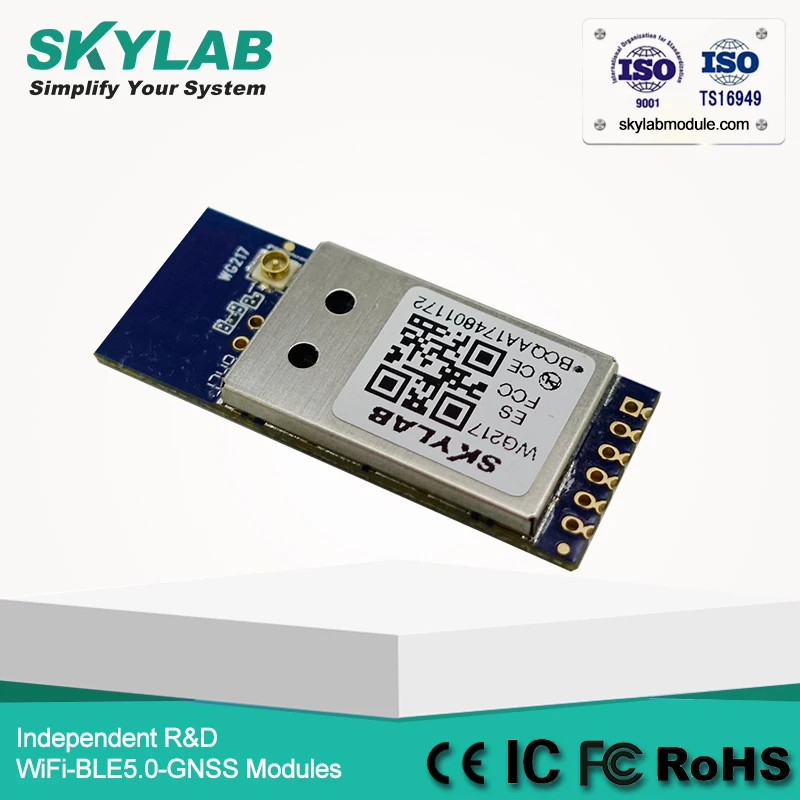

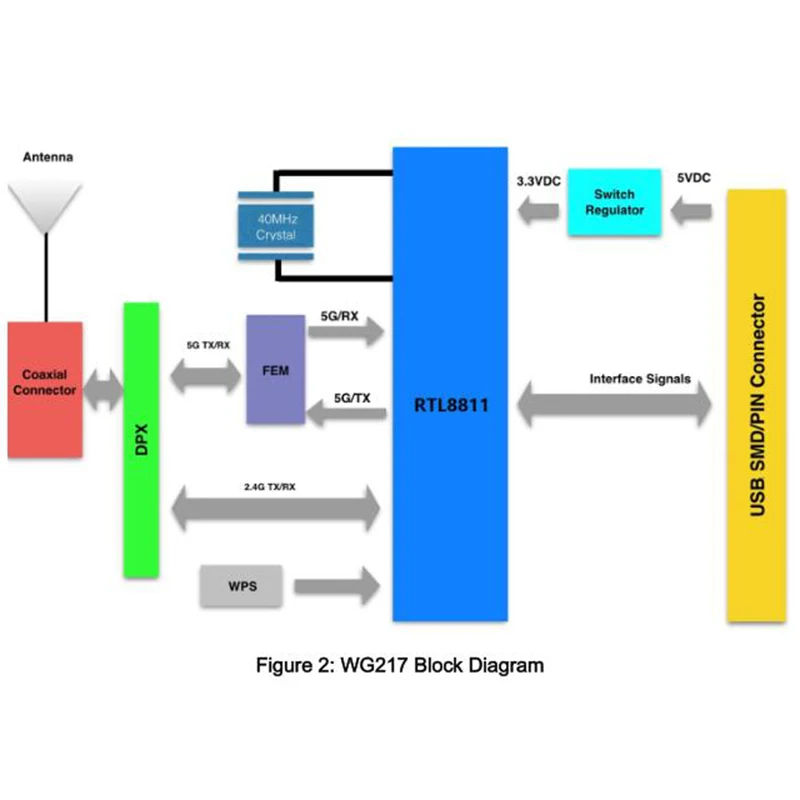

SKYLAB hot sale 433Mbps Dual Band 2.4GHz 5GHz WiFi Relay Module for IP Camera and Set Top Box

Hardware Features

Model

WG217

Antenna Type

IPEX connecter or PCB antenna

Chipset solution

RTL8811

Voltage

3.3V+/-10%

Dimension

36.0(L) x 15.0(W) x 3.2(H)mm

Wireless Features

Wireless Standards

IEEE 802.11 a/b/g/n/ac

Frequency Range

2.4/5GHz

Data Rates

IEEE 802.11a Standard Mode: 6,9,12,18,24,36,48,54Mbp

IEEE 802.11 b Standard Mode: 1,2,5.5,11Mbps

IEEE 802.11g Standard Mode: 6,9,12,18,24,36,48,54Mbps

IEEE 802.11n/Draft 2.0 Mode: 130Mbps @ HT20

150Mbps @ HT40

IEEE 802.11ac Standard Mode: 433Mbps @VHT80

2.4GReceiver Sensitivity

HT40 MCS7 :   -72dBm@10% PER(MCS7)

HT20 MCS7 :   -75dBm@10% PER(MCS7)

       54M:   -77dBm@10% PER

11M:   -90dBm@10% PER

5GReceiver Sensitivity

VHT80 MCS15: -62dBm@10% PER(MCS9)

VHT40 MCS15: -75dBm@10% PER(MCS9)

OFDM 54M:   -75dBm@10% PER

OFDM  6M:   -90dBm@8% PER

Modulation Technique

802.11 Legacy b/g/n

DSSS (DBPSK, DQPSK, CCK)

OFDM (BPSK, QPSK, 16-QAM, 64-QAM)

802.11ac

OFDM (256-QAM)

Wireless Security

WPA/WPA2, WEP, TKIP, and AES hardware encryption

5GHz Transmit Power

IEEE 802.11ac: 11-14dBm @AC80 MCS7

2.4GHz Transmit Power

IEEE 802.11n:  13-16dBm @HT40 MCS7

13-16dBm@HT20 MCS7

IEEE 802.11g:     15-17dBm

IEEE 802.11b:     16-18dBm

Work Mode

AP/Ad-Hoc / Infrastructure mode

Others

Certification

RoHS

Power Consumption@25°C

Status

Power

2.4G/mA

5G/mA

TransmissionHT40/ MCS 15

5.0V

150

160

Receiving HT40/ MCS 15

5.0V

90

90

SYSTEM REQUIREMENTS

Windows 7(32/64bits), Windows Vista(32/64bits), Windows XP(32/64bits), Windows 2000,Linux,Android

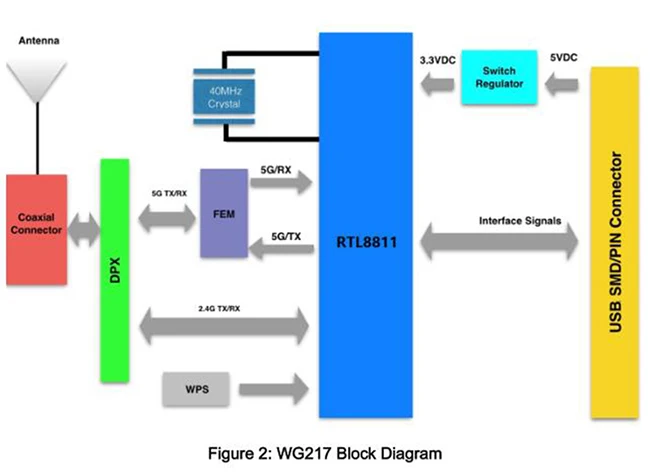

433Mbps Dual Band 2.4GHz 5GHz WiFi Relay Module for IP Camera and Set Top Box

Features

1. IEEE 802.11a/b/g/n/ac WLANs

2. 2.4G /5G ITIR mode

3. With support of 433Mbps PHY rate

4. IEEE 802.11e QoS Enhancement(WLAN)

5. USB LPM/Selective Suspend support

6. Fully compliance with USB2.0 High-speed mode.

7. IEEE 802.11i(WPA, WPA2). Open, shared key, and pair-wise key authentication services

8. Supports for Windows XP 32/64, 2000, Vista 32/64bit, Windows 7 32/64bit, Linux, Android

9. RoHS compliance meets Environment-friendly requirement.

10. FCC,CE compliance

11. 36.0(L) x 15.0(W) x 3.2mm small dimension

Applications

IP Camera

IP TV

IP DVD(Internet VOD Player)

Set Top Box

Home Gateways

Gaming Consoles

DVR
