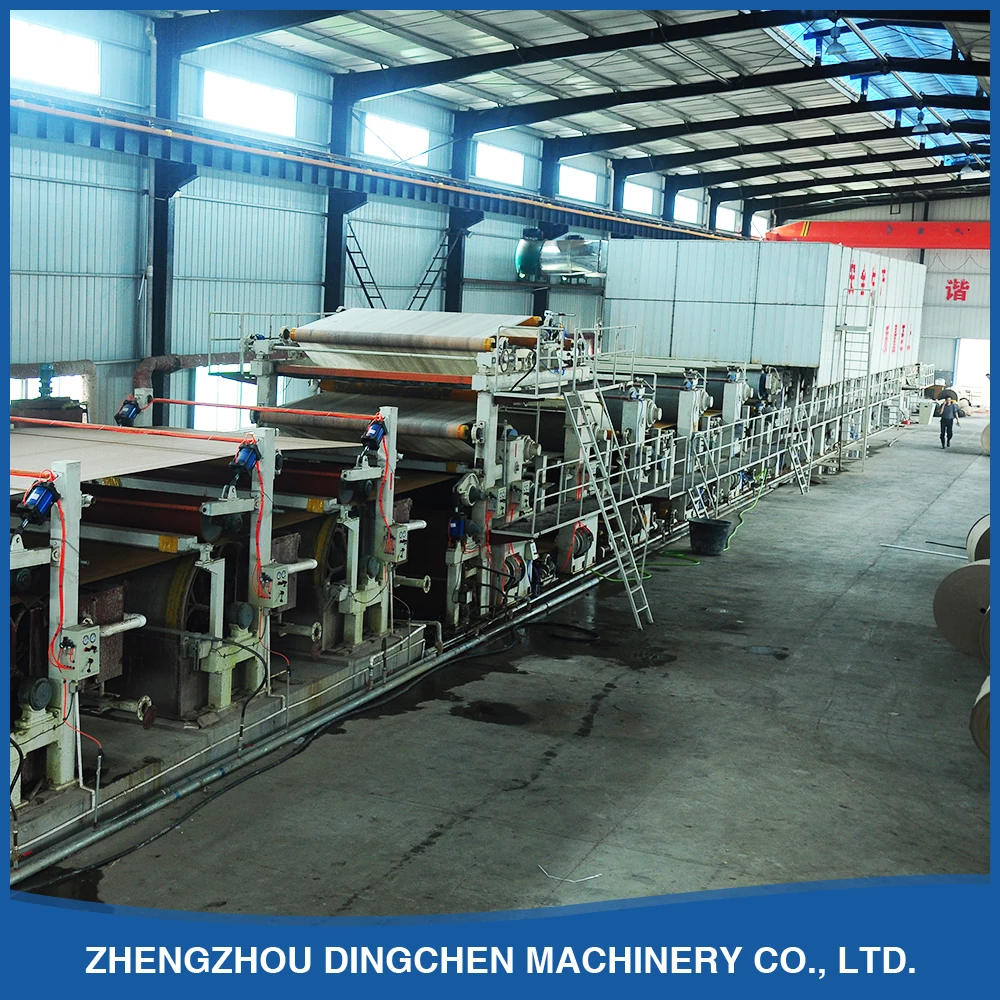

Zhengzhou Dingchen 2400mm waste carton paper recycling machinery carton paper making machine

Product Overview

Description

2400mm 30T/D waste carton paper recycling machine carton papere making machine



I.  Technical Parameter :

1. Raw material: OCC, waste paper

2. Output paper: kraft test liner paper / kraft paper / fluting paper / corrugated paper

3. Output paper weight: 100-400g/m²

4. Net paper width: 2400mm;

5. Capacity: 30T/D;

6. Width of cylinder mold: 2950 mm;

7. Working speed: 40-70m/min

8. Design speed:100m/min

9. Rail gauge: 3400 mm;

10. Drive way: Alternating current frequency conversion adjustable speed, sectional drive;



Ⅱ.  Paper making section :

(1). Structure and Specification for paper making section:



1. Cylinder mold part:

Φ1500mmx2950mmx3400mm stainless steel cylinder mold 4sets,

Φ500mmx2950mmx3400mm couch roll 3 sets, rubber shore hardness 38℃±2.

Φ500mmx2950mmx3400mm return roll 1set, rubber shore hardness 86℃±2.

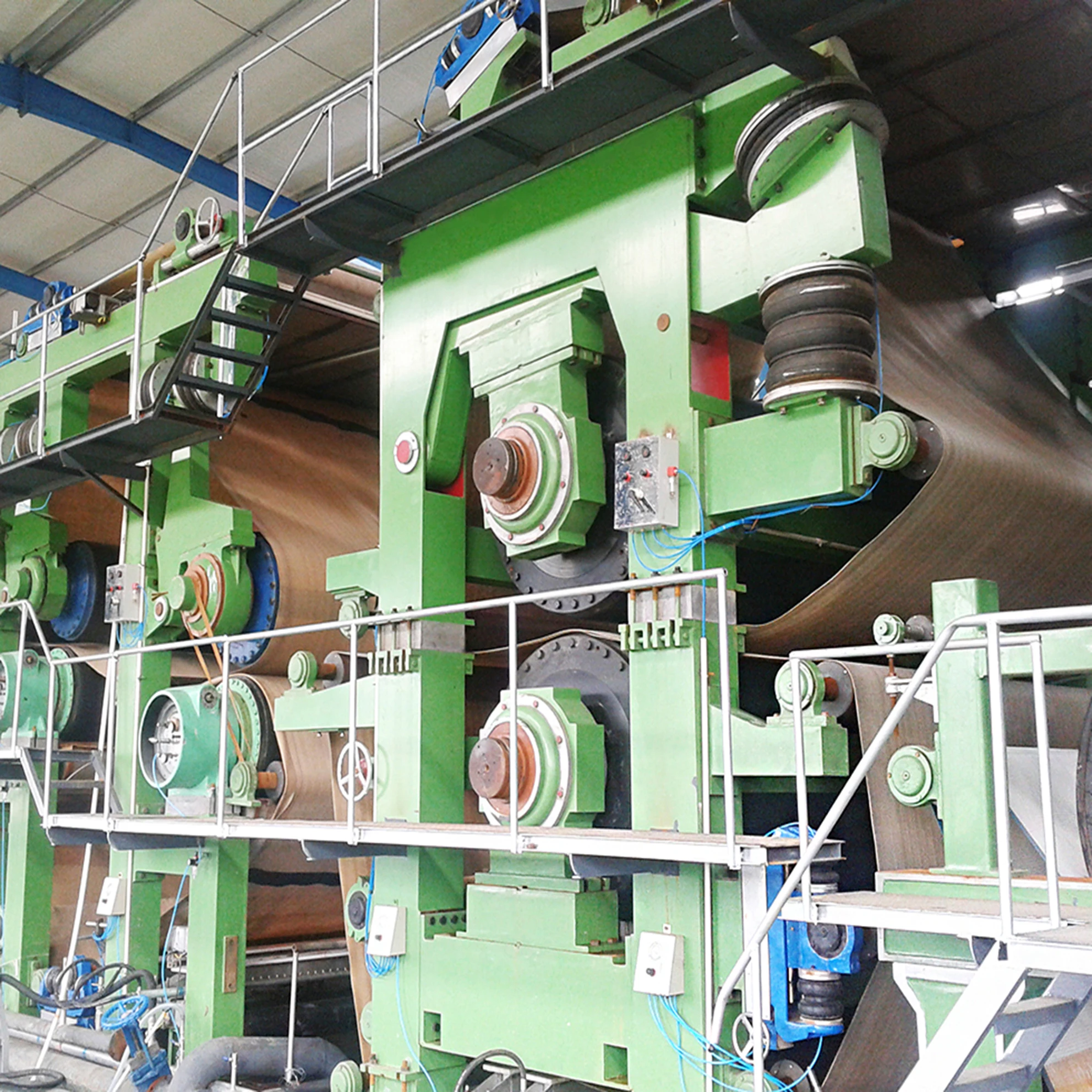

2. Press part:

Φ800mmx2950mmx3400mm nature marble roll 2 sets,

Φ750mmx2950mmx3400mm rubber roll 2 sets,

rubber shore hardness 95℃±2, equipped with pneumatic pressure device.

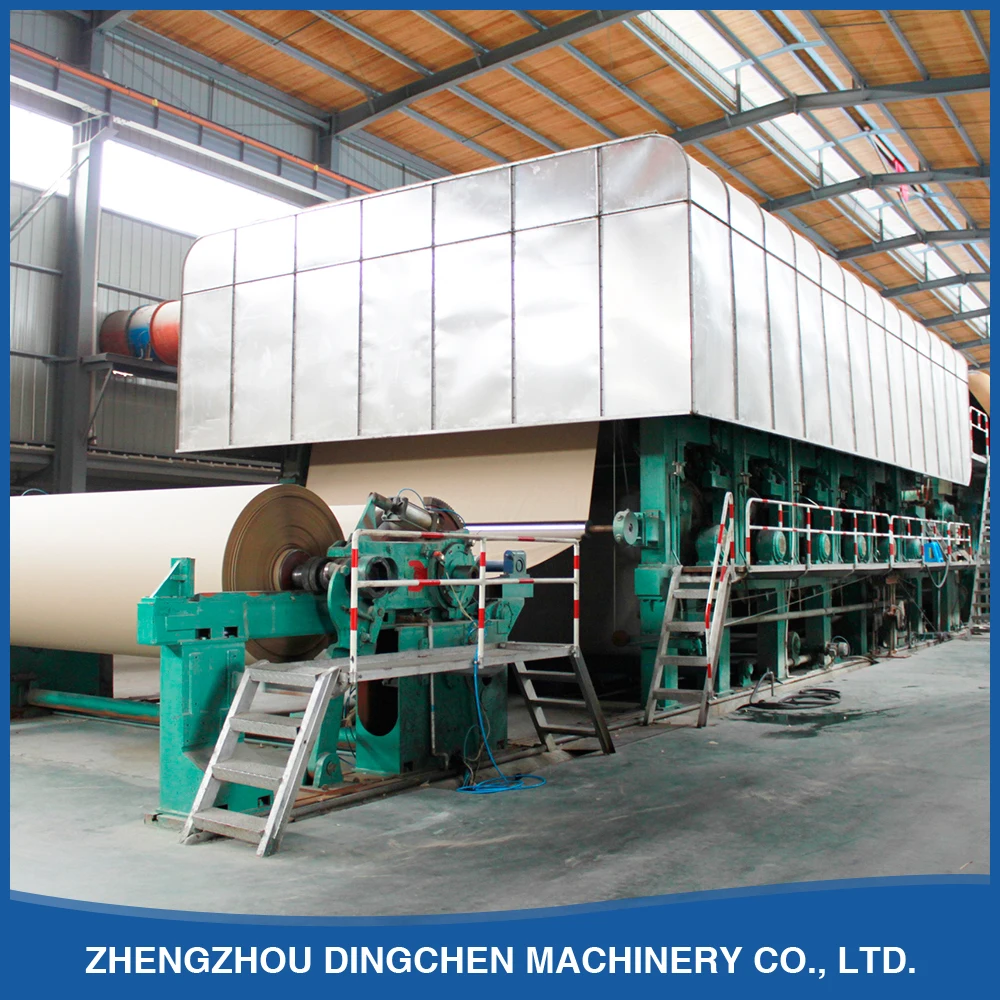

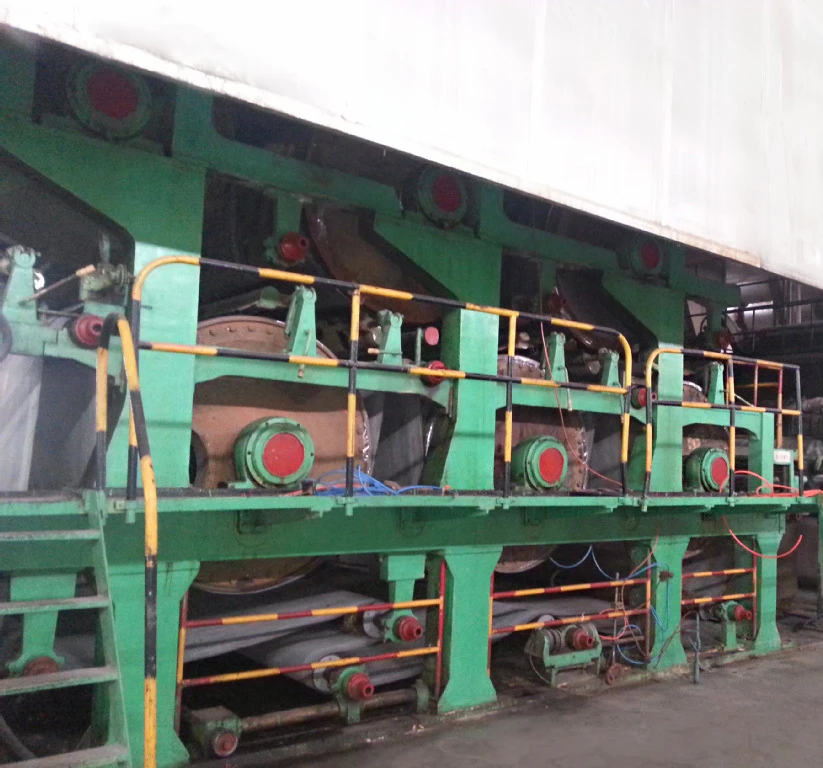

3. Dryer part:

 ( In this part, includes 14sets dryer cylinders, arrayed in the order of 8sets + sizing part + 6sets)

Φ1500mmx2950mmx3400mm alloy dryer cylinders 14 sets, with scraper blade 14  sets, equipped with dry wire device, with semi-closed exhaust hood 2 group .



4. Sizing part:  2400mm sizing machine 1 set.



5. Calendering part:  2400mm calendering machine 1 set.

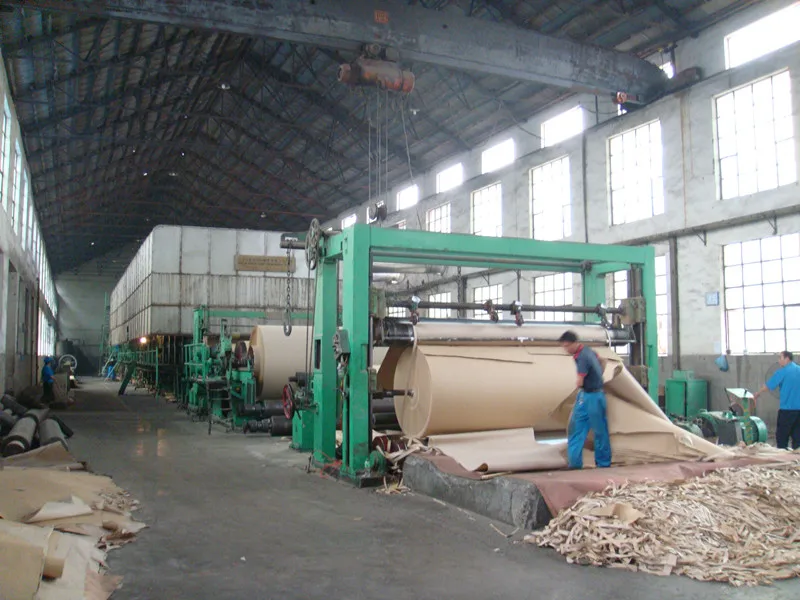

6. Winding part: 2400mm horizontal pneumatic winding machine 1 set.



7. Rewinding part: 2400mm upper feeding frame type rewinding machine 1 set.



Main equipment List



NO.	Item	Qty(set)
1	Kraft testliner Paper making machine	1
2	exhaust hood of dryer can(double layer)	1
3	axial-flow ventilator	1
4	roots vacuum pump	1
5	winding machine	1
6	calendaring machine	1
7	rewinding machine	1
8	high consistency hydrapulper	2
9	High consistency sand remover	2
10	high frequency vibrating screen	1
11	Inclined pulp thickner ( make it on spot)	1
12	fiber separator	1
13	pressure screen	2
14	380mm double disc pulp refiner	3
15	low consistency sand remover	full sets
16	700mm thruster	6
17	pulp pump	8
18	water pump	4
19	4ton boiler(burn gas / diesel / coal)	1
