BOPP PET Film BOPP Tape Coating Machine

Product Overview

Description

BOPP PET Film BOPP Tape Coating Machine





Application:

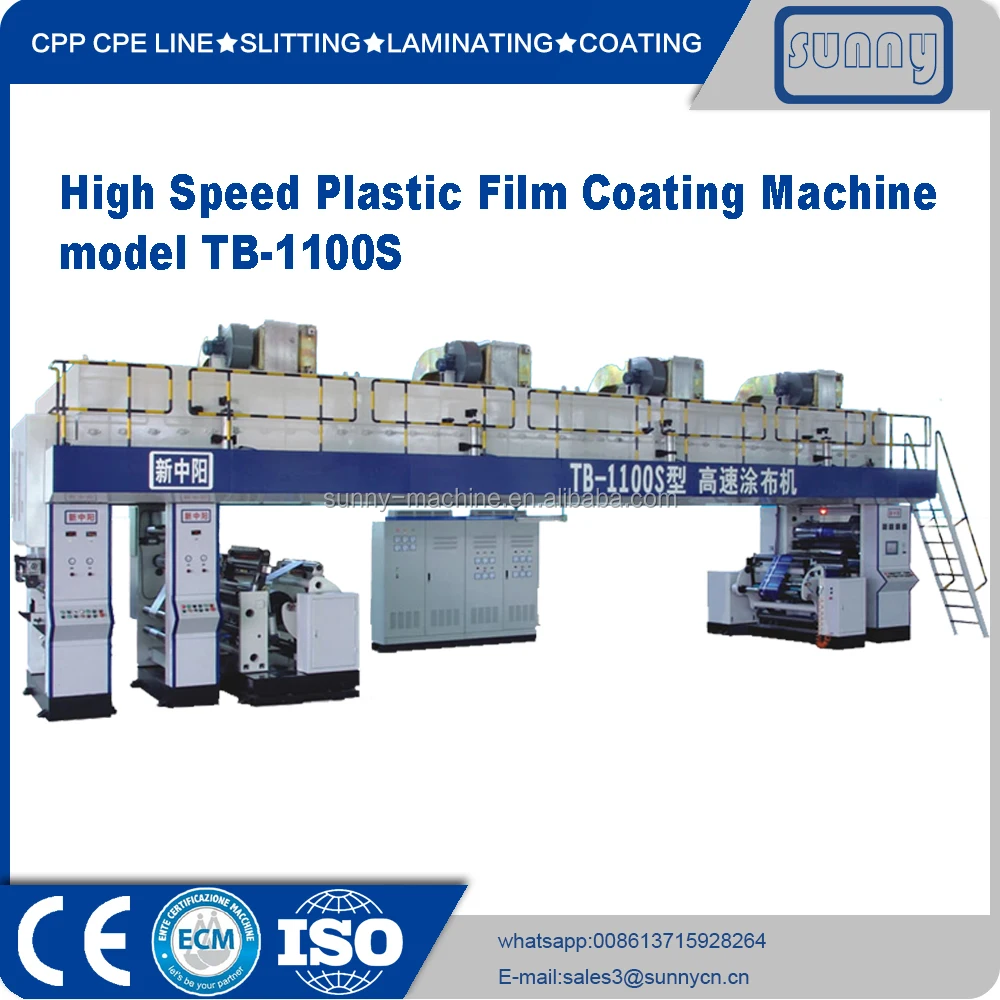

Model TB-1100 inkjet paper coating machine is the elaborately manufactured product we referring to the advanced technology and experiences at domestic and abroad. Complete machine structure is reasonable, high-working accuracy, It can adapt to high-speed production, meanwhile, there are some complete functions in the complete machine control system, high-automation degree. PLC programmable controller, AC inverter driver etc electric components are all adopting the first-class high quality products of abroad, ensured the quality stabilization of equipment. Compared with the similarity products of abroad, and machine performance has achieved the advanced level.



Main Techinical Parameters



1.Effective Width: 1100mm

2.Suitable Base Material: PET, BOPP film

3.Thickness: 0.012-0.050mm

4.Maximum Machine Speed: 135m/min

5.Maximum Running Speed: 120m/min

6.Maximum Unwind Diameter: φ600mm

7.Maximum Wind Diameter: φ600mm

8.Heating method: electric-heating, Hot-wind impact drying

9.Maximum Drying Temperature: 80℃

10.Reel Core Diameter:  3″

11.Reel up end face flatness: ≤±1mm

12.Tension Control accuracy: ≤±2N

13.Tension distinguish accuracy: 1 N

14.Film surface temperature difference: ≤±1.5℃

15.Web roller bounce: ≤±0.02mm

16.Power Supply: 380V±10%, 50HZ, 3 Phase 5 Lines

17.Whole Machine Power: About 320kw (Drying Oven heating power: 290kw)

18.Air-Source: 0.7MPa,0.3m3/min  Drying compressed ai

19.External Dimension: 163800 mm (L) x 4300 mm (W) x4200 mm (H)









Company Information:

Sunny Machinery Factory is an integrated professional manufacturer to produce, design and sell Slitting, Rewinding, Laminating, Coating, and CPP or CPE 3 or multiple layers Cast Film machinery facilities with more than 20 years of experiences.

Our company has been developing and moving towards a greater competitive advantage by continuously improving technology and innovation.

All project will be serviced by our expertise in Mechanical Engineer Department, Assembly Department, Electrical Department, Software Programming Department, so we can offer our clients with our top standard machinery, also we can make all kinds of modifications according to customer specific requirements.

Our machineries are sold in many countries including India, Indonesia, Thailand, Vietnam, Brazil, Poland, Korea, Italy, Philippines, Singapore, Russia, Malaysia, Pakistan and so on.
