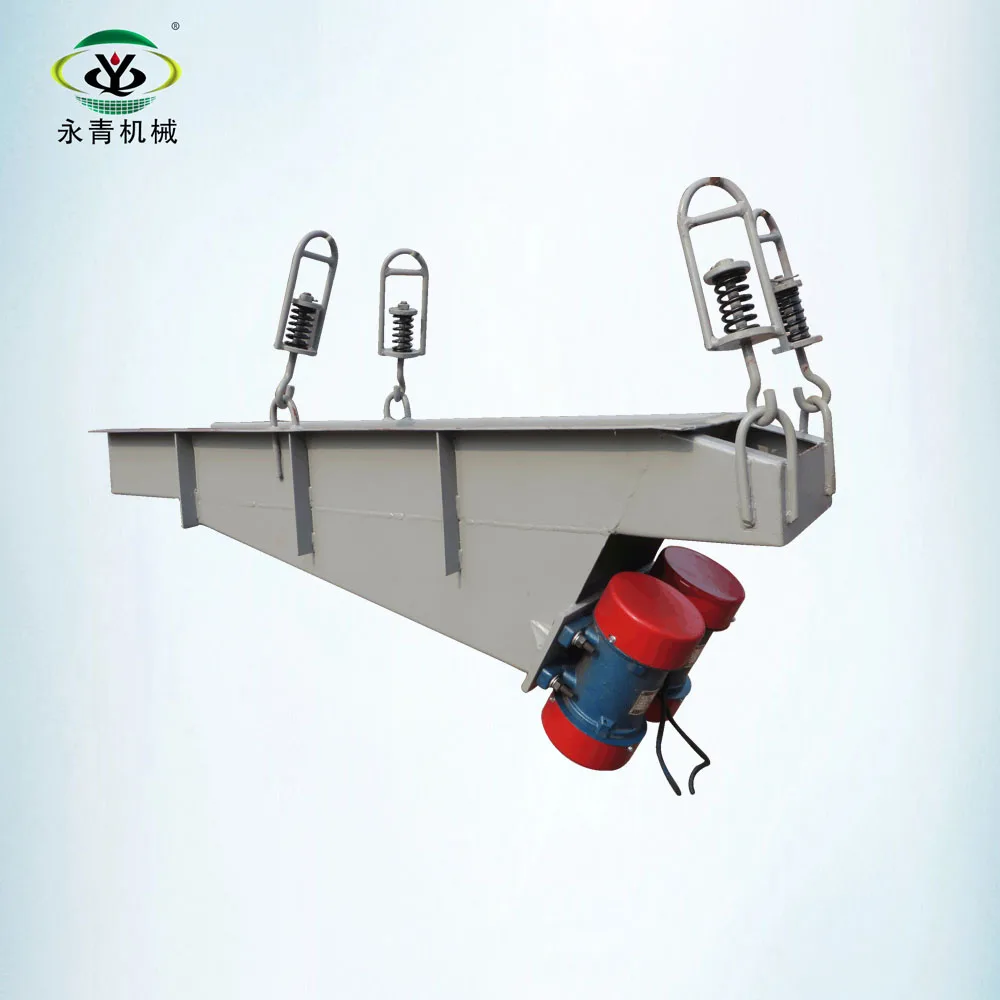

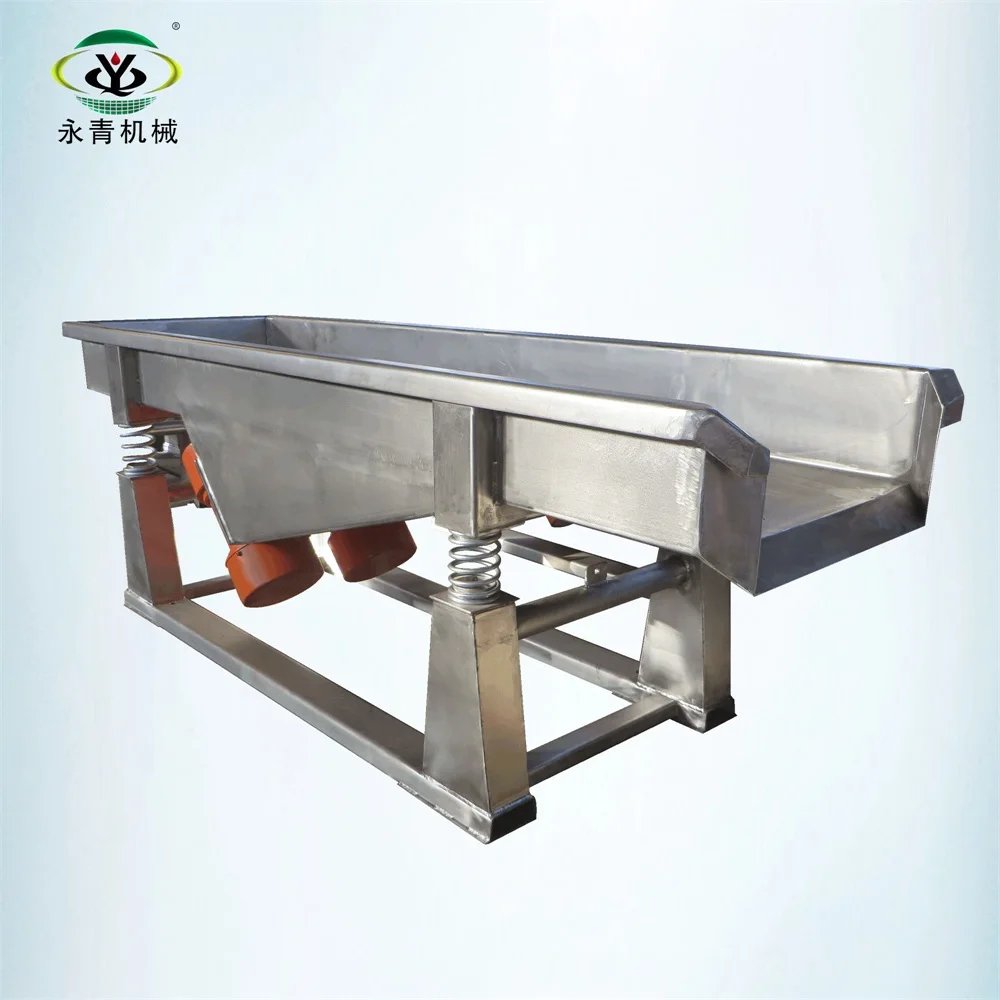

Vibrating feeder conveyor with vibration motors for grain processing

Product Overview

Description

Vibrating feeder conveyor with vibration motors for grain processing



Introduction

Our vibrating feeder is also known as vibratory feeder. It's a a kind of linear direction feeding equipment. During the production process, vibrating feeder can put massive, granular materials from storage silos to the affected device uniformly, regulary and continuously. In the production line of sand and gravel, vibrating feeder can make continuous and uniform feeding for crushing machine. At the same time, it can do course screening for the materials.





Parameters

Model	Slot size (L×W×H)mm	Capacity (t/h)	Vibration motor
			Voltage	Frequency	Power (kw)	Rate speed rpm

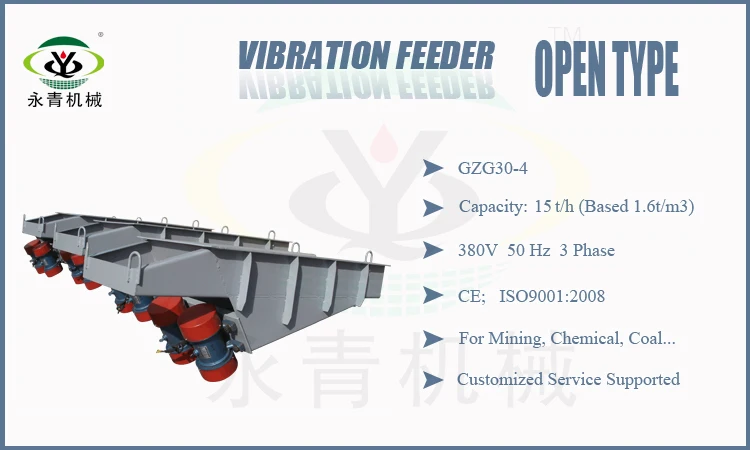

GZG30-4	300×1000×160	15	380 V	50 Hz	0.2×2	1460

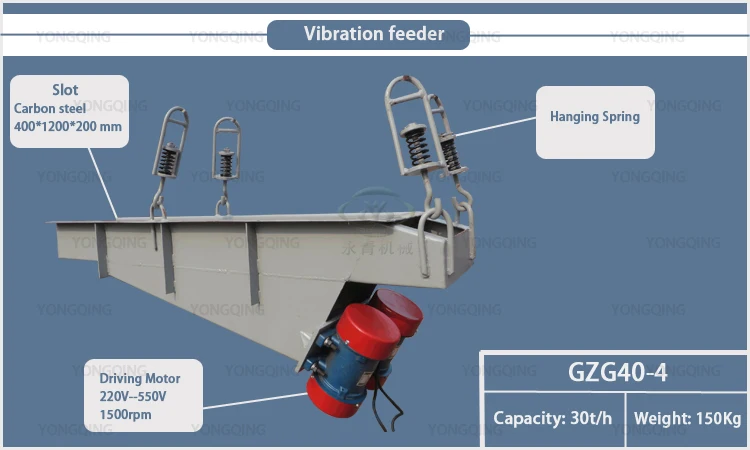

GZG40-4	400×1200×160	30			0.25×2	1460
GZG50-4	500×1200×160	60			0.55×2	1460
GZG60-4	600×1500×180	100			0.55×2	1460
GZG70-4	700×1500×200	130			0.75×2	1460
GZG80-4	800×1600×230	180			1.1×2	1460
GZG90-4	900×1600×230	240			1.1×2	1460
GZG110-4	1100×1800×300	360			1.5×2	1460
GZG130-4	1300×1800×300	480			1.5×2	1460
GZG70-6	700×1500×200	150			0.75×2	960
GZG80-6	800×1600×250	200			1.1×2	960
GZG90-6	900×1600×250	260			1.5×2	960
GZG110-6	1100×1800×300	380			2.2×2	960
GZG130-6	1300×1800×300	500			2.2×2	960
GZG150-6	1500×1800×300	500			3.0×2	960





Features

Uniformly feeding

This vibratory feeding machine can be used for rapidly and evenly discharging blocky, granular, and powdery materials from storage silo and hopper to the receiving device. The feeding rate can be changed by adjusting the motor’s exciting force or the heigh of front-and-back lifting hook



Large capacity

High intensity vibration increases material flow rates and productivity; the max capacity can be up to 500 t/h.



Low maintenance cost

simple structure, less easily damaged components, NSK bearing ensure long service time, reduce the cost of maintenance.



Less space

Small size, could be hanged up or mounted on the basement, taking less working space.



Wide usage

The vibrating feeder can be used in any environment, including outdoors, clean room and sterile environments; widely used in the metallurgy, coal, mineral processing , building materials , chemicals , abrasive and other industries crushing and screening plants .



Environment-friendly

Small size, less raw material, less power consumption, low noise, dust-free processing environment, providing workers with healthy working environment.



Applications

Widely used in the metallurgy, coal, mineral processing, building materials, chemicals, abrasive and other industries crushing and screening plants.



A. This electric vibrating feeder has been designed to handle material from small lumps to large lumps in extremely wide fields, such as aggregate, cement and mining industry etc.



B. It is not only able to provide constant material feed, but also prevent the undersired such as soils from entering into crusher to increase the processing capacity of crusher.



C. It is usually applied before primary crusher and could easily adjust feed quantity by variable speed motor.



Delivery

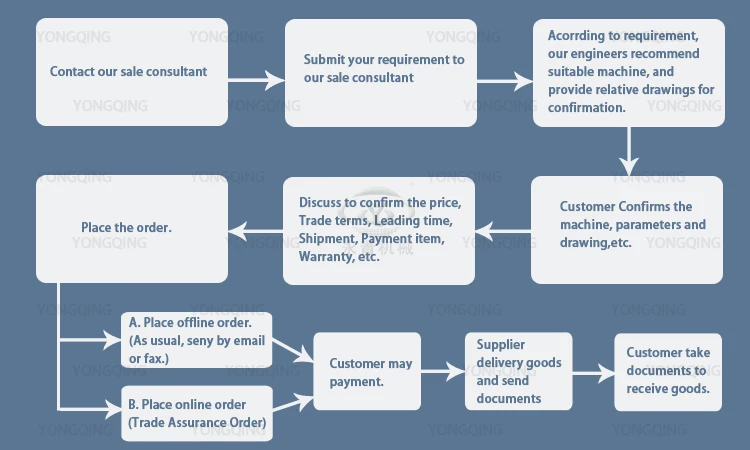

Ordering Process





Any problems, welcome to contact us.
