Многофункциональный нетканый плоский Карманный станок для производства сумок
- Category: >>>
- Supplier: Ruian Novery Machinery Co. Ltd.
Share on (60800172873):
Product Overview
Description
2021 multi-function nonwoven flat pocket shopping bag making machine

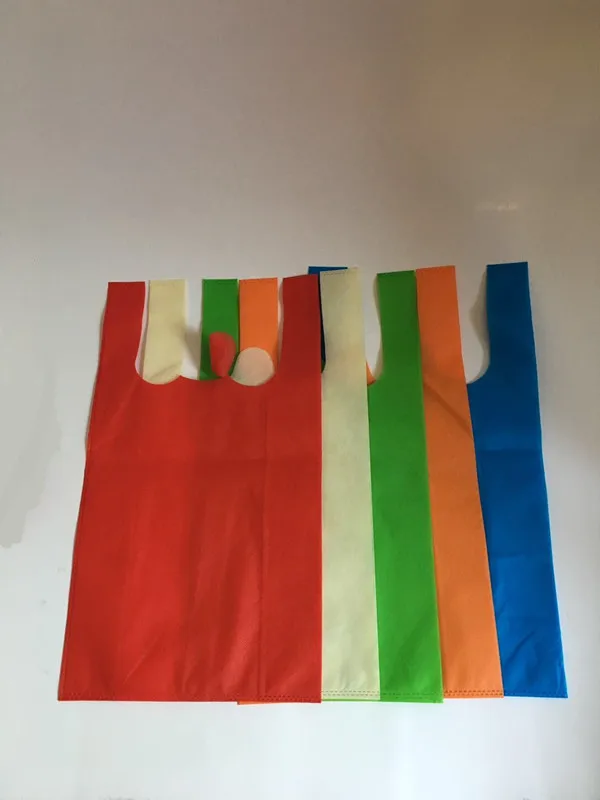

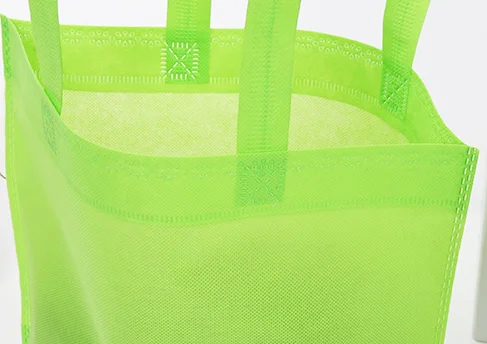

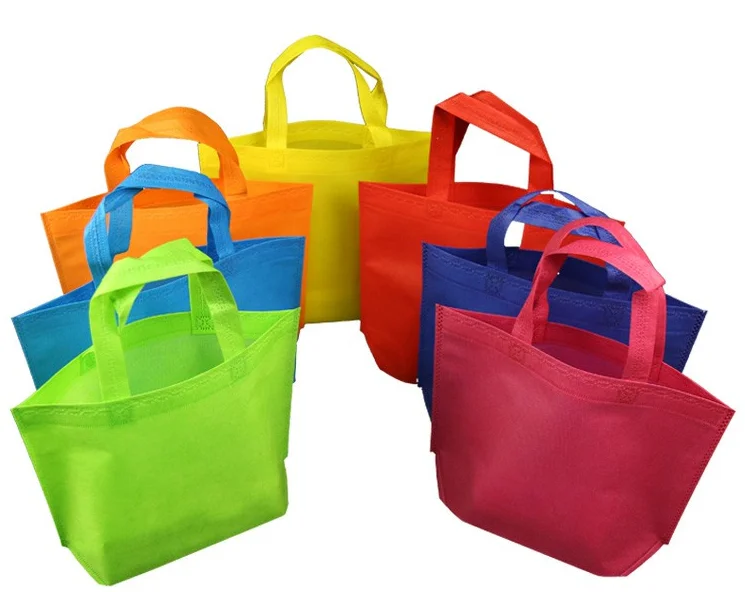

This machine is our new model, which can make box bag with handle, D cut bag, T shirt bag, shoe bags.
Description:
1.It has full-automatic computer control.
2. The stable photoelectric tracking can fix position and stop automatically.
3. The max width of the bag can be 600mm, the length is adjustable.
4. It has automatic accounting and automatic alarm.
5.It can seal handle automatically while making bag.
Feature:
1. The machine which is used for the raw materials of non-woven fabrics.
2. It can be operated with different specifications and can make different shape of three-dimensional bag ,non-woven bag, flat bag, hand bag, vest bag, and the rope bag according to your selection.
3. It collects photo and electricity and use LCD touch screen operation with steps of progress length setting. It has photoelectric tracking, computer automatic positioning and computer automatic recticifing system.
4. It can use such industail control device as automatic punching to make its products steadily and beautifully.
5. Using this machine you can rest assure of environmental protection for high quality bag making equipments.
PARAMETER:
Width of bag | NW-700 |
Width of the bag | Maxi 700mm |
High of bag | Maxi 640mm(according to the style) |
Precision of bag | +0.2 |
Speed of bag making | 20-110pic/min(stereo bag with handle sealing 50-60pcs/min) |
Maximum speed of machine | 120pic/min |
Feeding width | 1400mm |
Material thickness | 30-120g |
Volume diameter | Φ1000mm |
Tension scope | 0.2-1.5kg |
Tension style | automatic tension(press roller sensor) |
Air source | 0.6-0.9Mpa |
Volume deviation | synchronous motor drive infrared photoelectronic |
Opening ruffled | R&L independence(hand adjustment) |
Embossing style | ultrasonic & adjusted pressure |
Folded deviation | reflected two-tone photoelectronic |
Stereo triangle welding | independent welding with upper-lower layer |
Stereo width | 40-150mm |
Embossing style | automatic rolling at one time |
Punching style | air operated |
Step length setting | One horizontal and two vertical(three stepping system) |
Manipulating interface | Touch screen(brand :Taiwan Weilun) |
Color code tracking | Three-colors intelligent color-code photoelectronic |
Main motor power | 1.5kw |
Pressure | single stage 220V |
Main power | 6kw |
Overall dimension of machine | 11m*1.85m*1.85m(L*W*H) |
Net weight | 3700kg |

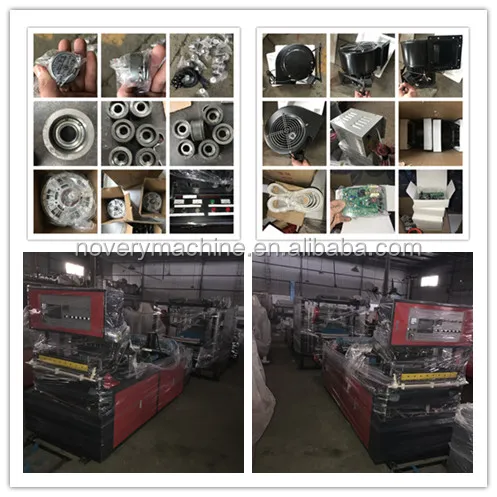

Machine pictures:
Company Profile
Rui'an Novery machine co.,Ltd is specialized in manufacturing various types of high quality Paper cup machines and Non woven bag making machine.
Our company is located in Sonjiadai Industrial Area, Feiyun, Ruian, Wenzhou City, Zhejiang Province, China. Ruian is the hometown of packaging machinery. We have about 30 employees, covering a land area of about 3000 square meters.
We can provide our ready model of machines , and also can make machines according to custmer samples, photographs, drawings or designs from our clients. We can satisfy our clients' various needs.
Our main products include paper cup machine, paper bowl machine, non woven bag making machine and printing machines.
Our products are mainly exported to India, Bangladesh, Russia, North America, Japan and the Middle East.
We hope to develop business cooperation with the companies that deal in machinery all over the world, and try hard to establish long-term and steady cooperating relationships with customers. We welcome customers to visit our factory at any time.
