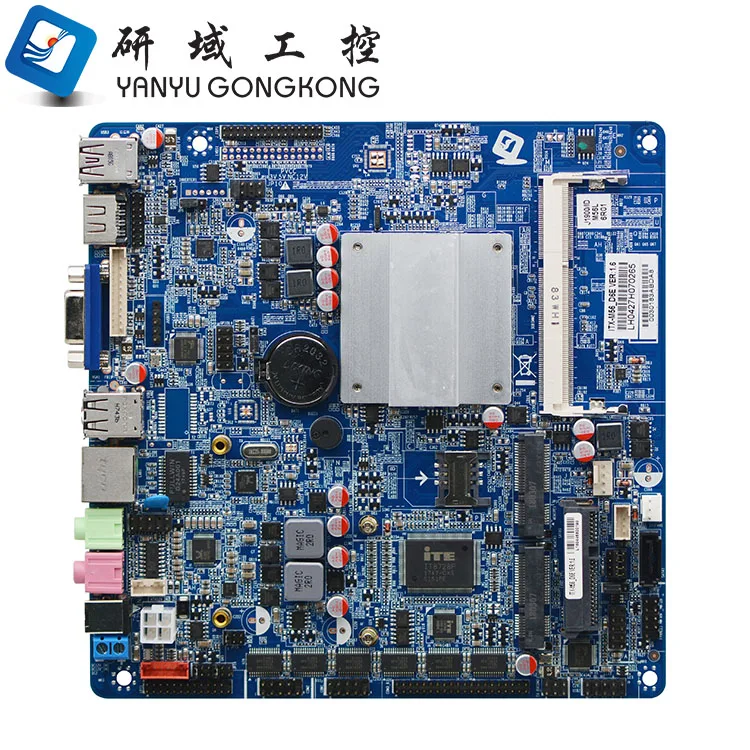

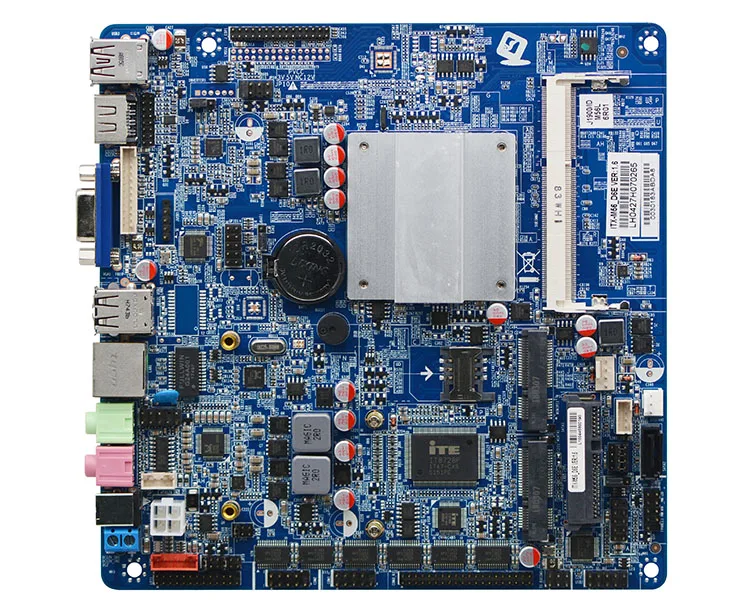

M56_D6E mainboard 6*COM Celeron J1900 fanless thin mini itx motherboard with EDP

Product Overview

Description



Specification

Model No.	ITX-M56_D6E VER:1.6
Processor	Integrated Intel® Celeron J1900/2.0GHz quad core processor
	Compatible with Intel® Bay Trail -I/M/D series CPU
Chipset	Based on Intel® Bay trail SOC
Memory	1* SODIMM memory slot, support single channel 1600/1333MHz DDR3L/1.35V memory, up to 8GB
Graphics	Integrated Intel® HD Graphics
	1*VGA,1*HDMI,1*Embedded Display port
	Support VGA; HDMI, EDP synchronous/asynchronous display
Network	1* Realtek RTL8111F Gigabit Ethernet, support Wake On LAN/PXE
Storage	1* SATA2.0 HDD port ( with built-in 2.5inch HDD SATA5 optional)
	1* SATA 2.5 inch laptop HDD slot, can install HDD directly
	1* MSATA SSD slot, transmission rate up to 3Gbps.
Audio	On board ALC662 6-channel high fidelity audio controller, support MIC/Line-out. Power amplifier.
	Power amplifier suggest to use 2Ω5W trumpet
Expansion Slot	1* Mini-PCIE slot, support WIFI,3G model
Rear I/O	1* HDMI
	1* VGA
	3* USB 2.0
	1* USB3.0
	1* RJ-45 Gigabit LAN port
	1* Line out port (green),1* MIC port (red)
	1* 12V DC power input port
Built-in I/O	1* 4pin ATX power port(12V input output power port optional)
	1* 2pin 12V DC power input port
	4* USB 2.0, 2*5Pin
	1* USB 2.0, 1*5Pin
	1* J_HDMI port, 2*8Pin (same signal with rear panel I/O HDMI1)
	1* JVGA port, 1*12Pin (same signal with DB15)
	1* Embedded display port
	1* PS/2 KB/MS port 1*6Pin
	6* RS232 COM port, COM3 support RS485/RS422
	1* LPT parallel port, 2*13Pin
	1* Front audio port, 2*5pin
	1* Front panel switch button and LED indicator port 2*5Pin
	1* HDD power supply port 1*4pin
	1* Power amplifier 1*4pin
	1* SIM socket
Fan Connector	Fanless cooling design, reserved 1*4pin CPU fan connector, 1*3pin system fan connector
GPIO	Support 4-way input output GPIO
BIOS	64Mb Flash ROM
Watchdog	Support hardware reset function (L256, 0~255 seconds)
Operating System	Windows 7/Windows 10/Linux
Power Type	Adopt DC 12V power supply
Working Temp.	-10℃~60℃
Storage Temp.	-20℃~70℃
Working Humidity	5%-95% relative humidity, non-condensing
Dimension	170mm x 170mm





Order Informaiton

NO.

Model

Processor

Frequency

Memory

VGA

HDMI

LVDS

EDP

LAN

USB

COM

RS485/422

Power

1

ITX-M56_2L VER:1.6

J1900

2.0G

1*SODDR3L

1

1

2ch*24BIT

/

2*8111F

7

6

COM3

DC12V

2

ITX-M56_D6E VER:1.6

J1900

2.0G

1*SODDR3L

1

1

/

1

1*8111F

9

6

COM3

DC12V

3

ITX-M56 VER:1.6

J1900

2.0G

1*SODDR3L

1

1

2ch*24BIT

/

1*8111F

9

2

/

DC12V

4

ITX-M56_D6L VER:1.6

J1900

2.0G

1*SODDR3L

1

1

2ch*24BIT

/

1*8111F

9

6

COM3

DC12V

5

ITX-M56_D2E VER:1.6

J1900

2.0G

1*SODDR3L

1

1

/

1

1*8111F

9

2

/

DC12V
