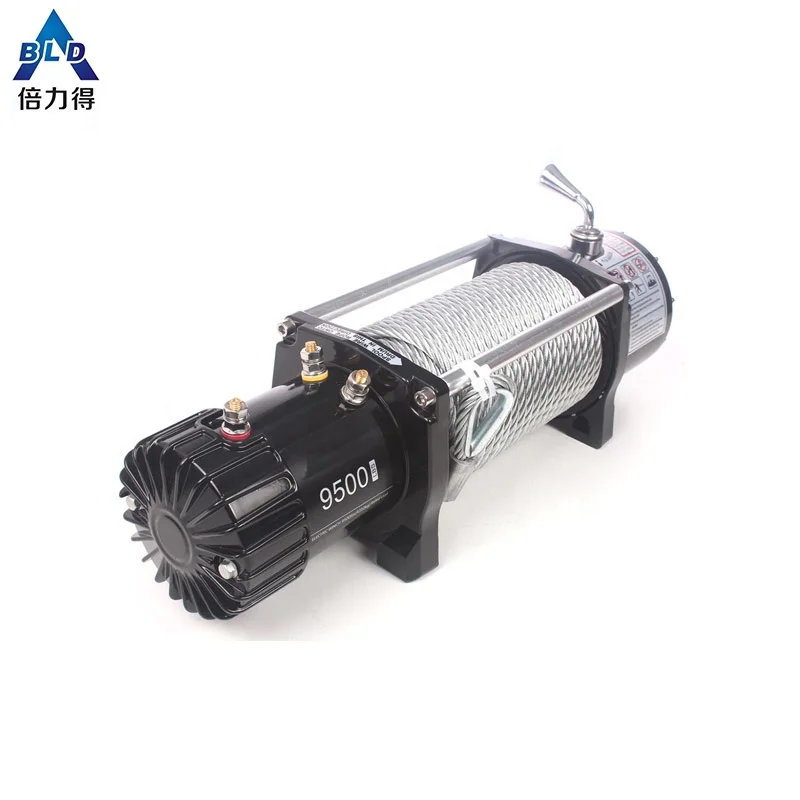

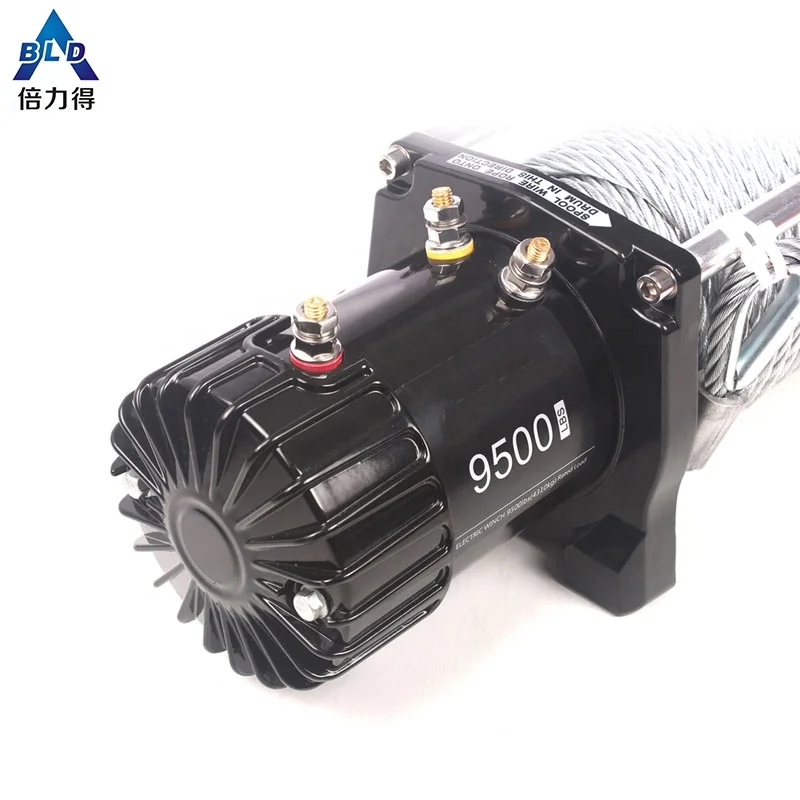

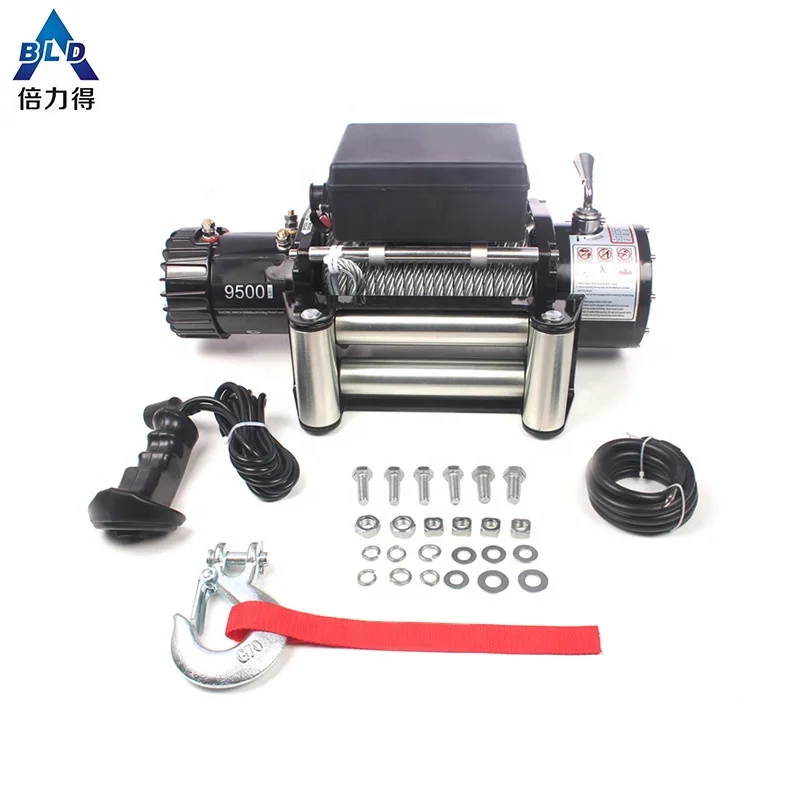

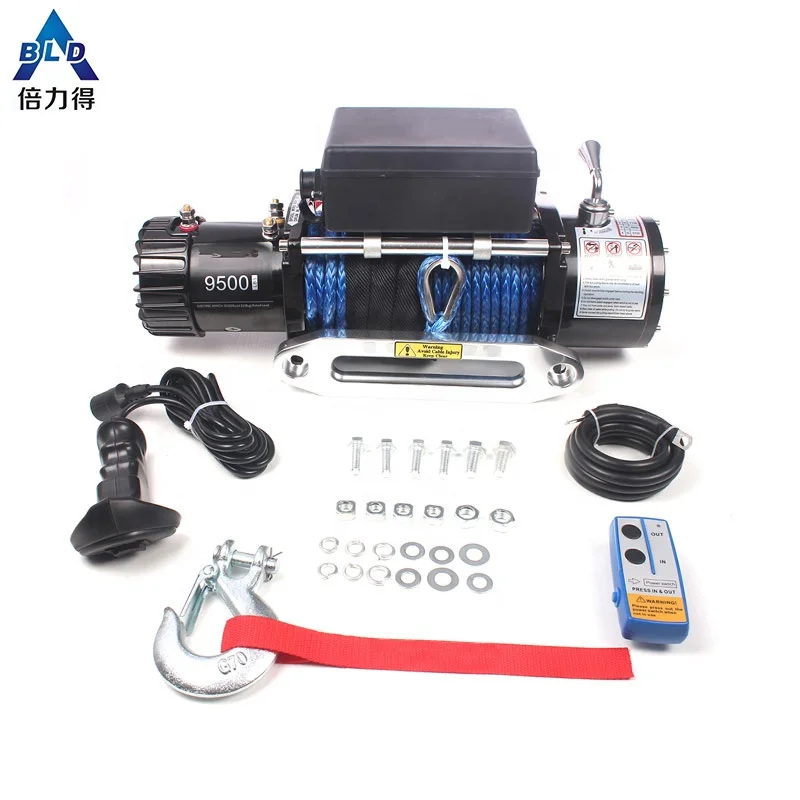

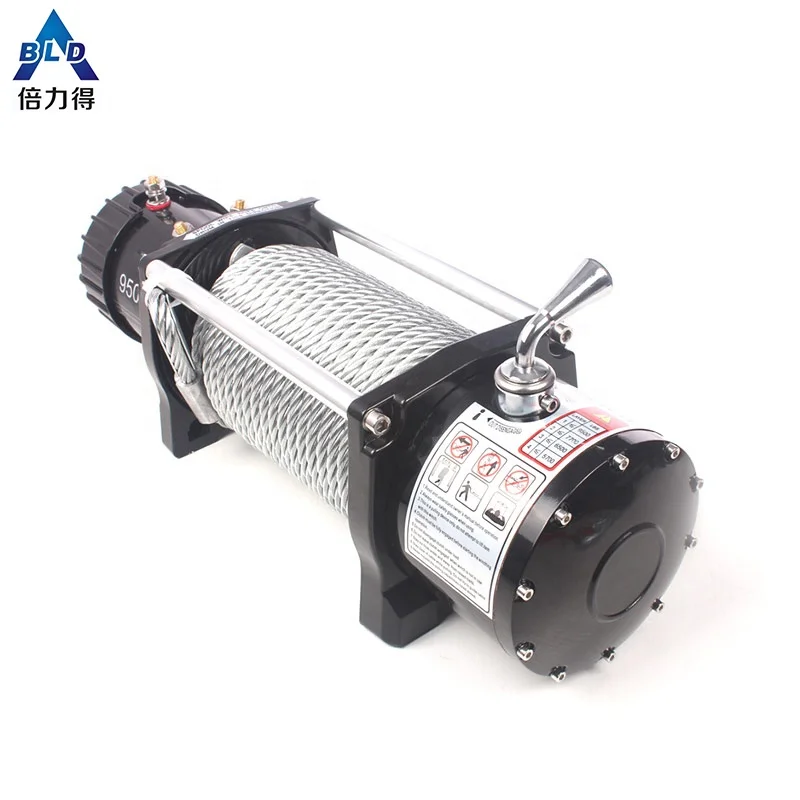

12 v electric recovery fast handle winch 9500lbs used for 4x4 car
- Category: >>>
- Supplier: Yuhuan Jiansu Electromechanical Manufacturing Co. Ltd. [Zhejiang China]Yuhuan
Share on (60800248028):
Product Overview
Description

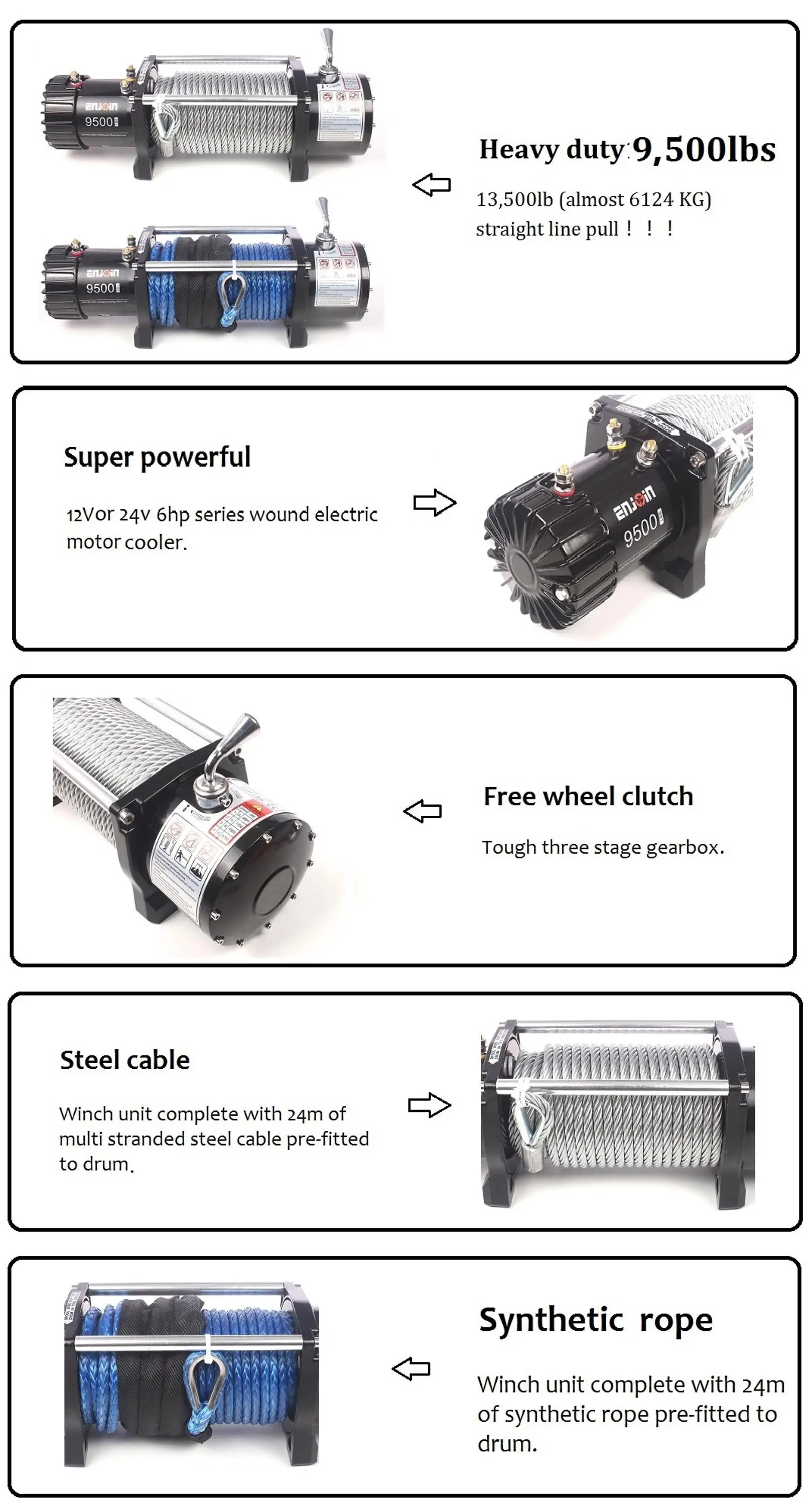

12 v electric recovery winch 9500lbs used for 4x4 car
Specification
| Single line rated pull | 9500lb (4750kg) | Motor | 6.0hp/4.5kw,Series Wound |
| Control | Remote Switch, Extra long 4.5m lead , In and Out PLUS Twin Handset Wireless Remote | Gear train | 3 Stage Planetary |
| Gear reduction ratio | 1900/1/11 1:01:00 | Clutch | Sliding Ring Gear |
| Braking Action | Automatic In The Drum | Drum size | Diameter 64mm (2.52")Length 224mm(8.82”) |
| Cable | 24m (78ft) of 9.4mm (3/8”)diameter | Fairlead | 4-Way Roller Fairlead |
| Battery | Recommended 650CCA minimum for winching | Battery Leads | 2 gauge, 1.83m (72”) 25mmsq - 6.5mm Diameter |
| Finish | Orange | Weight | GW 43KG (95lb) |
| Overall Dimensions(LxWxH) | 285x105x105mm (21.3"x6.3"x8.6") | Mounting Bolt Pattern | 10.00”±0.015"x4.50”±0.010"(254x114.3mm) |
| Motor Current | 65-400A | No Load Line Speed | 6.5m/min (21.3 ft/min) |
