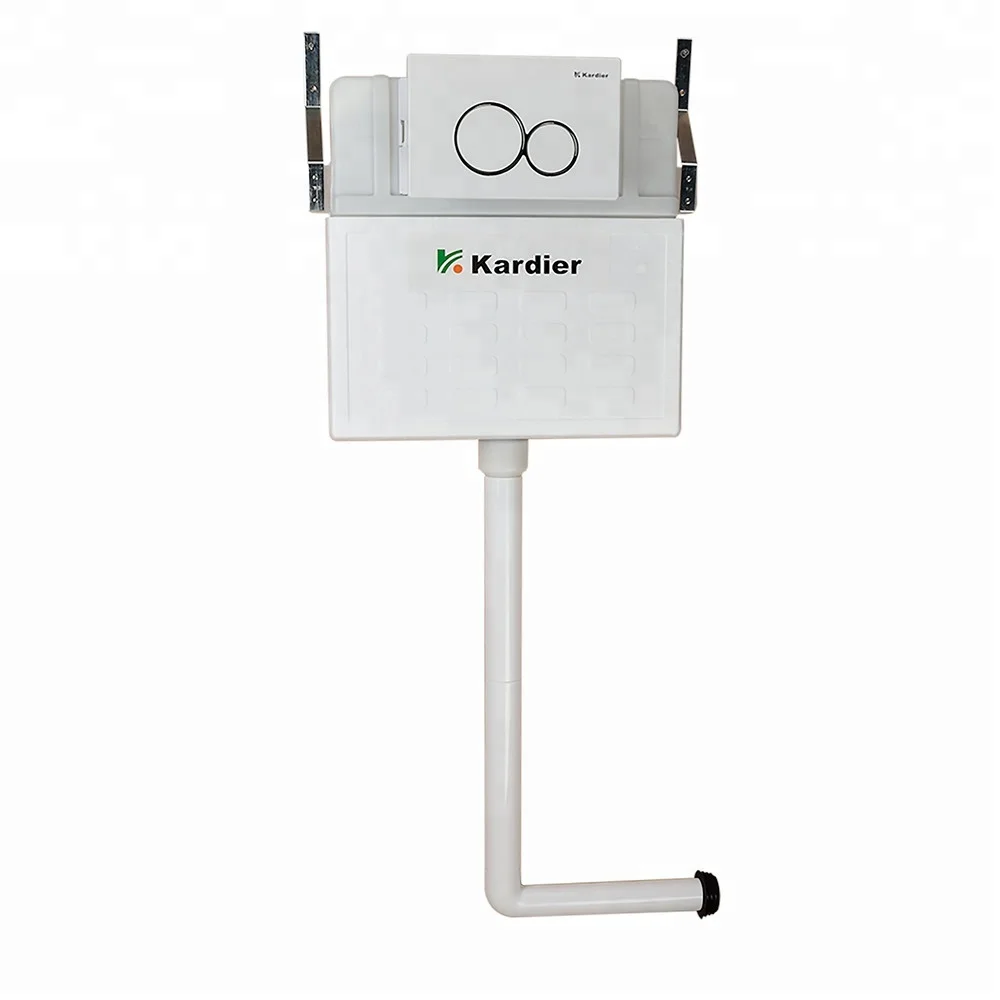

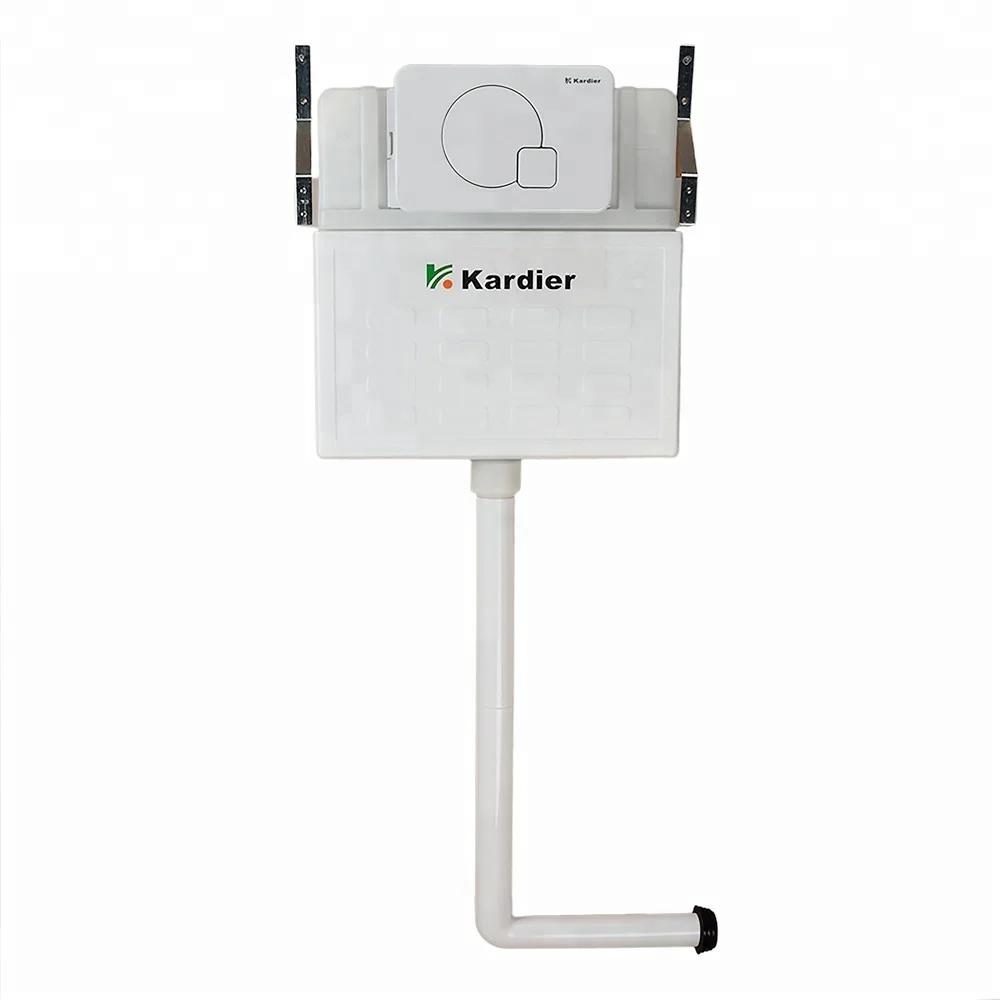

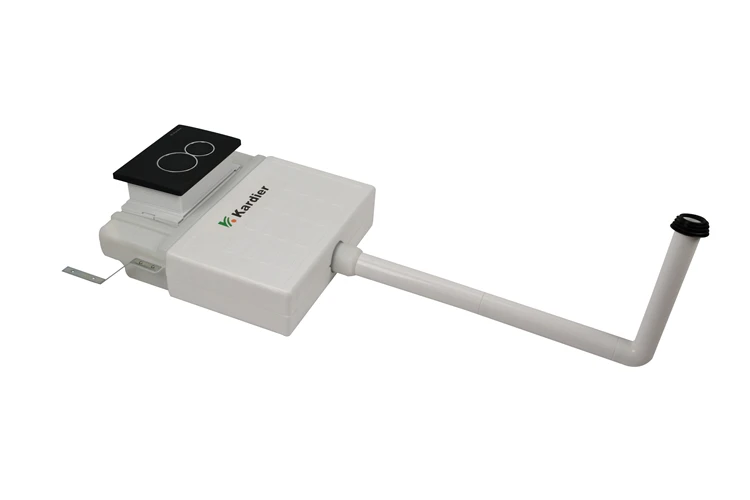

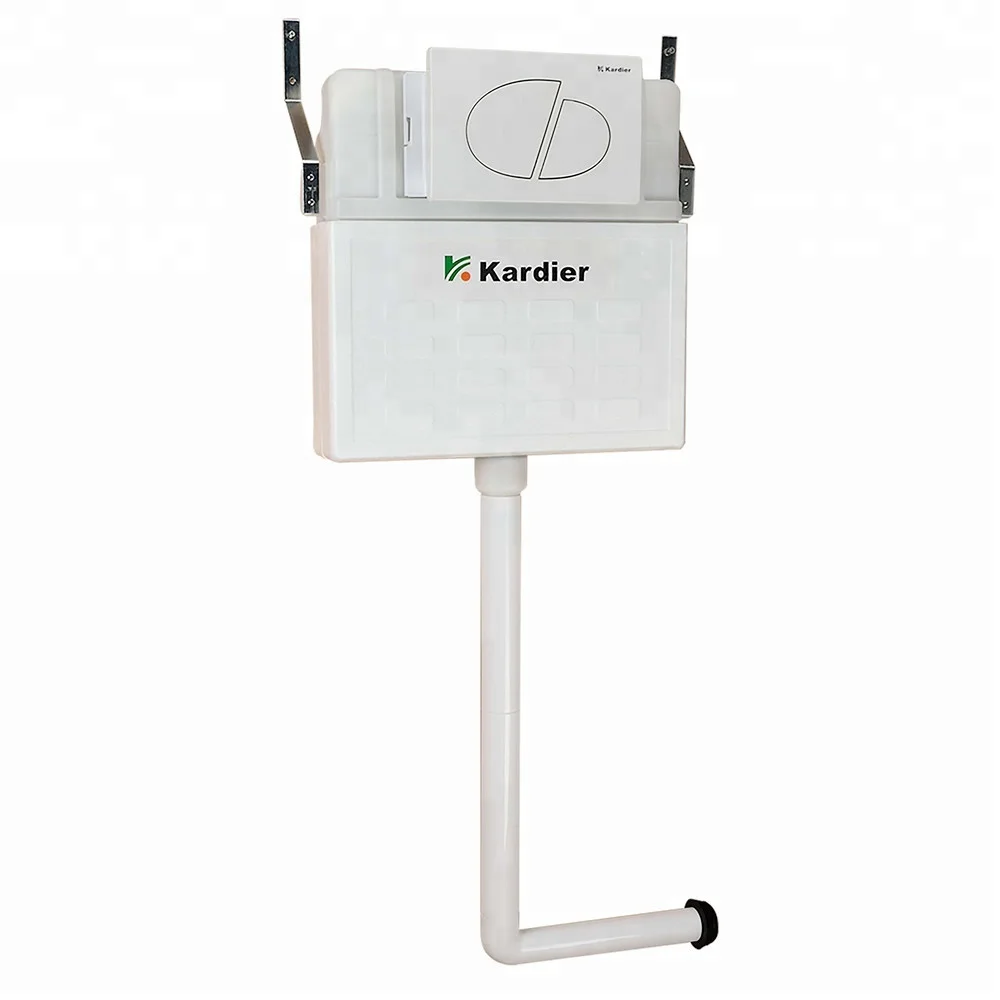

double flush 9 litre concealed toilet cistern for squatting toilet
\t
Speical points
\t
Without frame Concealed Flush Cistern with 116mm thickness
\t
Item .
\t
009C1
\t
Certificate approval
\t
NO
\t

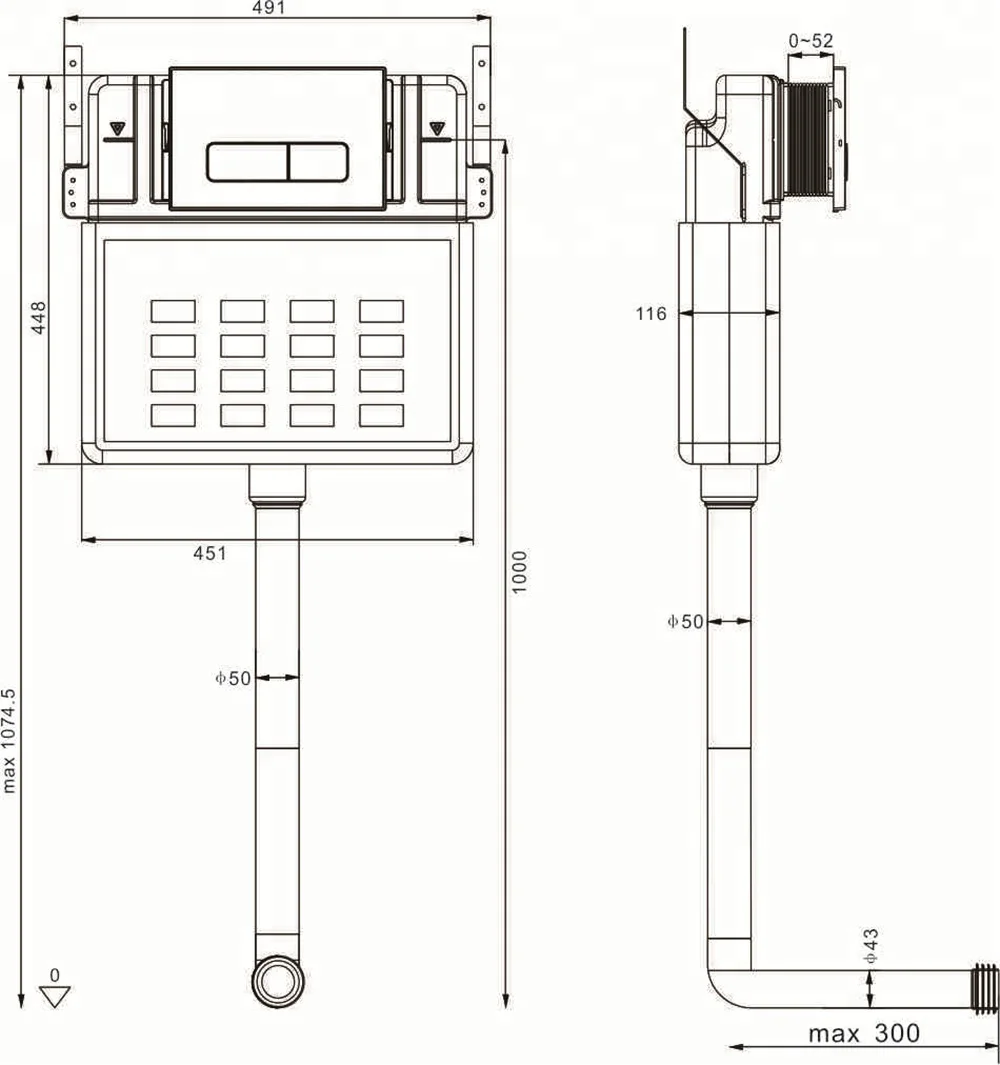

Dimension(mm)
\t
491x116x1074.5mm
\t
Flush pipe diameter
\t
110mm
\t
Carton Size (mm)
\t
741x540x525 (4sets/ctn)
\t
Suit for
\t
Bathroom Squatting pan toilet
\t
Need wall thickness
\t
≥130mm
\t
Material
\t
HDPE plastic
\t
For wall
\t
dry wall;pre-wall;dry half wall;pre-half wall
\t
Flush volumn
\t
3L/ 6L max. 8L
\t
Panel size
\t
250x165mm
\t
Panel choices
\t
Q/W/M/H/F/A/B/C/D
\t
Panel color
\t
satin/chrome/white/black/gold/ silver etc
\t
Flushing
\t
Dual flush
\t
Frame undertake
\t
≥400kgs
\t
Delivery Time
\t
LCL 7-10 days ,20GP & 40HQ need 20-25days
\t
MOQ
\t
50 PCS
\t
Port of loading
\t
SHUNDE,CHINA / SHENZHEN,CHINE/ GUANGZHOU,CHINA
\t
Payment term
\t
30% deposit and balance before delivery or against BL copy ; more than 40HQ make LC at sight
\t
Price term
\t
LCL-EXW SHUNDE,CHINA ;20GP & 40HQ : FOB SHUNDE,CHINA and FOB SHENZHEN,CHINA
\t
Package details
\t
1set/box and 4sets/ctn ;Carton packing
\t
Loading qty
\t
0.21CBM/4SET 530 sets /20GP 1100 sets /40GP 1270sets / 40HQ

Special point  :


The measure requirement of squatting pan toilet :

1.\tThe diameter of flush hole of squatting pan is φ52~φ58mm
2.\tThe distance is 200-340mm between the end of squatting pan and the wall
3.\tThe distance is 60mm between the centre of flush bend pipe and the wall
4.\tKeep about 20mm distance between the sealed rubber and the flush hole of squatting pan,in order to prevent influence the flush effect
5.\tCut the flush pipe into suitable length ,connect the flush bend pipe ,flush pipe and sealed rubber orderly ,insert the sealed rubber into the flush hole of squatting pan .

Suit for squatting pan ,and require squatting pan flushing diameter should be in range of 52mm-58mm ,if squatting pan flushing hole diameter between 42mm to 48mm ,please fit on small connector and let 43mm diameter change to be 32mm ,other specifications should fit on suitable connector which you want .

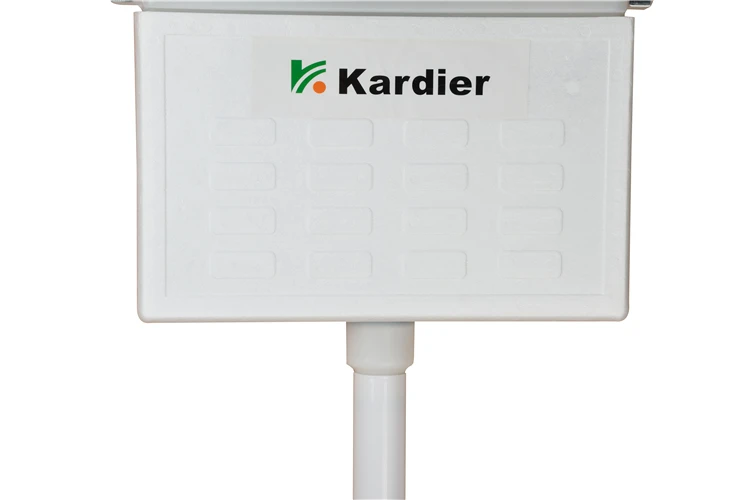

Product Details

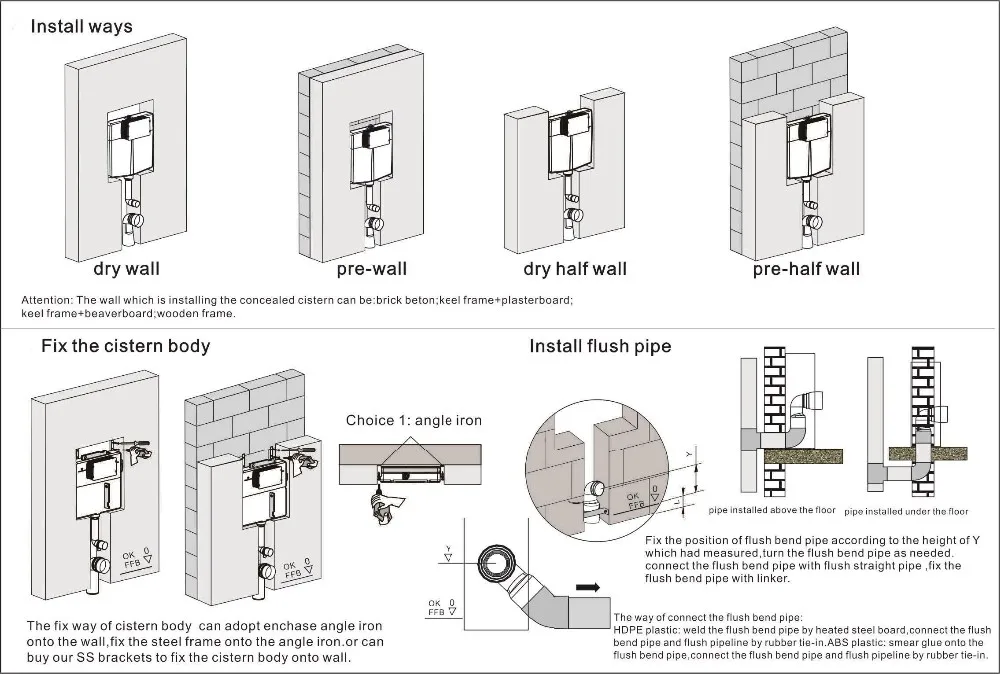

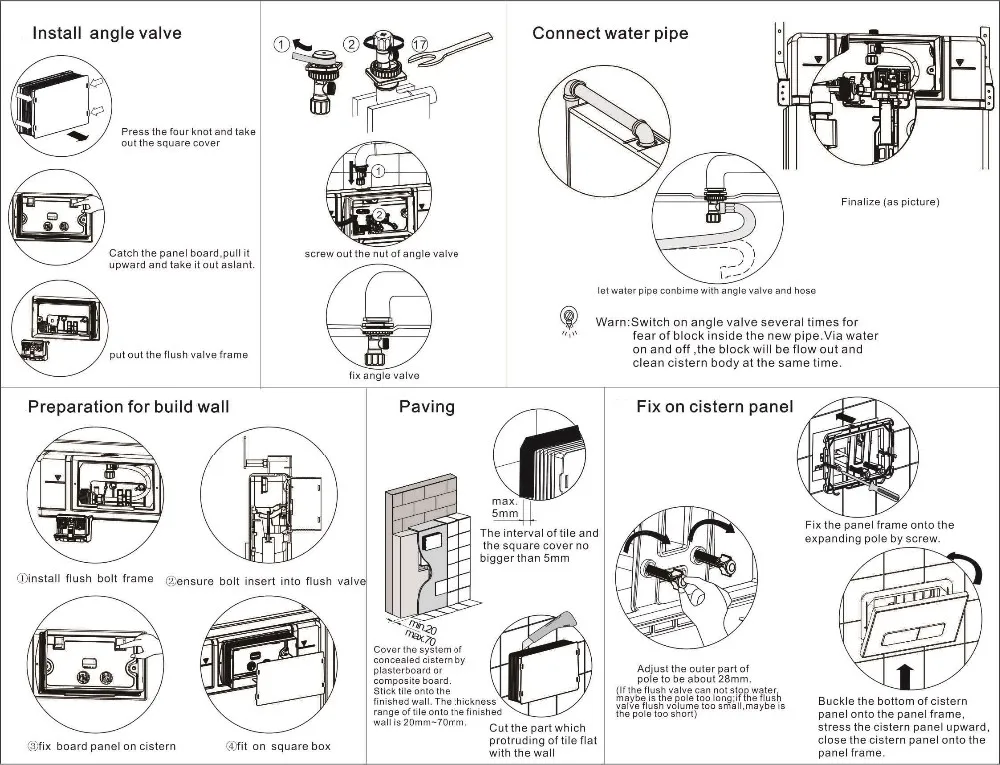

Concealed cistern installation guide

We have Multiple choices push panels to decorate your bathroom ,ABS & stainless steel & Aluminium & Acrylic etc material ;and have multiple colors for choice,detals as below

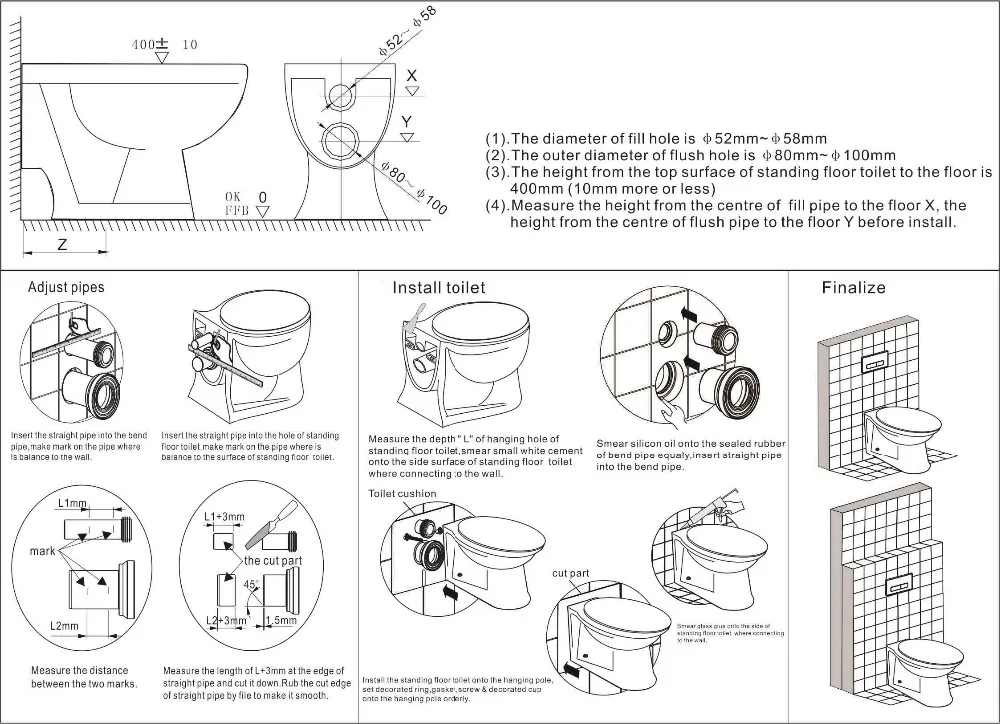

The Technical size standard requirement and installation guide of Standing floor toilet.

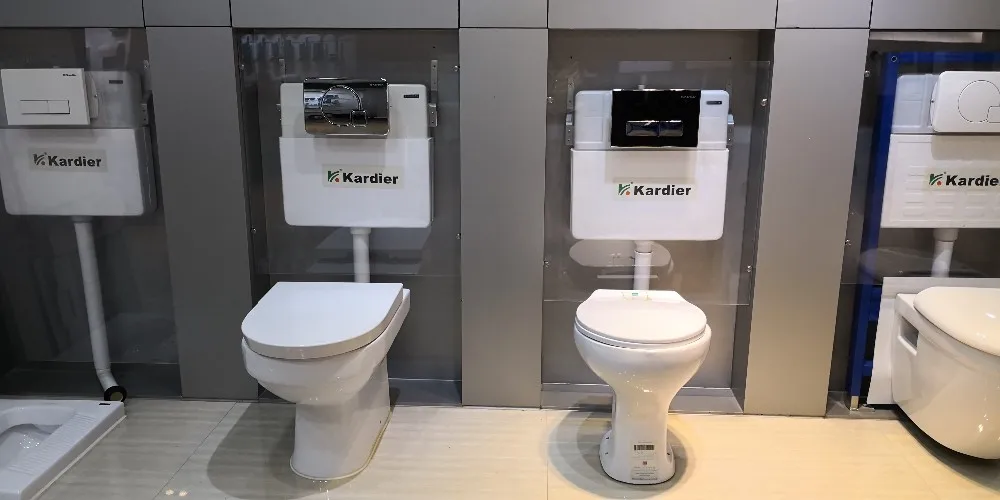

Concealed cistern installation effect

Recommend Item
Factory Introduce

Kardier Advantage

1.We are manufacturer factory ,mass production available .
2.One-stop procurement ,time and energy saving .
3.Founded in 1999 and now have export to 80 countries all over the world .
4.Fast delivery speed ,big enough storage space .
5.CE & WRAS & WATERMARK & WELS approval .
6.From material to finish products almost one shop production .
7.Quick response to inquiry .

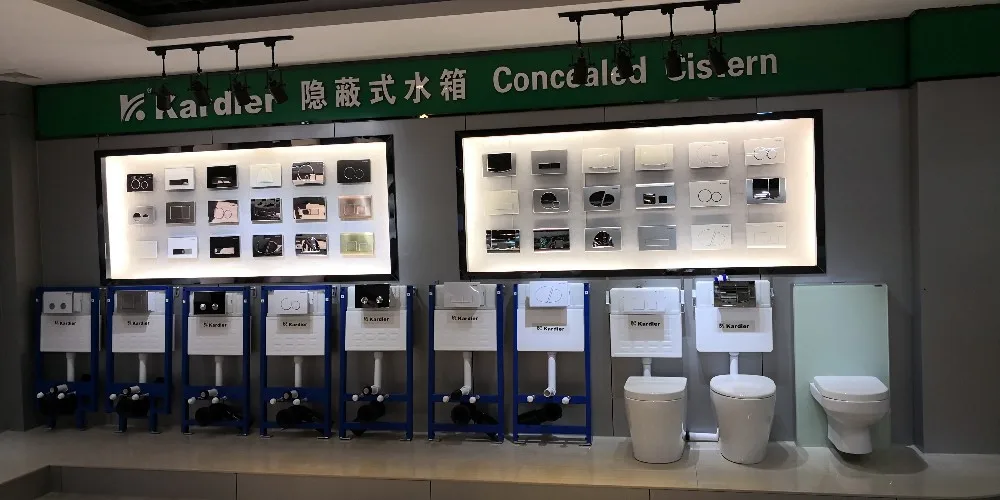

Kardier New Showroom

Kardier Team

Kardier Fair & Customer Visit

Kardier CE/WRAS/Watermark/Wels Certificates

Kardier Warehouse & Delivery Arrangement

Kardier Products Range

\t\t\t\t\t\t\t\t\tWhy choose us \t\t\t\t\t\t\t
Why to choose Kardier concealed cistern ?

1. Water saving: Save water by adjusting flush volume 3L-8L,even can be 3/4.5L .

2. Quiet : Tank body with foam & with silent fill valve & flush valve to debase noise.

3. Strong : Steel tube size 50x30mm ,frame undertake ≥400kg weight

4. Durable: HDPE tank body & painted metal frame is corrosion resistant and durable, using life over 50 years; fill valves & flush valves have 5 years guarantee and they can be easy buy after sales fittings and easy change .

5. Easy maintenance: replace and maintain the inner fittings through the flush plate hole ,no need to break wall ,and easy to install & uninstall fittings by hand without tools .

FAQ

1.Do you offer ODM service ?
A: Yes ,but you need to provide a stable certain annual purchase qty ,and we will charge you mold fee first and return back continually till all fees returned .

2. Is there the risk of leakage?
A: Our cistern tank is one piece out and implemented full-inspection, there are 0.01% risk of leaking. Tank body and fill valves and flush valves are 100% tested and finish products are sampling inspection,the risk less than 0.1% of leaking normally.

3. How to solve the after-sales problem?
A: we provide free spare parts for each shipment of 1% cistern order qty. If any quality problem , small problem provide spare parts and big problem we replace the cistern and pay for rebuild fee.

4. Does it have the noise avoiding?
A: Tank body with foam & with silent fill valve & flush valve to debase noise.

5.There are two choice of flush pipes ,how to choose ?
A: We have 90mm and 110mm two sizes flush bend pipes ,normally 011 series with 90mm flush pipe for the thin wall use ,all other items use 110mm flush pipe .
