ISO qualified double spiral type Thermoelectric silicon carbide heating elements SiC heater

Product Overview

Description

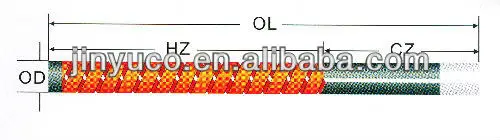

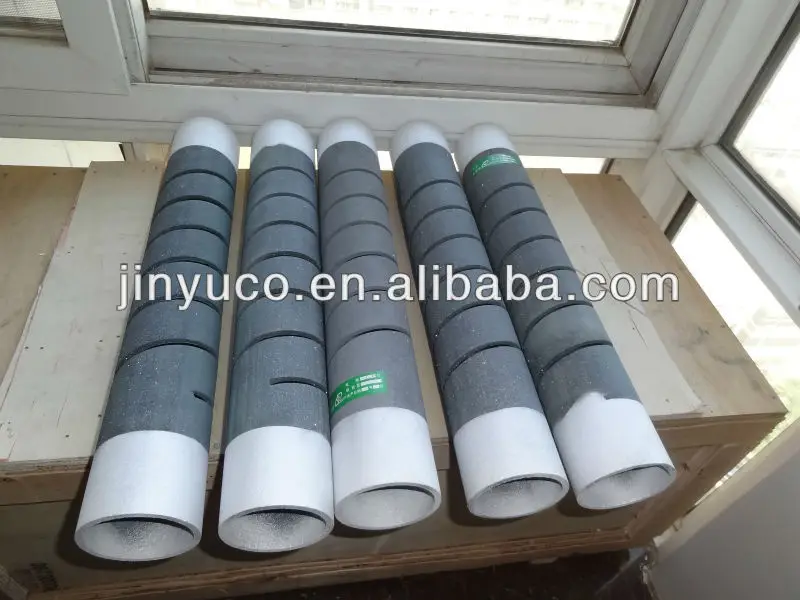

Double spiral type silicon carbide heating elements SiC heater for element temperatures up to 1625 C , available in a wide variety of standard sizes and geometries, or in customized designs to meet the specific needs of various processes and equipment. is a kind of non-metal high temperature electric heating element, made of selected super quality green silicon carbide as main materials.



SiC heater Products specification:

I. Types:  We make Rod type(ED type), Dumbbell type(DB type),U type, W type (Three Phase type), Solid Rod type, Spiral type and 5 piece type (dual hot zone) or according to your requirement.

II. Dia. 8-45mm for all types.

III. Temp: 600-1600 Celsius degrees

IV. ISO9001:2008 quality system authentication

V. Packaging: outer wooden box, cartoon box inside, polyfoam filled to ensure safety

VI. Delivery: one week after receiving the payment



SiC heater Features:

1. Withstands as high as 1600°C (surface temperature),

2. Generates high heat output per unit surface area, approximately 5-10 times than the output of Nichrome wire,

3. High strength and excellent shock resistance,

4. Heat source is free of noise and air pollution.

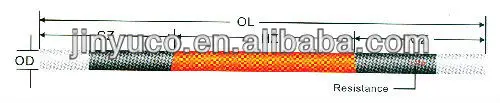

Technical Parameter of Rod Shape SiC Heater

OD (Diameter)	HZ (Hot Zone)	CZ (Cold Zone)	OL (Total Length)	Resistance
8mm	100-300mm	60-200mm	240-700mm	2.1-8.6 ohms
12mm	100-400mm	100-350mm	300-1100mm	0.8-5.8 ohms
14mm	100-500mm	150-350mm	400-1200	0.7-5.6ohms
16mm	200-600mm	200-350mm	600-1300	0.7-4.4 ohms
18mm	200-800mm	200-400mm	600-1600	0.7-5.8 ohms
20mm	200-800mm	250-600mm	700-2000mm	0.6-6.0 ohms
25mm	200-1200mm	250-700mm	700-2600mm	0.4-5.0 ohms
30mm	300-2000mm	250-800mm	800-3600mm	0.4-4.0 ohms
35mm	400-2000mm	250-800mm	900-3600mm	0.5-3.6 ohms
40mm	500-2700mm	250-800mm	1000-4300mm	0.5-3.4 ohms
45mm	500-3000mm	250-750mm	1000-4500mm	0.3-3.0 ohms
50mm	600-2500mm	300-750mm	1200-4000mm	0.3-2.5 ohms
54mm	600-2500mm	300-750mm	1200-4000mm	0.3-3.0 ohms



The Advantages of Jinyu SiC heater Silicon Carbide Heating Elements

No fuel availability or storage problems
No noxious fuel exhaust to be ducted away
High strength and excellent shock resistance
Economical, dependable, high-quality, excellent after-sale service
One of the highest hot: cold ratios in the industry
Efficiently handle a wide range of products and atmospheres without any protection atmosphere



Please kindly indicate the following dimensions identified in the element:
Shape:ED,DB,U,W,SC,SCR,etc.
Heated Length Diameter (d)
Terminal Diameter (D)
Heated Length (L1)
Terminal Length (L2)
Electric resistance(R)
