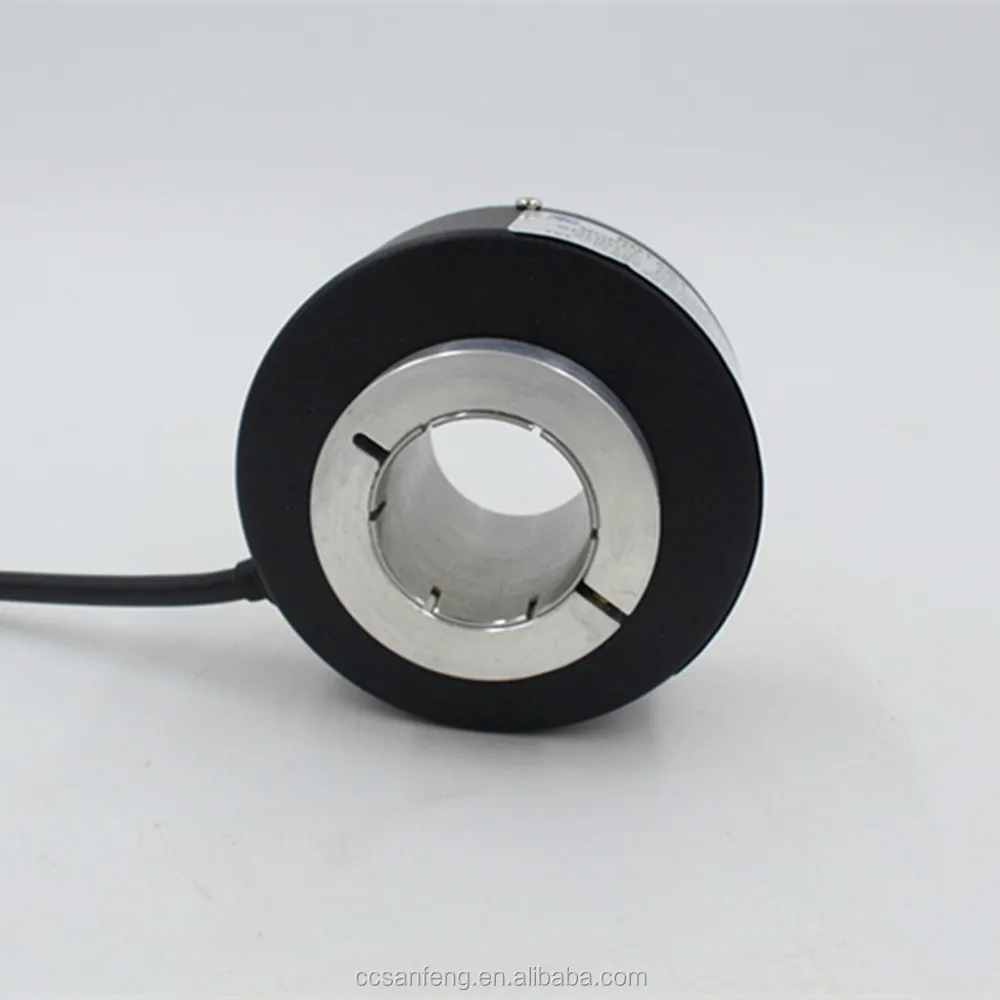

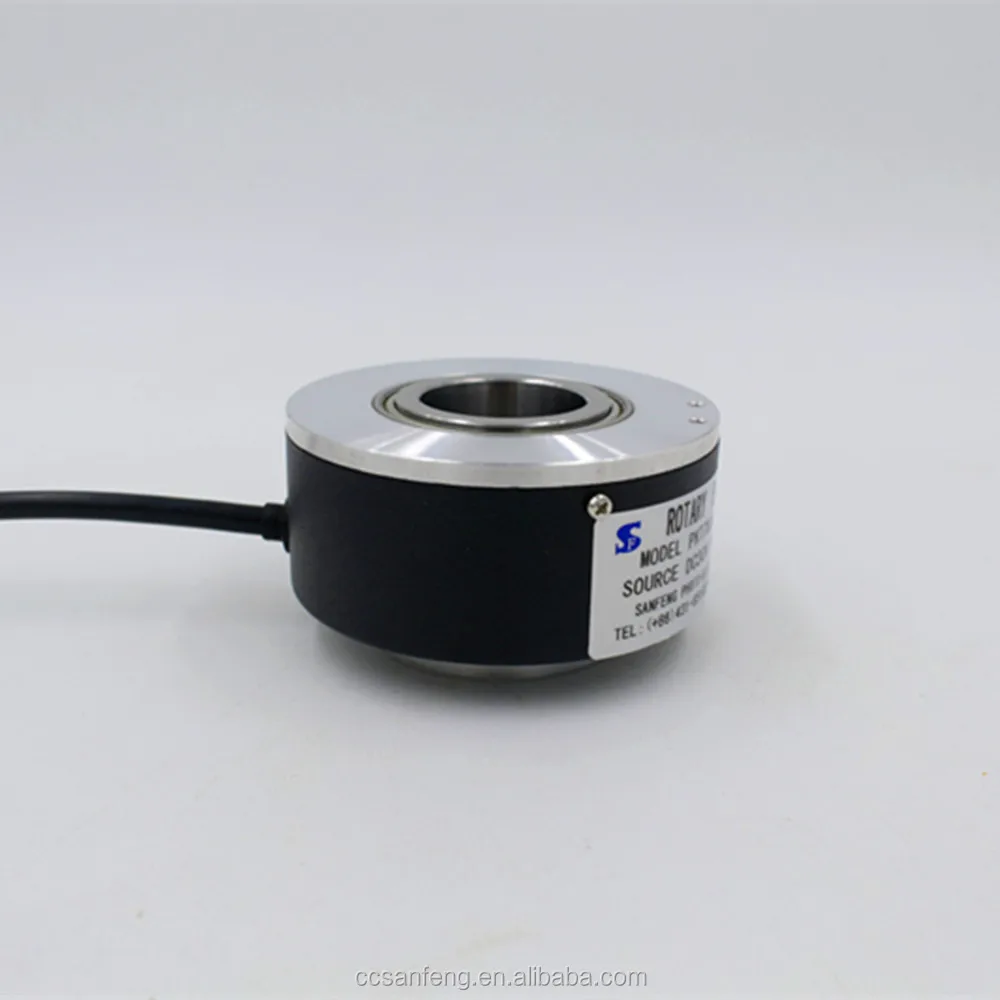

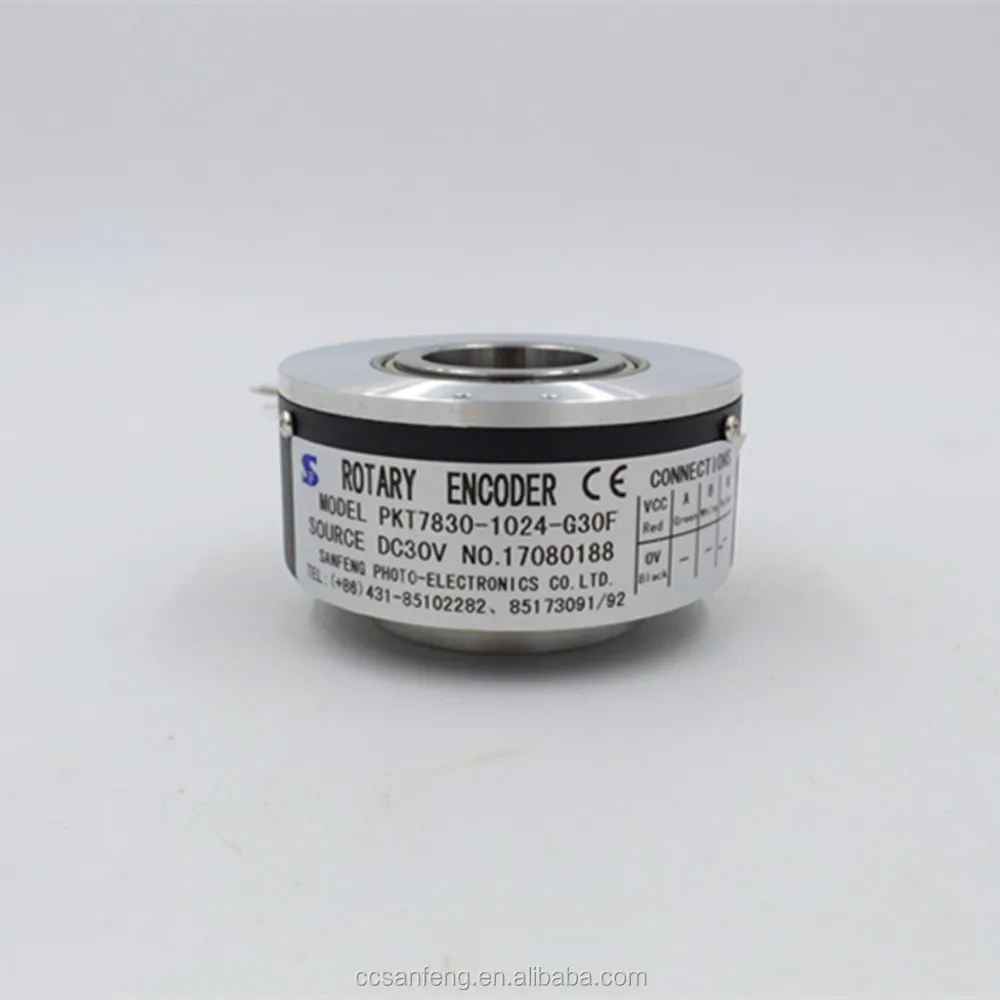

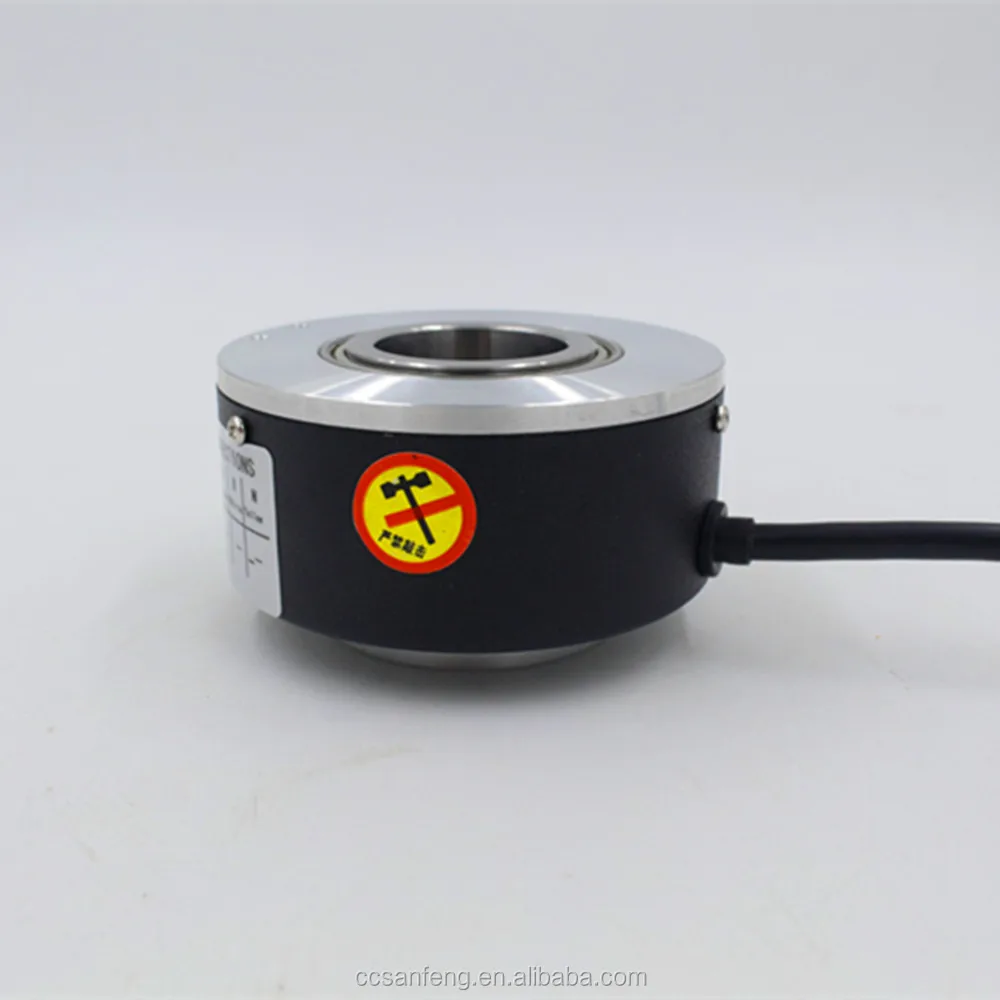

PKT series hollow shaft rotary encoder for elevator and lift using

Resolution

1024,200,2500,3000P/R

Supply Voltage

DC15~30V

V_H  Output Voltage

≥Vcc*70%

V_L  Output Voltage

≤0.5V

Current Consumption

≤100mA

Output Phase

A.B

100kHz Max

Rise / Fall Time

≤1μS /Driver≤0.1μS

Starting Torque

1.5*10^-3N*m(+25℃)

Shaft Loading

Radial

40N

Axial

20N

Rotating Inertia

6*10^-4Kg*m²

Max Rotating Speed

2500r/min

Vibration Resistance

50m/s²(10~200Hz) 2 Hours in xyz Direction

Shock Resistance

980m/s² (3 Times in xyz Direction,each time 11ms)

Protection

IP54

Operating Temperature

-10℃~+70℃

Storage Temperature

-20℃~+80℃

Operating Humidity

30~85%RH

Accessories

Elastic Mounting Plate

Are you a trading company or a manufacturer?

We are a manufacturer of 20 years experience.

Do you accept OEM brand?

Accept large OEM brand customers, or a large number of customers.

Does your product have a factory inspection?

Every product we send is strictly factory inspection.

How long will you ship the goods?

Our delivery time ranges from 3 days to 3 weeks.

Can you provide free samples?

Regular products provide samples according to the original price. Customized products are provided at cost price.

What kind of packing do you send?

We use high-quality corrugated paper packing box, internal environmental protection buffer material.

What is our loading port?

Dalian port, or apply for other ports.

How long is your quality guarantee period?

The guarantee period for our products is one year.
