Price:$30.00 - $50.00

Quantity:


Product Overview

Description


Product Description

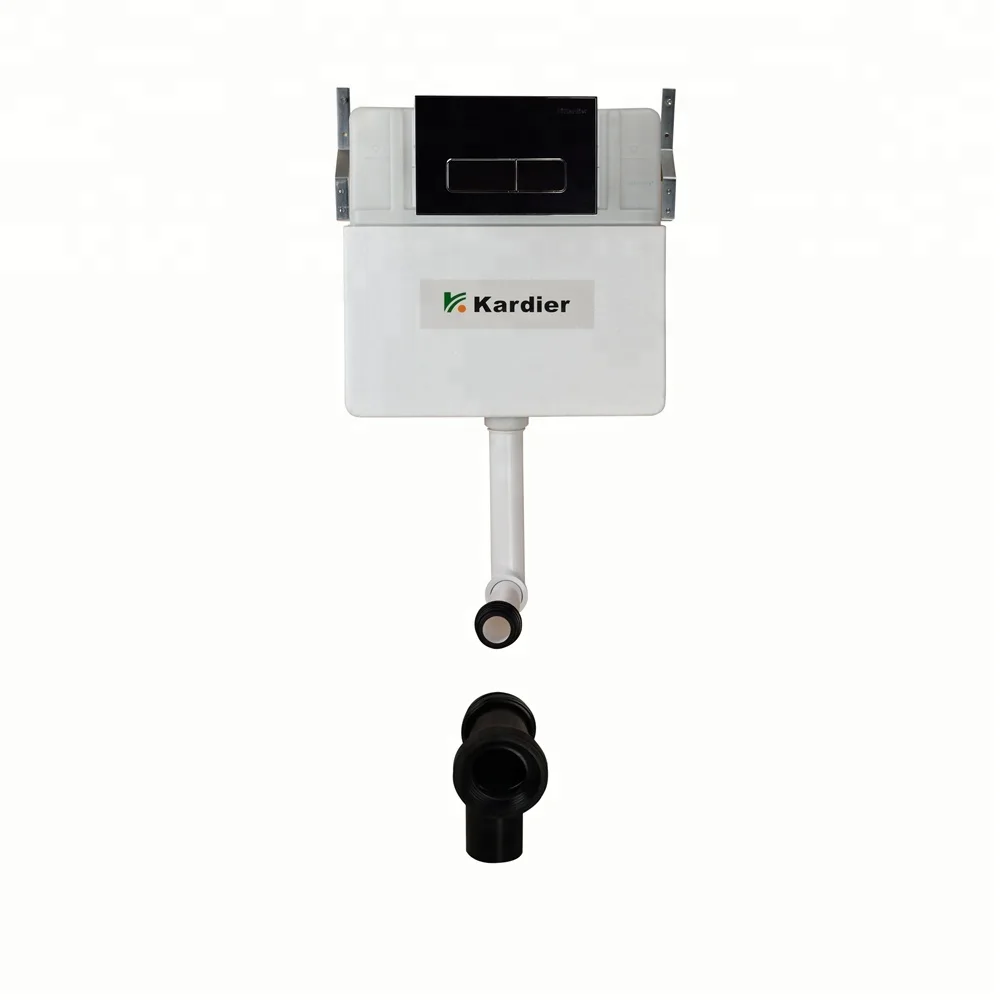

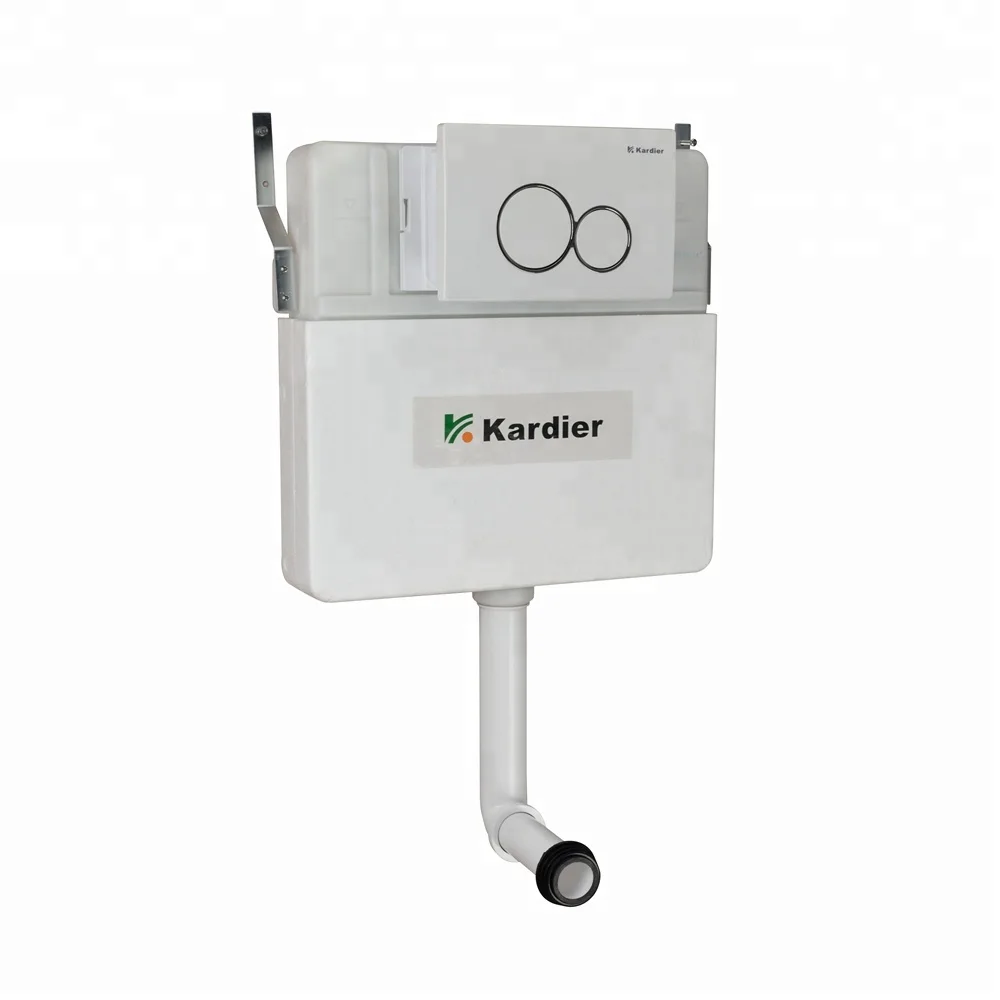

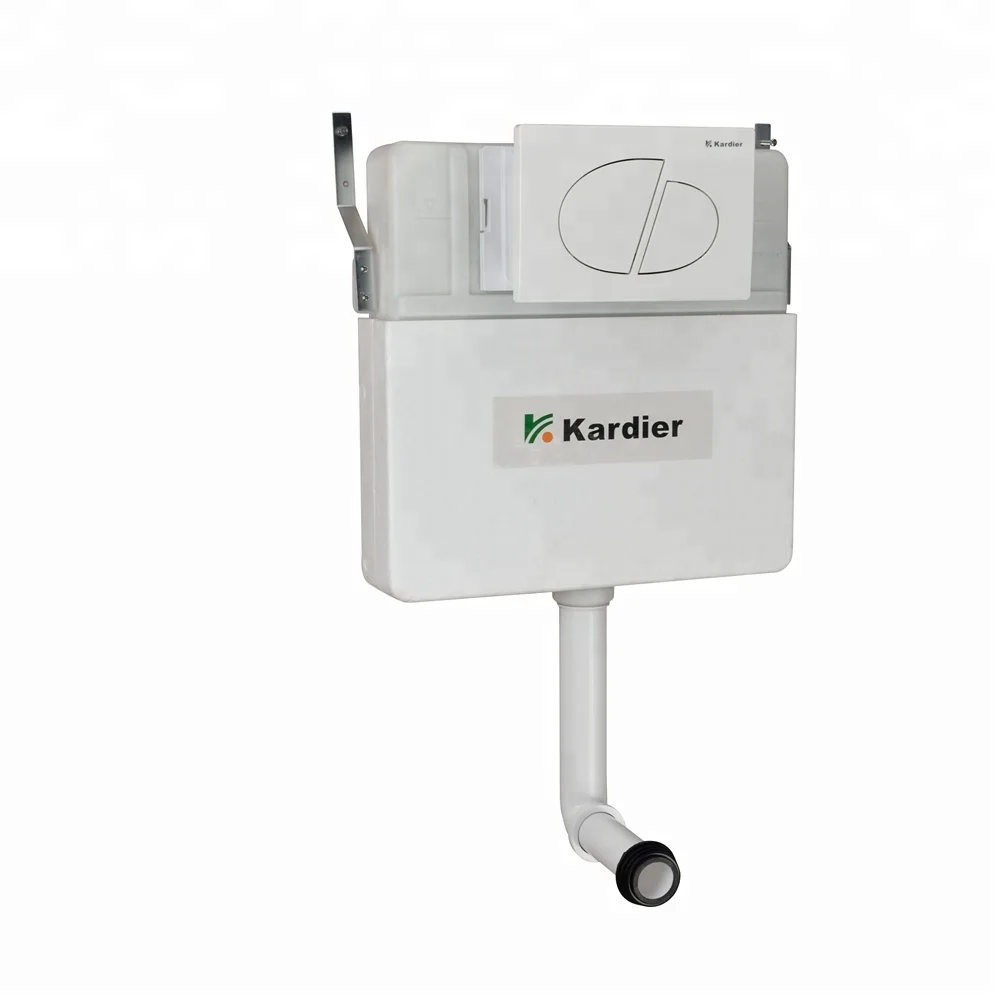

CE approval super slim bathroom concealed water cistern for back to wall toilet
\t
Speical points
\t
Super slim Without frame Concealed Cistern with 96mm tank body
\t
Item NO.
\t
011B
\t
Certificate approval
\t
CE /WRAS/WATERMARK/WELS
\t
Dimension(mm)
\t
497.3x96x1074mm
\t
Flush pipe φ
\t
90mm
\t
Carton Size (mm)
\t
741x540x525mm(5pcss/ctn)
\t
Suit for
\t
Bathroom standing floor toilet
\t
Need wall thickness
\t
≥120mm
\t
Material
\t
HDPE plastic
\t
For wall
\t
dry wall and pre-wall;dry half wall;pre-half wall
\t
Flush volumn
\t
3L/ 6L max. 8L
\t
Panel size(mm)
\t
250x165mm
\t
Panel choices
\t
Q/W/M/H/F/A/B/C/D
\t
Panel color
\t
white/black/gold/chrome/satin/ silver etc
\t
Flushing
\t
Dual flush
\t
Frame undertake(kgs)
\t
≥400
\t
Delivery Time
\t
LCL 7-10 days ,20GP & 40HQ need 20-25days
\t
MOQ
\t
50 PCS
\t
Port of loading
\t
SHUNDE,CHINA / SHENZHEN,CHINE/ GUANGZHOU,CHINA
\t
Payment term
\t
30% deposit and balance before delivery or against BL copy ; more than 40HQ make LC at sight
\t
Price term
\t
LCL: EXW SHUNDE,CHINA ;20GP & 40HQ : FOB SHUNDE,CHINA and FOB SHENZHEN,CHINA
\t
Package details
\t
Carton packing ,1set/box and 5sets/ctn ;flush pipe packing size : 605x430x508mm (12pcs/ctn)
\t
Loading qty
\t
0.21CBM/5SET (0.053cbm/pc) Flush pipe : 0.132CBM/CTN( 12pcs/ctn) 20GP: 520 sets 40GP: 1050 sets 40HQ: 1250sets

Special point  :

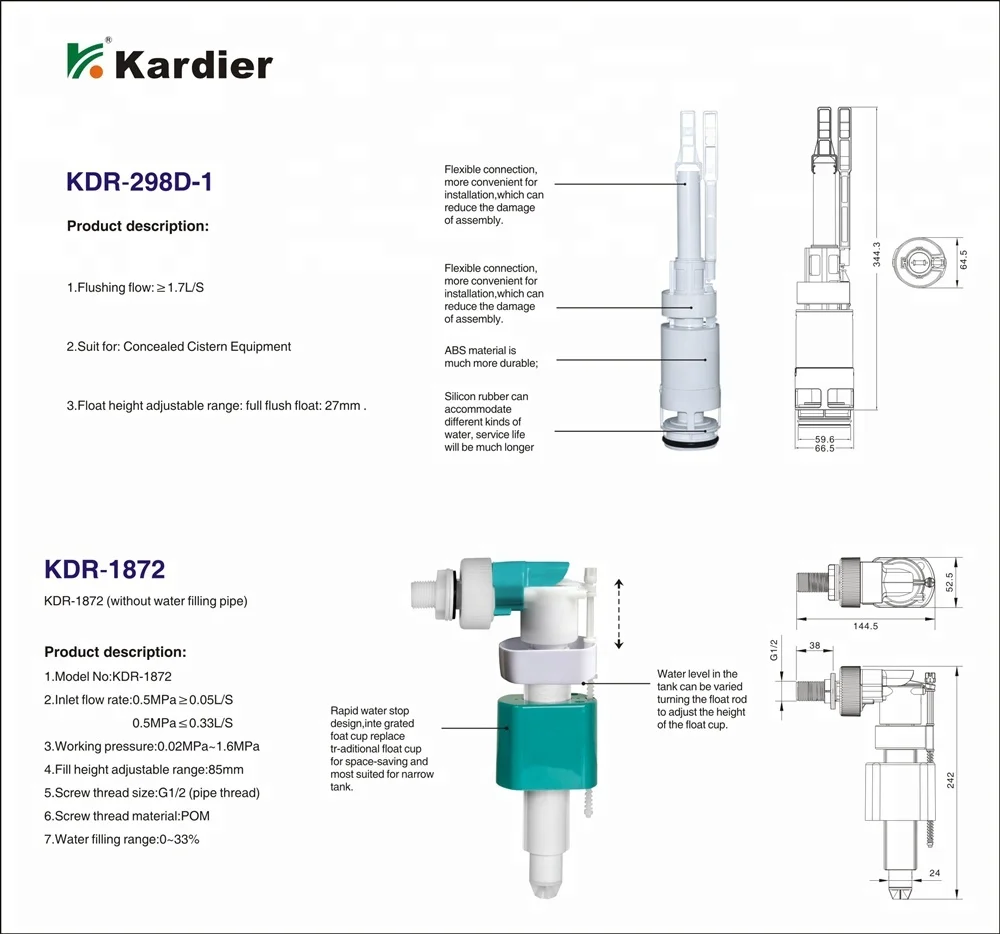

Malfunction and solve way of fill valve :

Problem 1 : The water level too high or too low Solve way : Adjust water level

Problem 2 : can not stop water Solve way : Wash sealed rubber and mandrill

Problem 3 :fill water speed slow Solve way : Wash filter,adjust water stress to higher

Other questions Please consult with professional technician


Technologic data :

1. 1/2" standard fill water hole

2.The water stress range of fill water is 0.02--1.0Mpa

3.The water temperature range is 2°-45°

4.3L/6L dual flush water volume ,the flush water time is 3S-5S

5.The paintted steel frame is corrosion resistant and can bear 400kgs heavy stress

6.The product can be installed in the wall of 110mm thickness

Product Details

Concealed cistern installation guide

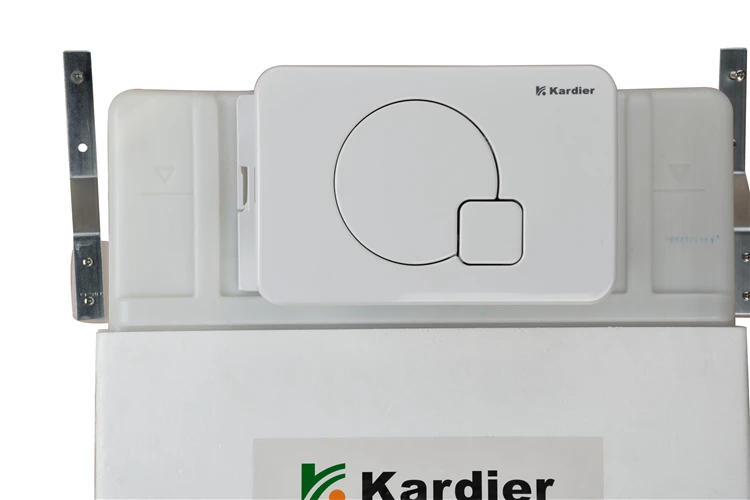

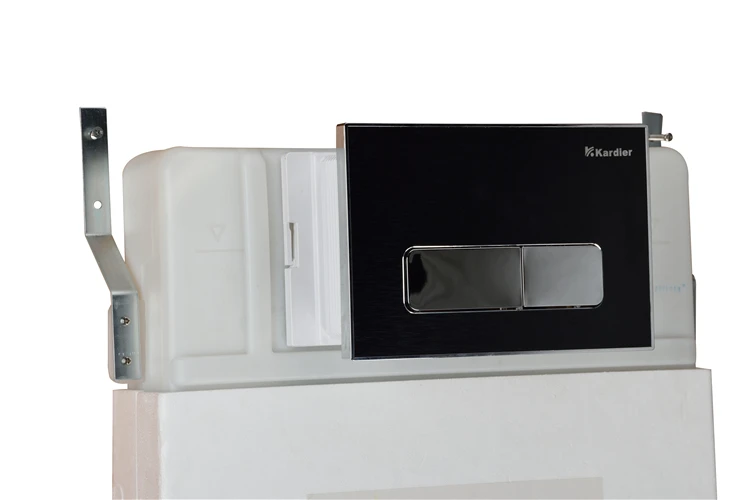

We have Multiple choices push panels to decorate your bathroom ,ABS & stainless steel & Aluminium & Acrylic etc material ;and have multiple colors for choice,detals as below

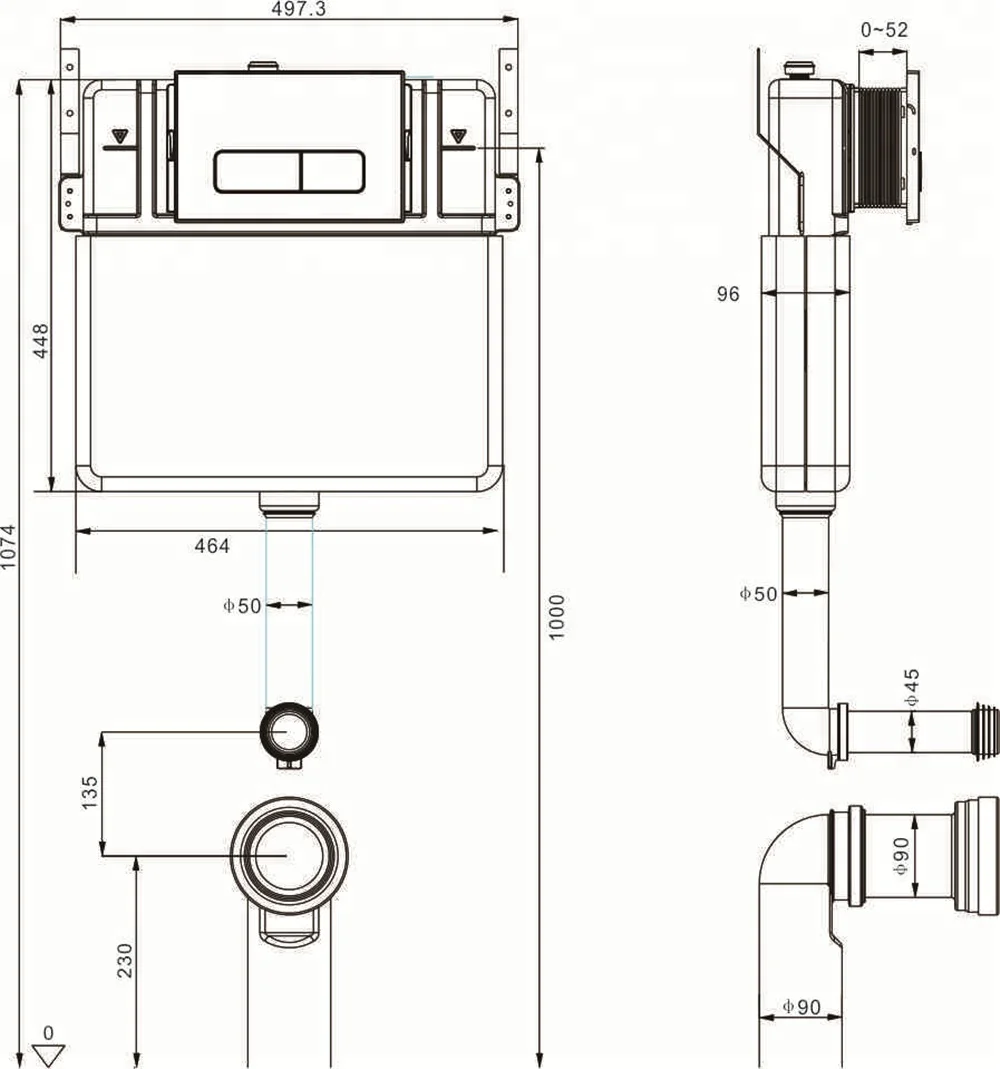

The Technical size standard requirement and installation guide of Standing floor toilet.

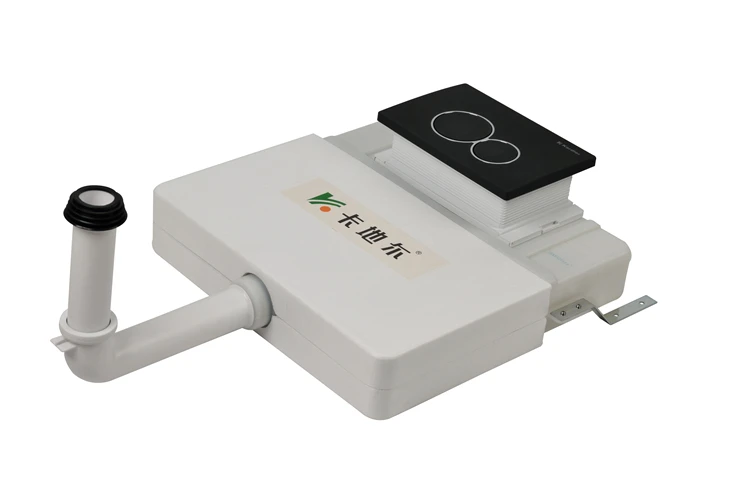

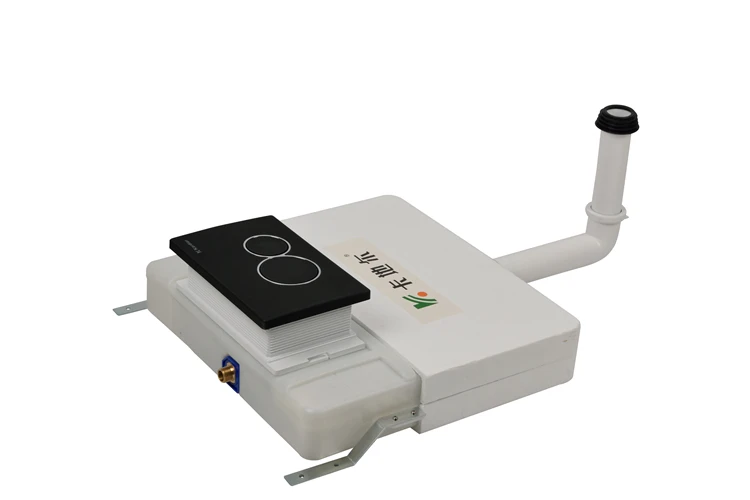

Concealed cistern installation effect

Recommend Item
Factory Introduce

Kardier Advantage

1.We are manufacturer factory ,mass production available .
2.One-stop procurement ,time and energy saving .
3.Founded in 1999 and now have export to 80 countries all over the world .
4.Fast delivery speed ,big enough storage space .
5.CE & WRAS & WATERMARK & WELS approval .
6.From material to finish products almost one shop production .
7.Quick response to inquiry .

Kardier New Showroom

Kardier Team

Kardier Fair & Customer Visit

Kardier CE/WRAS/Watermark/Wels Certificates

Kardier Warehouse & Delivery Arrangement

Kardier Products Range

\t\t\t\t\t\t\t\t\tWhy choose us \t\t\t\t\t\t\t
Why to choose Kardier concealed cistern ?

1.Easy maintenance: replace and maintain the inner fittings through the flush plate hole ,no need to break wall ,and easy to install & uninstall fittings by hand without tools .


2.Tools & fittings complete : Frame items one whole set products together with Allen key and fixing frame screws and hanging wall hung toilet poles and flush pipes ,No trouble for installation

3.QC check : 100% tank body & fill valves & flush valves tested by QC to promise good quality and no any leaking,finish product check by sampling .

4.Most of our concealed cisterns with CE & WRAS & WATERMARK & WELS certificates approval .

FAQ

1.There are two choice of flush pipes ,how to choose ?


A: We have 90mm and 110mm two sizes flush bend pipes ,normally 011 series with 90mm flush pipe for the thin wall use ,all other items use 110mm flush pipe .

2. Does it include all installation needed fittings and tools ?

A: Our products are the full set of fittings sales, including all accessories such as Allen key and fixing frame screws and hanging wall hung toilet poles and flush pipes etc .

3.Do our concealed cisterns suit for all kind of size ceramic toilet ?

A:No ,the ceramic toilet size should be with international standard .pls kindly find above "The Technical size standard requirement for Wall hung toilet & standing floor toilet & Squatting pan " .

4. What certifications do we have?

A: Most of our concealed cisterns with CE & WRAS & WATERMARK & WELS certificates approval .pls kindly check our certificate item table for your reference ,or just contact with us for more details .
