Проволочная сетка из нержавеющей стали, обратная голландская тканая ткань для пластикового экструдера

Product Overview

Description

Stainless Steel Wire Mesh Reverse Dutch Woven Cloth for Plastic Extruder Screen



Stainless Steel Wire Mesh Reverse Dutch Woven Cloth for Plastic Extruder Screen  is a kind of stainless steel woven wire mesh. the larger count of wires is found in the warp and the smaller count in the shute, thus reversing the method used in plain dutch weave, twilled dutch weaves.



Reverse Dutch weave wire cloth is woven using two sizes of wire. Smaller wires are used in the warp direction and are woven with a larger  wire. The smaller wires are woven tightly together, providing a tight mesh for filtering. The larger wire provides strength to the mesh. The primary uses of this wire cloth are filtration and separation of liquid and slurry products.



There are two Weave types of reverse dutch weave mesh :

1. reverse Plain dutch weave mesh
   it has more and finer warp wires and fewer and heavier weft wires, giving high stability and good performance


2. reverse Dutch Weave but Twilled Weave mesh:each weft wire goes through two warp wires alternatively.The Reverse Dutch Twill Weave allows to use wires with larger diameters and gives better stability and strenght to the weft.

Feature of Reverse Dutch Weave Wire Mesh:

• Resistant to abrasion


• Durability


• Sturdiness


• Plain/Twill weave stainless steel wire mesh has good performance at acid-resisting, alkali-resisting and anticorrosion.


• High strength, good tension\\toughness and abrasion performance in use.

Application of Reverse Dutch Weave Wire Mesh:

used in auto screen changers employed by the extrusion processes of the plastics industry,such as plastic wire drawing bench,wire drawing machine,coating machine,such as plastic bags,plastic film and so on.



Specifications of Reverse Dutch Weave Wire Cloth / Wire Net :

Mesh/inch	Wire Dia.(mm)	Width(mm)	Length/Roll(m)
72/15	0.45/0.55	97---400	10/20
120/15	0.35/0.45	97---400	10/20
132/17	0.32/0.45	97---400	10/20
150/17	0.3/0.45	97---400	10/20
152/24	0.27/0.4	97---400	10/20
152/30	0.27/0.4	97-400	10/20
170/17	0.27/0.45	97-400	10/20
180/18	0.27/0.45	97-400	10/20
200/40	0.17/0.27	97---400	10/20
260/40	0.15/0.25	97---400	10/20

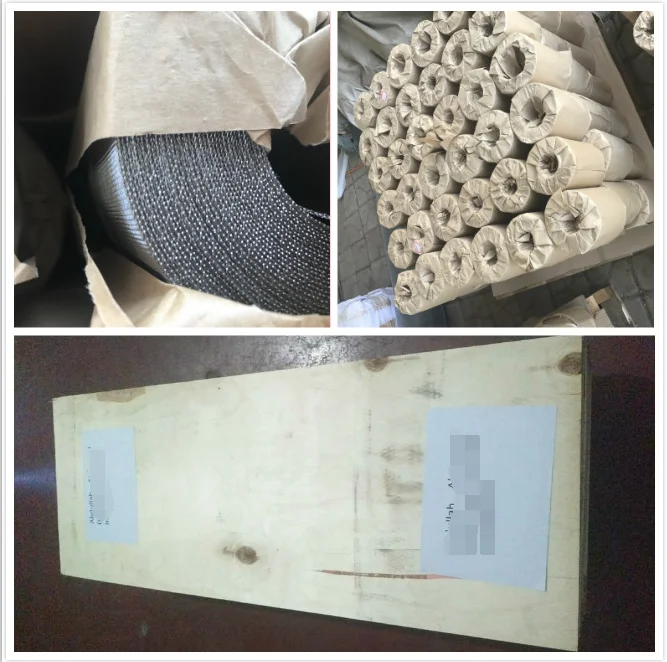

Packing and shipping of Reverse Dutch Weave Wire Mesh:

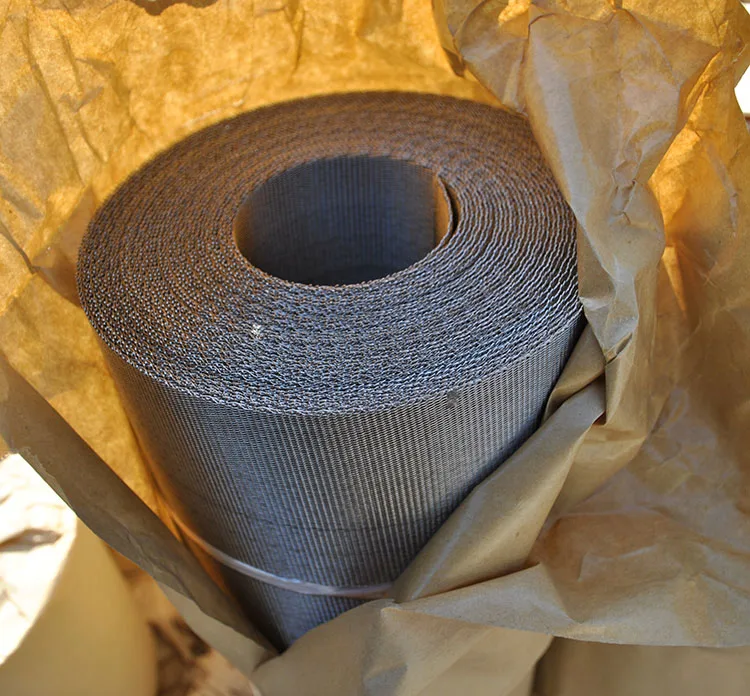

 Reverse Dutch Weave Wire Mesh is packed with paper,then in plywood case to make sure its safty when shipping.

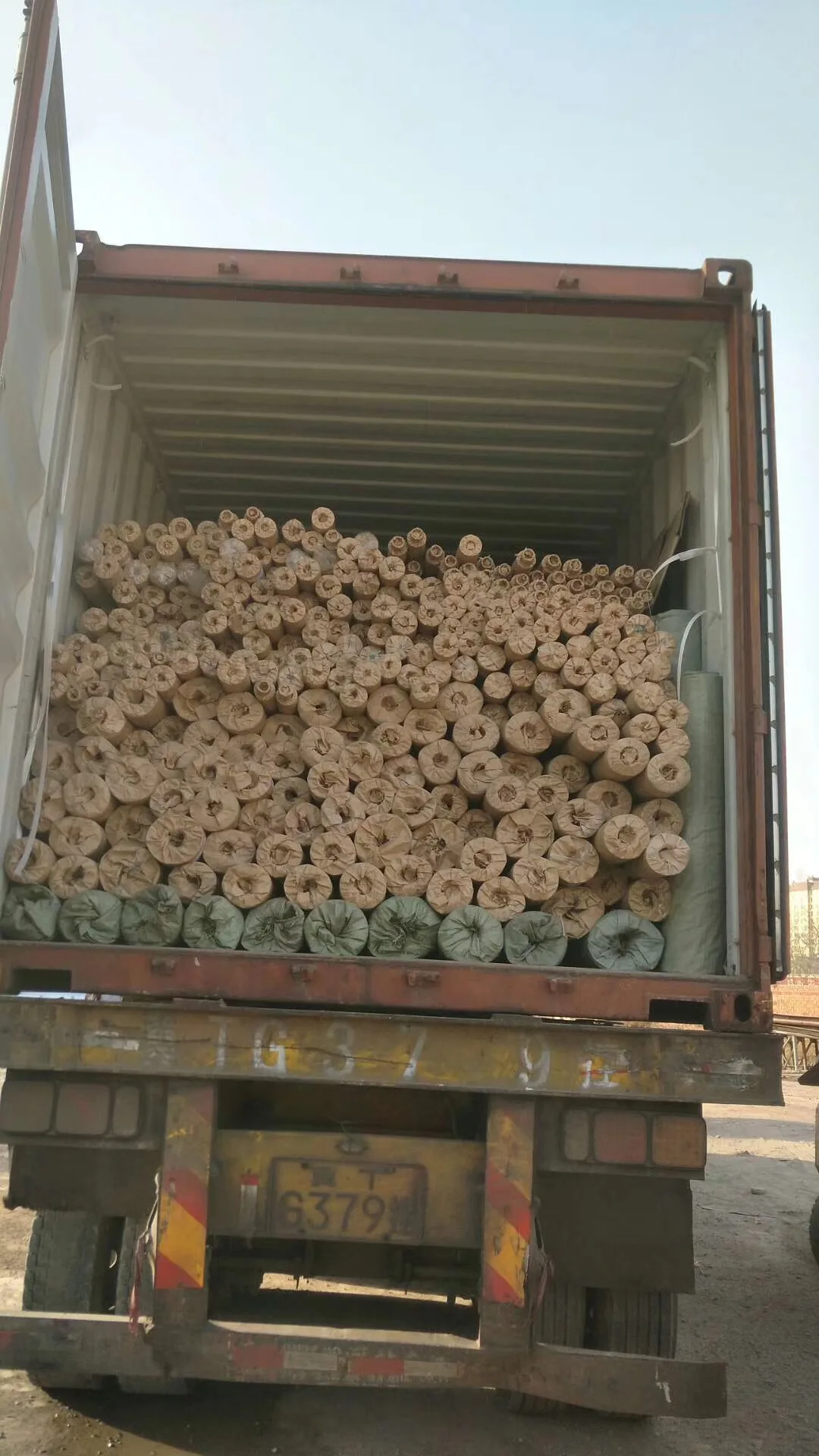

Dutch Weave Wire Mesh can be shipped by sea,by air and by express.
