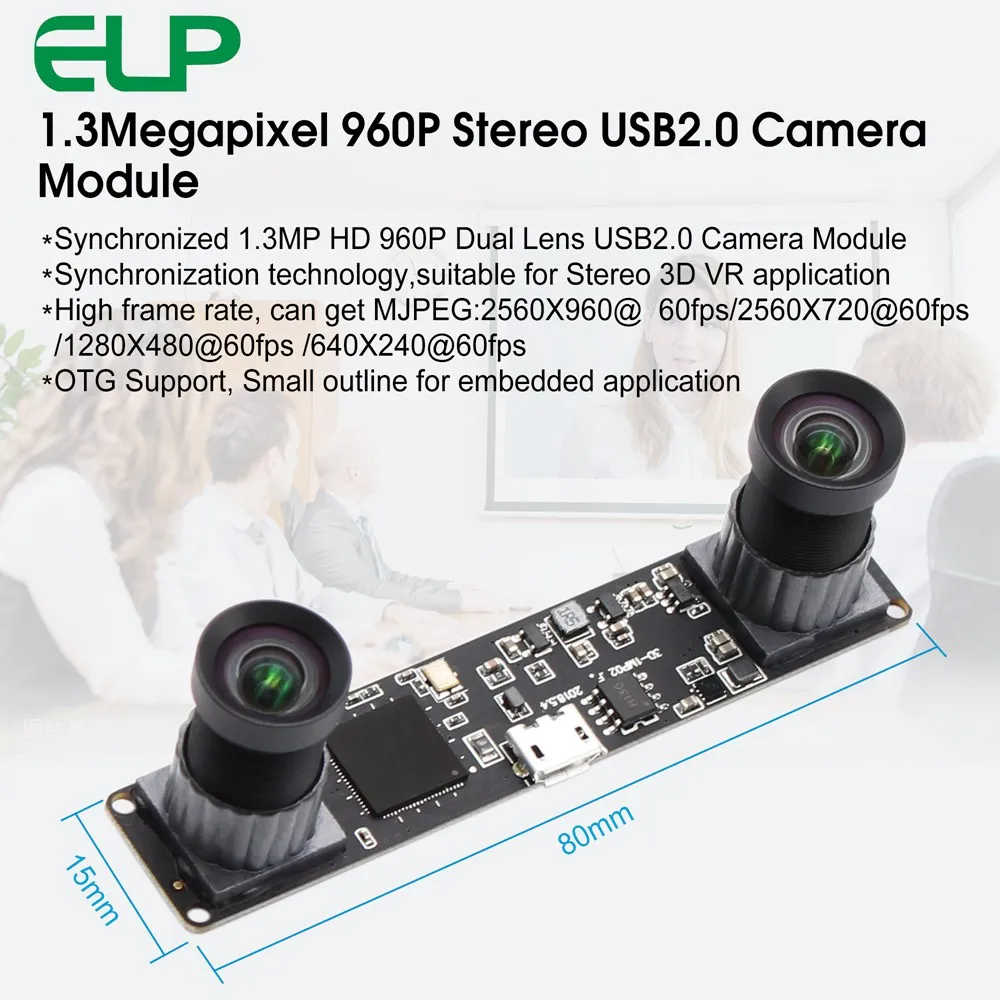

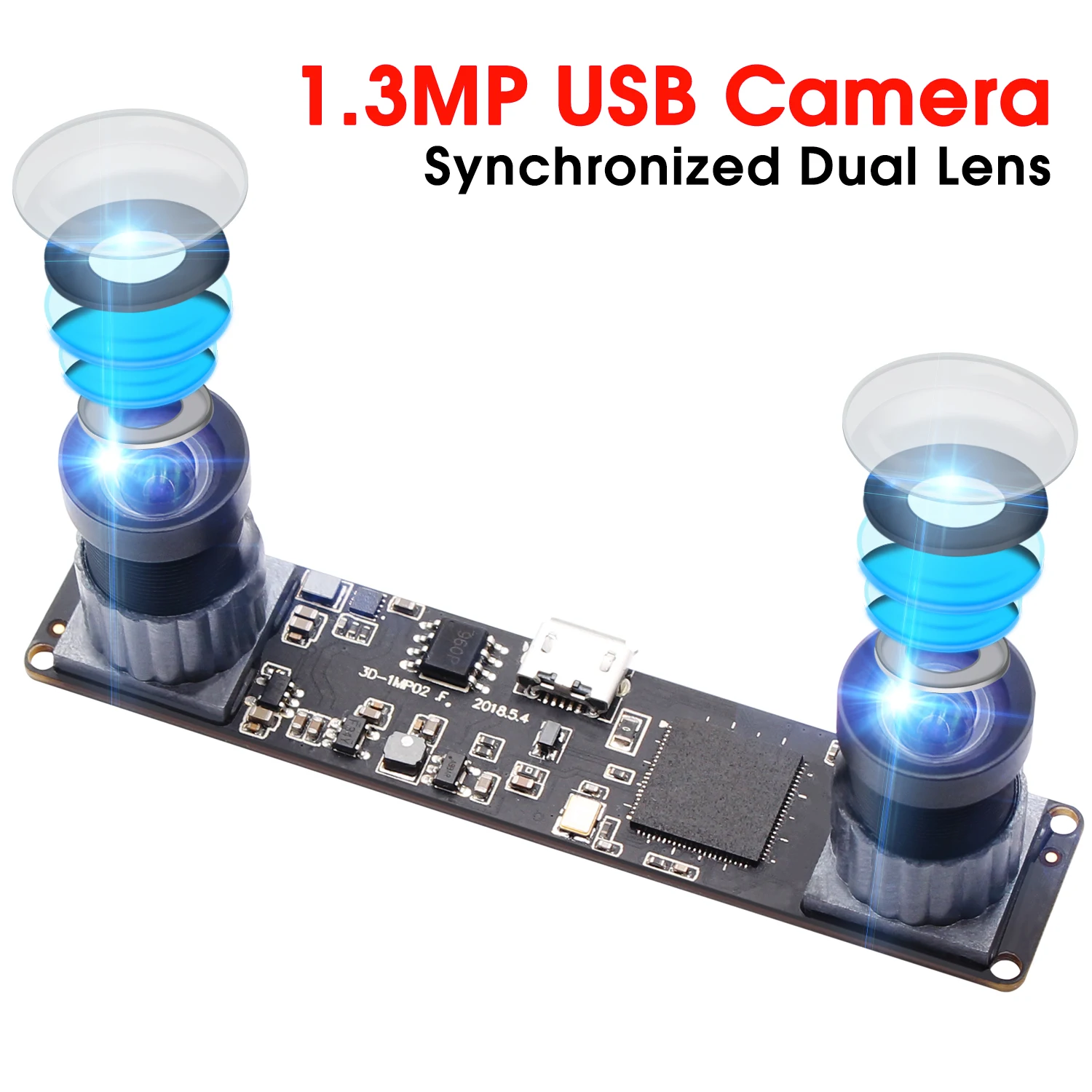

ELP 1.3megapixels OV9715 MJPEG 60fps Dual Lens PCB Board OEM Synchronous Stereo Camera USB For Robot VR Camera
ELP 1.3megapixels OV9715 MJPEG 60fps Dual Lens PCB Board OEM Synchronous Stereo Camera USB For Robot VR Camera
ELP 1.3megapixels OV9715 MJPEG 60fps Dual Lens PCB Board OEM Synchronous Stereo Camera USB For Robot VR Camera
ELP 1.3megapixels OV9715 MJPEG 60fps Dual Lens PCB Board OEM Synchronous Stereo Camera USB For Robot VR Camera
ELP 1.3megapixels OV9715 MJPEG 60fps Dual Lens PCB Board OEM Synchronous Stereo Camera USB For Robot VR Camera
ELP 1.3megapixels OV9715 MJPEG 60fps Dual Lens PCB Board OEM Synchronous Stereo Camera USB For Robot VR Camera
ELP 1.3megapixels OV9715 MJPEG 60fps Dual Lens PCB Board OEM Synchronous Stereo Camera USB For Robot VR Camera

ELP 1.3megapixels OV9715 MJPEG 60fps Dual Lens PCB Board OEM Synchronous Stereo Camera USB For Robot VR Camera

Share on (60800328087):


Price:$80.00 - $84.00

Quantity:


Product Overview

Description


SELP 1.3megapixels OV9715 MJPEG 60fps Dual Lens USB Module Synchronous Stereo Camera For Robot Machine Vision


 stereo camera1.jpg

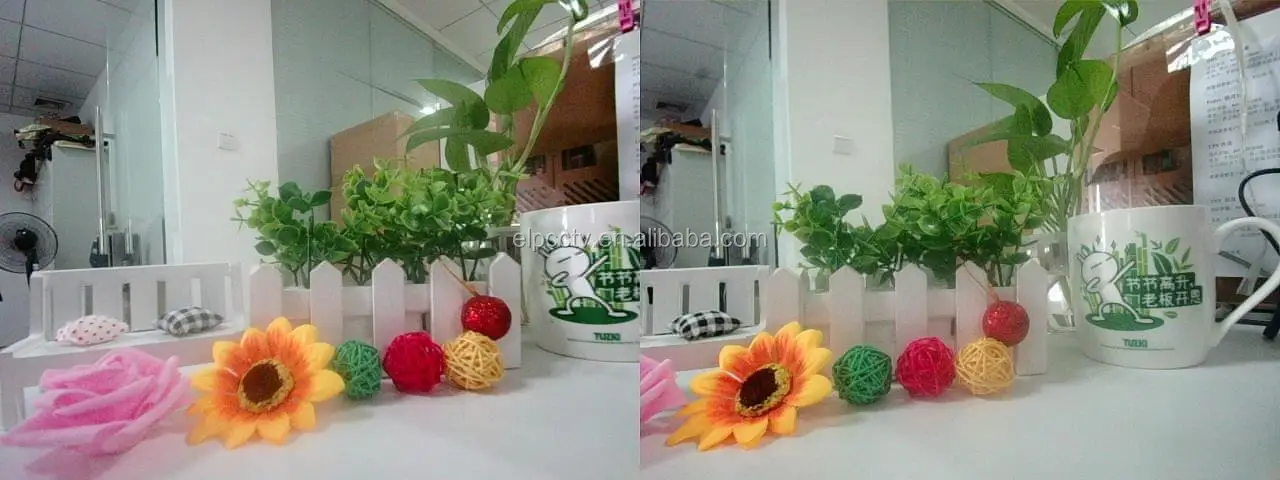

Sample picture (Side by side image )11.jpg


Model :ELP-960P2CAM-V90   is 1.3 megapixel 2560(H)X960(V) dual lens USB cameras with No distortion lens, 1m USB Cable .





Many of our customer buy it to use for VR or eye recognize system, person count system, and also mobile phone with eye view system etc.
This camera are good to use for second time developing, our customer normally have their own software and device,integrated with this dual lens camera to capture or view dual image.


We can supply SDK and display software to customer for integrated .


Camera can owrk with Android, Linux and Windows, system, Linux, and Linux recognize it as 2 cameras . This is just like two eyes of a person .



Features







*Synchronized 1.3MP HD 960P  Dual Lens USB2.0 Camera Module

*Synchronization technology,suitable for  Stereo 3D VR application

*High speed USB 2.0 interface

*High frame rate, can get MJPEG:2560X960@ 60fps/2560X720@60fps /1280X480@60fps /640X240@60fps

*Low power consumption

*Small outline for embedded application

*Camera with UVC compliance for use in OS Windows, Linux, Android, Mac

*OTG support

*High quality M12 no distortion 100degree lens, help get high quality image





Specification




















































































Model :ELP-960P2CAM-LC1100
Synchronous Dual Lens USB Camera
Performance

MJPEG:


2560X960@ 60fps/2560X720@60fps /


1280X480@60fps /640X240@60fps


SensorOV9750Lens ParameterM12 Lens NO distortion
Lens Size1/3 inchSize&Weight80X16.5mm,30g
Pixel Size4860µm x 3660 µmCableStandard  90cm
Max. Resolution2560(H)X960(V)AECSupport
Compression formatMJPEGAEBSupport
Shutter Type

Electronic rolling shutter /


 Frame exposure


Adjustable
parameters

Brightness, Contrast, Saturation,


Hue, Sharpness, Gamma,Gain,


White balance, Backlight Contrast,


Exposure


Sensitivity3.7V/lux-sec@550nm
Mini illumination0. 1luxPower supplyDC5V
Connecting Port typeUSB2.0 High SpeedOperating Voltage160mA~220mA
Free Drive ProtocolUSB Video Class(UVC)Working current -10~70°C
Support OTG ProtocolUSB2.0 OTGWorking temperature -20~85°C
Support OSWinXP/Vista/WIN7/WIN8 /
Linux with UVC
 Mac-OS X 10.4.8 or later
Wince with UVC,
Android 4.0 or above




Products Display

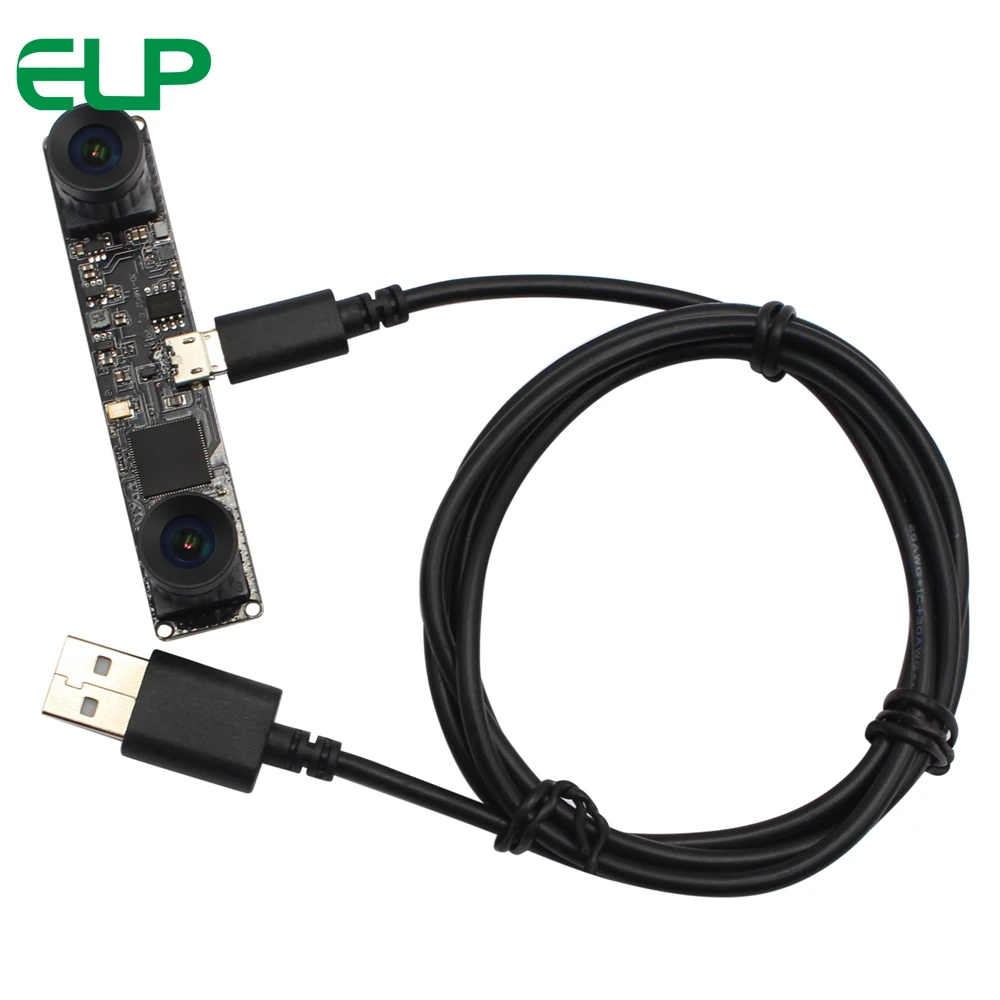

 usb camera.jpgstereo webcam L6.jpgstereo webcam L0.jpgstereo webcam L1.jpgstereo webcam L3.jpgUSB Camera7.jpg

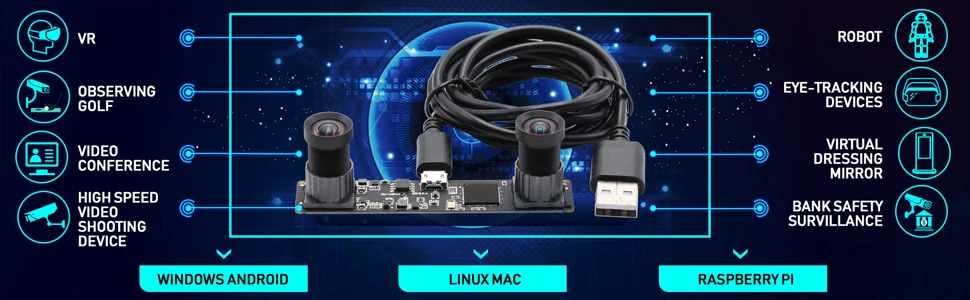

Applications


 stereo camera3.jpg


 ELP USB Camera.jpg





Company Information


ELP USB Camera.jpgelp camera module.jpgelp webcam.jpg





FAQ


*Can you OEM camera module?
    Yes, we can offer OEM camera modules according to customer's different requirement.
*Can you provide SDK for secondary development?
    Yes, We can offer Linux, Windows, Android SDK.
*What's your usb cameras' production cycle?
    We can supply the camera module for a long time. as long as customers need it.
*Are you manufacturer?
    Yes, we are designer and manufacturer for usb camera module
*What lens optional you have?
   We have normal M12 2.1/2.8/3.6/6/8/12mm lens, M7 mini lens and also wide angle fisheye lens and varifocal lens. Autofocus, manual focus also offered.
*What operating system your cameras support?
    Our USB cameras support Android, Windows and Linux System


*What certificate your products have?

    All our USB Camera Module have CE, FCC certificates, partial have RoHS and UL

*Does the camera support Raspberry Pi? If support Linux Ubuntun system?
    Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.

*Does the camera support OTG?
    Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.

*Which software your usb camera module support?

     Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux, Camerafi, VLC Player
