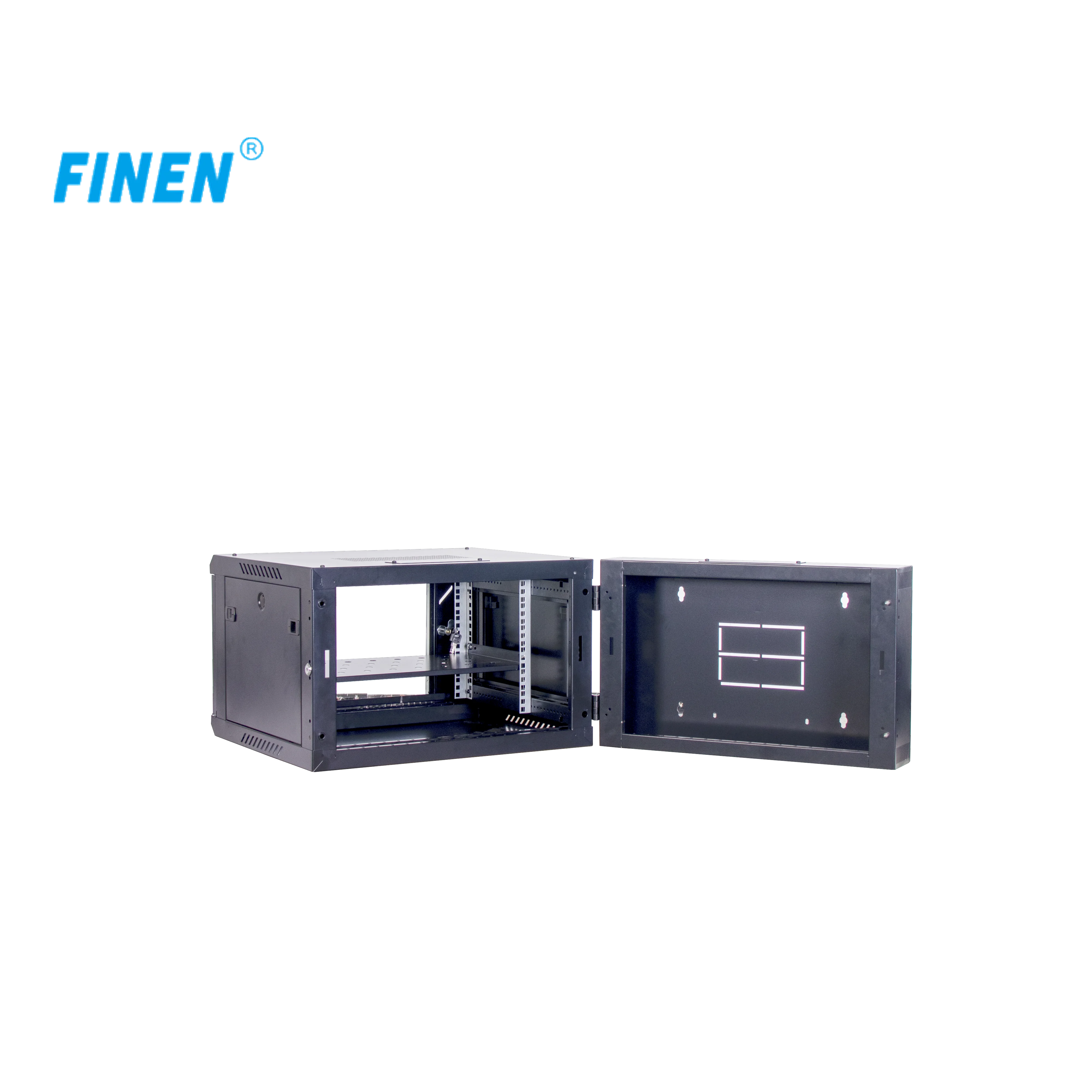

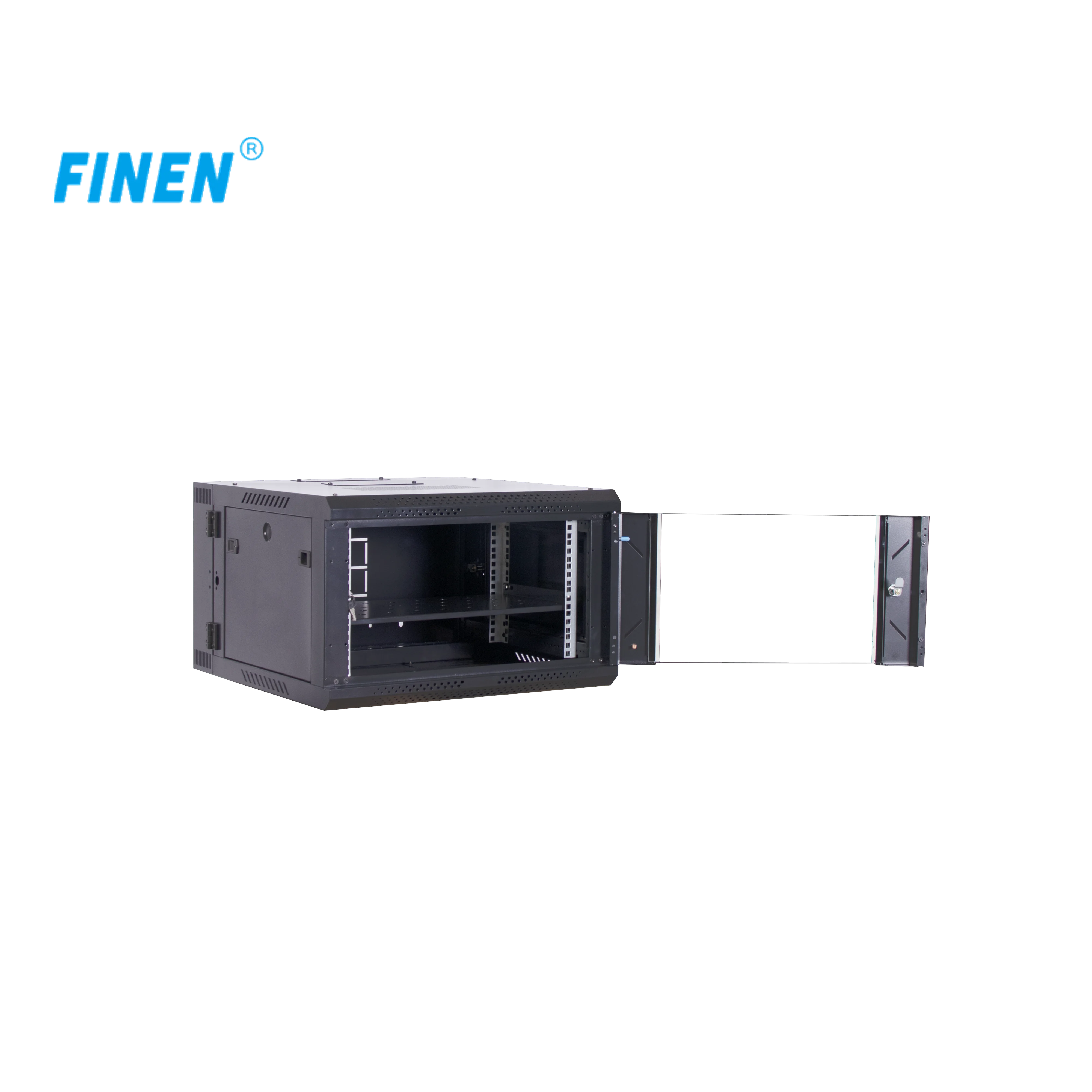

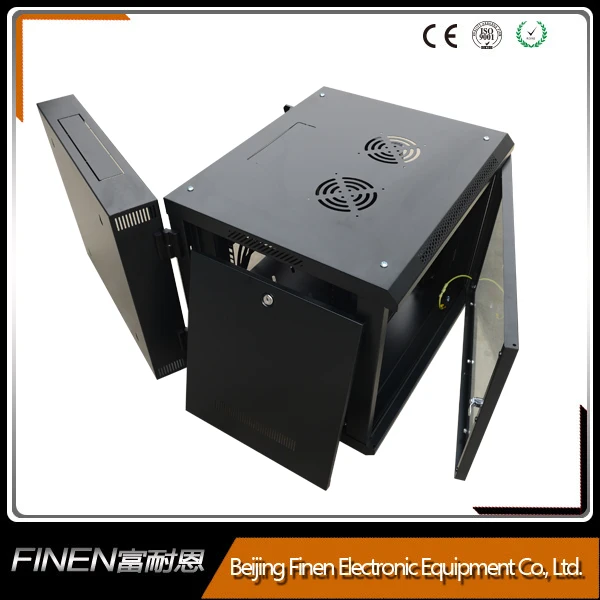

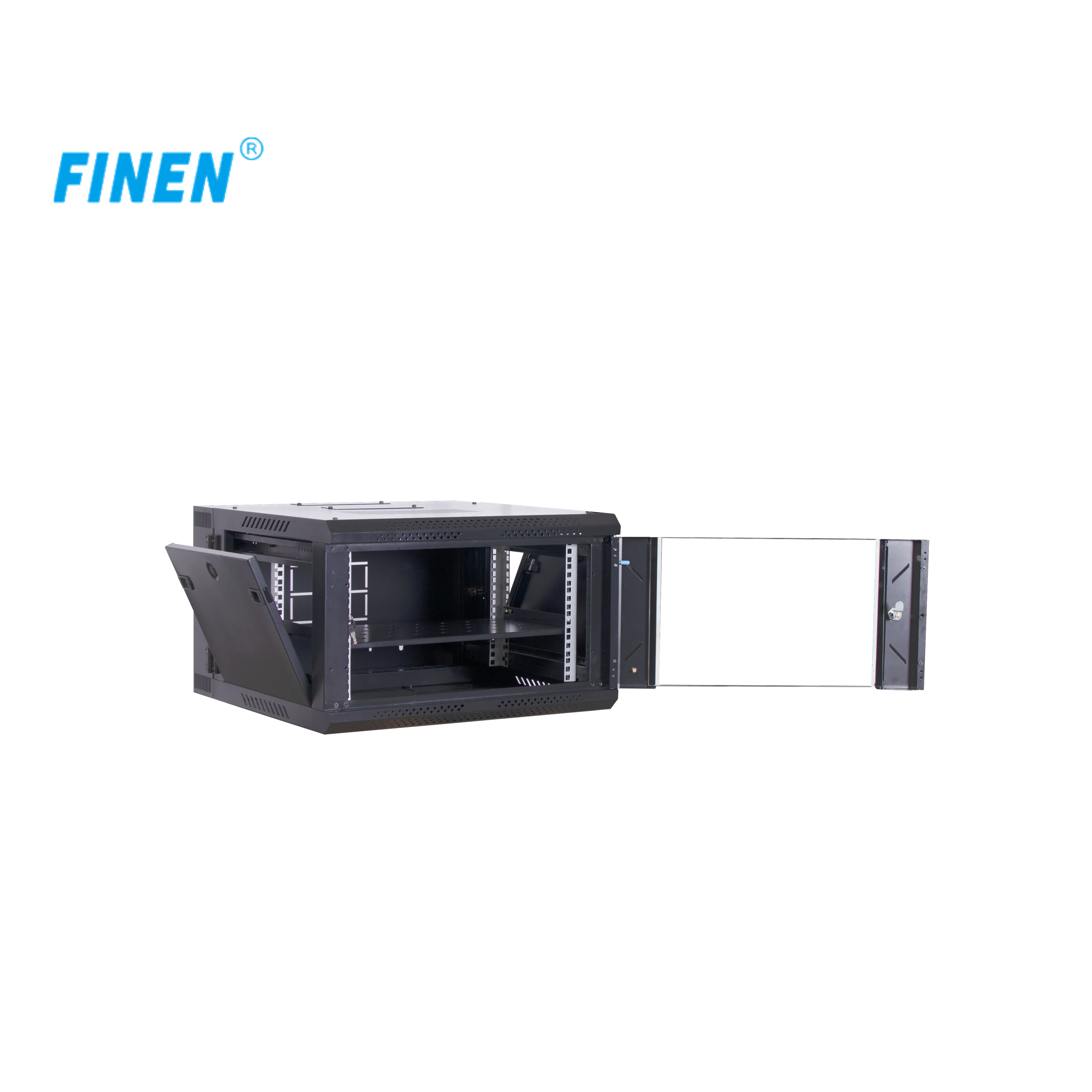

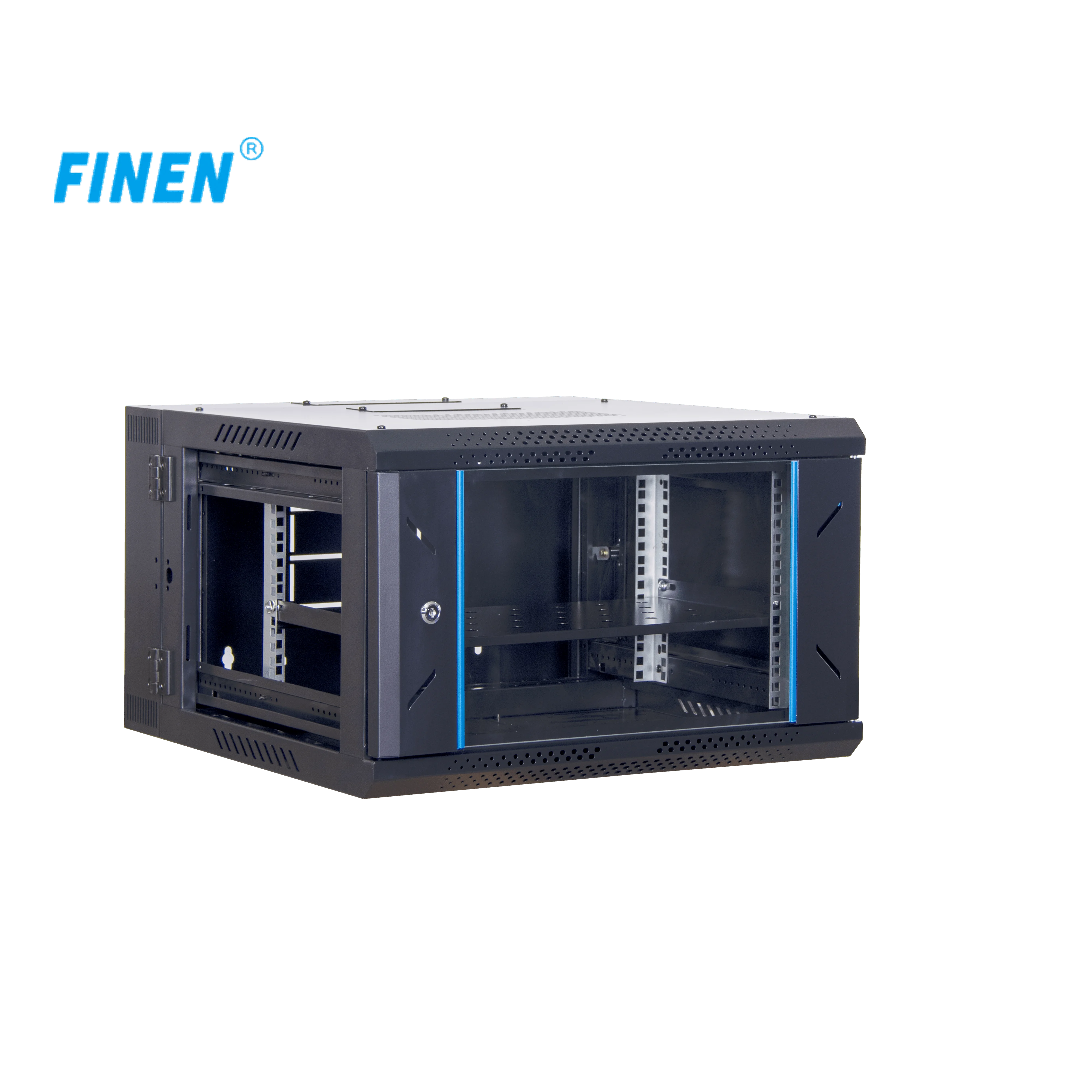

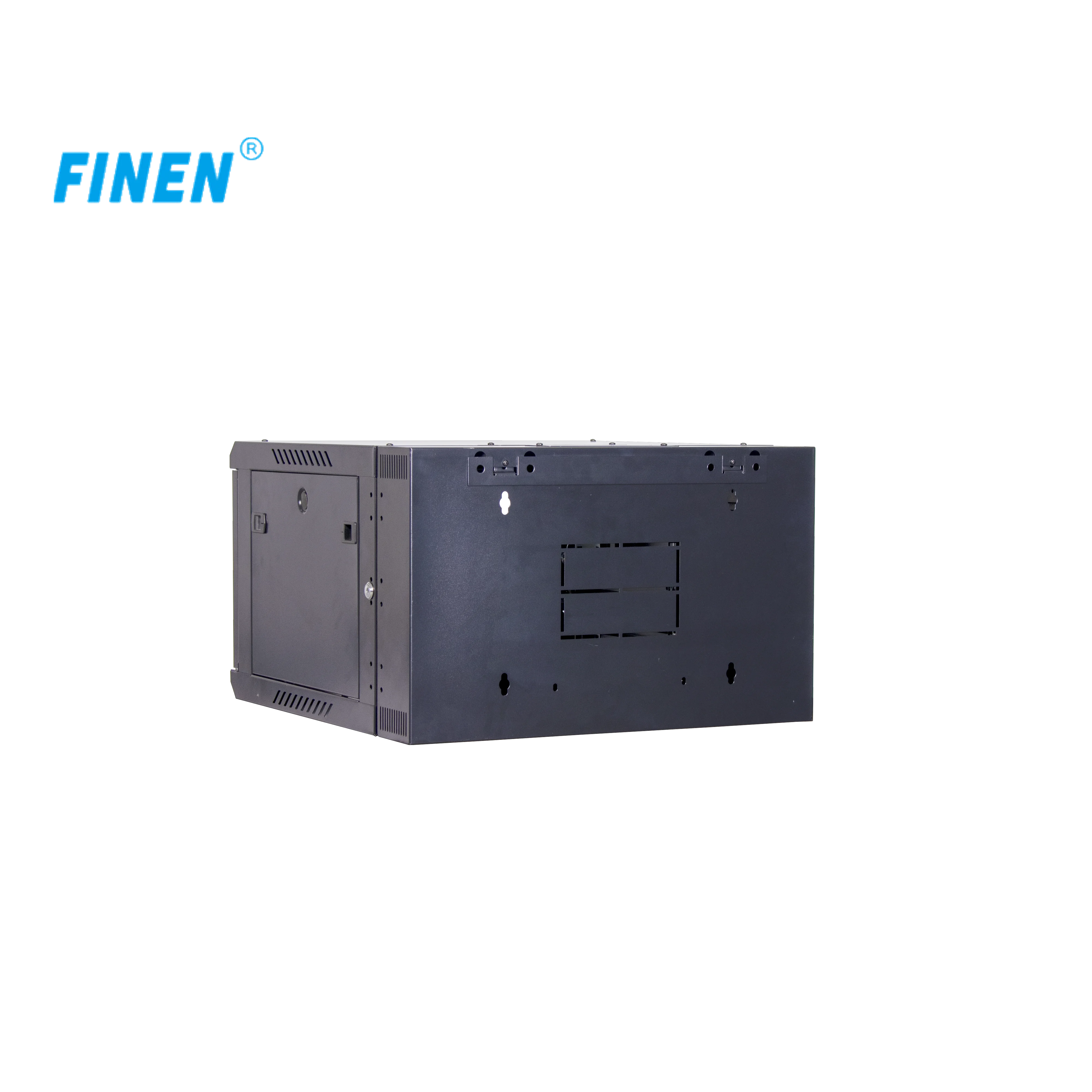

19 inch Heavy load capacity server rack/Double section/swing mount Wall mount network cabinet

Production Information
Basic Information | |
1) Standard | Complies with ANSI/EIA RS-31O-D, IEC297-2, DIN41491: PART1, DIN41494: PART7,GB/T3047.2-92, ETSI Standard |
2) Material | SPCC high-quality cold rolled steel |
3) Thickness | Mounting profile 2.0mm Others 1.0mm |
4) Surface Finish | Degreasing, Pickling, Phosphating, Powder coating |
5) Protection Degree | IP20 |
6) Loading Capacity | 60kgs(=132lbs) |
7) Color | Optional: Black(RAL9004) White(RAL7035) |
Features | |
1) Zinc Plated mounting profile 2) Secure,firm and reliable 3) Easy to maintain equipment 4) Two Packing Ways: Assembly packing to save labour cost, ready to resell or use Disassembly packing to save space and transport cost, easy to assemble 5) Various optional accessories: PDU, fan, shelf, bracket, cable tray, etc.. 6) Certification: ISO 9001:2000 7) OEM/ODM services available | |

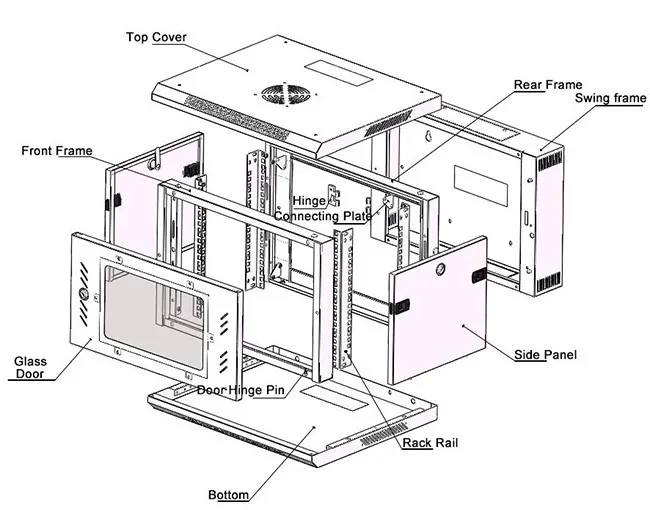

Cabinet Structure


Specification
Width(mm)
| Depth(mm) | Capacity(U) | Height(mm) | Order NO. |
550 | 450 | 4U | 280 | WM5404 |
6U | 368 | WM5406 | ||
9U | 501 | WM5409 | ||
12U | 635 | WM5412 | ||
15U | 769 | WM5415 | ||
18U | 901 | WM5418 | ||
22U | 1082 | WM5422 | ||
27U | 1304 | WM5427 | ||
550 | 600 | 6U | 368 | WM5606 |
9U | 501 | WM5609 | ||
12U | 635 | WM5612 | ||
15U | 769 | WM5615 | ||
18U | 901 | WM5618 | ||
22U | 1082 | WM5622 | ||
27U | 1304 | WM5627 | ||
600 | 450 | 6U | 368 | WM6406 |
9U | 501 | WM6409 | ||
12U | 635 | WM6412 | ||
15U | 769 | WM6415 | ||
18U | 901 | WM6418 | ||
22U | 1082 | WM6422 | ||
27U | 1304 | WM6427 | ||
600 | 600 | 6U | 368 | WM6606 |
9U | 501 | WM6609 | ||
12U | 635 | WM6612 | ||
15U | 769 | WM6615 | ||
18U | 901 | WM6618 | ||
22U | 1082 | WM6622 | ||
27U | 1304 | WM6627 |
Packing Options

Who Are We?
1. A manufacturer of server rack and network cabinet with 25 years experience
2. Around 100 skilled engineers and more than 400 workers
3. 35000 square meters workshop
4. Customizing services, OEM services, etc.
