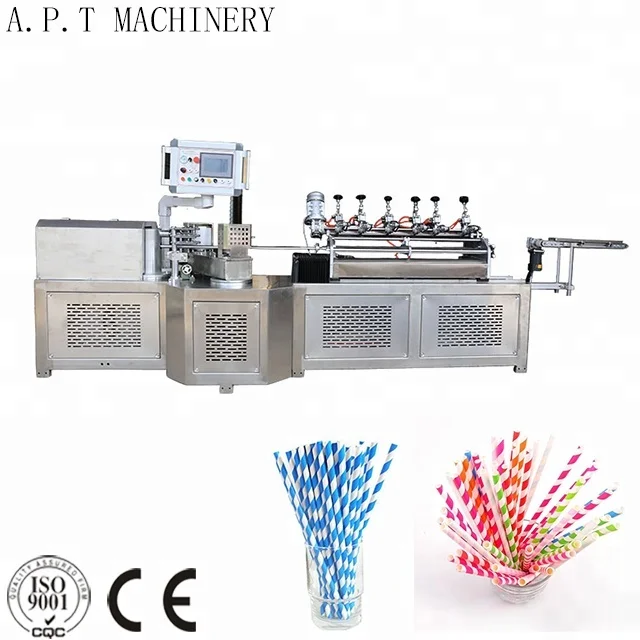

High Speed Drinking Paper Straw Making Machine
- Category: >>>
- Supplier: Ruian APT I/E Industrial Co. Ltd.
Share on (60800396380):
Product Overview
Description
Product Description
Usage:
This High Speed Drinking Paper Straw Making Machine model DPS-50 is suitable for producing different diameter of drinking paper straws, such as 5mm; 6mm; 8mm; 10mm etc. It is fully automatic working from paper rolls feeding, gluing, forming, cutting into final paper straws. The cutter adopts CNC multi-knife cutting system
1. Adopted with PLC and Touch Panel, the main motor with inverter speed regulation, makes the machine easy for parameters setting & operating.
2. Cutting section adopted with numerical multi-blades cutting system. Servo synchronous tracking cutting system makes it higher precision and multi-blades cutting makes it high efficiency.
3. Machine body and main spare parts made by stainless steel instead of painting. Ensure the hygiene and environmental protection of the products.
Main Technical Parameters:
Paper Layer | 3 layers |
Inner Diameter | 4.5-12mm |
Wall Thickness | 0.3-1mm |
Working Speed | 30-40 meters/min |
Cutting System | Multi-blades Cutting (5 pcs online) |
Cutter Control Method | Servo motor synchronism tracking cut |
Gluing Way | Single & Double sides |
Machine & Parts | Stainless Steel or Painting (Optional) |
Auto Straw Collector | Optional |
Operator | 1-2 person |
Speed Control | By Inverter |
Power Supply | 380V / 3Phase / 50Hz |
Paper Reel Stand | 3 Layers |
Glue Unit | 3 Layers |
Belt | 5 Pieces |
Mandrel Shaft | 2 Pieces |
Measurement | 3500*1500*1200mm |
Weight | 1300kgs |
Working Space | About 8000*5000mm |
