PH 125CNC Automatic hydraulic square pipe hole punching machine with servo feeding

Product Overview

Description

PH-125CNC Automatic hydraulic square pipe hole punching machine with PLC control

Machine features:

Steel Pipe Punching Machine Suitable for Material : can punch steel pipes, Aluminum Pipes, Zinc-iron Pipes, Galavized Pipes Ect for windon, door, security fence, Bed making .
1.Touch Screen settings, CNC control system, precise servo motor positioning, module storage memory function.
2. Structure: Steel plate welded structure
3. Mould replacement: change the die easily without adjusting the dies to reduce the mould damage rate and pipe fittings rejection rate due to the dies setting error. Skilled workers can change the mould within 10 minutes.
4. Step-less operation adjustment, hydraulic loops designed with zero load, combined with extremely low frequency oil pump motor, effectively reduced noise, increased motor efficiency and service duration.
5. When the oil cylinder is moving downward, the machine is designed with hydraulic difference driving loops rated at high or low RPM .it is also featured with high speed downward moving, low speed processing and hi-speed position resume .it is available to increase the formation stability of work pieces during puncturing .in addition to increasing the activation speed, it can effectively reduce HP load to save electrical energy.
6. The electrical control system is designed with the human machine interface, range adjustment use digital scale, setting low speed position, floor level position, and operation precise and easy.

Technical parameter

No.	Item	Parameter
1	Maximum punching force	40-150T
2	Max punching capacity	150*150*6mm(Square pipe)
		50*120*6mm(Rectangle pipe, Cu profile steel, J angle steel)
		180*6mm(Round pipe)
3	Maxinum punching thickness	6mm(Q235)
4	Feeding	Servo motor
5	Feeding speed	Max 700mm/s adjustabe
6	Feeding precision	±0.1mm
7	Angle rotating	Manual
8	Hydraulic pressure	25Mpa
9	Oil pump output	21ml/r
10	Oil pump motor	7.5Kw
11	Feeding servo motor	1.5Kw

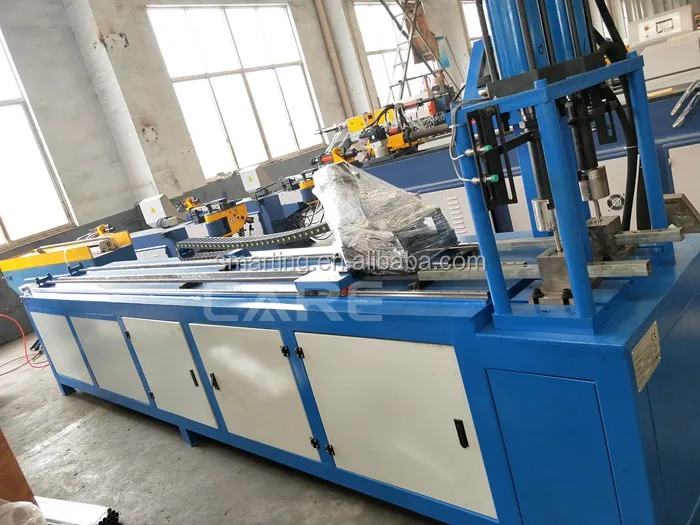

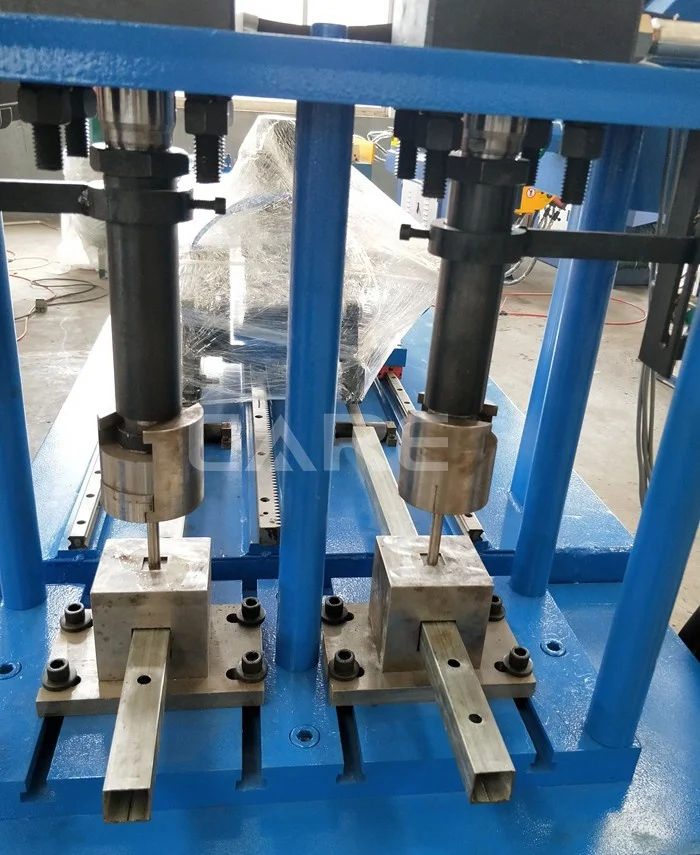

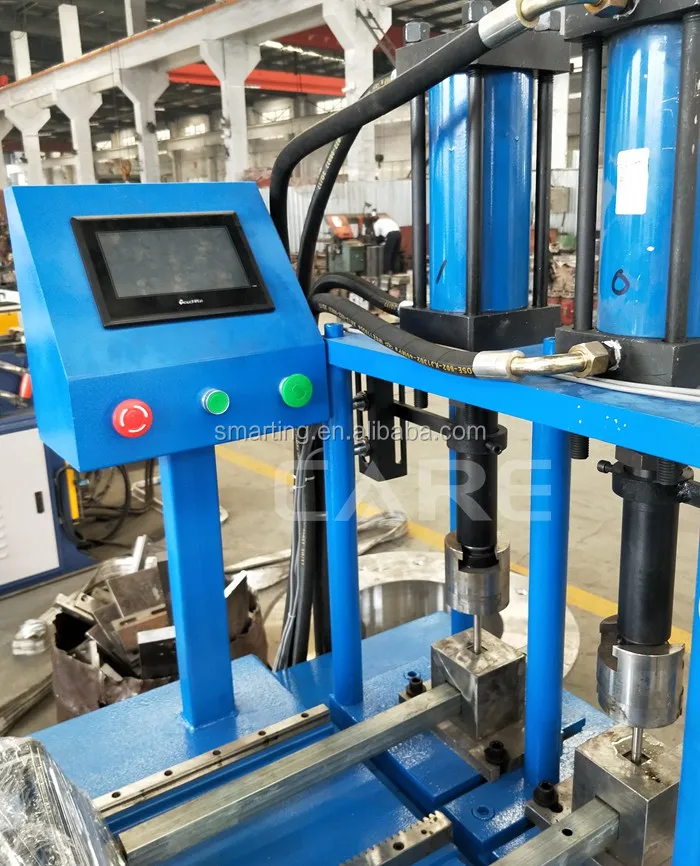

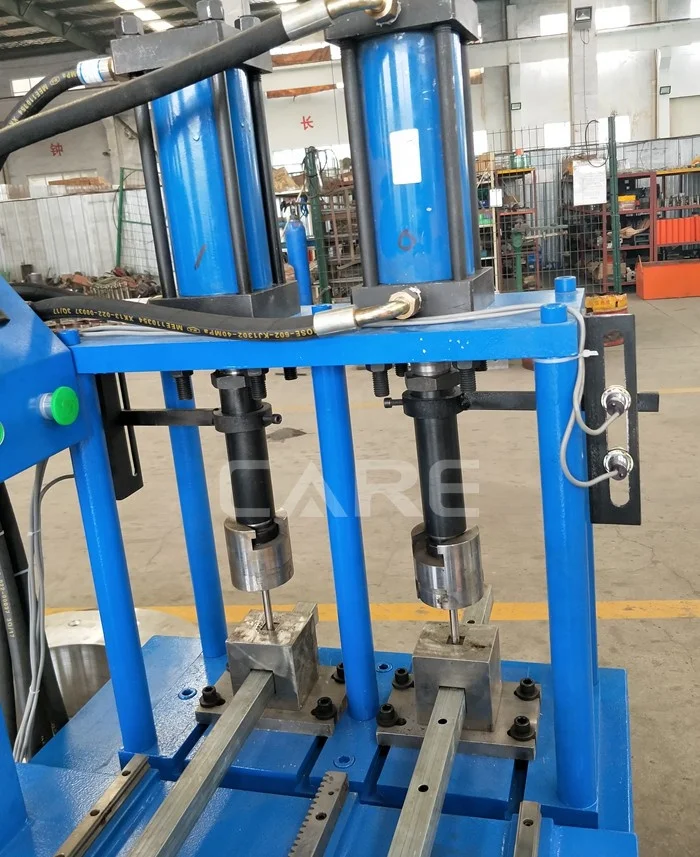

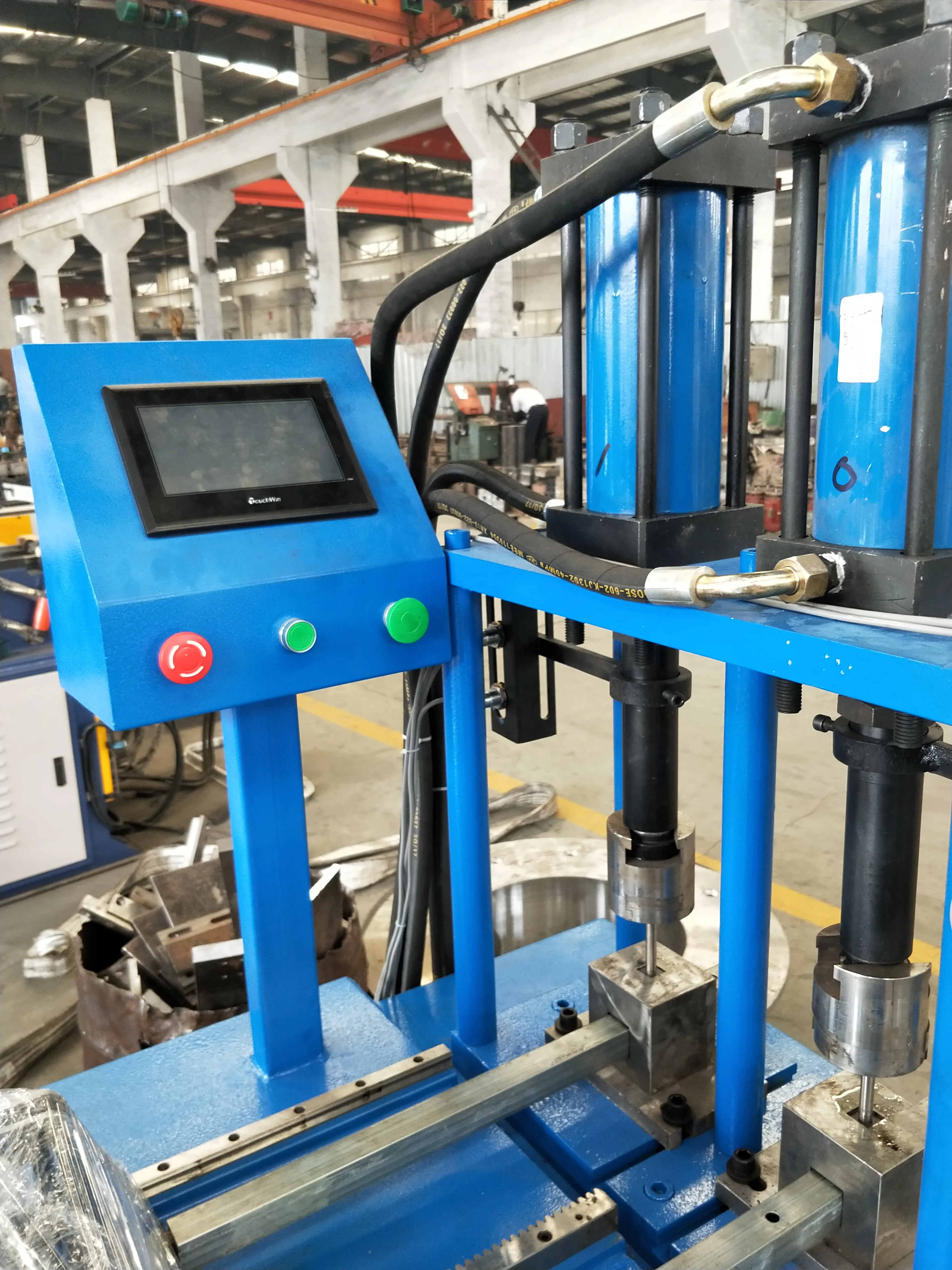

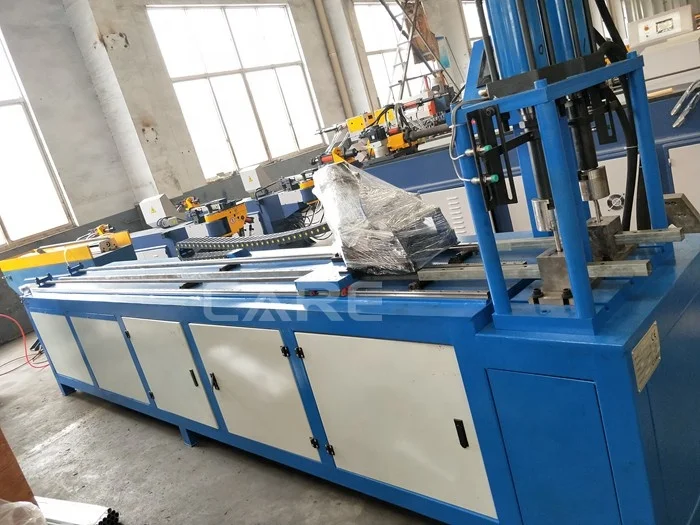

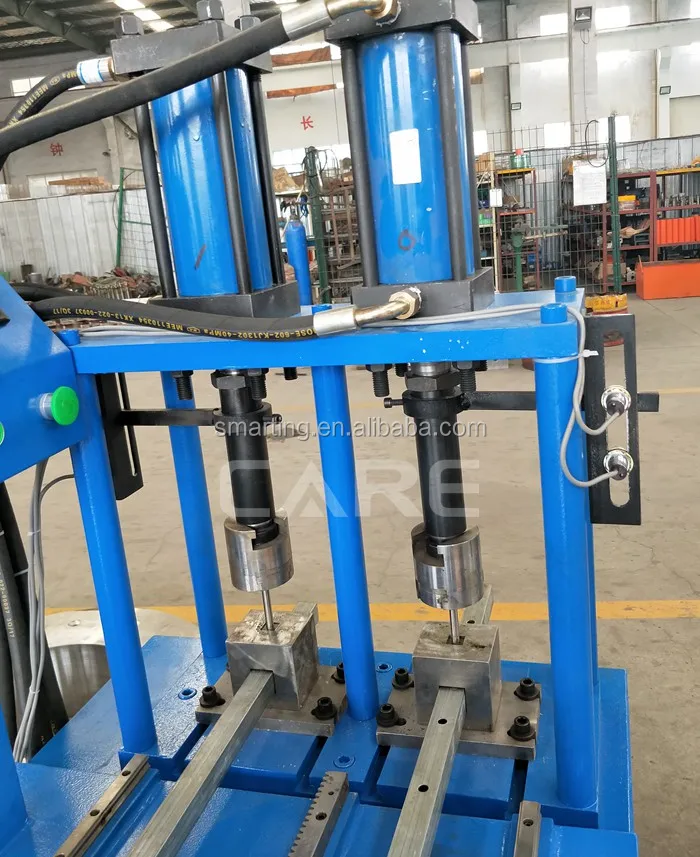

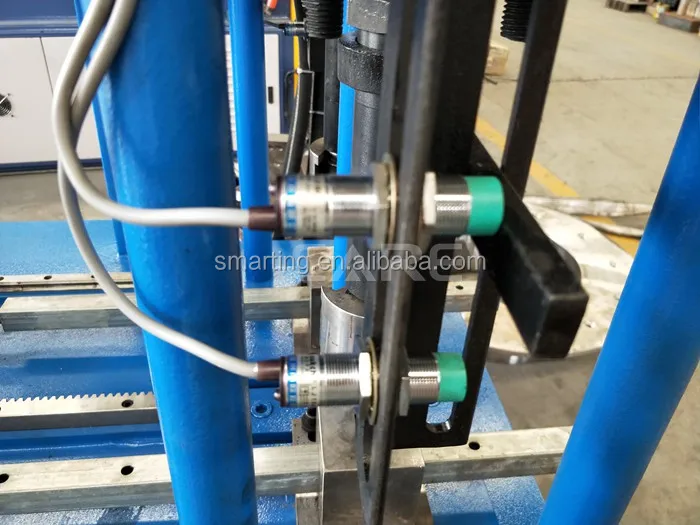

Machine photo

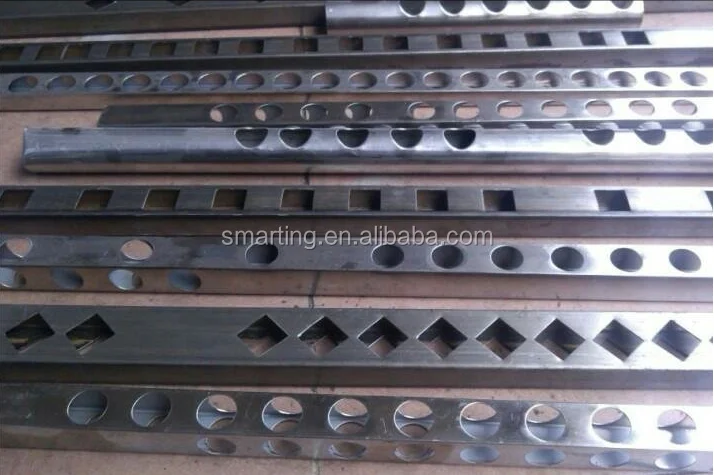

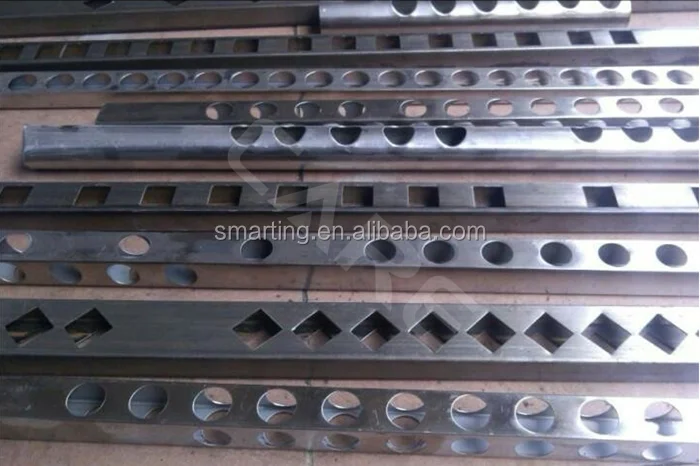

Pipe samples
