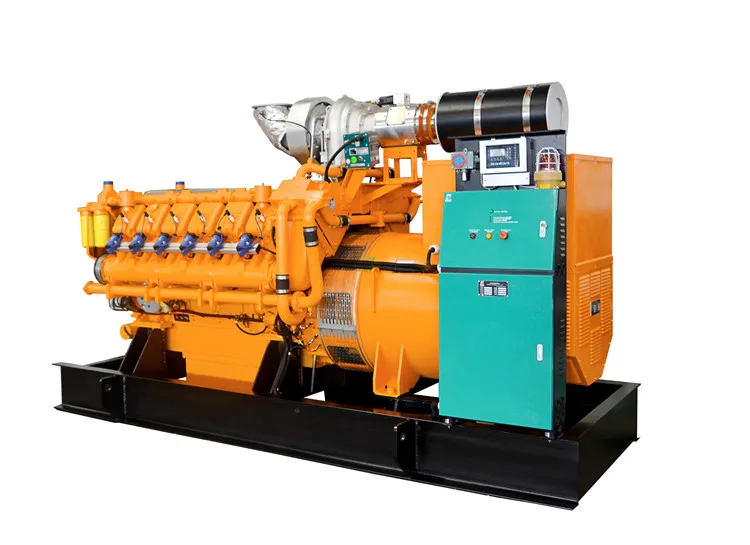

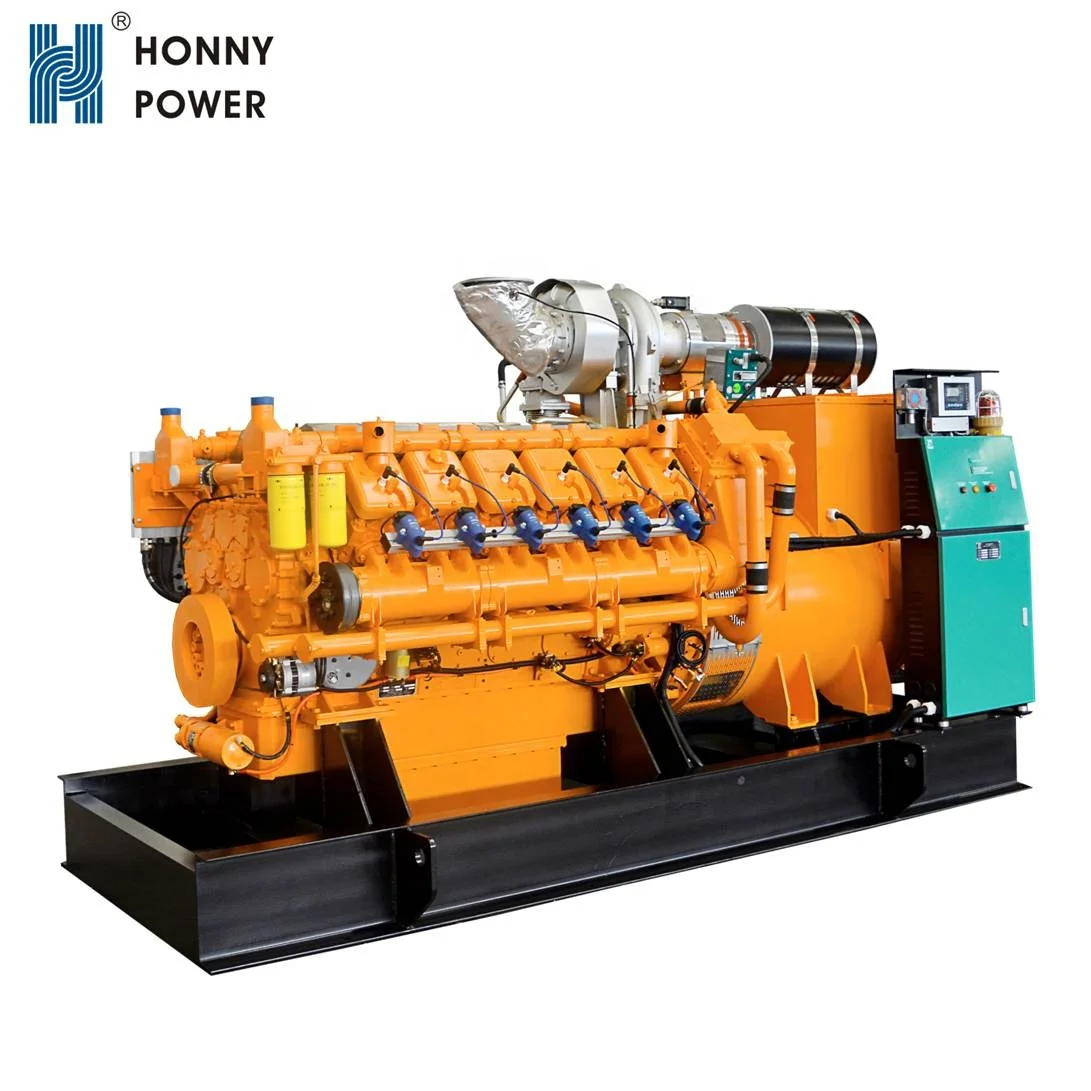

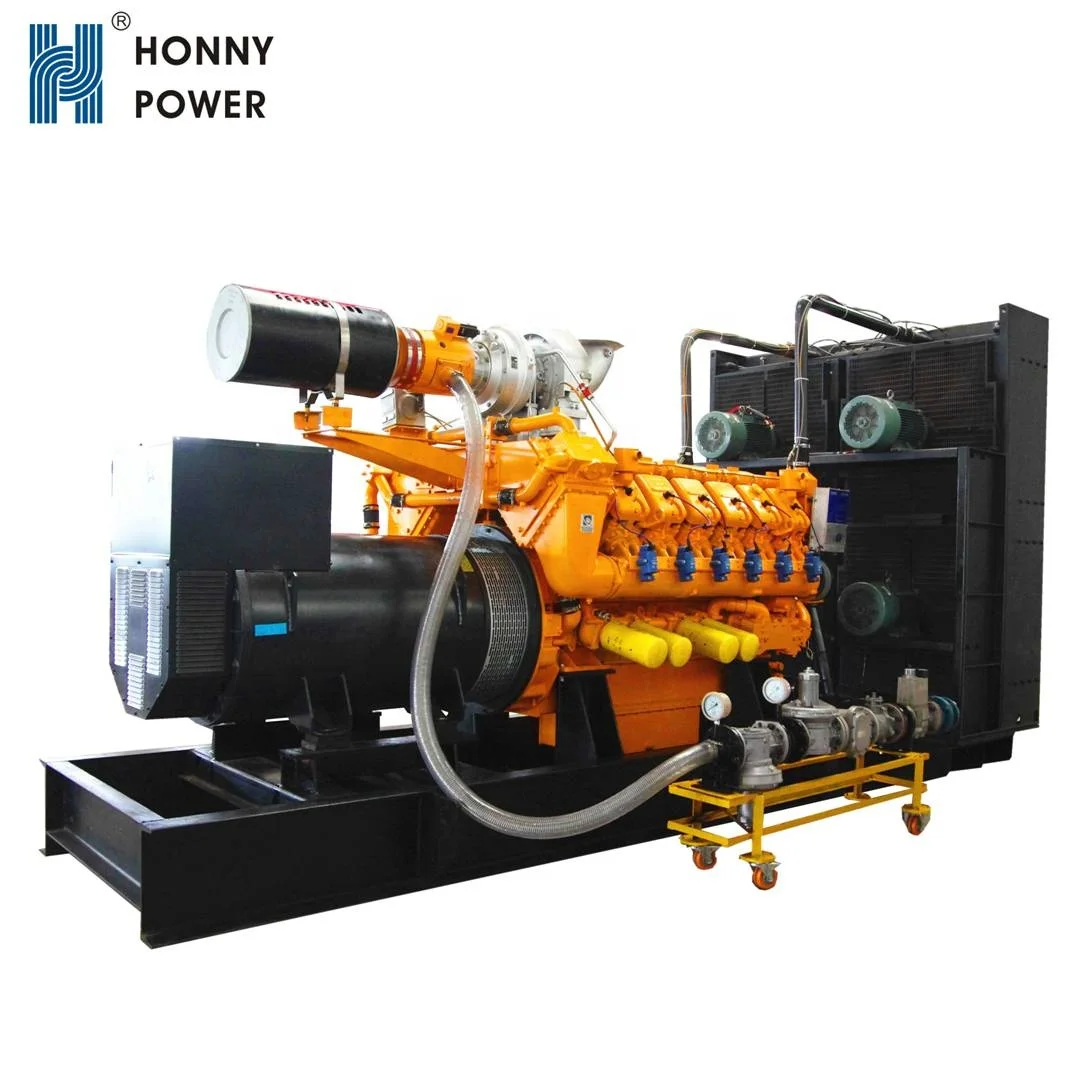

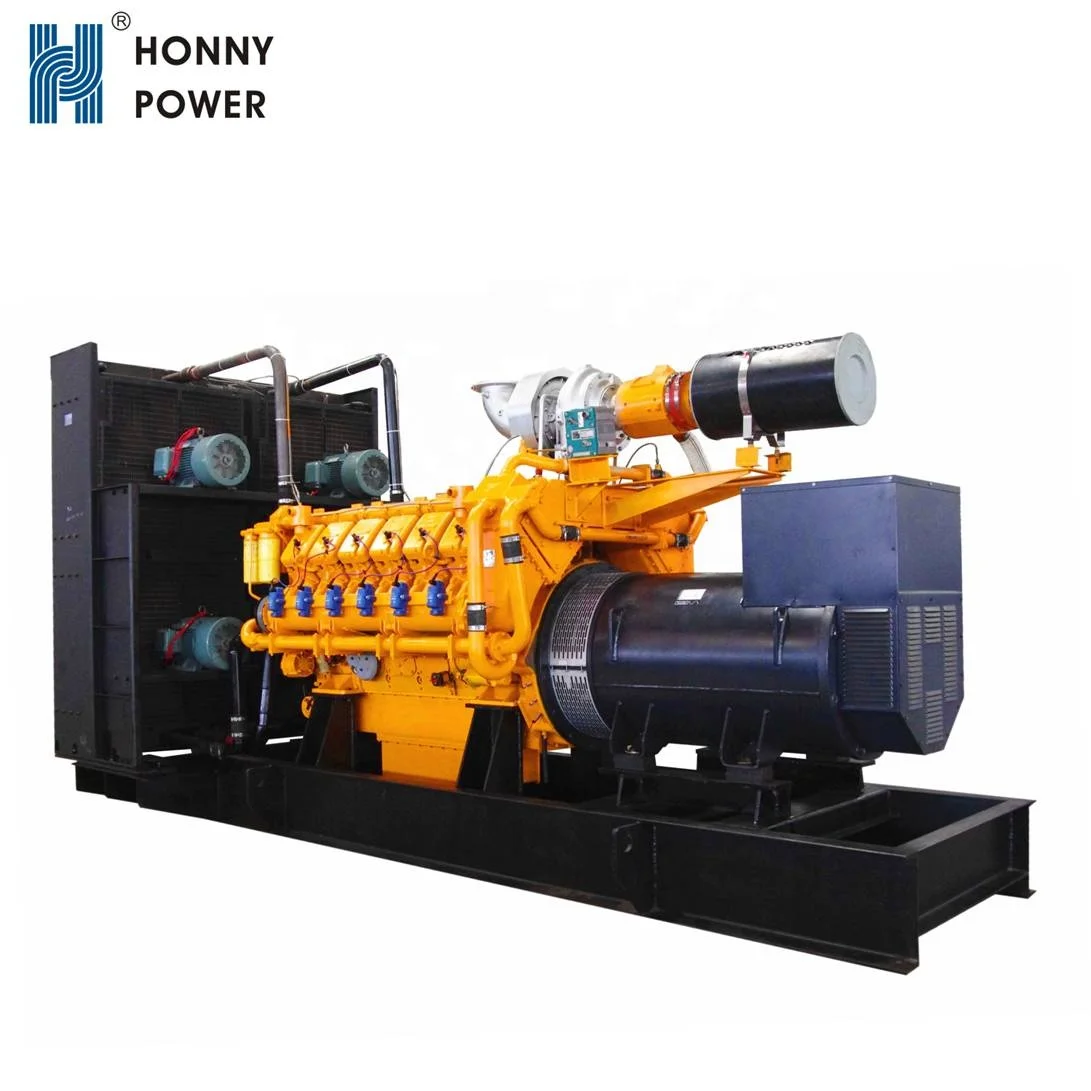

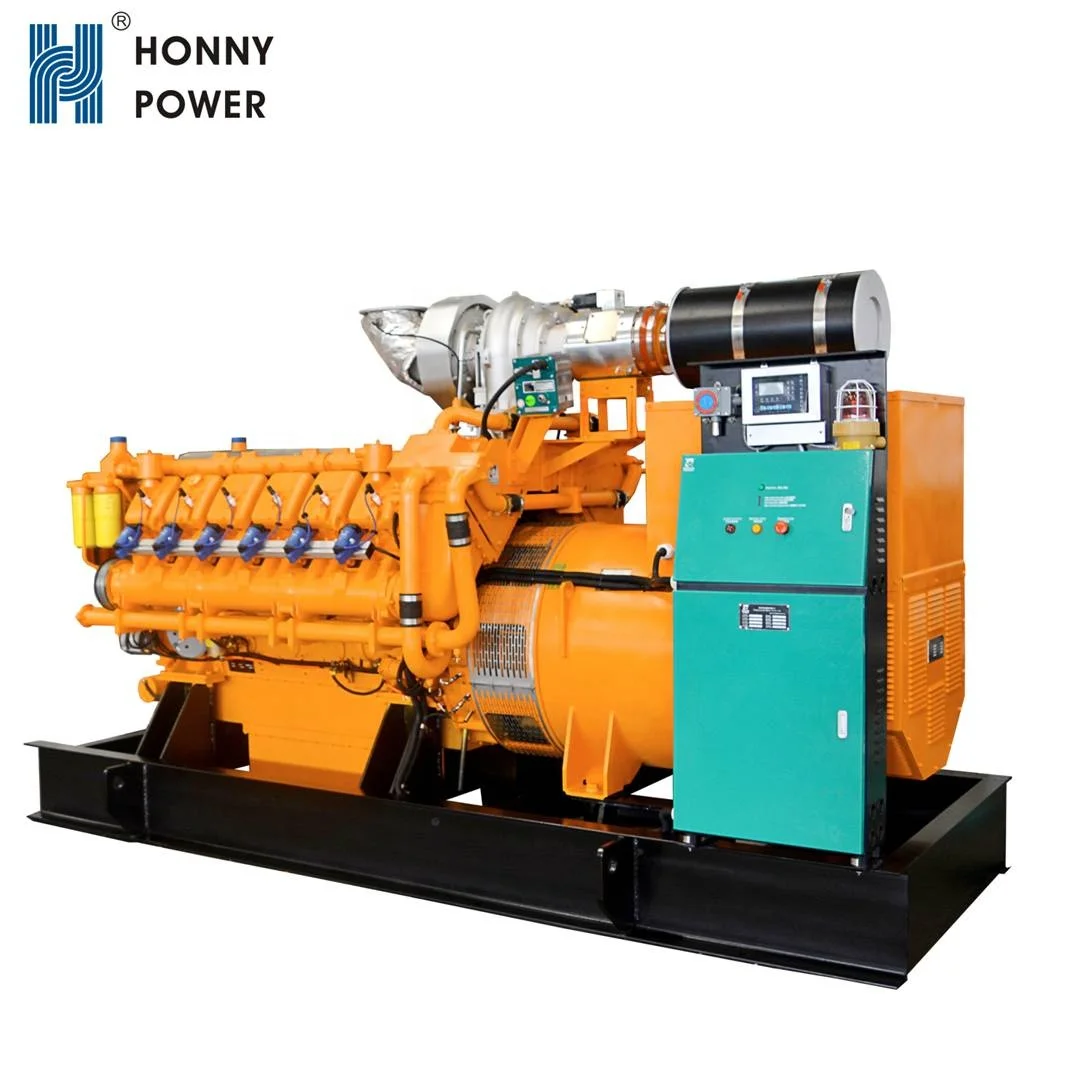

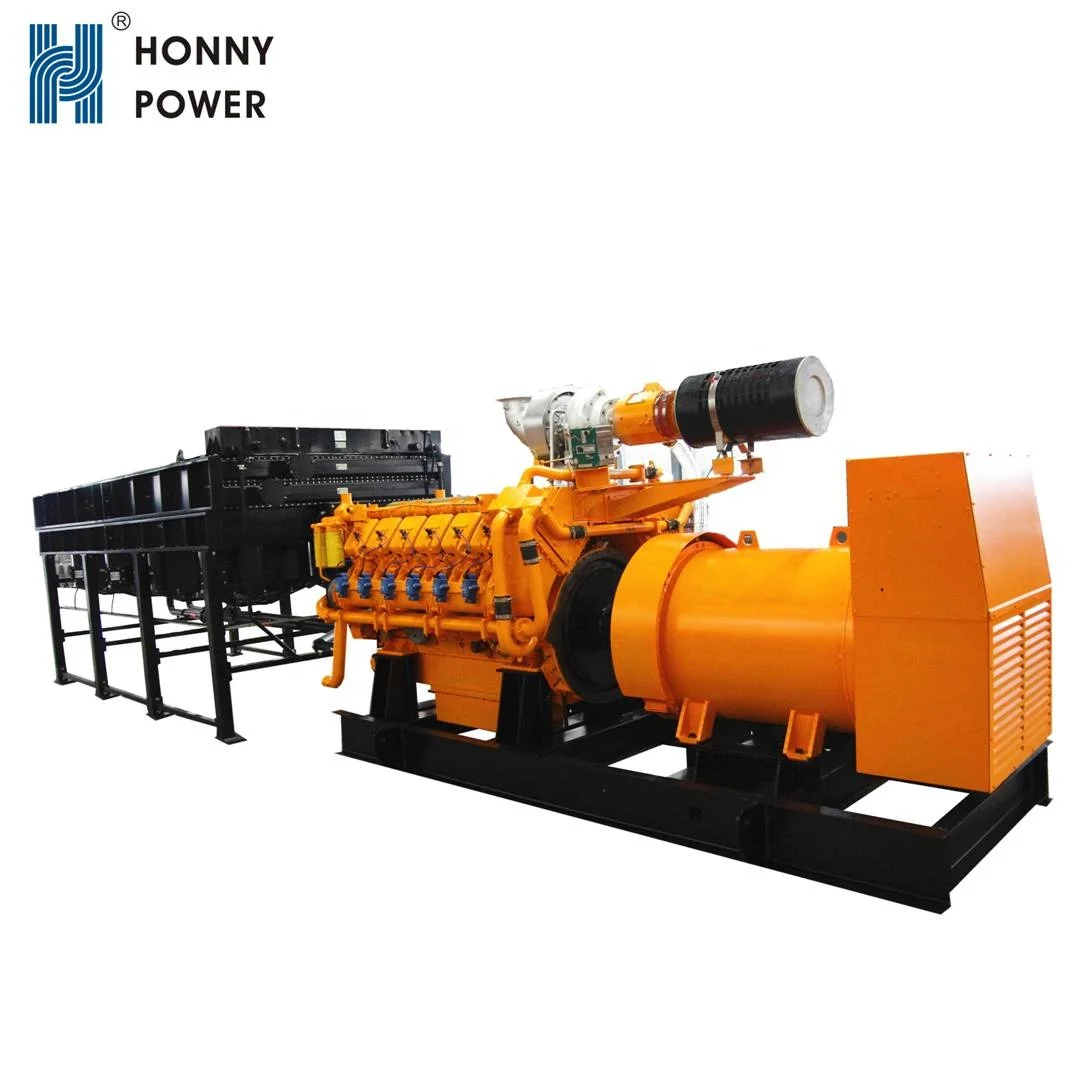

Honny Power 1000kW Gas Generator for Power Plant

Product Overview

Description

Genset Model		HGGM1350
Genset Prime Output	kW/kVA	1080/1350
Genset Continuous Output	kW/kVA	1024/1280
Engine Model		JTA3240-G1
Alternator Model		GP1563-4P
Alternator Efficiency at Prime Output	≥	96.8%
Genset Frequency	Hz	50
Alternator Prime Output	kW	1250
Temperature rising’s class		F class(105℃)
Insulation class		H
Quantity of Alternator’s Bearing		1
Rating Voltage	V	400
Power Factor		0.8
Bore	mm	170
Stroke	mm	195
Configuration		Vee
No. of Cylinders		12
Air Ration	λ	1.6
Genset Size (LxWxH)	mm	4200x1600x2400
Genset Weight	kg	9200
