Dimmer Solar Street light Solar Controller PWM Built in LED Driver inside 10A 12V 24V

Share on (60800527801):


Price:

Quantity:


Product Overview

Description


Product Description


- Solar light controller adopt advanced PWM charging controlling technology, reliable and anti-disturb capability.
- 100% working effieciency of solar energy
- Perfect protective and temperature compensate function to prevent the battery from over voltage or shortvoltage.
- With perfect capability, to protect acid battery from over discharge issue
- It can restart electrodeless lamp, the controller can restart itself to make sure power-off lamp under normal working status when electrodeless lamp is not able to turn on
- Work under diferent surroundings.
- Memory function: startup load mode and main circuit's working time can be reached by setting with outer keys. After setting, the time will be saved in memorizer. The data will not disappear even battery is disconnected with controller.
- Four seperate working stage option.
- Load output power can be adjusted between 10%-90%.
- It can be setted the parameter by the LCD remote controller.

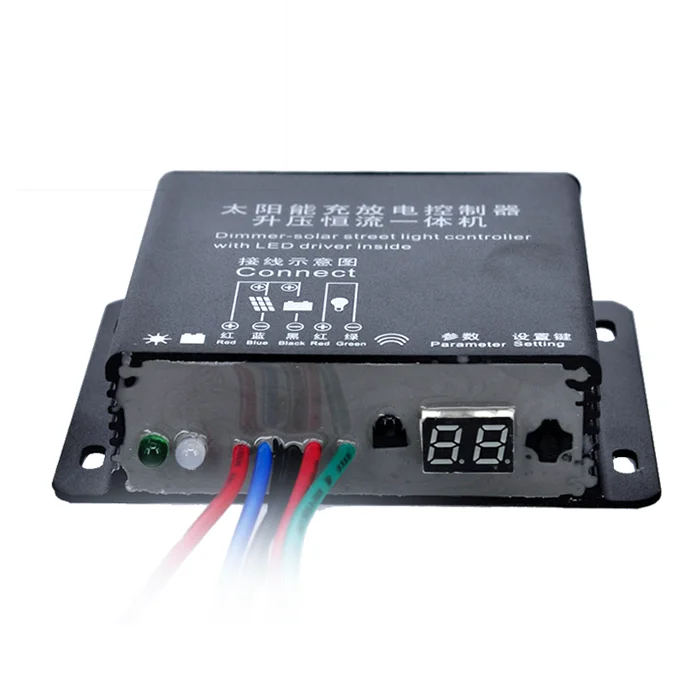

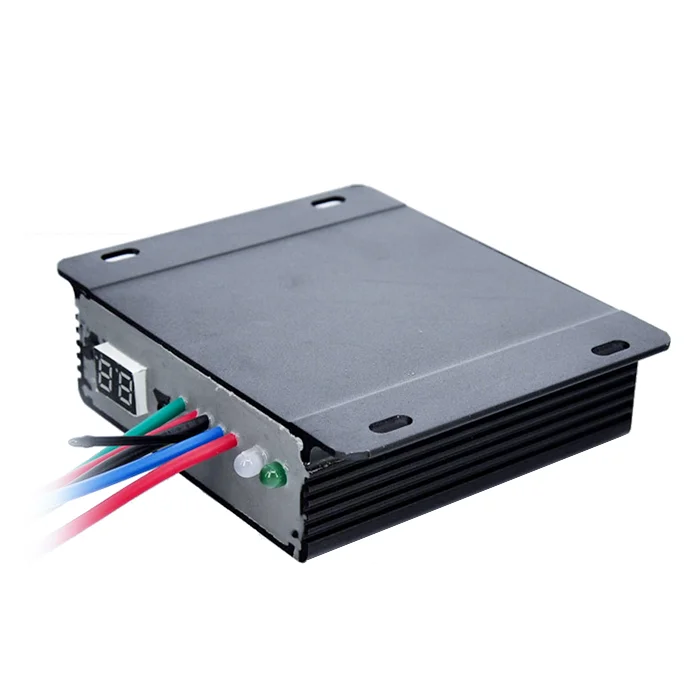

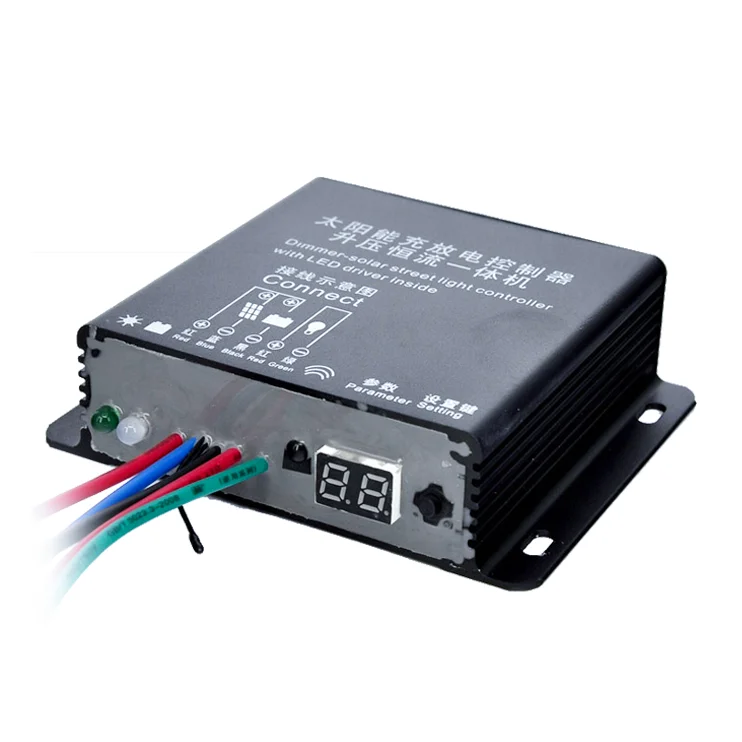

Detailed Images
Specification
\t
Solar Street Light Charge Controller PWM Technical Datasheet
\t
Model
\t
STC10-LED
\t
STC20-LED
\t
Max.solar panel current
\t
10A
\t
20A
\t
load current
\t
10A
\t
20A
\t
Solar system voltage
\t
12V/24V,automatic recognition
\t
NO-load current
\t
6mA
\t
LED Driver
\t
 With LED Driver inside
\t
Output load current
\t
60W(12V),100W(24V)
\t
Overvoltage protection
\t
 17V(12V), 34V/24V;
\t
Work temperature range
\t
 -35℃--+60℃
\t
Boost voltage
\t
 14.6V(12V), 27.2V/(24V)
\t
Equalization voltage
\t
 14.6V(12V), 29.2/(24V)
\t
Float voltage
\t
13.8V(12V), 27.6V/(24V)
\t
Recharge voltage
\t
13.2V(12V); 26.4/(24V);
\t
Temperature compensation
\t
5mv,2
\t
Load reconnect voltage
\t
12.6V(12V), 25.2/(24V)
\t
Charge control mode
\t
PWM
\t
Diplay mode
\t
LED screen display
Packing & Delivery
\t
12V 24V PWM solar charge controller led driver
\t
Product Dimension
\t
104*94*28mm
\t
Weight
\t
0.46kg
\t
QTY/ctn
\t
54pcs
\t
CTN size
\t
44*41*22.5 cm
\t
Weight
\t
25kg
