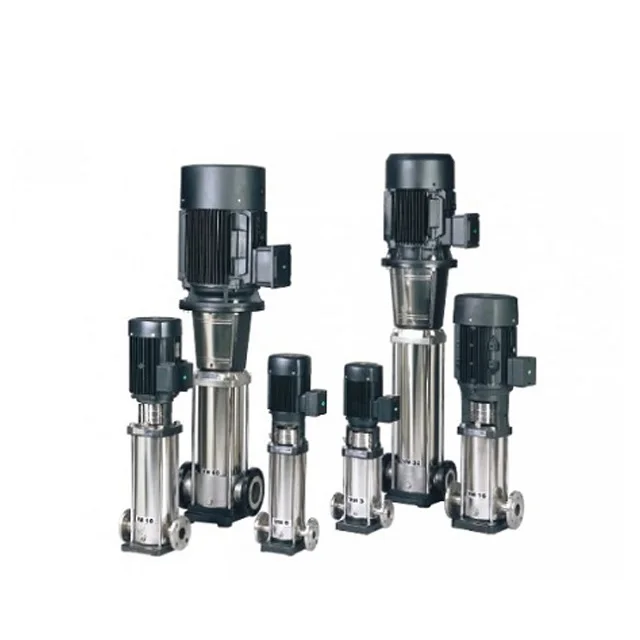

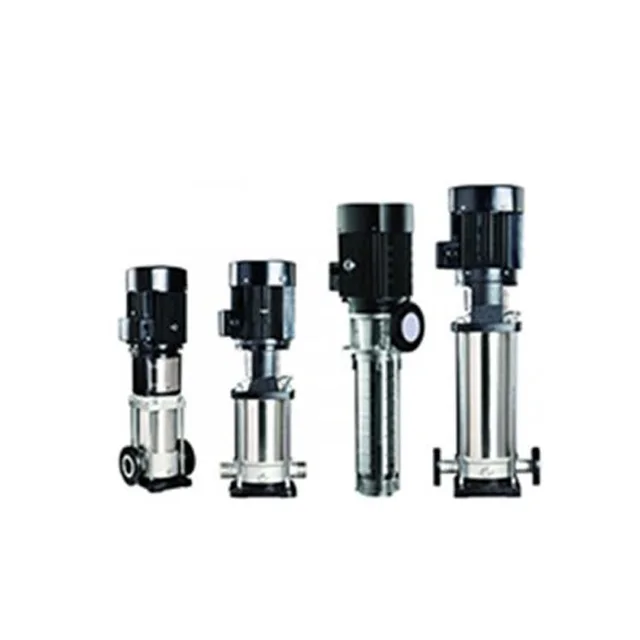

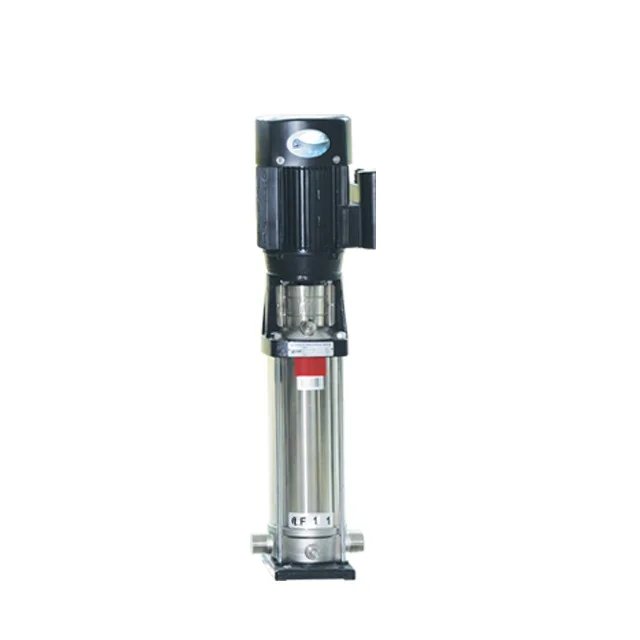

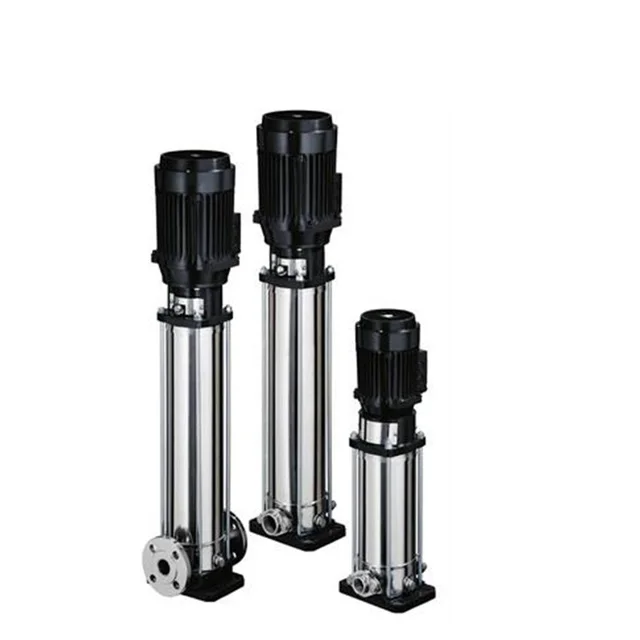

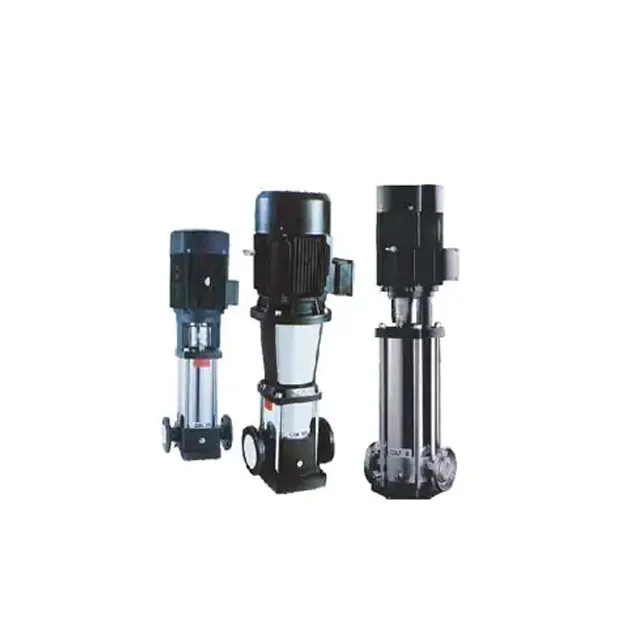

Promotional small type vertical multistage booster centrifugal water pump BL2 BLT2 BL4 BLT4

Product Overview

Description



Vertical Multi-Stage Centrifugal Pumps BL2 BLT2 BL4 BLT4

♦ Part one: Frotec Water Pump Description



The following is about Vertical Multi-Stage Centrifugal Pumps BL related BL, I hope to help you better understand Vertical Multi-Stage Centrifugal Pumps BL.



SHIMGE Pump has been committed to technical researches, manufacturing Vertical Multi Stage Centrifugal Pumps, as well as providing first-class Vertical Multi Stage Centrifugal Pumps for the world. The following is about Vertical Multi Stage Centrifugal Pumps BLT related BLT-1, I hope to help you better understand Vertical Multi Stage Centrifugal Pumps BLT.



We're known as one of the most professional Vertical Multi-Stage Centrifugal Pumps manufacturers and suppliers in China for our quality products and customized service. Please rest assured to buy bulk Vertical Multi-Stage Centrifugal Pumps at low price here or contact our factory for free sample and pricelist.

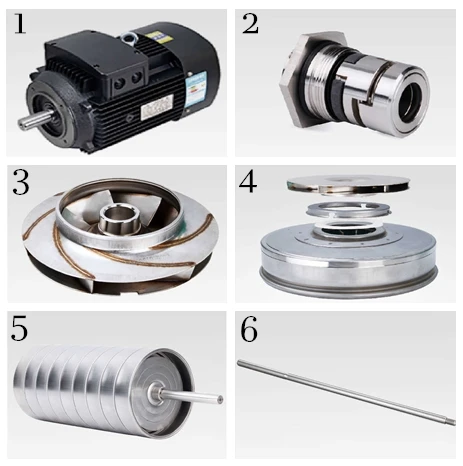

1.High-efficiency standard motor, Japan NSK bearings and cold-rolled 50ww800 silicon steel sheet made the pump high efficiency, low noise and maintenance-free. Totally enclosed shaft seal, IP55 protection grade, F class insulation grade, the special "double-lock" drive end bearing made the pump withstand higher inlet pressure.



2.Balanced & container-type shaft seal with all the parts assembled together, no axial rotating to prevent the shaft and rubber parts from wearing, with the characteristics of rapid changing, easy installation and safe operation.Dynamic sealing is made of cemented carbide materials and the static sealing is fluorine rubber material which make the mechanical seal to be high temperature resistance, long service life, easy changing and other significant characteristics.



3.Being produced by the most advanced international laser welding technology,, no eliminate welding, ensure the high intensity and efficiency. The processing technology: precision casting, CNC lathe, CNC machining center, the modern advanced technology such as the laser welding technique and processing equipment.2T-4T is spot welding,16T and above is laser welding.



4.The built-in floating sealing ring of the pump cavity body could minimize the internal leakage produced by the differential pressure and prevent the energy consumption when liquid leaking back to the pump cavity body.



5.The pump core parts are designed to be multilevel interlocking, fastening nut locked, component system interlock assembly industry, to minimize the gap between the impeller per level, improve the efficiency of the impeller water conservancy, and ensure the stability, reliablity and efficiency of the pump core components.



6.Cold extrusion spline shaft with good surface quality, high machining accuracy, at the same time improve the comprehensive mechanical properties of the shaft and the reliability of the pump.

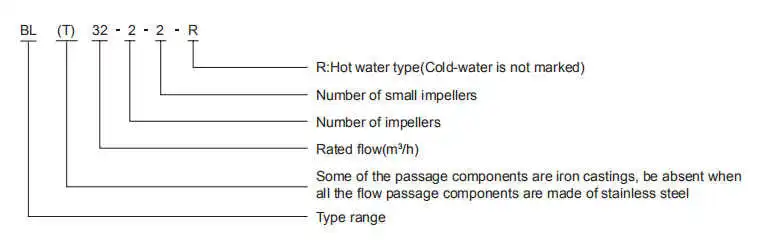

Model Instruction



Overview Of The Product

BL(T) series stainless steel multi-stage centrifugal pump (afterwards called pump)boasts characters of high efficiency, low noise, steady operation, etc.The pump set adopts the non-self-priming vertical multi-stage structure, which makes a compact whole,its installation easy, its operation and maintenance convenient.



Application Limits

Medium temperature: normal type:0℃ ~68℃ hot water type:0℃ ~120℃,
Ambient temperature:+40℃ ,
Max ambient pressure:1.0MPa,
Advisable to use motor of higher power in case that the density or viscosity of medium is above that of water.
PH: 5 to 8



Applications Fields



Water supply	BL	BLT
Filtration and transfer at waterworks	Y	Y
Distribution from waterworks	Y	Y
Pressureboosting in mains	Y	Y
Pressure boosting in high-rise buildins,hotels,etc.	Y	Y
Pressure boosting for industrial water supply	Y	Y
Industry
Pressure boosting
Process water systems	Y	Y
Washing and cleaning systems	Y	Y
Vehicle washing tunnels	Y	Y
Fire fighting systems	Y	Y
Liquid transfer
Cooling and air-conditioning systems(refrigerants)	Y	Y
Boiler feed and condensate systems	Y	Y
Machine tools(cooling lubricants)	Y	Y
Aquafarming	Y	Y
Transfer
Oil and alcohol	Y	Y
Glycol and coolants	Y	Y
Water treatment
Ultra-filtration systems	Y	N
Reverse osmosis systems	Y	N
Softening, ionising, demineralizing systems	Y	N
Distillation sys tems	Y	N
Separators	Y	N
Swimming baths	Y	Y
lrrigation
Field irrigation(flooding)	Y	Y
Sprinkler irrigation	Y	Y
Drip-feed irrigation	Y	Y



Electric Motor



Full-enclosed and ventilating two-pole standard motor
Protection clsas: IP55
Insulation class: F
Standard voltage Single phase 220V-50Hz Three phase:380/400V-50Hz

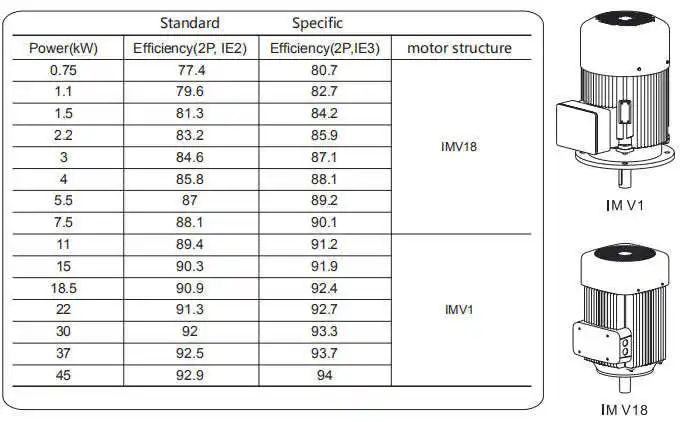

Energy Efficiency Standard (IEC60034)



Calculation Of minimum Inlet Pressure

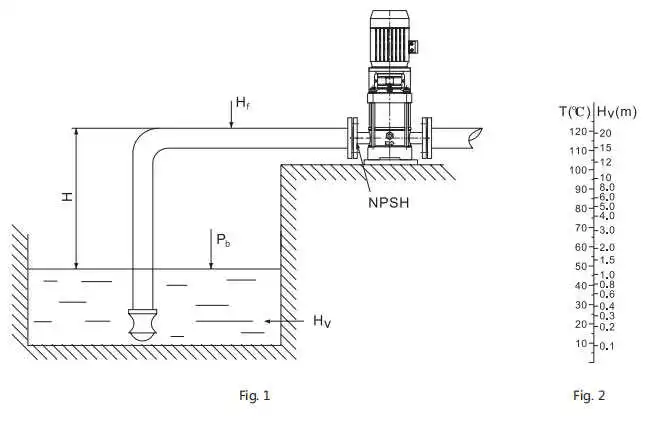

If the pressure in pump is lower than the vapour pressure of medium, cavitation will occur, which will affect the performance of pump. To avoid the cavitation and ensure the pump inlet has a minimum pressure, maximum suction head should be calculated as following:

H=Pbx10.2-NPSH-Hf-hv-Hs

Pb: Atmospheric pressure, bar (In close pipeline system, it can be considered as the system pressure );
NPSH: Net positive suction head, m (Value at maximum flow of Q-NPSH curve);
Hf: Suction pipe line loss (Value at maximum flow of corresponding pipeline);
Hv: Medium vapour pressure, m (Medium vapour pressure at corresponding temperature, the default medium is water, as shown in figure4 on the right );
Hs: Safety margin, m, general value is 0.5.
Calculation result: if H is positive, the pump is installed in suction way, otherwise, it is installed in downdraft way.

Note: It is not necessary to do above calculation under general conditions. Only when we use pump in the following situations do we need to calculate the H:
1. Medium temperature is high;
2.The velocity of flow is larger than rated value;
3.Suction head is big or inlet pipeline is long;
4.System pressure is small;
5.Inlet condition is bad.

Selection Of Pumps

Selection of pumps should be based on:
Duty point of the pump.
Dimensional data such as pressure loss as aresult of height differences,friction loss in the pipework,
Pump efficiency etc.
Pump materials
Pump connections
Commonly used mechanical seal configuration tables



1. Duty point of the pump:

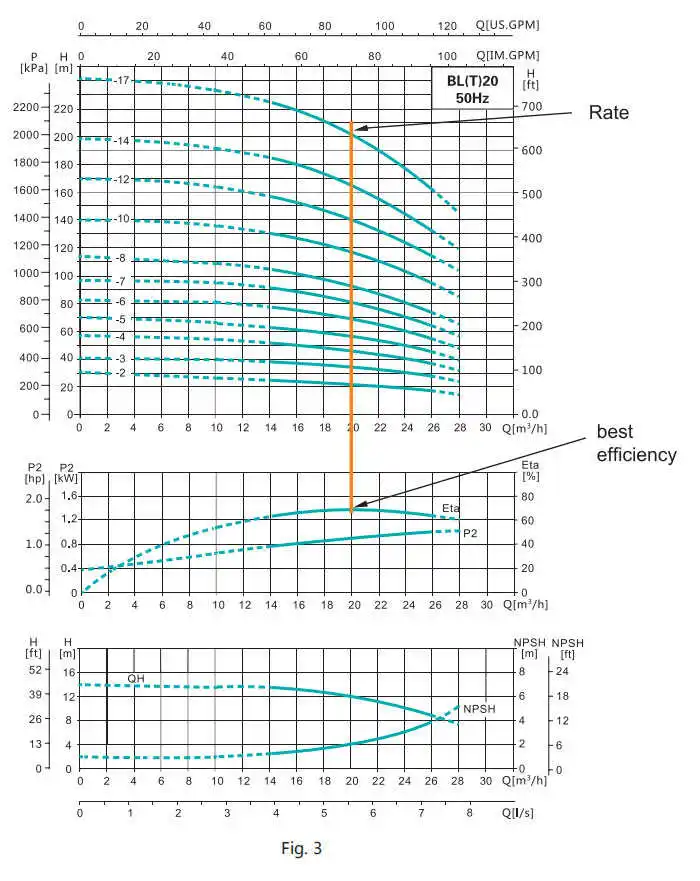

From a duty point it is possible to select a pump on the basis of the curve charts shown in "performance curves/technical" data.



2. Dimensional data:

When sizing a pump the following must be taken into accounting:

Required flow and pressure at the draw-off point.

Pressure loss as a result of height differences.

Friction loss in the pipework(Hf) (Refer to Fig.1) It may.

Best efficiency at the estimated duty point.

NPSH value.

For calculation of the NPSH value, see corresponding curves chart.



3. Pump efficiency:

Before determining the best efficiency point, the operation pattern of the pump needs to be identified. If the pump expected to operate as the same duty point, then select a BL pump which is operating at a duty point corresponding with the best efficiency of the pump.
As the pump is sized on the basis of the highest possible flow, it is important always to have the duty point to the right on the efficiency curve(eta) in order to keep efficiency high when the flow drops.

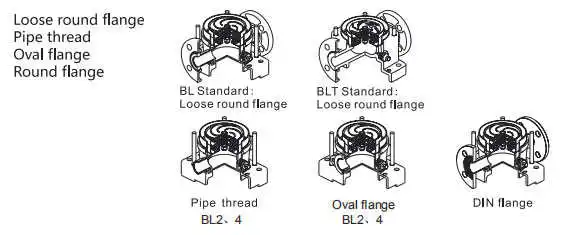

4. Pump material:

Selection of pump connection depend on the rated pressure and pipe work. the pump offer a wide range of ftexible connection such as:



5. Commonly used mechanical seal configuration tables



Application Field

Shaft seal type

Shaft seal material

Normal

Special

1

2

3

4   5

Type key

Rotating part

Code

Stationary part

Code

Elastomers

Code

Compression spring

Collor

Code

0℃ to +90℃ clean water

Y

Graphite

A

SiC

S

FPM

F

SUS304

C

ASFC

0℃ to +90℃ clean water

Y

WC

W

Graphite

A

FPM

F

SUS304

C

WAFC

+90℃ to +120℃ corrosion resistance

Y

SiC

S

SiC

S

EPDM

E

SUS304

C

SSEC

up to 0℃

Y

WC

W

WC

W

EPDM

E

SUS304

C

WWEC

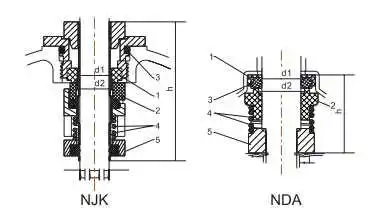

Mechanical seal type	Pump model	d1	d2	h
NJK	BL(T)2/4	12	12	55
	BL(T)8/12/16/20	16	16	57.5
	BL(T)32/45/60/90	22	22	72
NDA	BW(J)2/4	12.7	16	32
	BW(J)8/16	17.4	20	33.5



Maximum Work Pressure

Model	Curve No.
BL(T)2,4	2
BL(T)8,12,16,20	3
BL(T)32-2-2~BL(T)32-7	1
BL(T)32-8-2~BL(T)32-12	4
BL(T)32-13~BL(T)32-15-2	5
BL(T)45-2-2~BL(T)45-6	1
BL(T)45-7-2~BL(T)45-9	4
BL(T)45-10-2~BL(T)45-13-2	5
BL(T)64-2-2~BL(T)64-5-2	1
BL(T)64-5-1~BL(T)64-8	4
BL(T)90-2-2~BL(T)90-4-2	1
BL(T)90-4~BL(T)90-6	4
BL(T)120,150	6

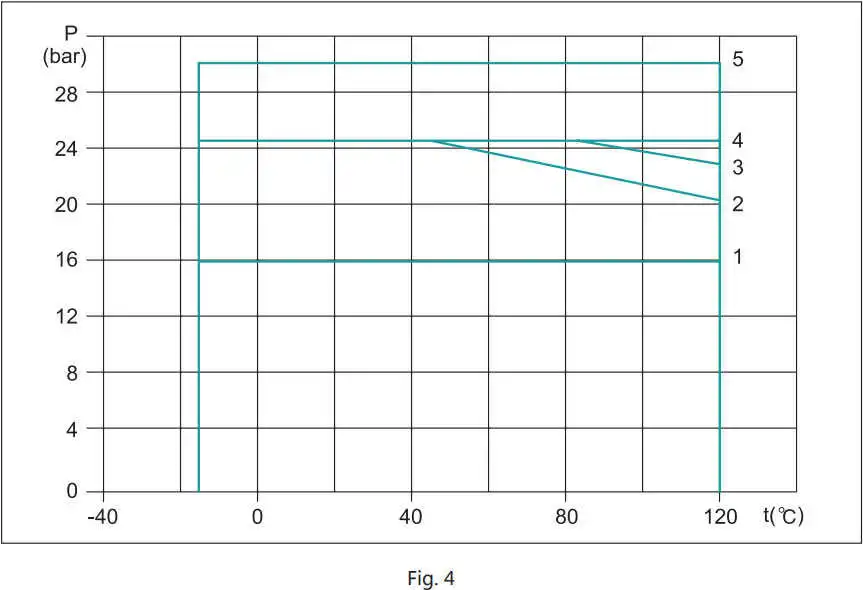

The limits of pressure and temperature are shown in the following fig.4,the pressure and temperature must be in the shown in the fig. 4.



Maximum Ambient Temperature

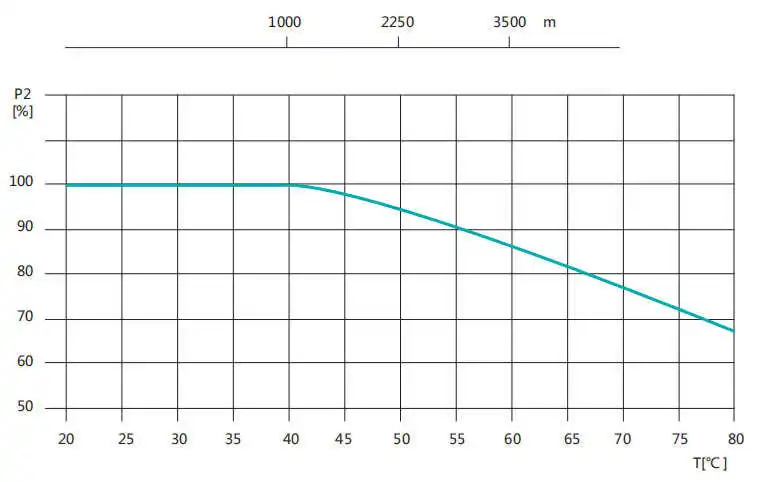

When the pump is operating in the place where ambient temperature is higher than 40℃ or altitude is higher than 1000m,the output power of motor P2 will decrease because of poor cooling caused by low air density.Therefore, in that case,the pump should be equipped with high-power motor.

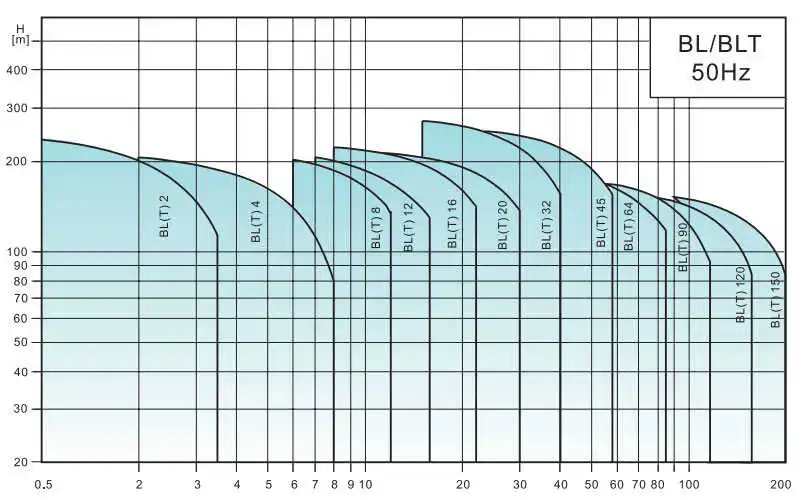

Performance Range

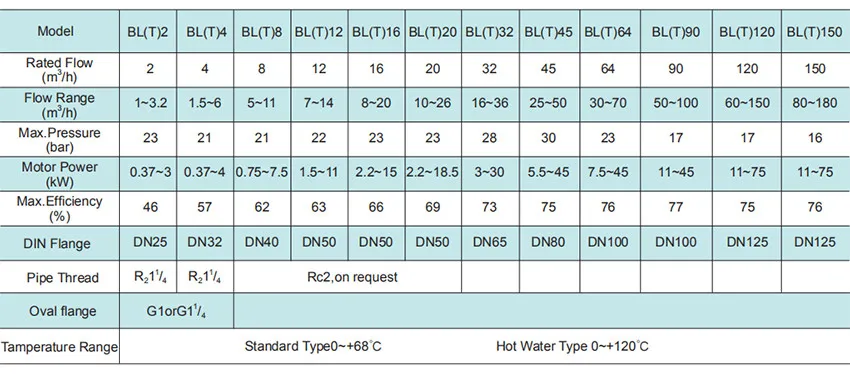

Product Range

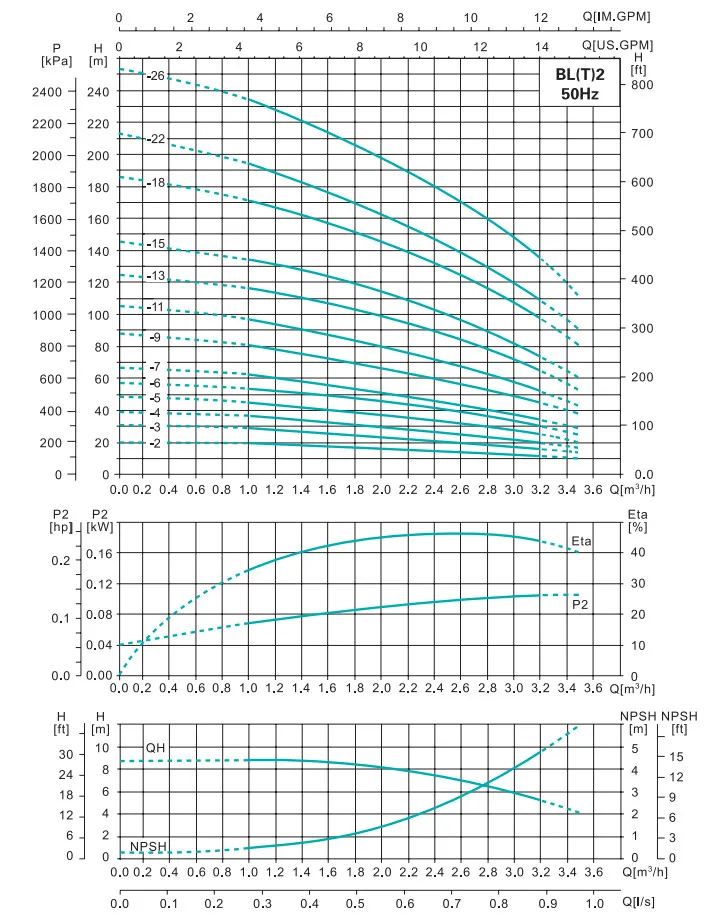

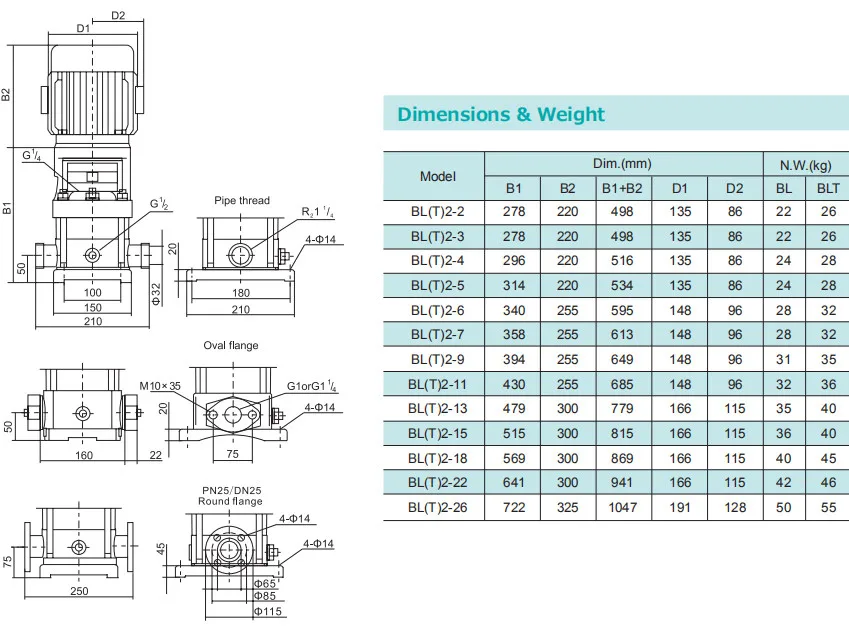

Performance Curve - BL(T)2



It is recommended to be used within lift range.

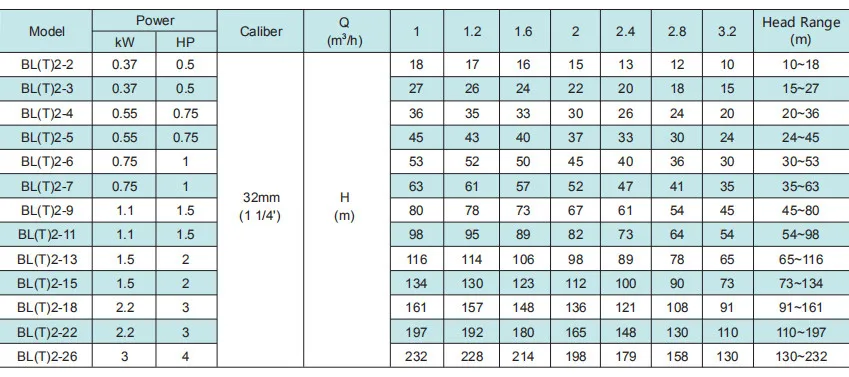

Performance Table







Performance Curve - BL(T)4



It is recommended to be used within lift range.

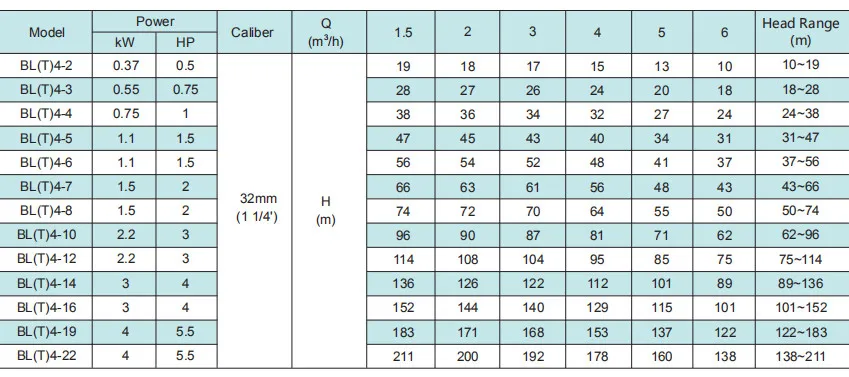

Performance Table

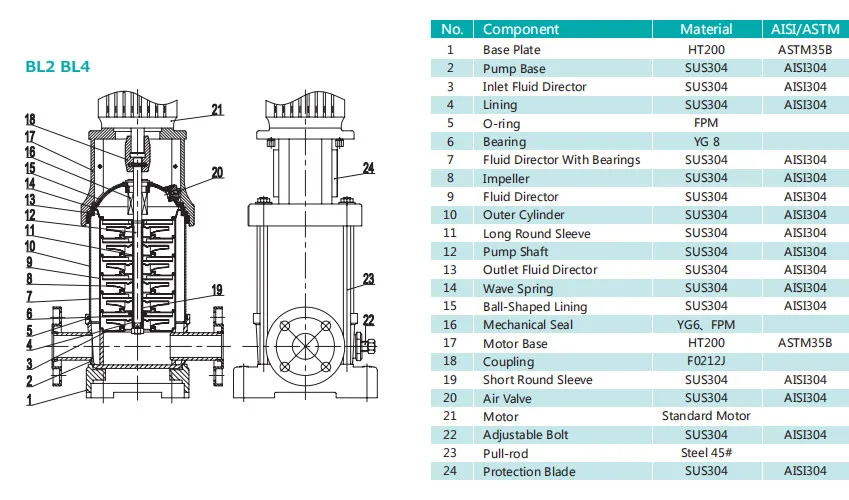

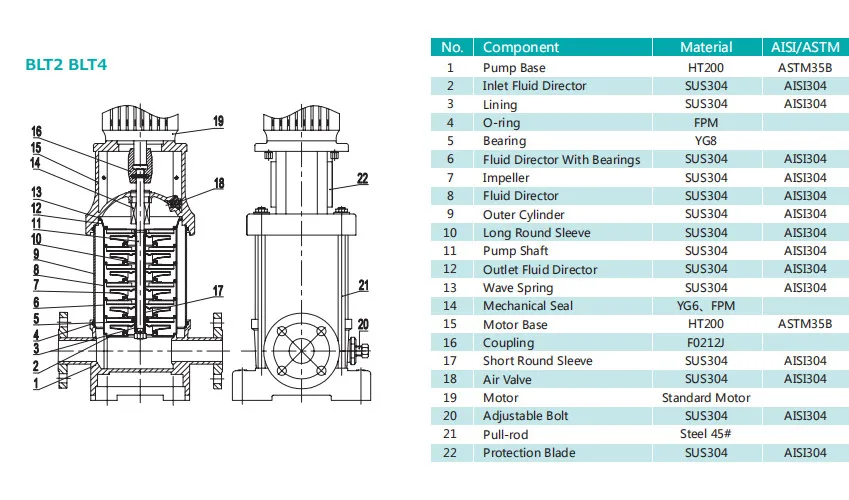

Components & Materials

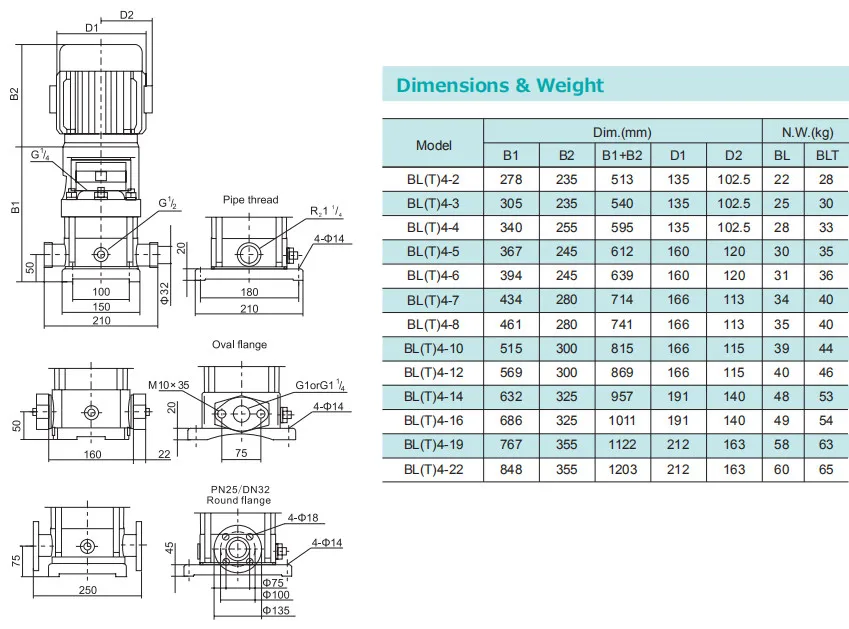

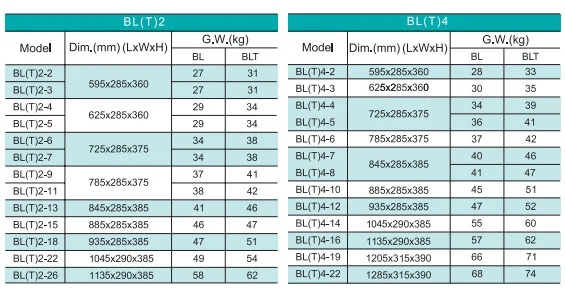

Packing Sizes & Weight
