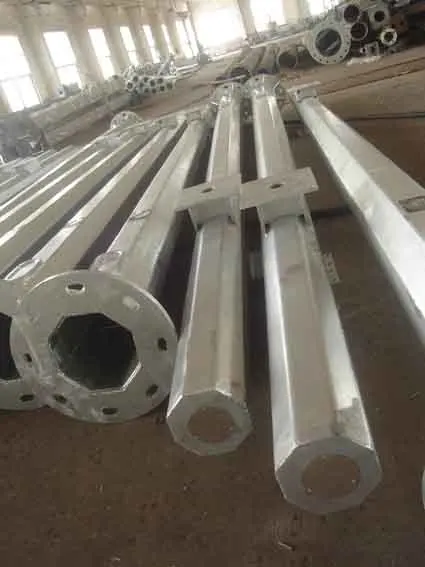

12m 14m 16m Light Pole Making Machine Tandem Press Brake CNC Hydraulic Bending Machine
- Category: >>>
- Supplier: Nantong Super Machinery Co. Ltd.
Share on (60800560574):
Product Overview
Description
Product Description

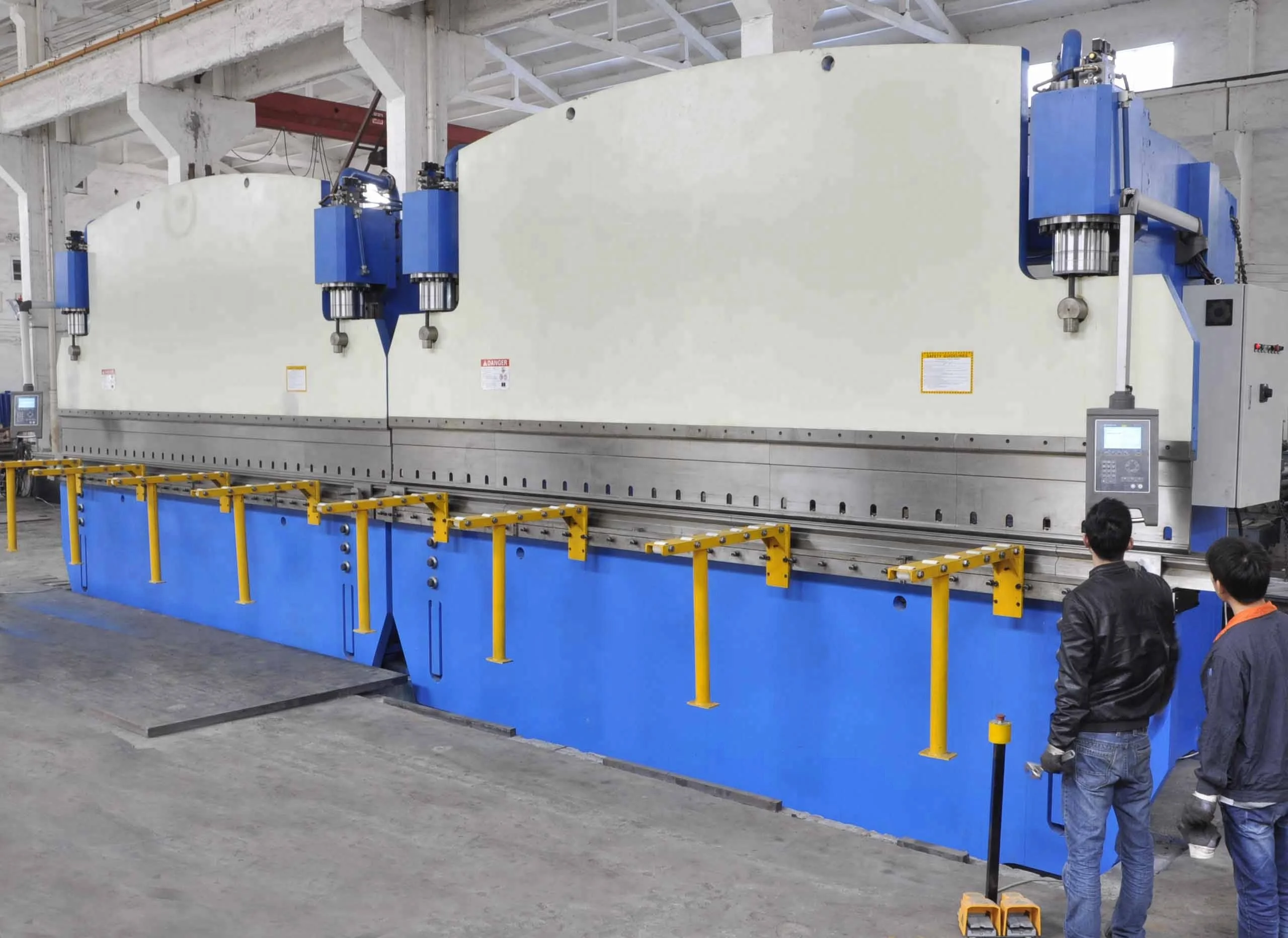

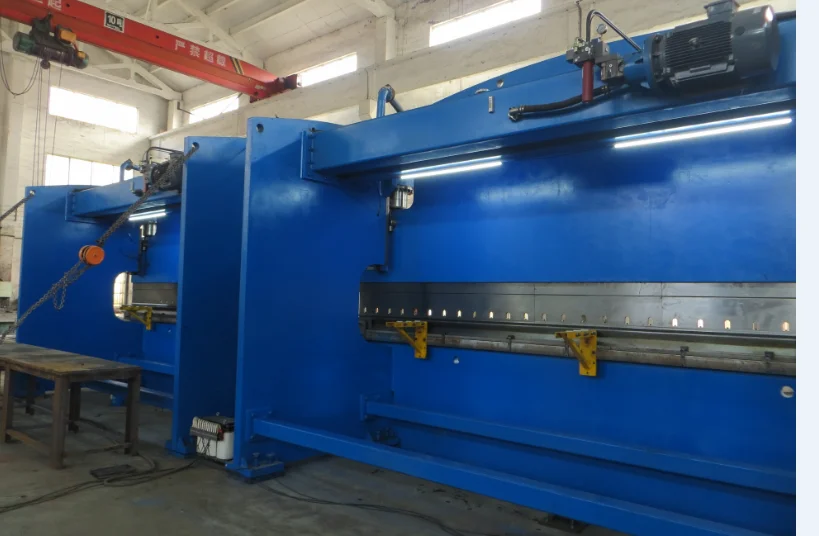

2 - 320T / 6000 cnc light pole tandem hydraulic press brake machine
Quick Detail:
Metal Plates Hydraulic CNC Tandem Press Brake for auto industry
Select And Use DELEM DA52 CNC Control System
Description:
1. Electro-hydraulic servo system,closed loop controls slider running accuracy.
2. The unique patented technology:bilateral deflection compensation of the large press brake .
3. Open width adjustable inserts die to meet a variety of workpieces.
4. A variety of auxiliary institutions could meet users’ requirements and make the process more convenient and efficient.
5. The frame of machine is composed of tank, worktable, left and right housings and
ram. So it has high strength and good rigidity. Also it takes vibration to eliminate
stress.
6. Synchronization working principal of both machines:Adopting electric-hydraulic
proportional valve to ensure the synchronization of both machines.
7. Through computer, the operator could communicate with machine.
8. Equipped with good guiding system, position measuring system and hydraulic balance system to meet the requirements of full length job and eccentric job.
9. Worktable compensation unit is adopted to make up for deflection of machine when working to make sure the precision of work piece.
10. The surface of cylinder has good wearing and heat treatment, so it has good lubrication and long service life
Applications:
CNC press brake machine is widely used in large steel structure, steel tower, truck carriage, electric cabinet, decoration industrial. With different dies provided, the subscriber can get the metal plate bent into different shapes of work pieces.
Machine Parameters
| Model | Working Force (KN) | Worktable Length (mm) | Throat Depth (mm) | Open Height (mm) | Dimension (mm) |
| 2-320/6000 | 2x3200 | 2x6000 | 720 | 870 | 2-6250x2614x5470 |
| 2-400/7000 | 2x4000 | 2x7000 | 720 | 870 | 2-7250x5170x5970 |
| 2-600/6000 | 2x6000 | 2x6000 | 1000 | 1000 | 2-6240x5960x5500 |
| 2-1000/6000 | 2x10000 | 2x6000 | 1400 | 1400 | 2-6240x6500x6600 |
| 2-1600/6000 | 2x16000 | 2x6000 | 1100 | 1250 | 2-9240x8200x8250 |
| 2-2000/9000 | 2x20000 | 2x9000 | 1600 | 1600 | 2-9240x9050x8800 |
Packaging & Shipping
PACKAGE:
LCL Loading Packaging: Steel pallet and plywood case.
——FCL Loading Packaging: Steel pallet with plastic film.
——Shipping: by sea
Our Service:
- Provide Pre-sales Consultant & On-purchase service 8 hr × 6 days per week
- Reply within 24 hours
- Provide relevant product information
- Answer questions if request
- Give technical suggestion
² Provide After-sales service 24hr × 7days per week
- Test the machine before shipment
- Provide technical guidance relate to use the machine
- Supply one-year warranty period for the machine
- Provide the spare parts at cost price after warranty period
- Collect the feedback for the machine working
- Provide long-term technical assistance.
OUR CUSTOMERS
FAQ
A: what is difference during DA-52, DA-56, DA-65W and DA66T?
About CNC press brake machines, usually, we suggest four kinds of controller system more often: Delem DA-52, DA-56, DA-65W, DA66T Following is their characters:
DA-52 control system:
- With LCD true-color display
- Max control 4 axis(Y1,Y2 and two auxiliary axis)
- worktable crowning compensation control
- tooling, material and product library
- USB interface
- Advanced Y axle control algorithm, it can control closed loop, also open loop
DA-56 control system:
- With LCD true-color display
- 2D programming
- Bending process
- Developed length calculation
- worktable deflection compensation control
- tooling, material and product library
- USB interface
- Servo control, frequency control and AC motor control
DA65W controller system:
- Modular structure, max 20 axis
- Built-in PLC reduces machine circuit design, let the machine more stable
- Processing automatic calculation and optimization
- self diagnosis function supply diagnosis for the whole system and components function
- multi-language selection
- 3.5" floppy drive and RS232 interface, program and parameter can realize external storage, online and offline programming.
- 2 D graphics mode programming, adopts different gray scale to display processing workpiece, tooling.
- It can works 2500 program, 90 tooling.
- Calculate clamping point, tool safe area, bending force, unloading distance and worktable compensation.
DA66T controller system:
- Error message prompting system and help text. It can supply timely warning for your error programming and wrong operation, which save much time that looking for error.
- Standard Ethernet interface, connect windows
- real-time windows system, multi-task treatment and file management
- USB interface, connect external device: mouse and fingerboard
- Colorful display: 12 inch
- TFT 2D graphics mode programming
- Automatic bending processing
- PLC function
- operation warning system
