59inch cnc controlled wood turning lathe cylinder making machine price
Product Description

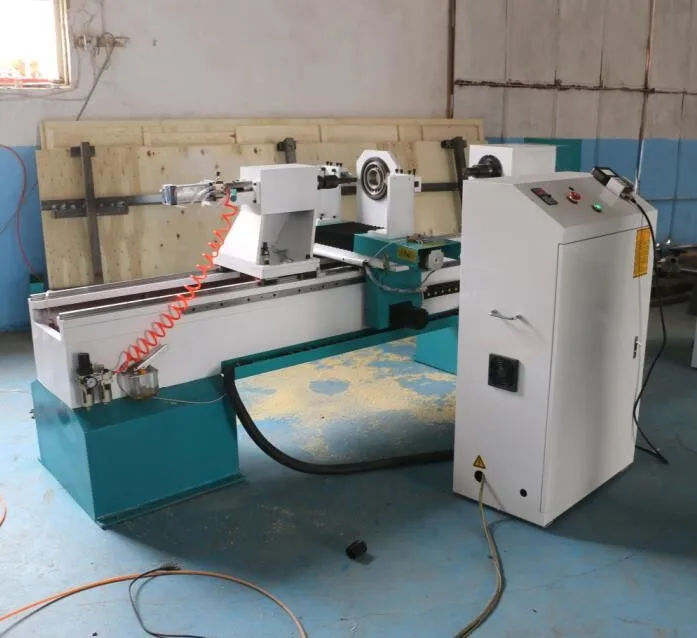

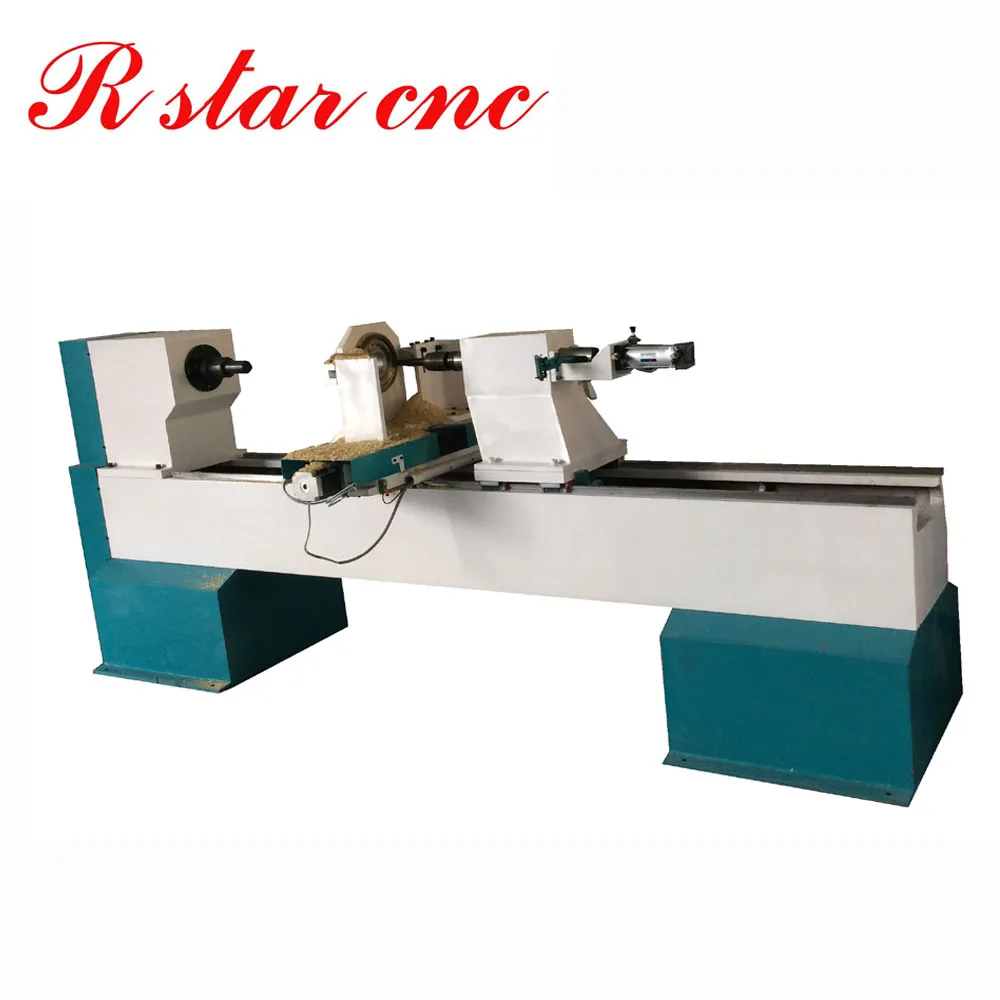

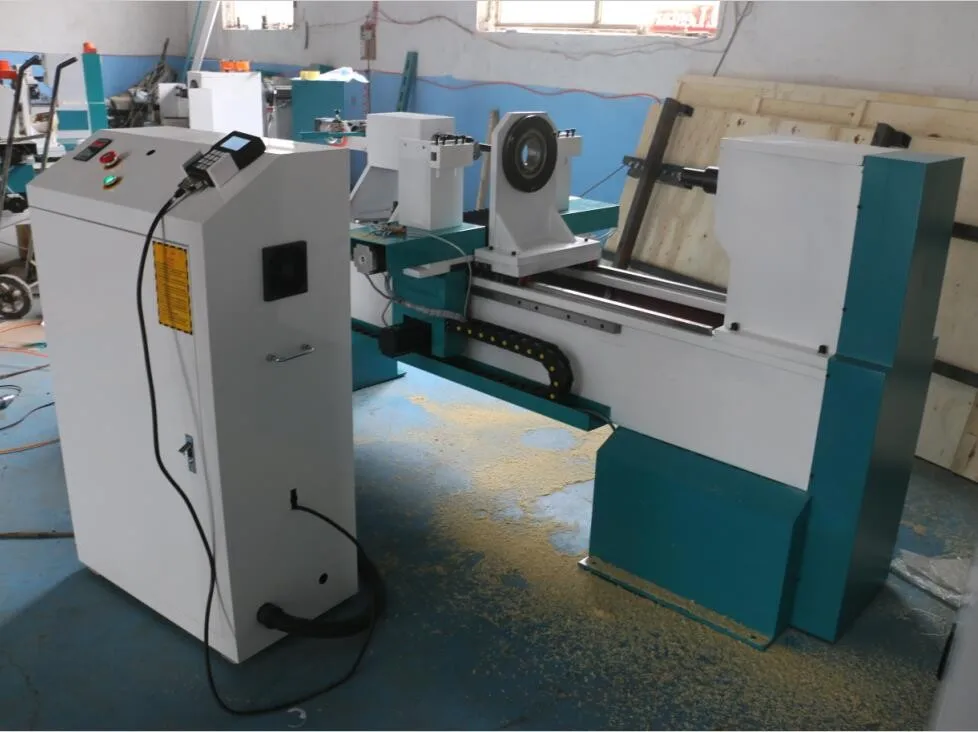

1.pictures:
Application
2.Applications:
cnc wood turning lathe is a kind of woodworking machinery, with very fast turning cutting speed on ssymetrical wood, widely used in table/sofa/chair/bed legs, wooden staircase handrail, baseball bat, billiard cue, pool. column, Pacilion spire etc.
wood starcase handrail table legs

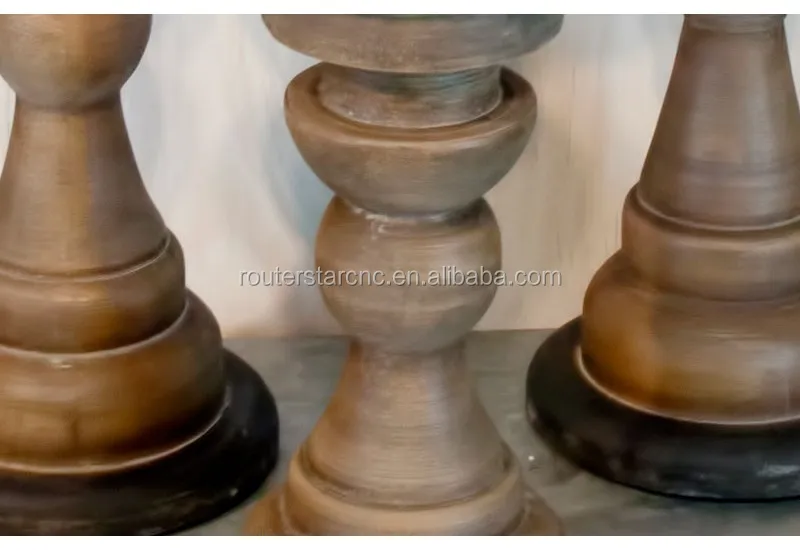

Sofa legs canndle support
chair/table/bed legs, as long as you have dxf file from AutoCAD, with the square wood. you can get any shape of legs or columns. but need regular, it is assymetric from the wood center.
Parameters:
3.PARAMETERS:
Model Number | RS1530 | RS2030 | RS2530 | RS3030 | |
Size | Max work length | 1500mm | 2000mm | 2500mm | 3000mm |
Max work diameter | 300mm | ||||
Machine size | 3*1.1*1.4m | 3.5*1.1*1.4m | 4*1.1*1.4m | 4.6*1.1*1.4m | |
Package size | 3.1*1.2*1.6m | 3.6*1.2*1.6m | 4.1*1.2*1.6m | 4.7*1.2*1.6m | |
N weight | 1500kgs | 1600kgs | 1700kgs | 1800kgs | |
G weight | 1600kgs | 1700kgs | 1800kgs | 1900kgs | |
configuration | Machine body | Cast iron | |||
Driving Motor | Step motor 450B+450C | ||||
Driver | Large step driver Yako 2811 | ||||
Rotary motor | 4kw 3 phase induction motor | 5.5kw 3 phase induction motor | 5.5 kw 3 phase induction motor | 5.5kw 3 phase induction motor | |
Rotary inverter | 4.5kw | 7.5kw | 7.5kw | 7.5kw | |
Transmission way | Y axis helical gear, XZ axis adopt Taiwan TBI ballscrew | ||||
Orbit | Original Taiwan square orbit M25 | ||||
Center sheath size | Inner Diameter 68mm | ||||
Thimble size | 25mm diameter | ||||
Control system | DSP A132S special controller for cnc wood lathe | ||||
Carving spindle | NONE | ||||
Dust collector | Without (if with need extra price $160) | ||||
Parameter | Max feed rate | 200cm/min | |||
Max moving speed |
| ||||
Rotary rotating speed | 3000RPM/min | ||||
Precision | 0.02mm | ||||
Control box | Wood lathe cutter | hard alloy cutter*1 pc+ triple cutter*1 pc | |||
Switch | Limit switch*1 pc+ Emergency switch*1pc+Button switch*1 pc | ||||
Generally speaking the cnc wood lathe
1. working diameter is from 20-300mm, if you need we can customised into 400mm, need enlarge the chuck, and need extra $ 230.
2. the standard working length is 100-1500mm, if you need max length 2000/2500/3000 mm, we can make, that is the model RS2030, RS2530, RS3030, need accordingly expense, welcome to contact me for details:86-15866646109.
3. this RS1530 is the standard model for turning, if you need the broaching or carving fucntion, that need add the spindle, need about $950.
for details please check model RS1530S:
https://routerstarcnc.en.alibaba.com/product/60734637765-805857967/Multi_function_cnc_wood_turning_lathe_machine_making_furniture_legs.html?spm=a2700.icbuShop.prewdfa4cf.25.4e116b83RBu1yJ

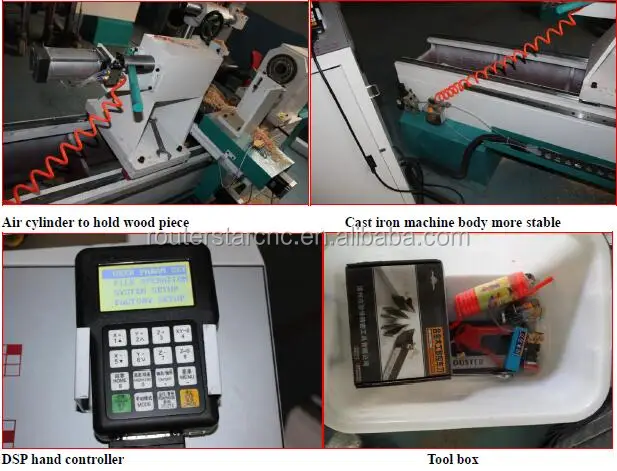

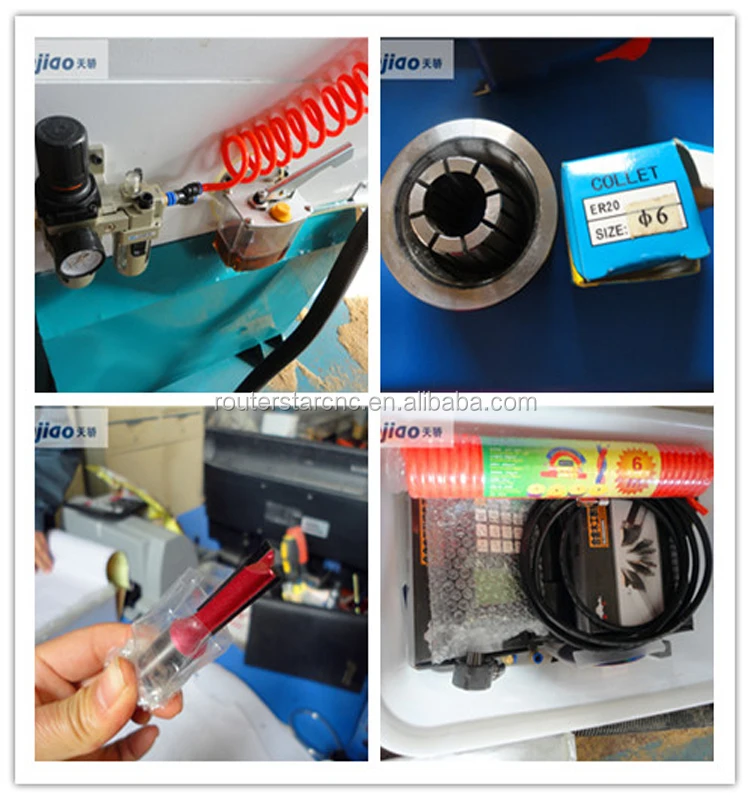

Machine details part

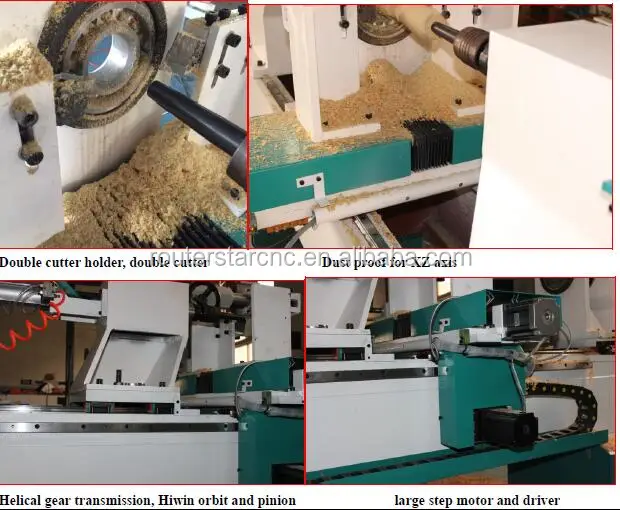

4.details parts shows
Cast iron machine body for cnc wood lathe
power coating, longer color maintain
DSP control system, more easy for the aligning cutter
step motor 450B+450C , step driver Yanko 2811. strong source
Helical gear, higher speed, XZ ballscrew for 2 cutter
China best quality hard alloy cutter
Adjustable inverter for rotating speed
Big center shealth, avoive shake when thin wood, and protect function
air cylinder for stable wood, more reasonable and strong
with water-oil seperater
Consumable parts: wood lathe cutter, limit switch,

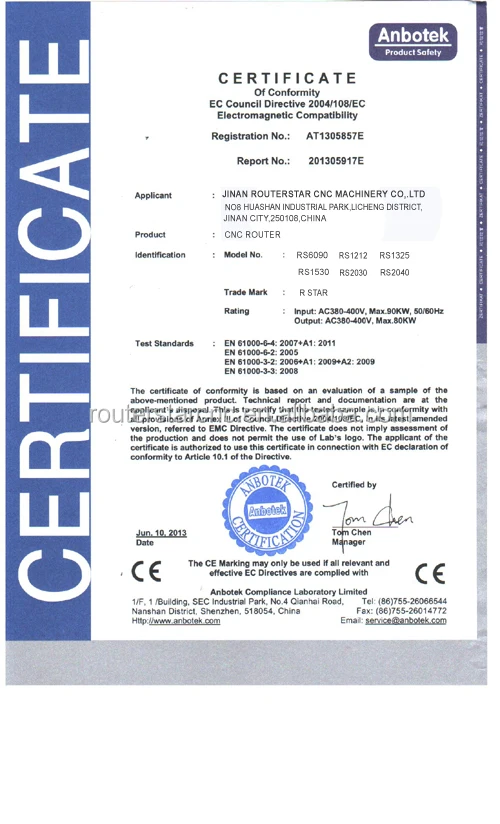

Certifications
