HFE60 Hongfa double coil latching relay
- Category: >>>
- Supplier: Xiamen Universal Electronic Co. Ltd.
Share on (60800620383):
Product Overview
Description
HFE60 Hongfa double coil latching relay
double coil latching relay

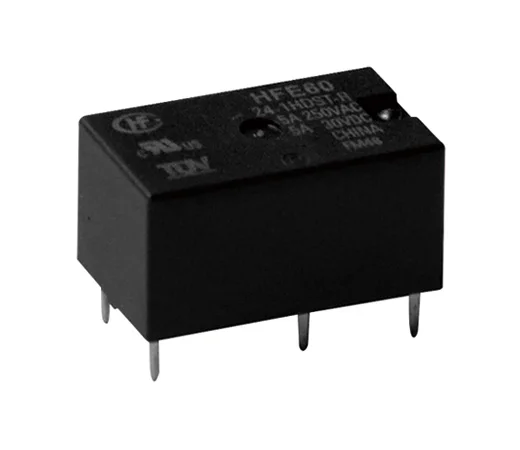

Picture of double coil latching relay
SUBMINIATURE INTERMEDIATE POWER RELAY
double coil latching relay
Features of double coil latching relay

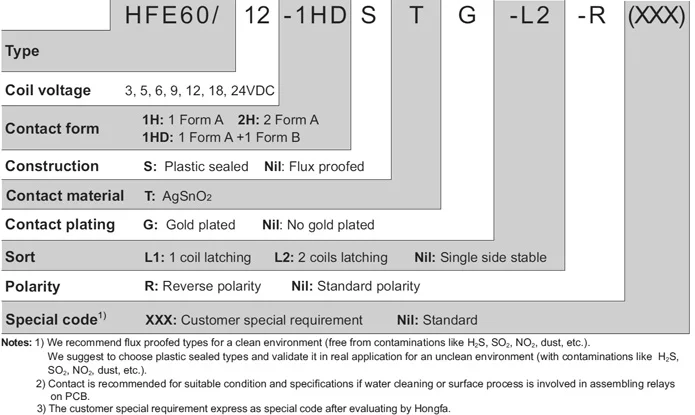

| Relay Type:HFE60 |
| · Low height 10.5mm · Low coil power · High switching capacity 1A: 8A 250VAC 2A, 1A+1B: 5A 250VAC · 1 Form A, 2 Form A, 1 Form A+1 Form B configuration · 3kV dielectric strength (between coil and contacts) · Environmental friendly product (RoHS compliant) |
double coil latching relay
| | |
| Contact Arrangement: | 1A,2A,1A+1B |
| Contact Resistance: | AgSnO2 |
| Contact Rating: | 8A 250VAC 5A 30VDC |
| Max. switching Voltage: | 380VAC / 240VDC |
| Max. Switching Power: | 2000VA / 150W |
| Mechanical Endurance: | 1×107OPS |
| Electrical Endurance: | 3×104OPS |
| | |
| Insulation Resistance: | 1000MΩ |
| Dielectric Strength: | 300VAC |
| Operate Time (max): | 10 |
| Release Time (max): | 5s |
| Ambient Temperature: | -40℃~ 85℃ |
| Terminal Type: | THT |
| | |
| Nominal Voltage: | (3~24)VDC |
| Coil Power: | 0.15W, 0.3W |
Our Certifications
 |  |  |
FAQ
Q: Are you trading company or manufacturer? double coil latching relay
A: We are factory& trading company.
Q: How long is your delivery time? double coil latching relay
A: Generally it is about 15-25 days to produce.
Q: Do you provide samples? is it free or extra? double coil latching relay
A: Yes, we could offer the sample for free charge.
Q: What is your terms of payment? double coil latching relay
A: Payment<=3000USD, 100% in advance. Payment>=3000USD, 50% T/T in advance ,balance before shippment.
double coil latching relay
