| Model number | MD1-5050-28 |

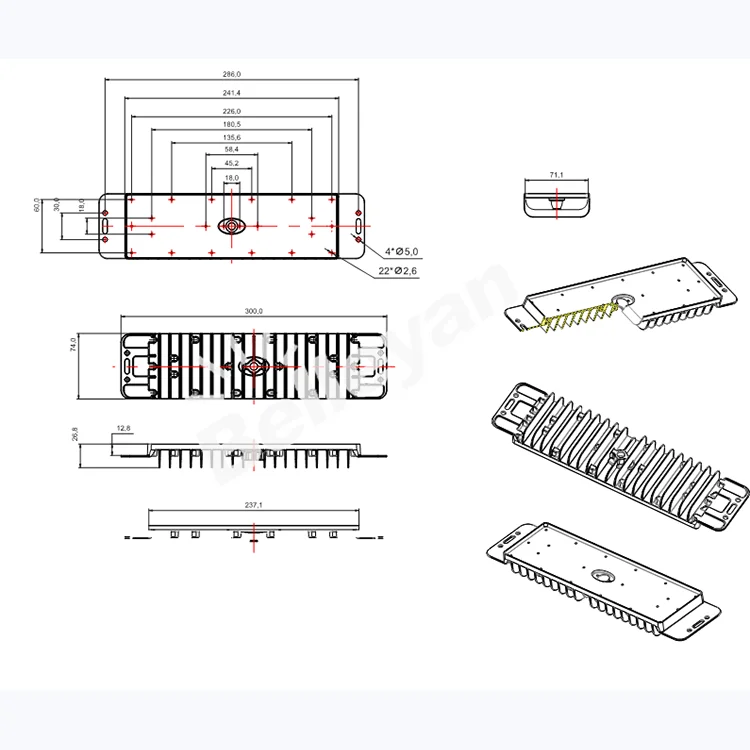

| Dimensions | 300*74*29mm |
| Power range | 100-250W |
| Light source type | Lumileds 5050 |
| Number of light sources | 28pcs |
| Parallel string mode | 2 strings and 14 |
| Adapted drive | compatible with Ming Wei and mainstream power supply |
| Aluminum substrate size | 219.75*53*75*2.0mm |

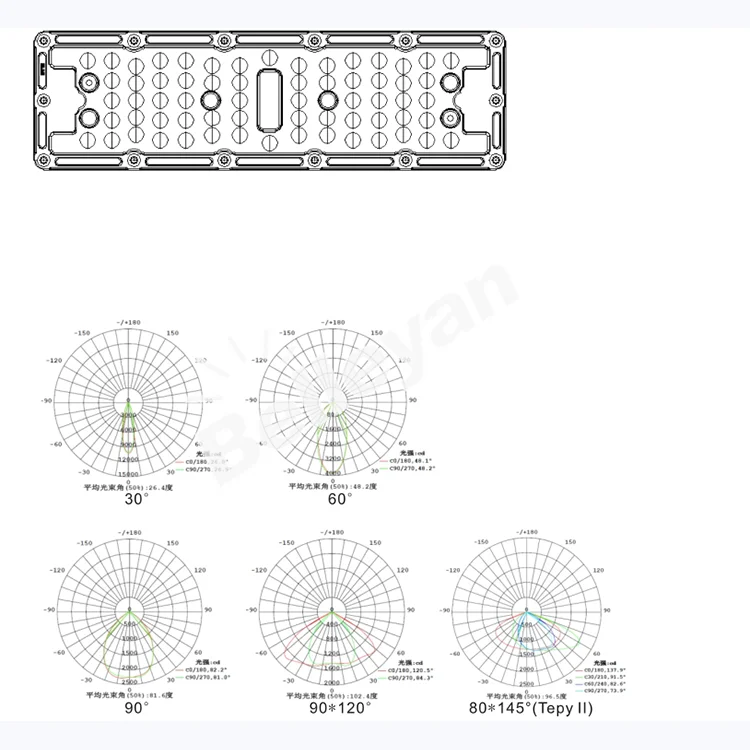

| Lens angle | 30°/60°/90°/90*120°/80*145° (Tepy II) |
| Kit weight | 0.26kgs |

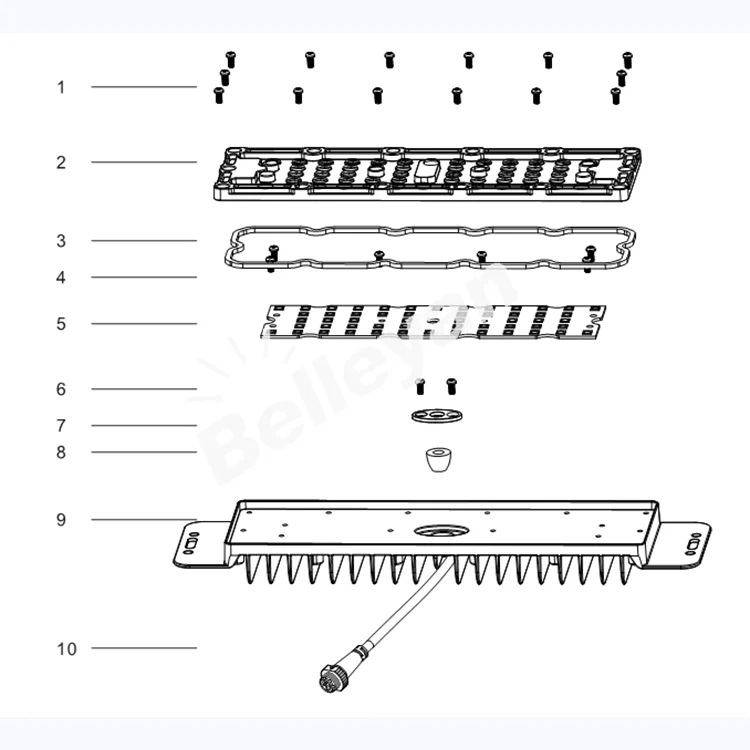

Integrated aluminum alloy die casting;

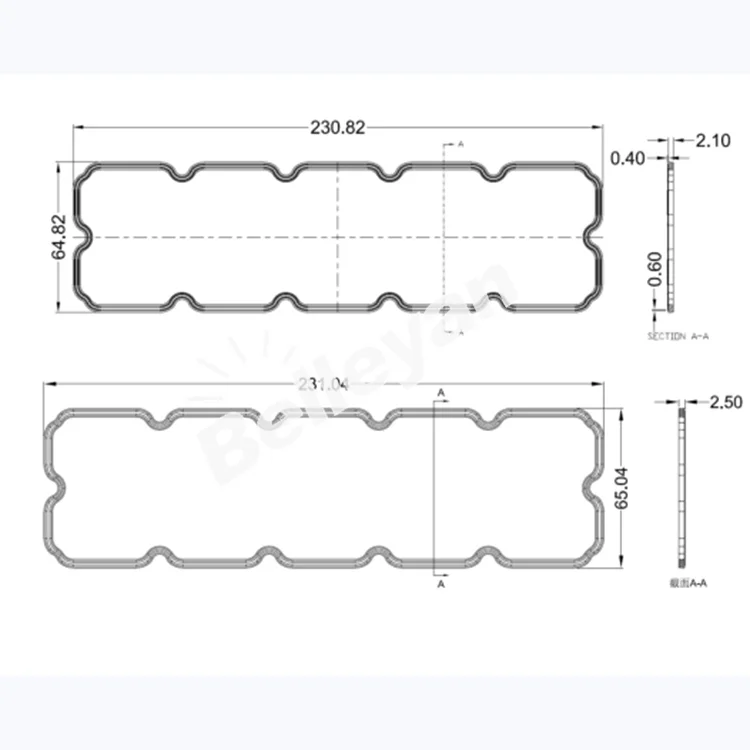

Waterproof integration, waterproof rating IP67;
Use high-quality optical lens, anti-UV yellowing, uniform lens distribution, in line with road lighting and a variety of outdoor lighting requirements;
Lens angle 30°/60°/90°/90*120°/80*145° (Tepy II);
The module dimensions are in accordance with CSA 016-2016 design, adapt to various lamps, and easy to assemble with M15 (or M18) waterproof joints;
The module's electrical performance parameters are designed to meet the market's mainstream LED power supply, making it easy to purchase matching power supplies on the market.
