Price:$46.00 - $52.00

Quantity:


Product Overview

Description


Product Description

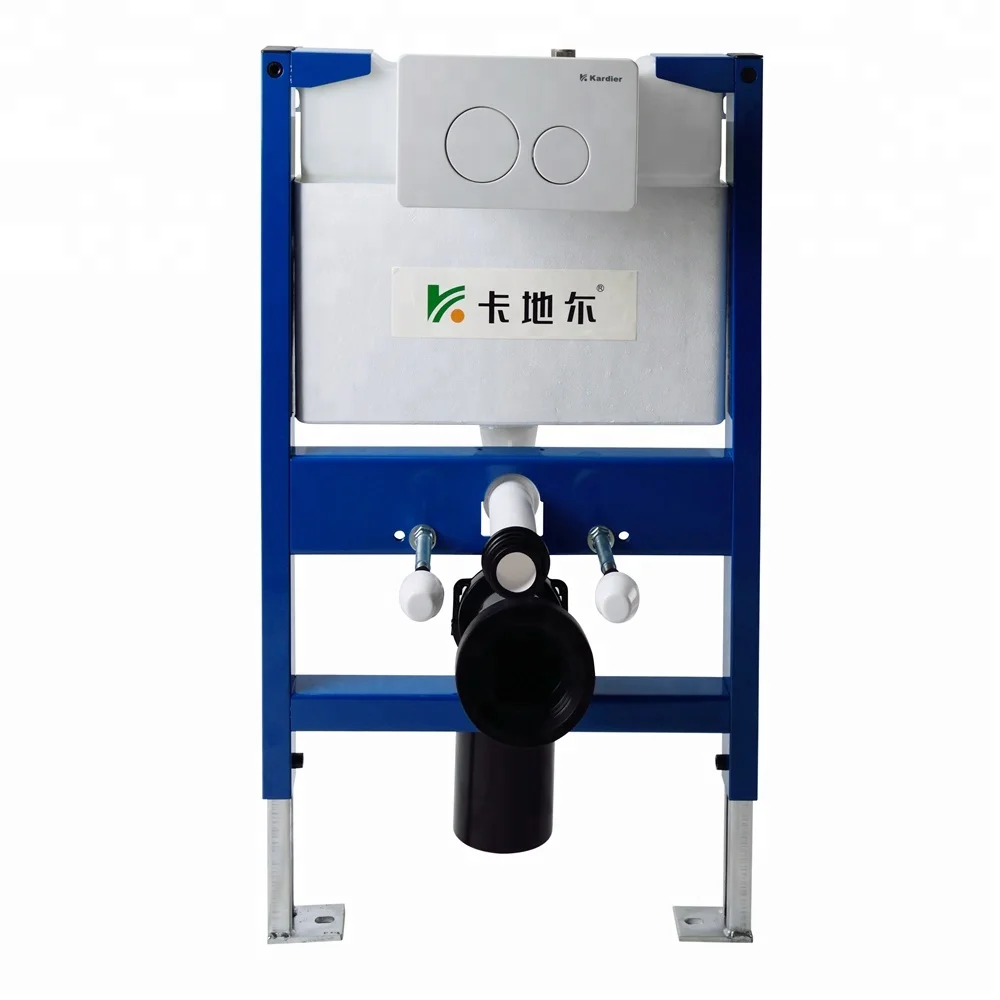

lower height front button toilet pan concealed cistern tank unit for wall mounted toilet pan
\t
Speical points
\t
Front push plate wall hung cistern frame with lower frame 742mm height and with 135mm thickness body for window desk and half dry wall use
\t
Model NO.
\t
010E
\t
Certificate
\t
NO
\t
Dimension(mm)
\t
512x134x745mm
\t
Flush pipe φ
\t
110mm
\t
Carton Size (mm)
\t
523x160x890
\t
Suit for
\t
wall hung wc
\t
Need wall thickness
\t
≥155mm
\t
Material
\t
metal frame +HDPE
\t
For wall
\t
dry wall and pre-wall;dry half wall;pre-half wall
\t
Flush volumn
\t
3L/ 6L max. 8L
\t
Panel size
\t
228x140mm
\t
Panel choices
\t
O plate
\t
Panel color
\t
white/black/chrome/satin/gold/ silver etc
\t
Flushing
\t
Dual flush
\t
Frame undertake(kgs)
\t
≥400kgs
\t
Delivery Time
\t
LCL 7-10 days ,20GP & 40HQ need 20-25days
\t
MOQ
\t
50 PCS
\t
Port of loading
\t
SHUNDE,CHINA / SHENZHEN,CHINE/ GUANGZHOU,CHINA
\t
Payment term
\t
TT and LC at sight
\t
Price term
\t
LCL-EXW SHUNDE,CHINA ;20GP & 40HQ : FOB SHUNDE,CHINA

Special point  :


1. OEM: Of course, we are professional manufacturer, OEM are welcome.


2. Best price: as a result of Factory direct selling! So that customers can get our best price.


3. Free sample: we can provide you free sample, but at first you need pay for the sample shipping fee.


4. Good quality: as a result of specialization and standardization! In production, high-power laser cutting machine and automatic lines have been applied.

1. 1/2" standard fill water hole

2.The water stress range of fill water is 0.02--1.0Mpa

3.The water temperature range is 2°-45°

4.3L/6L dual flush water volume ,the flush water time is 3S-5S

5.The paintted steel frame is corrosion resistant and can bear 400kgs heavy stress

6.The product can be installed in the wall of 145mm thickness

Product Details

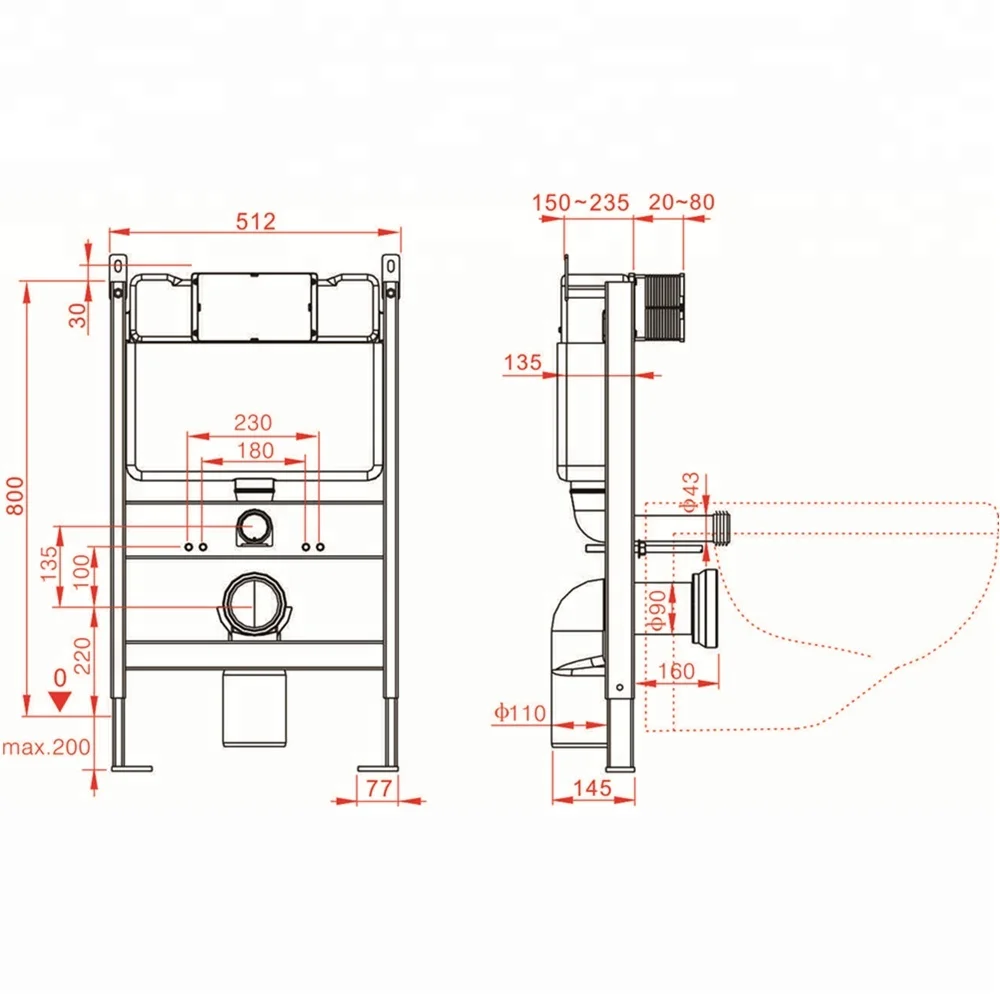

The Technical size standard requirement and installation guide of Wall hung toilet.

Concealed cistern installation effect

Recommend Item
Factory Introduce

Kardier Advantage

1.We are manufacturer factory ,mass production available .
2.One-stop procurement ,time and energy saving .
3.Founded in 1999 and now have export to 80 countries all over the world .
4.Fast delivery speed ,big enough storage space .
5.CE & WRAS & WATERMARK & WELS approval .
6.From material to finish products almost one shop production .
7.Quick response to inquiry .

Kardier New Showroom

Kardier Team

Kardier Fair & Customer Visit

Kardier CE/WRAS/Watermark/Wels Certificates

Kardier Warehouse & Delivery Arrangement

Kardier Products Range

FAQ


1. Can you provide the free samples?
A: If you are overseas buyers, and the price of the product is less than USD 50, we can provide a free sample, but you need to pay the freight .

2. How long is the delivery time?
A: Under normal conditions, LCL just need around 7~10days and 20GP & 40HQ need 20 to 25 days. The first time OEM order as need to confirm all package and logo drawings will need more time .


3. What is the push panel size?
A: 250x165mm for all 009 & 011 series cisterns ; 228x140mm for 010 series cistern

4. Do you offer OEM service?
A: Yes, but you need provide certification of trademark authorization and trademark registration certificate.

5.Do you offer ODM service ?
A: Yes ,but you need to provide a stable certain annual purchase qty ,and we will charge you mold fee first and return back continually till all fees returned .

6. Does it have the noise avoiding?
A: Tank body with foam & with silent fill valve & flush valve to debase noise.

7.There are two choice of flush pipes ,how to choose ?
A: We have 90mm and 110mm two sizes flush bend pipes ,normally 011 series with 90mm flush pipe for the thin wall use ,all other items use 110mm flush pipe .

More questions ,pls feel free to contact with us .

\t\t\t\t\t\t\t\t\tWhy choose us \t\t\t\t\t\t\t
Why to choose Kardier concealed cistern ?


1. Strong : Steel tube size 50x30mm ,frame undertake ≥400kg weight

2. Durable: HDPE tank body & painted metal frame is corrosion resistant and durable, using life over 50 years; fill valves & flush valves have 5 years guarantee and they can be easy buy after sales fittings and easy change .

3.Tools & fittings complete : Frame items one whole set products together with Allen key and fixing frame screws and hanging wall hung toilet poles and flush pipes ,No trouble for installation

4.One meter line notice : Our frame have one meter height notice ,much more easy for plumber install our concealed cistern,seat cover after open will not touch the panel.

5.QC check : 100% tank body & fill valves & flush valves tested by QC to promise good quality and no any leaking,finish product check by sampling .

6.After 19years update ,our concealed cistern are mature and quality very stable ,no trouble for after sales .
