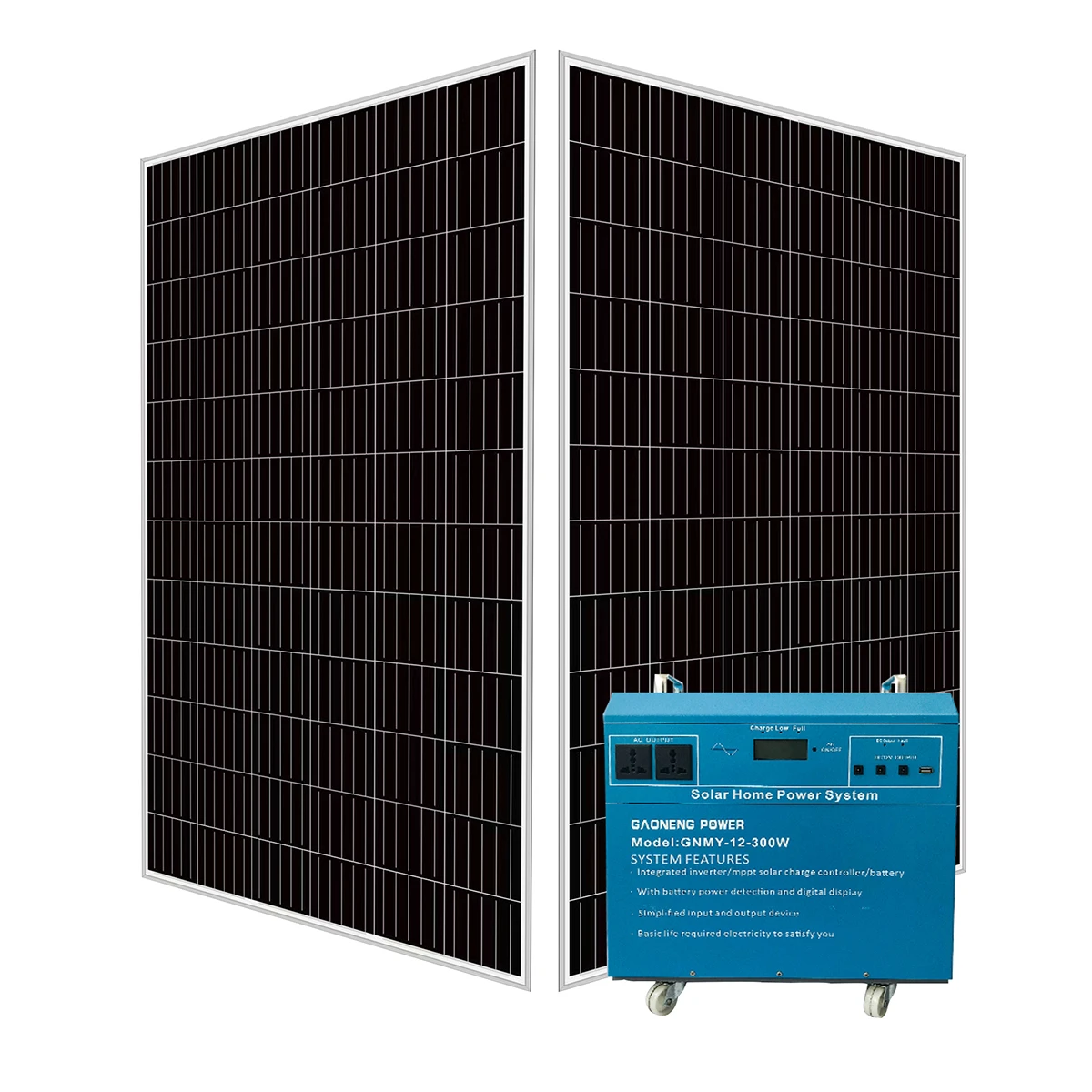

panneau solaire 230v 12v 300w solar inverter system
- Category: >>>
- Supplier: Hefei Gaoneng Power Technology Co. Ltd.
Share on (60800782338):
Product Overview
Description
230v 12v 200w solar inverter system
Quick Details
| Application | Home appliances like lights,fan, TV, Video, Router, Refrigerator etc. |
| Market | Asia, Africa, India, Middle East and America |
| Output Power | 100W 300W 500W 600W |
| Daily power you can take | 420Wh, 840WH,1200Wh etc. |
| Working hours | 3 hours, 4 hours, 6 hours, 8 hours |
| Features | Portable, Easy and adjustable components |

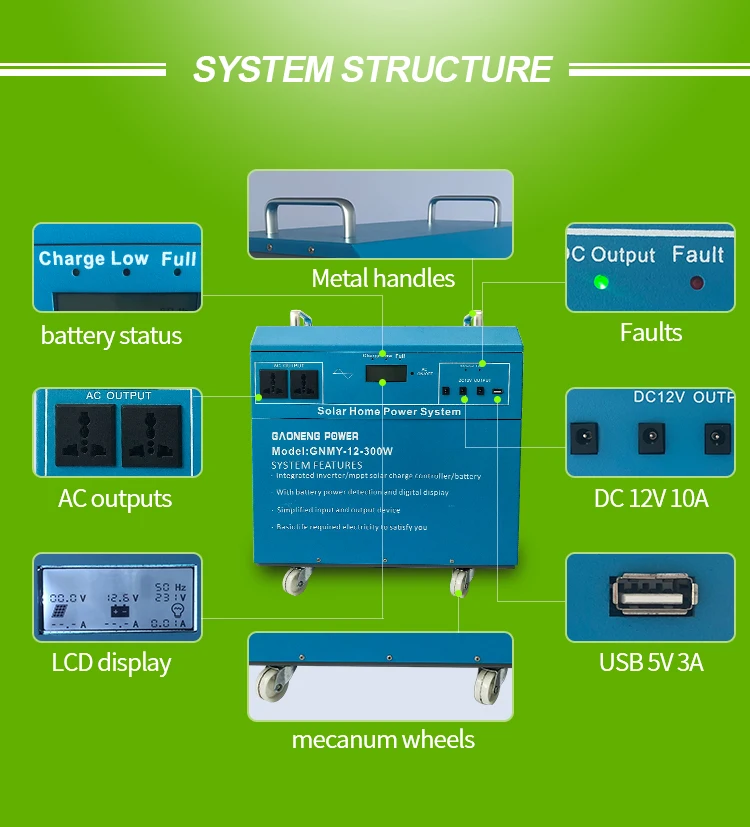

Product Description
- All-in-one solar energy power generator; 300W, 500W optional;
- Integrated circuit board for stable performance and low cost;
- LCD display with vivid parameters of battery, solar panel and load;
- Perfect protection function: over charge/ dicharge, over load, shor circuit,
- Functioned with Battery Reversed Connection protection, free your concern of faults for connection
- 300, 500W with 65ah ,100ah and 150ah battery for different working time and power storage;
- Run your lights, TV, fan, ceiling, freezer, rice cooker, laptop, computer and charge your phone;
- OEM or custom made ideas for your own wholesale business, markets and home;
- Technical support all time;
Product Display
Technical parameters
Model | GNMB-12V-300W-S30A |
PV input | |
Rated voltage | 12V |
PV power | 300W(MAX) |
Solar panel open voltage | <50V |
Suggest PV voltage | 18V |
charge starting panel voltage | >15V |
starting impact power | 600VA |
Charge control | |
charging model | MPPT |
charging efficiency | >99% |
battery discharging protect voltage | 10.8V |
low voltage protection recovery voltage | 12.6V |
battery over voltage protection | 16.0V |
overvoltage protection recovery | 15.0V |
charging protection voltage | 14.4V |
Back to charging voltage | 13.2V |
Output | |
load power(MAX) | 300W |
Over load power | 125% |
Output wave form | Sine wave |
Product efficiency | >85% |
AC output | 220V/230V/240V±3%(selecting match) |
AC output frequency | 50Hz/60HZ |
DC outputs | / |
USB output | / |
Optional function | |
AC input range | AC120V-AC280V |
Switch to POWER GRID | <11.5V |
Switch to inverter | >14.0V |
General parameters | |
Working temperature | Industrial grade -25℃to +55℃ |
Working altitude | <3500M |
Weight | 2kg |
Size(L*W*H) | 296*144*75MM |

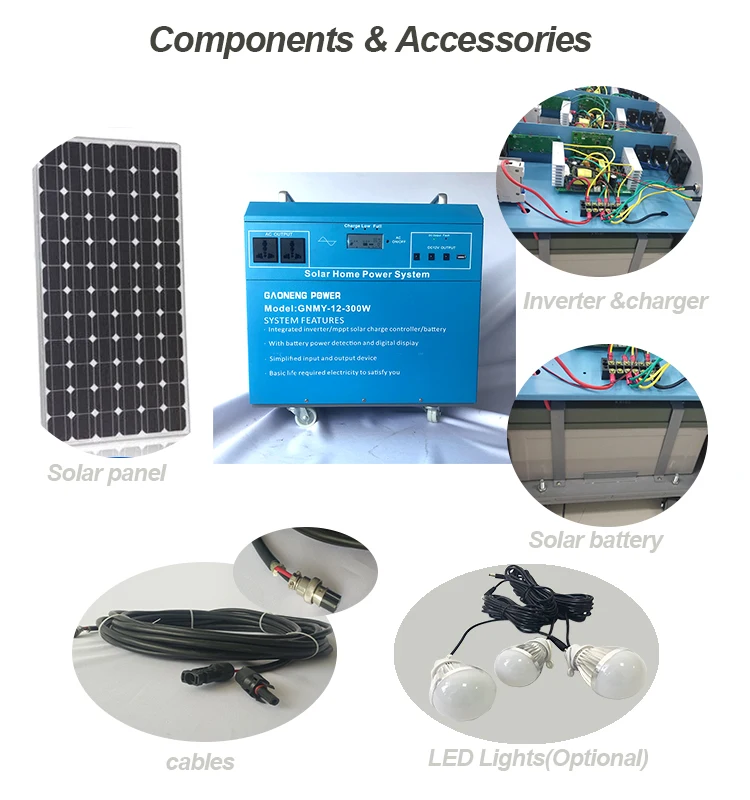

System Solutions
Company Information
Packaging & Shipping
FAQ
1.Are you factory? Can you OEM for my brand or project?
- Yes, we are factory of solar controller and inverter. Independent engineer team always welcome your OEM request. You will just offer your system design or ideas, we will come solutions for you.
2.How many time you will need for custom made products?
- For logo custom made: 15-20days;
- For product custom made: 30-45 days;
3. How do I make payments?
- We support West union, T/T, aliaba trade assurance, fully protect your quality services.
4. How can I install my inverter for solar system?
- You can install according to our guide book, or contact our technical support team with video or telephone guides.
5. Why you are always expensive than other suppliers?
- Firstly, for solar panel and battery, we choose our supplier strictly, so our price is not so cheap;
- Secondly, we are always do honest business with quality products and decent price;
- Thirdly, we can review more options for you with different prices for reference.
