256X128 graphic lcd JHD256128-G03BSWD-G
US $5.72-$6.43
128x64, графический ЖК дисплей 128x64 пикселей, модуль дисплея, графический матричный ЖК модуль
- Category: Graphic Display >>>
- Supplier: Formike Electronic Co. Ltd. (Dongguan)
Share on (60800836483):
Product Overview
Description

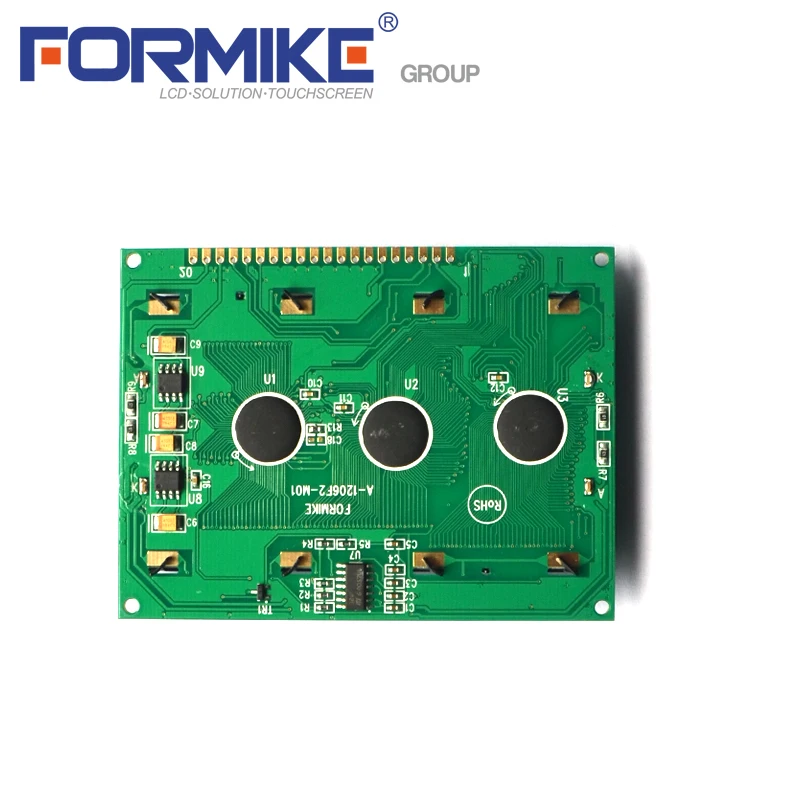

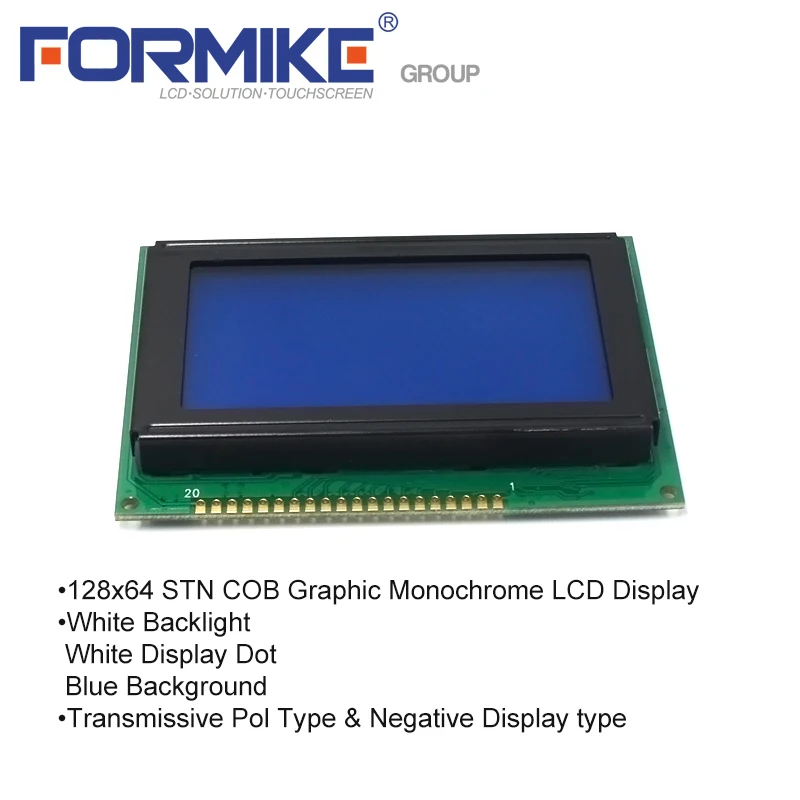

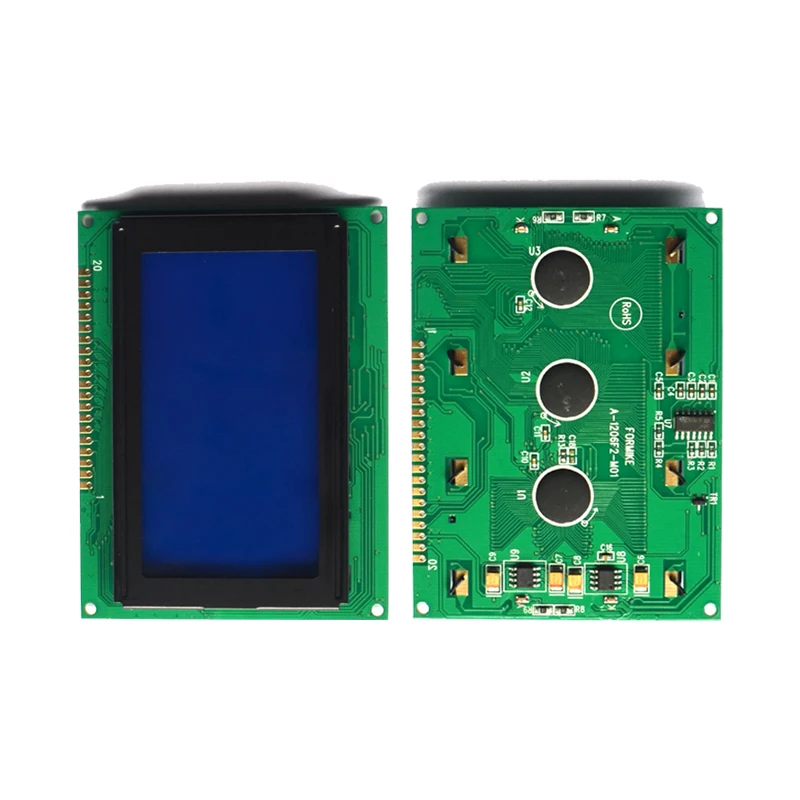

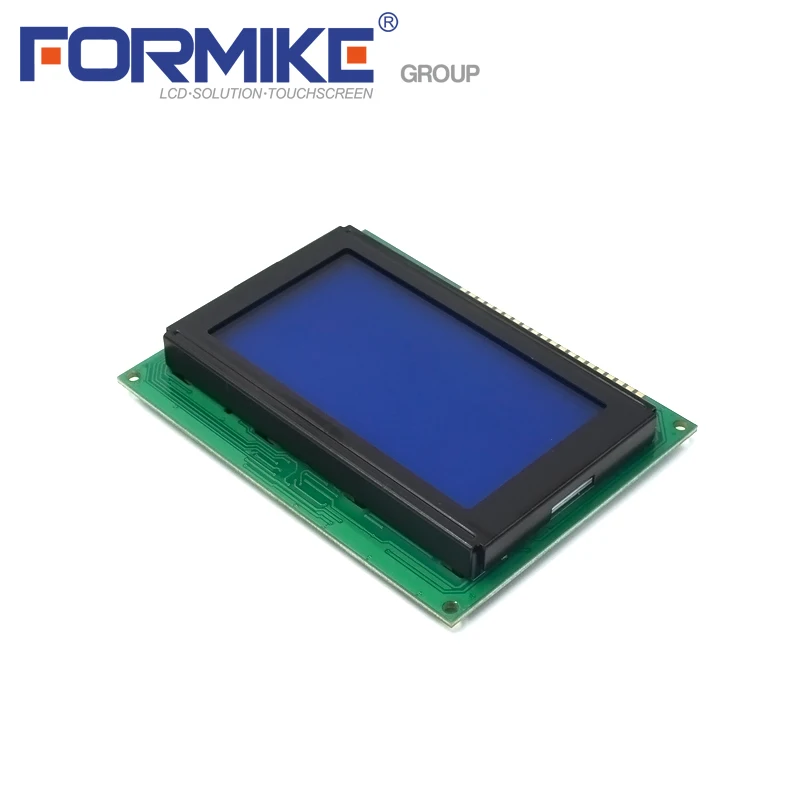

128 x 64 Graphic LCD 128x64 Pixels Display Module Graphic Dot Matrix LCD Module
| LCD Name | 128 x 64 Graphic LCD 128x64 Pixels Display Module Graphic Dot Matrix LCD Module | ||
Display Format | 128 X 64 Dots | Display Mode | STN BLUE, Negative, Transmissive |
LCD Color | Display dot :White, Background: BLUE | Surface Treatment | Anti-glare |

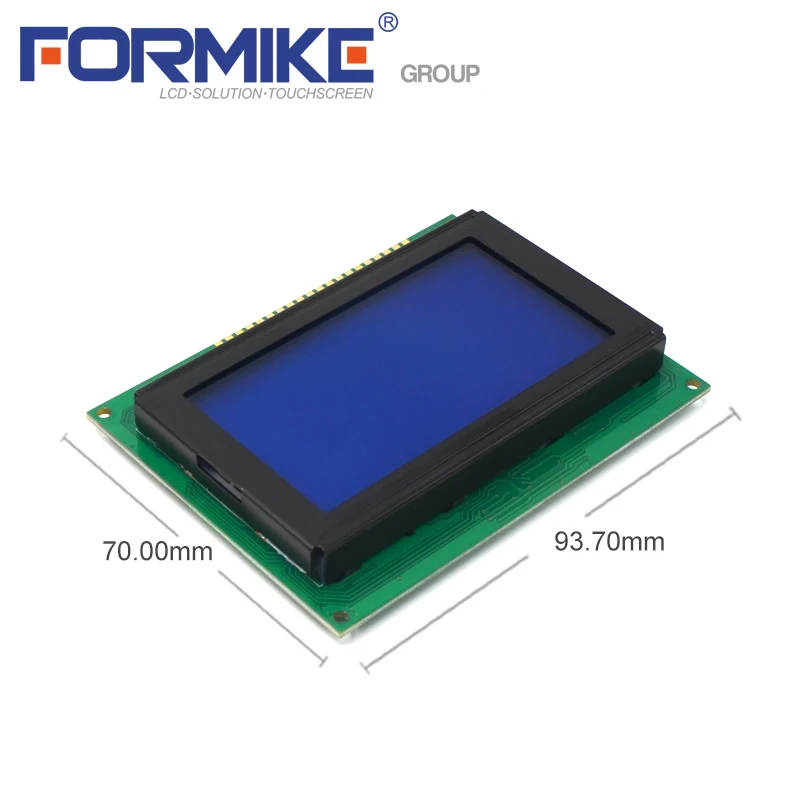

Outline Dimension | 93.0(W) x70.0(H) x13.0(T) mm | Viewing Area | 71.6MIN(W) x38.9MIN(H) mm |
Viewing Direction | 6 O’clock | Interface Input Data | Parallel |
Backlight | White | Driving Method | 1/64 Duty, 1/9 Bias |
Operating Temp. | -20℃~+70℃ | Storage Temp. | -30℃~+80℃ |
 |  |  |
Related Products
| Model | WG1206H1FSW6G | WG1206Z8DVW7G | WG1206Z0FSW6G-B | WG2412Y4SGW6B-E | WG1306U7FSE6G |
| Picture |  |  |  |  |  |
| Display Mode | FSTN, Positive, Transflective Graphic, COG | DFSTN, Negative,Transmissive Graphic, COG | FSTN, Positive, Transflective Graphic, COG | STN, Negative,Transmissive Graphic, COB | FSTN, Positive,Transflective Graphic, COG |
| Display format | 128x64 | 128x64 | 128x64 | 240x128 | 132x64 |
| Viewing Direction | 6 O’clock | 12 O’clock | 6 O’clock | 6 O’clock | 6 O’clock |
| Color | Display dot :Black Background:White Backlight:White | Display dot :White Background:Black Backlight:White | Display dot :Black Background:White Backlight:White | Display dot :White Background:Blue Backlight:White | Display dot :White Background:Blue Backlight:Green |
| Module Size(mm) | 40.8x33.1x4.2 | 79.7x53.5x4.0 | 77.4X52.0X7.5 | 144x104.0x15.0 | 86.24*55.71*10.4 |
| Viewing Area(mm) | 36(W) x23.5(H) | 72.5(W) x39.8(H) | 70.0(W) X 38.5(H) | 114(W) x64(H) | 79.56(L)*40.12(W) |
| Dot Pitch(mm) | 0.26(W) X 0.32(H) | 0.52(W) X 0.52(H) | 0.52(W) X 0.52(H) | 0.45(W) X 0.45(H) | 0.58(L)*0.58(W) |
| Interface | Parallel or serial | Parallel or serial | Parallel or serial | 8 bit Parallel | 4-line SPI |
Our Advantages
Company Information
Formike Group was founded in 1999, which engaged in R&D, design, manufacture and sales of LCD display and accessories parts as well as Wi-Fi modules. All our operations are under ISO 9001:2000 and ISO 14000 standards. The company has a professional customer service team to answer questions for customers.With the help of our 50-people strong R&D team, we can also realize your ODM ideas into a real item within 20 days.
We have 100 CNC machines, 12 polarizer attach machines, 10 2D measuring projectors complete equipment, eight ultrasonic cleaners, six liquid crystal machines, two fully automatic bonding machines, etching machines, fully automatic sticking film machines, cutting machines, UV machines and more apply in our process to ensure that our quality and capacity can always support customers' demand.
FAQ
1.Q: Order process
A:PO is placed by clients → PI is issued by Formike → Payment by clients → Lead time is
confirmed by Formike → Shipping instrction by Clients → Delivery → Cargo tracking →
Receipt of cargo
2.Q: Lead time ( after payment is confirmed)
A: Sample: 1-10 working days
Volume: 3-60 working days
3.Q: Payment
A: T/T , Western union, L/C, Credit card, and Cash
4.Q: Warranty
A: 12 months warranty ( Please find more details via our datasheet by item of Limited Warranty)
5.Q:RMA Process
A:Claimed by cliens with photos or videos → Sales rep of Formike confirm if have questions
→ Sales rep issue RMA No to clients if confirmed by QA → Return to Formike → Formal
report after goods received by Formike → Clients confim the analysis report → Proceeding
as per the Report both agreed
6.Q:Notes
A:Please check both appearance and function of products prior to installation.
Any damage caused by improper use or unprofessional installation is not covered under warranty.
