PP Plastic rectangular column formwork
- Category: >>>
- Supplier: Shandong Fangyuan Building Materials Co. Ltd.
Share on (60800851040):
Product Overview
Description

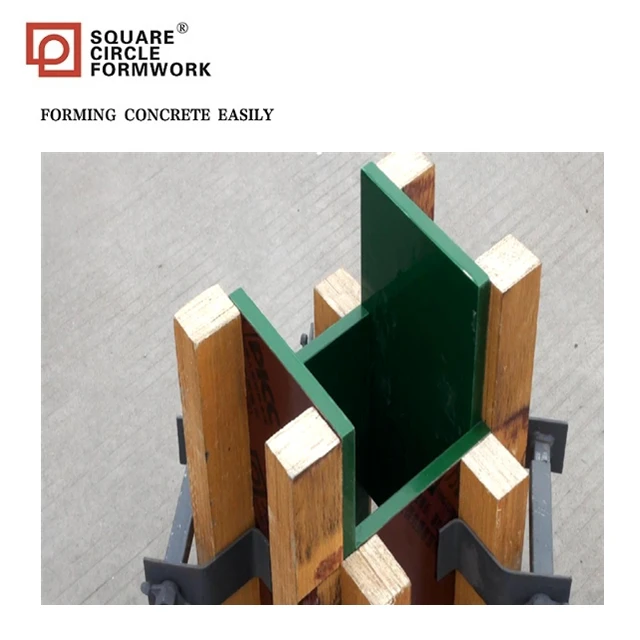

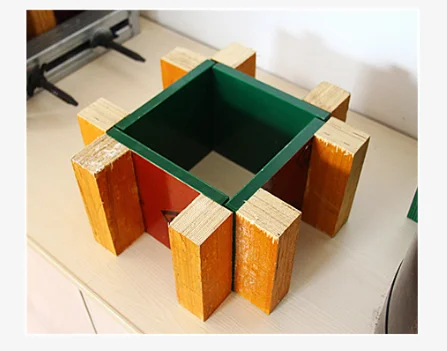

PP Plastic rectangular column formwork
1.Reusable
2.Quick installation, seamless joining, prevent the leakage of concrete
3.Adjustable clamp, Galvanized, Easy handle
4.Quick dismantling & nice concrete finish without re-work
Our Advantages:
CE certification- PP Plastic column for

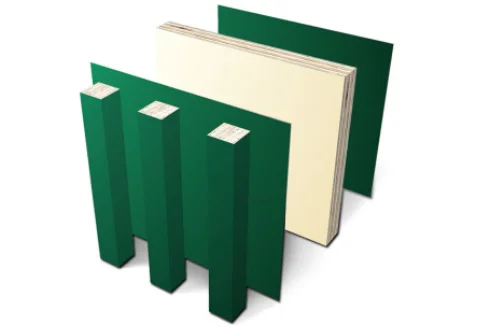

The product is made of high-quality birchwood as a substrate,covered with PP plastic film, and has the high-quality characteristics of wooden formwork and plastic formwork. The main keel is bonded with imported phenolic glue and fixed by steel nails to form a strong raft support. The clamp is matched with the fixed square column formwork for concrete pouring.

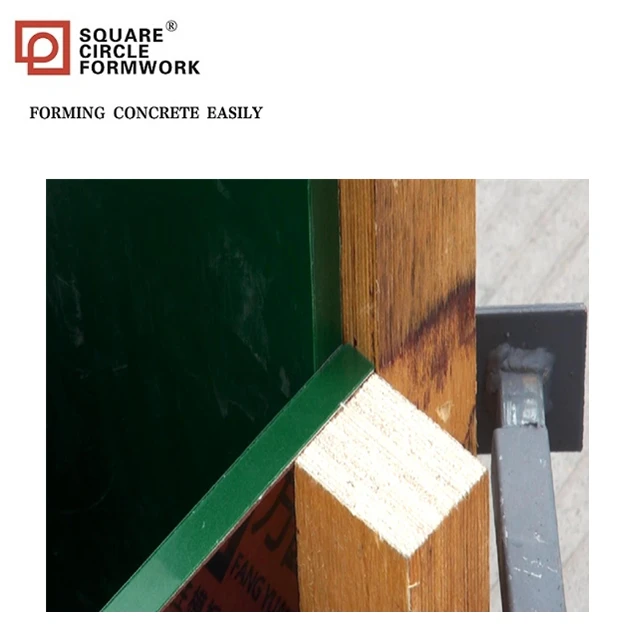

Exclusive discount slot design
The unique discount slot design of the column form solves the problem of running slurry and slurry leakage, which makes the demoulding of the concrete fast and beautiful, and at the same time has a stable reinforcement effect.
Customized production according to requirements, solve the problem of installation of variable diameter square cylinder.
![BO93(W3(I~U}]6MTKA2$[3R.png](http://sc02.alicdn.com/kf/HTB1C7pyClyWBuNkSmFP760guVXa4/221034821/HTB1C7pyClyWBuNkSmFP760guVXa4.png)
Application
For concrete forming of rectangular columns

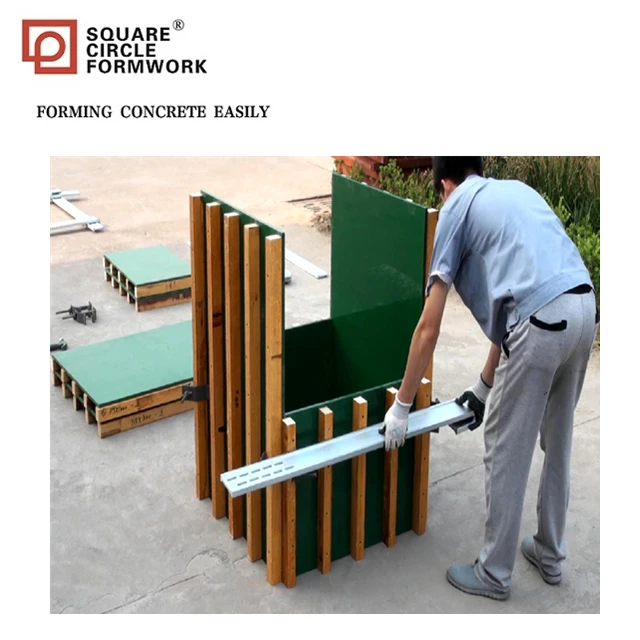

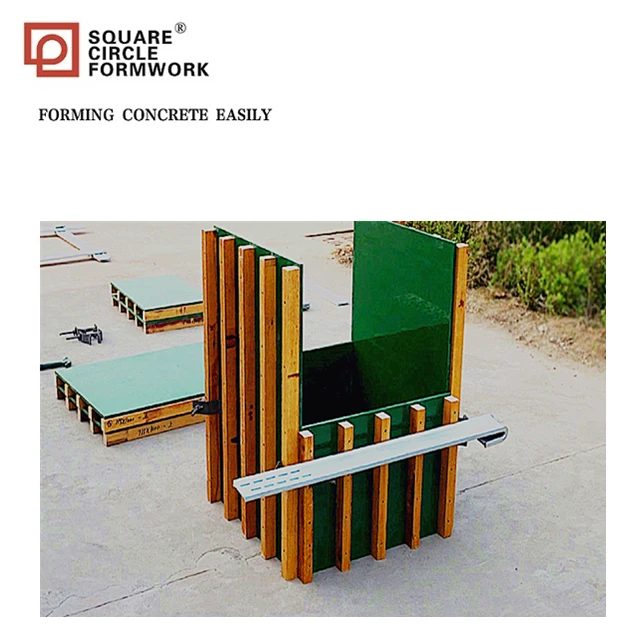

Installation
No concrete release agent

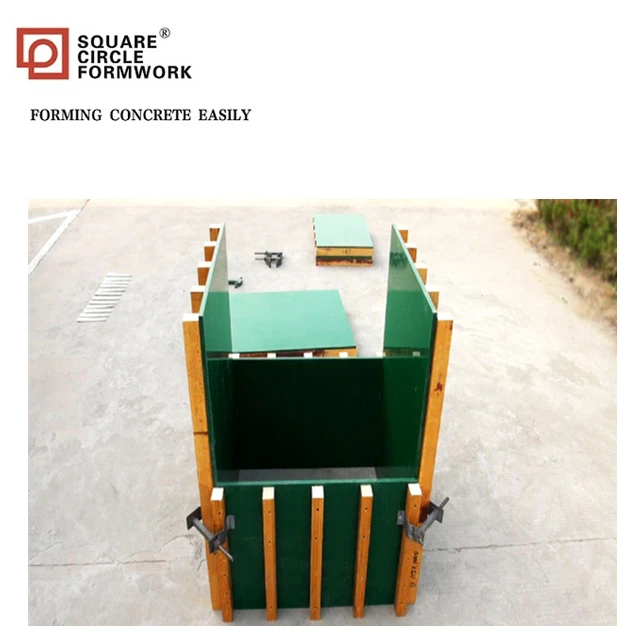

Four piece of panels are joined together(edges match seamlessly).
Fix the steel frames horizontally
Dismantling
Simply untie the steel frames, the panels will separate easily.
Cleaning
Just clean by water
Maintenance & Storage
No oil treatment, place the panel flat, away from direct sunlight and water.
Technical data :
Bonding quality | N/mm² | EN314 | 0.72 | |
Bending strength | Longitudinal grain | N/mm² | EN310 | 50.0 |
Cross grain | N/mm² | 40.2 | ||
Elasticity in bending | Longitudinal grain | N/mm² | EN310 | 5137 |
Cross grain | N/mm² | 3519 | ||
Bearing concrete pressure | KN | EN310 | 70 | |
Product options:
Size of Columns | Size of LVL beams | Thickness of panels | Interval of fasteners |
300x300mm | 40x50mm | 15mm | 500mm |
400x400mm | 40x50mm | 15mm | 500mm |
500x500mm | 40x50mm | 15mm | 500mm |
550x550mm | 40x50mm | 15mm | 450mm |
600x600mm | 40x50mm | 15mm | 450mm |
700x700mm | 40x50mm | 15mm | 450mm |
800x800mm | 40x50mm | 15mm | 400mm |
900x900mm | 40x50mm | 15mm | 400mm |

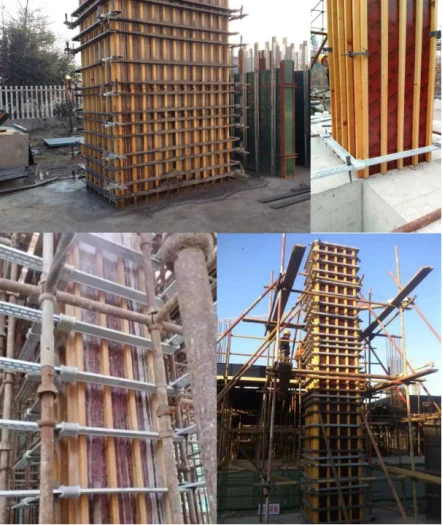

APPLICATION ON SITE :

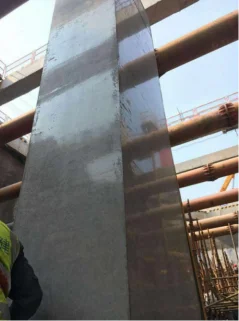

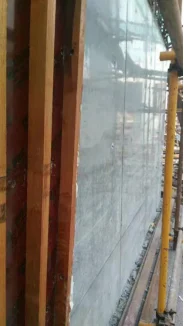

Very Good Finish :
Packing :
Our company :
Square Circle Formwork is a innovative brand in the field of concrete formwork, we hold the patent of wood Circular column forms and rectangular column clamps. Now employees are up to 800 , 4 workshop, annual turnover is 60 million USD dollars, we help thousands job site & contractor to make the concrete more easily. Now we hope to show our products to oversea construction market, to make oversea projects quicker and less labour cost.
