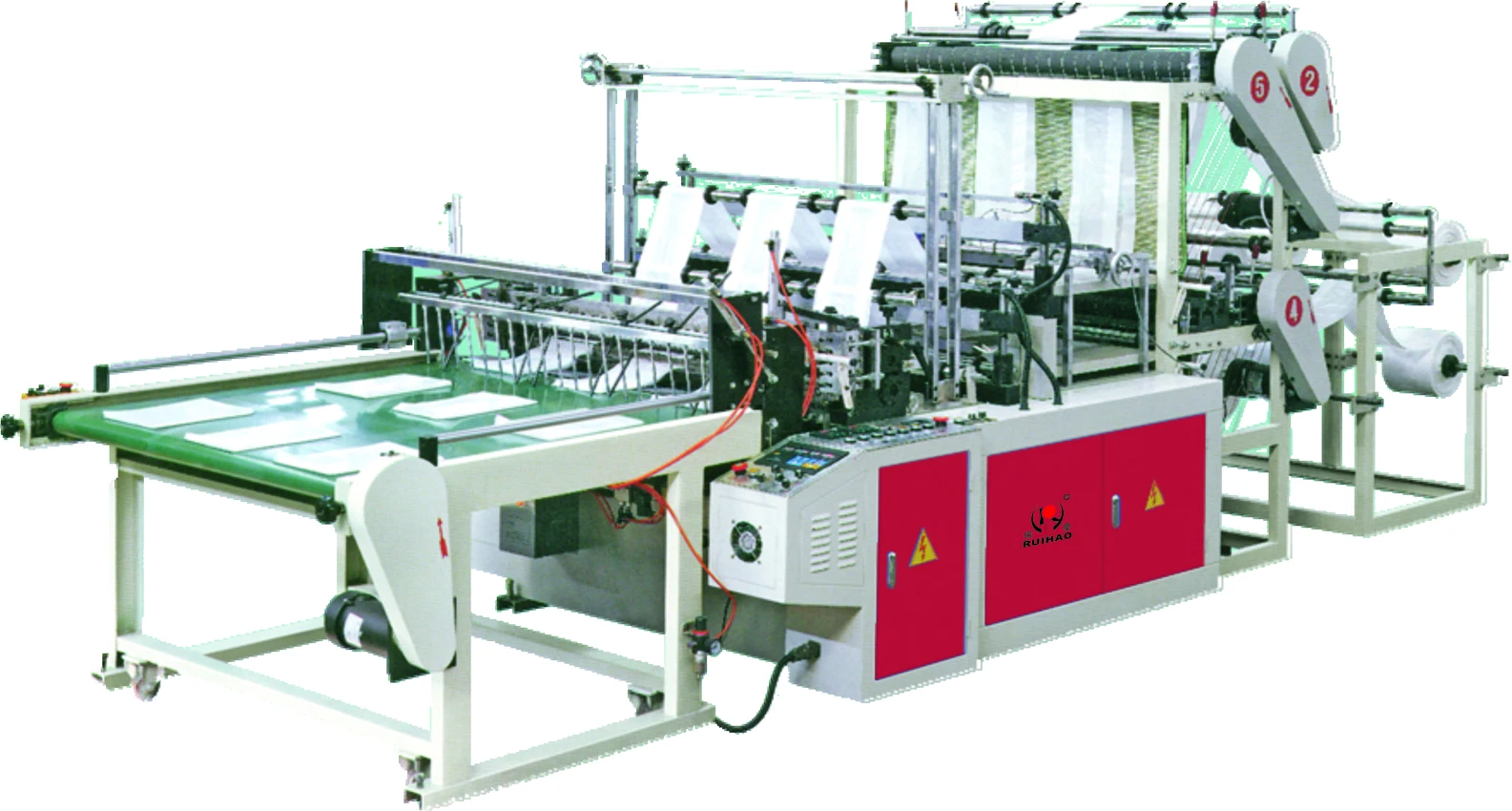

Two Line Automatic High Speed Plastic T shirt Bag Making Machine

Product Overview

Description

Two Line Automatic High Speed Plastic T shirt Bag Making Machine



Specifications:

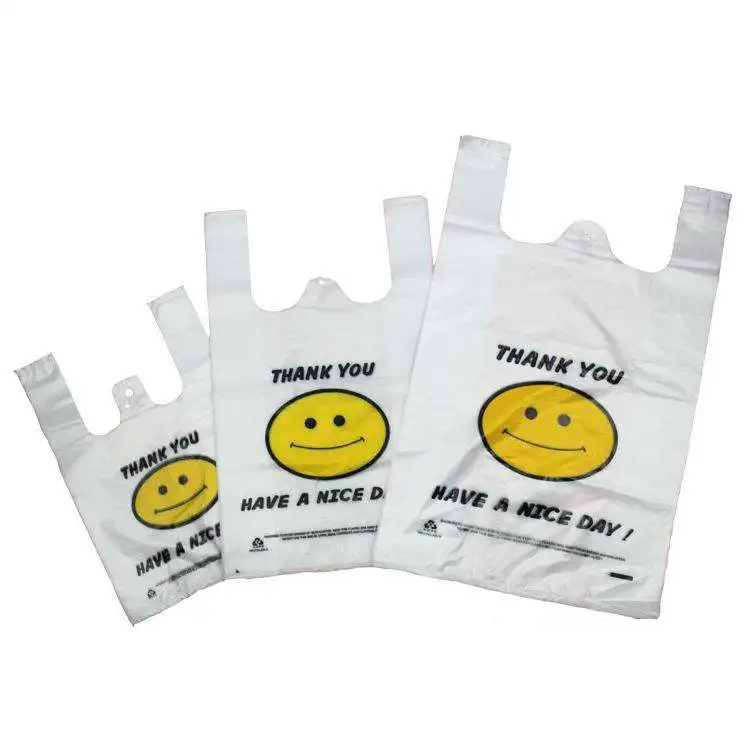

It is applied to produce and print the double-colored or uncolored vest bags, using HDPE, LDPE roll film. It adopts PLC control, double step (servo) motor fixed length and the liquid crystal touch screen actual display to finish the feeding, sealing, cutting, punching holes and transporting only in one process, which can save man-power greatly and yield good economic result. It''''''''s traced by 2 photocells to make the printing very exact.



Main Technical Variables:

Model	DFHQ-350X2	DFHQ-450X2
Max. Bag-making width	300mmX2	400mmX2
Max.Bag-making length	650mm	650mm
Bag-making thickness	0.015-0.035mm	0.015-0.035mm
Bag-making speed	140-200pcs/minX2	140-200pcs/minX2
Air pressure	5kg/cm2	5kg/cm2
Total Power	7kw	9kw
Weight of machine	1400kg	1600kg
Overall dimensions	6000X1400X1600mm(L X W X H)	6000X1400X1600mm(L X W X H)
