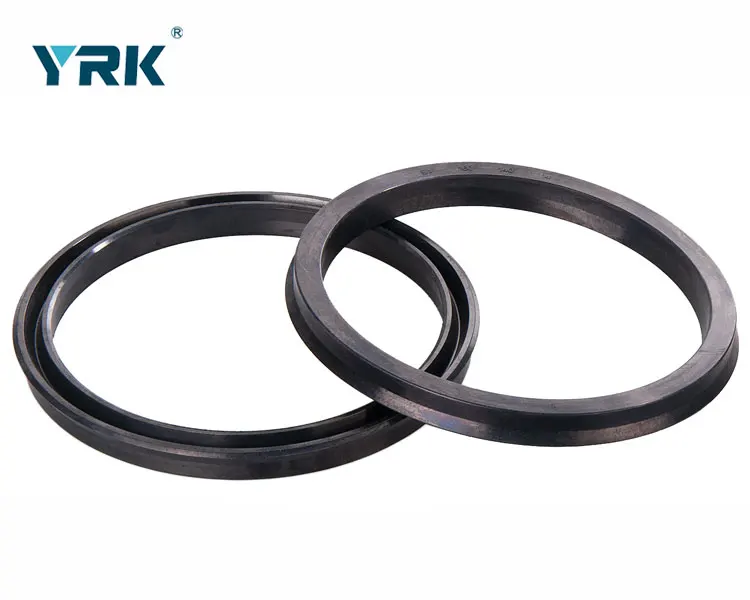

E4 NBR Pneumatic Air Cylinder Piston Seal
E4 NBR Pneumatic Air Cylinder Piston Seal
E4 NBR Pneumatic Air Cylinder Piston Seal
E4 NBR Pneumatic Air Cylinder Piston Seal

E4 NBR Pneumatic Air Cylinder Piston Seal

Share on (60800959512):


Price:

Quantity:


Product Overview

Description


Product Description
\t
Product Name
\t
E4 NBR Pneumatic Piston Seal For Air Cylinder
\t
Material
\t
NBR
\t
Hardness
\t
78 ± 2A Shore
\t
Color
\t
Black
\t
Working Pressure
\t
≤1.6MPa
\t
Working Speed
\t
≤1m/s
\t
Working Temperature
\t
-20℃~+100℃
\t
Working Media
\t
Air
E4 NBR Pneumatic Piston Seal For Air Cylinder \t
YX d PU hydraulic rod seal is a lip seal which fit tightly in the groove, which used very widely in hydraulic cylinders, especially for rod applications.

Product Advantages of E4 NBR Pneumatic Piston Seal For Air Cylinder
1. Sealing lip geometry designed to operate with lubricated air as well as dry and oil-free air
2. Tight fit into the groove ensures reliable operation
3. Optimal friction characteristics after careful initial lubrication obtained by sealing lip geometry retaining lubrication filim.
4. Suitable for cylinders with cushioning.
5. Extended sevice life due to the use of proven elastomers.
6. Easy snap assembly in grooves of the simple design.
Products Show

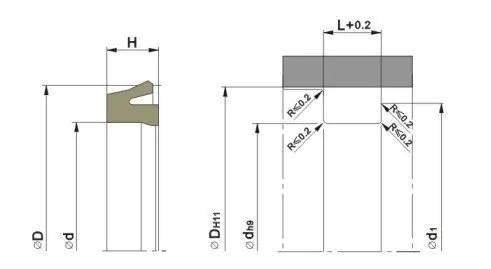

Specification
\t
Seal Type
\t
Material
\t
Color
\t
Hardness
( shore A)
\t
Size (D*d*h)(mm)
\t
E4
\t
NBR
\t
Black
\t
78 ± 2A
\t
12×6×4
\t
E4
\t
NBR
\t
Black
\t
78 ± 2A
\t
16×10×4
\t
E4
\t
NBR
\t
Black
\t
78 ± 2A
\t
22×16×5
\t
E4
\t
NBR
\t
Black
\t
78 ± 2A
\t
24×16×5.5
\t
E4
\t
NBR
\t
Black
\t
78 ± 2A
\t
25×17×5.5
\t
E4
\t
NBR
\t
Black
\t
78 ± 2A
\t
32×24×7
\t
E4
\t
NBR
\t
Black
\t
78 ± 2A
\t
40×30×7
\t
E4
\t
NBR
\t
Black
\t
78 ± 2A
\t
50×40×7
\t
E4
\t
NBR
\t
Black
\t
78 ± 2A
\t
60×50×7
\t
E4
\t
NBR
\t
Black
\t
78 ± 2A
\t
63×53×7
\t
E4
\t
NBR
\t
Black
\t
78 ± 2A
\t
70×58×7
\t
E4
\t
NBR
\t
Black
\t
78 ± 2A
\t
80×68×8.5
\t
E4
\t
NBR
\t
Black
\t
78 ± 2A
\t
100×88×8.5
\t
E4
\t
NBR
\t
Black
\t
78 ± 2A
\t
105×93×8.5
\t
E4
\t
NBR
\t
Black
\t
78 ± 2A
\t
110×98×8.5

We only show the part of specifications. if needed, more details will be provided for your reference.

Related Products
Our Company
Packing & Delivery

Packaging : PP Bag, Carton; Shrink, Carton,or as per your  requirement.

Delivery Detail: 7~20 days after payment.

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
