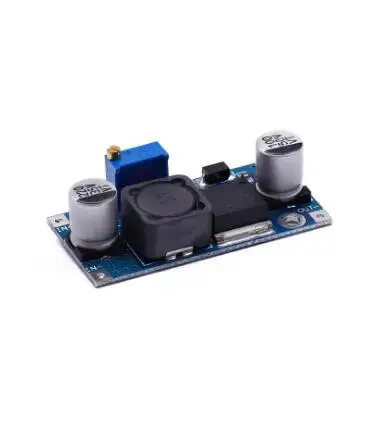

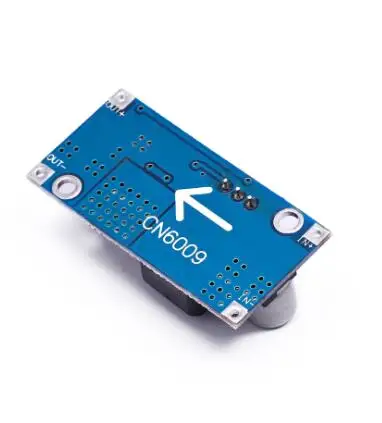

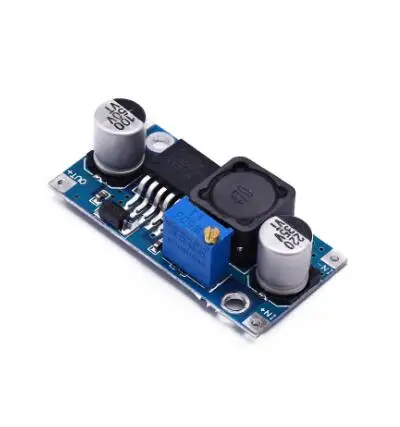

Product Description                                                     XL6009 400KHz 4A Switching Current Boost Module Adapter Solar Panel Auto Boost Buck Module











Baby description:

The voltage is pulled down to 7V or less when the car starts, and up to 15V or more when the engine is running at high speed. It is difficult for an electric appliance working at 12V to work normally. This automatic lifting pressure module solves this problem. No matter the input voltage is 5V, 12V or 32V, the output can be stable at 12V.

Tap voltage 5V~32V;

Voltage 1.25v ~35V (with automatic up and down voltage, any voltage input can be output at a stable voltage within the working range);

The internal 4A high efficiency MOSFET switch tube makes the efficiency up to 94%. (LM2577 current only 3A)

The terminal ultra high switching frequency is 400KHz, and the ripple is smaller and the volume is smaller. (LM2577 frequency is only 50KHz)

Application fields:

Application of voltage instability in automobile, solar pv and wind power generation.



technical parameters:



specifications:DSN6000AUD automatic lifting pressure module

Nature of the module:Unisolated BOOST

Rectifying way:Asynchronous rectifier

The input range:3.8 V ~ 32 V

Output range:1.25 V ~ 35 V

Input current:3A (maximum), no-load 18mA (5V input, 8V output, no-load less than 18mA. The higher the voltage, the greater the no-load current.

Conversion efficiency:<94% (the higher the pressure difference, the lower the efficiency)

Switching frequency:400 KHZ

The output ripple:50mV (the higher the voltage, the greater the current, the larger the ripple)

Load regulation rate:Plus or minus 0.5%

Voltage regulation rate:Plus or minus 0.5%

Working temperature:- 40 ℃ ~ + 85 ℃

Overall dimensions:48mm * 25mm * 14mm (long * wide * high)
