Factory 8mm Long Life 0832 AC flat LRA Micro Linear Actuator Motor for mobile phone
- Category: >>>
- Supplier: Chongqing Linglong Electronic Co. Ltd.
Share on (60801014340):
Product Overview
Description

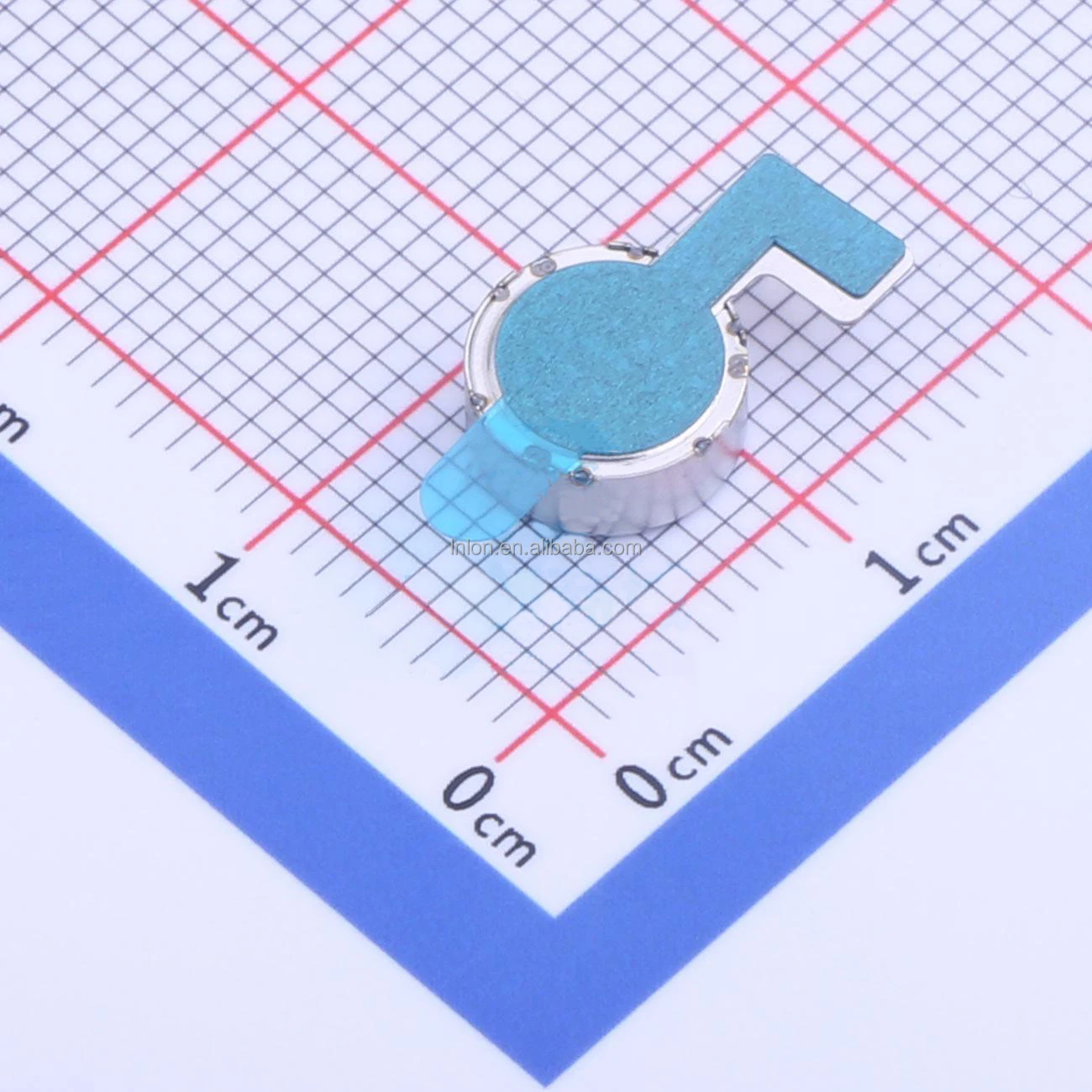

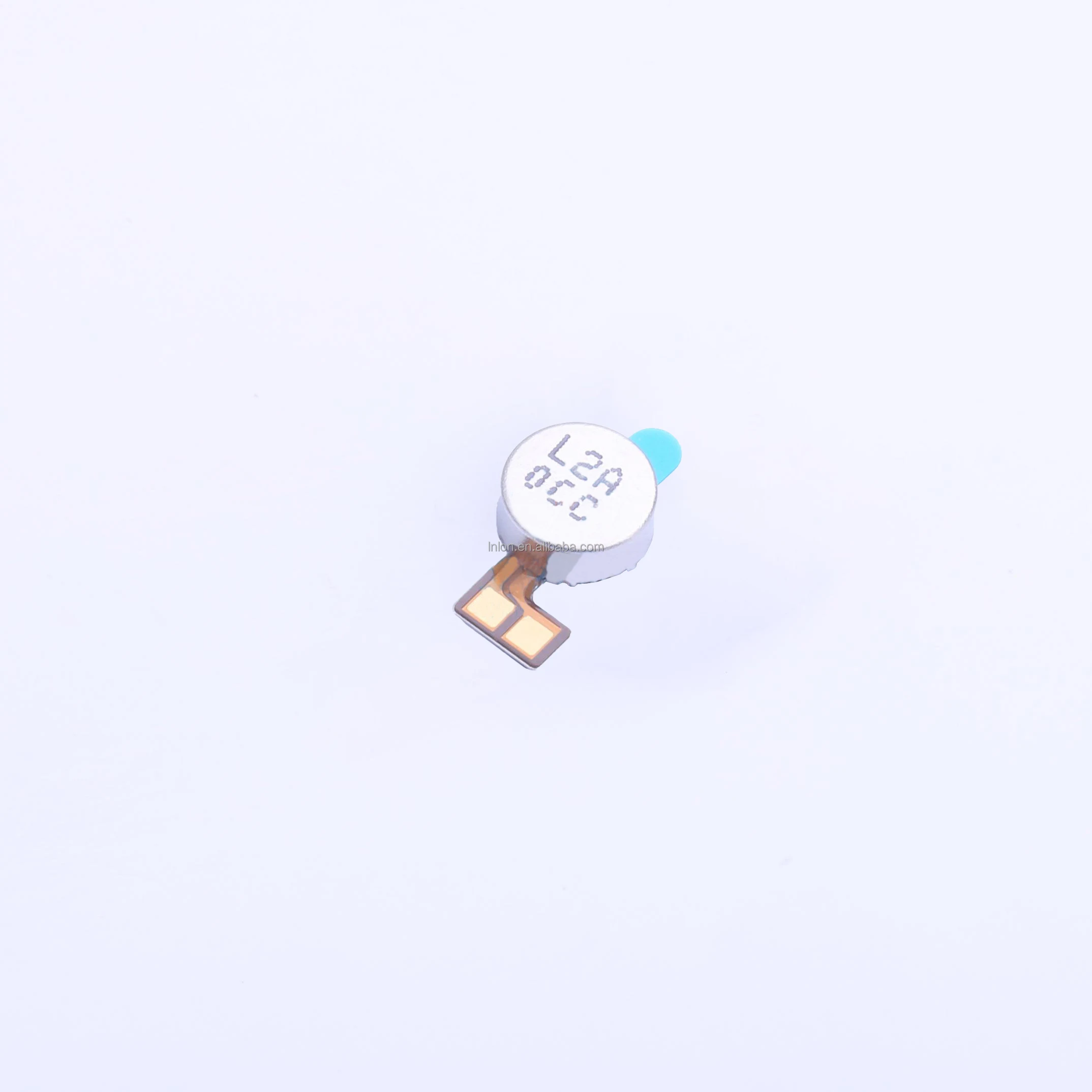

Factory 8mm Long Life 0832 AC flat LRA Micro Linear Actuator Motor for mobile phone

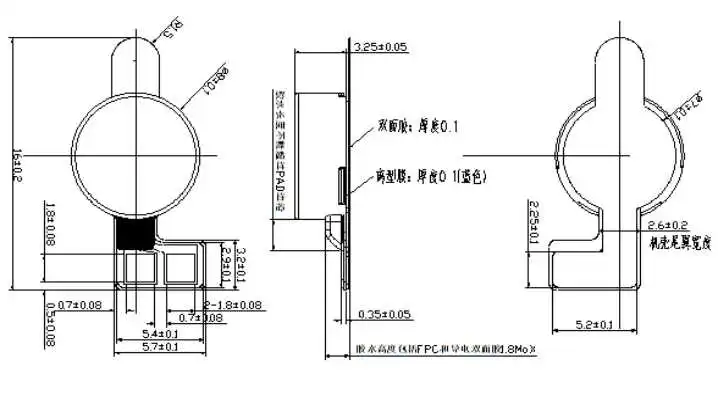

| Model | L0832F-022678075-0012 |
| size | 8*3.25mm |
| rated voltage | 1.8 V RMS AC SINE WAVE |
| operating voltage | 0~1.85 V RMS AC SINE WAVE |
| frequency | 235±0.1 Hz |
| rated current | 90 mA Max |
| vibration force | 1.2~1.6G@100g jig |
| raising time | 50ms Max |
| falling time | 80ms Max |
| life | 2S on, 1S off, 1 million cycles |
Why Choose US?
1. Quality: Product with good stability and consistency, complete quality management system, satisfying ISO9001, ISO14001, QC080000 and RoHS, strict control for incoming raw material and supply chain.
2. Technology: Independent D&R team with above 10 years’ experience of design and engineering; products with kinds of proprietaty technologies; with unique design technology for super small size and other highly difficult and customized products.
3. Process: Independent D&R team for self-developed and self-made automated production line; unique process and control methods.
4. Service: Professional service window for business, technology and quality.
Packing&Delivery:
Packing by carton;
Shipping by Fedex, UPS, SF or as your request.
FAQs:
Q: Do you provide free samples?
A: Yes, we can provide specification and free samples.
Q: Do you have MOQ?
A:Yes, the MOQ is 1000pcs after sample approval, small quantity also acceptable for trial-produce.
Q: What is your terms for delivery and payment?
A: EXW, FOB, CFR, CPT for delivery; Visa, Mastercard, e-Checking, T/T for payment.
Q: What is your terms for delivery and payment?
A: EXW, FOB, CFR, CPT for delivery; Visa, Mastercard, e-Checking, T/T for payment.
Q: Customization is available?
A: Yes, if you have great demands, we accept customization, details negotiable.
