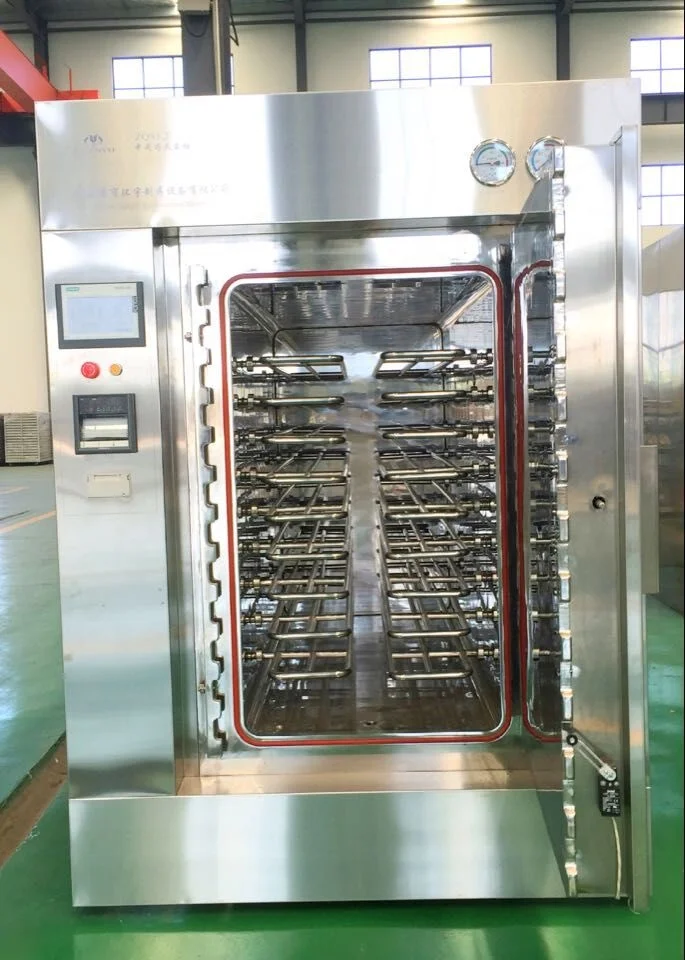

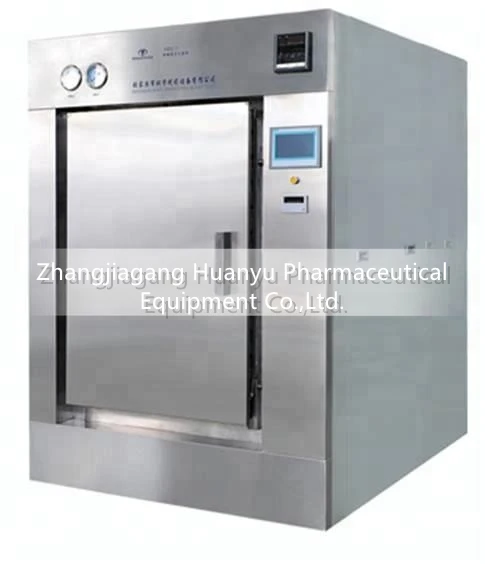

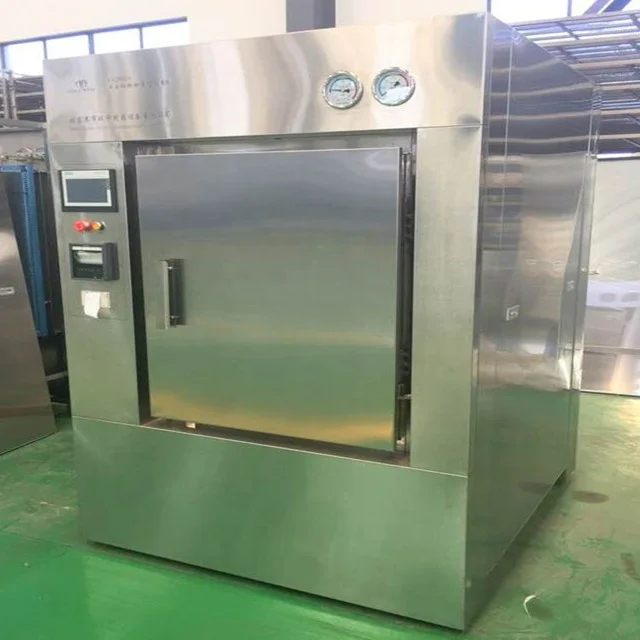

spices and herb autoclave sterilizer steam sterilization machine
- Category: >>>
- Supplier: Zhangjiagang Huanyu Pharmaceutical Equipment Co. Ltd.
Share on (60801034454):
Product Overview
Description
Products Description
This series of sterilizer use steam as sterilization medium, which is used for the sterilization of medicine powder.
Model | Volume | Inner size（mm） | Outside size(mm) | steam | water | power | weight |
ZQS0.6 | 0.6m³ | 1240*650*750 | 1530*1350*1800 | 30kg | 100kg | 3kw | 1500kg |
ZQS1.2 | 1.2m³ | 1500*750*1050 | 1790*1450*1900 | 50kg | 200kg | 4kw | 2100kg |
ZQS1.5 | 1.5m³ | 1900*750*1050 | 2190*1450*1900 | 60kg | 200kg | 4kw | 2300kg |
ZQS2.0 | 2.0m³ | 1700*1000*1200 | 2000*1880*2200 | 70kg | 250kg | 4.5kw | 3000kg |
ZQS2.5 | 2.5m³ | 2100*1000*1200 | 2400*1880*2200 | 80kg | 300kg | 5kw | 2700kg |
Detail image
Sterilization trays
Items need to be sterilized are placed on sterilization trays to sterilize in sterilization chamber.

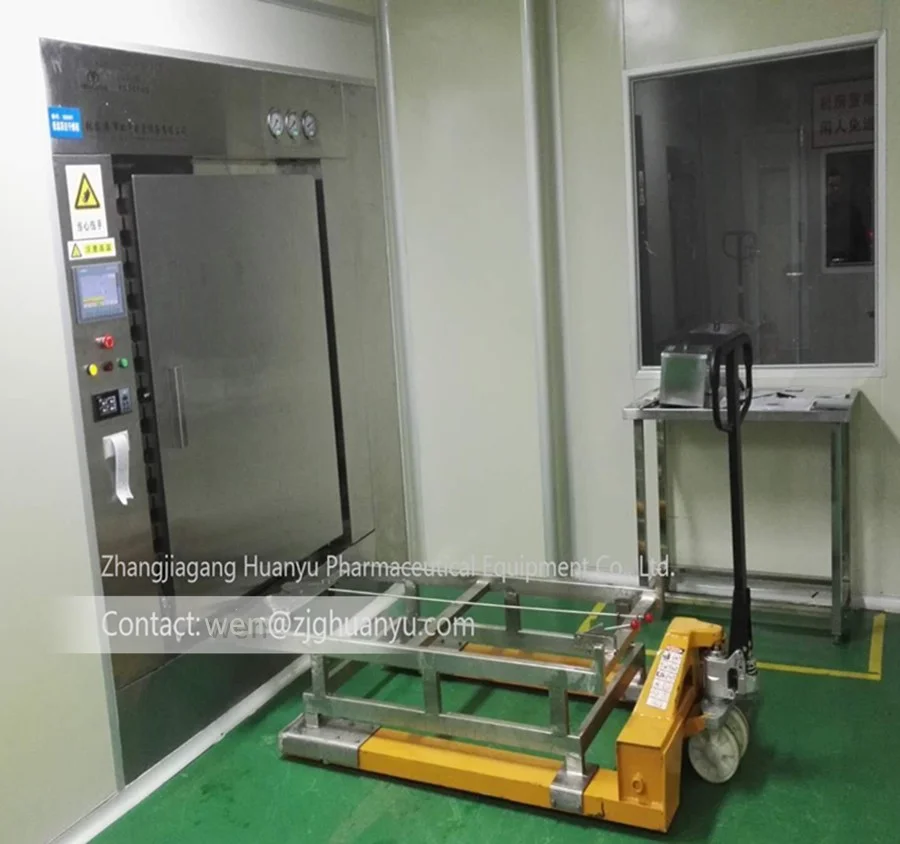

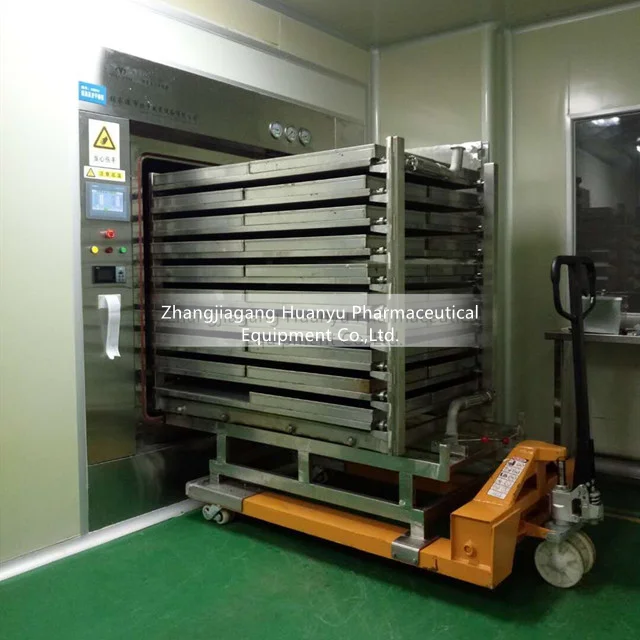

Sterilization carts
After the sterilized items are placed, put the sterilization tray on the sterilization cart and push the sterilization tray into the sterilizer chamber for sterilization.
Sealing door
1）Door panel material: 316L(304) stainless steel, inner surface precision polishing treatment.
2）Switch mode: the motor drives the locking mechanism to translate up and down to achieve the purpose of locking and releasing.
3）Safety interlock: the door is not sealed, and the steam is not allowed into the chamber; when there is pressure in the chamber,not allowed to open the door; Fully comply with the pressure vessel safety interlock standard.
4)Flange,Rack and tooth plate:made of 304 stainless steel,the sealing groove is formed by CNC planer milling machine, and the sealing effect of door apron is good.
3）Safety interlock: the door is not sealed, and the steam is not allowed into the chamber; when there is pressure in the chamber,not allowed to open the door; Fully comply with the pressure vessel safety interlock standard.
4)Flange,Rack and tooth plate:made of 304 stainless steel,the sealing groove is formed by CNC planer milling machine, and the sealing effect of door apron is good.
Pipeline system
1）Stainless steel pipes without dead angle, ensuring complete drainage.
2）High quality pneumatic valve.
3）Filter: The autoclave is accessorized with high efficiency antibacterial air filter with oylet less than 0.22 micrometers protected by a check valve, which could avoid secondary pollution, and it could be optionally equipped with SIP function.
4）Validation port: Validation port is equipped on the side of the autoclave for the insert of the validation probes for the GMP validation.
5）Temperature control: Both movable and fixed sensor is installed on the autoclave.
6）Optionally accessorized with built-in steam generator;;
2）High quality pneumatic valve.
3）Filter: The autoclave is accessorized with high efficiency antibacterial air filter with oylet less than 0.22 micrometers protected by a check valve, which could avoid secondary pollution, and it could be optionally equipped with SIP function.
4）Validation port: Validation port is equipped on the side of the autoclave for the insert of the validation probes for the GMP validation.
5）Temperature control: Both movable and fixed sensor is installed on the autoclave.
6）Optionally accessorized with built-in steam generator;;

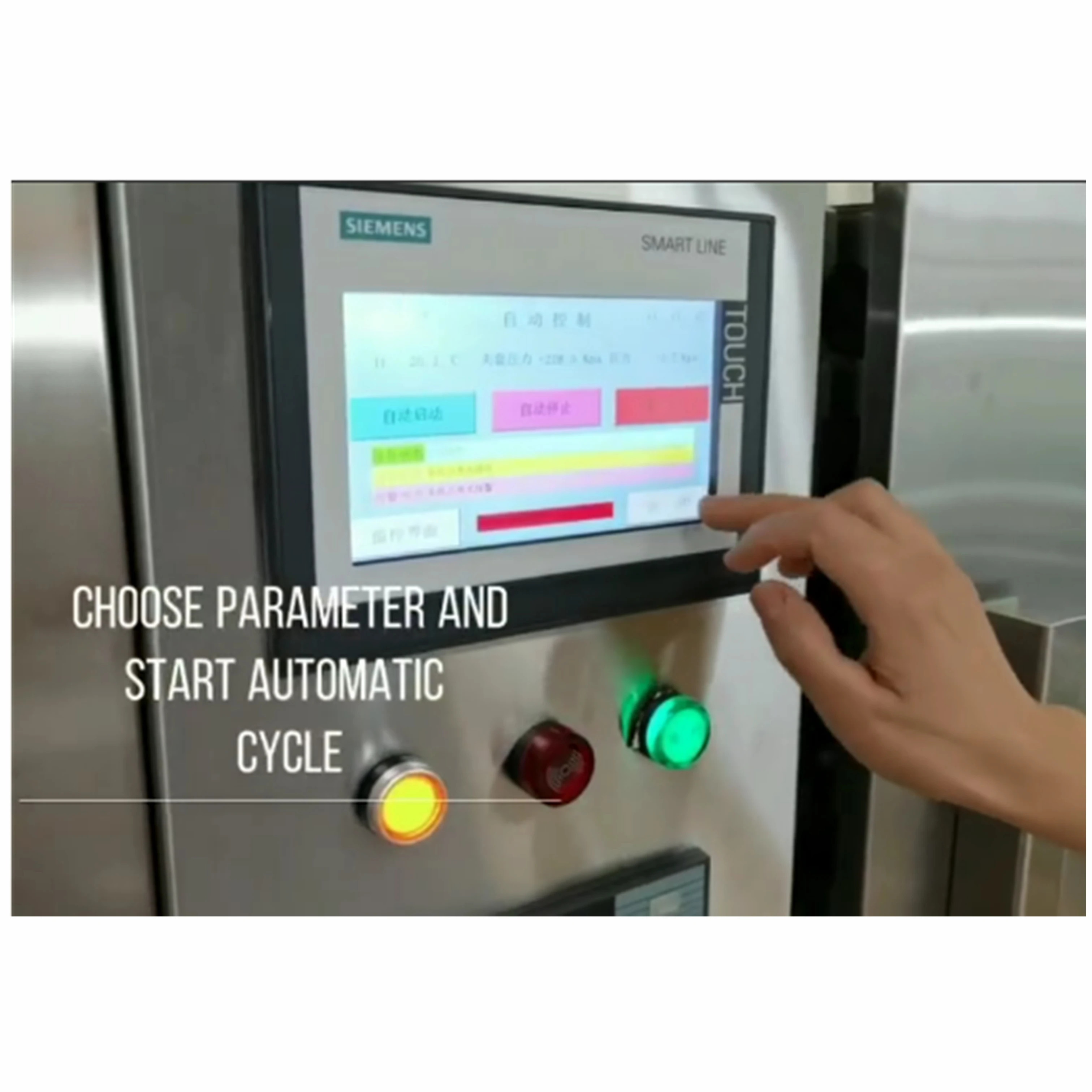

■PLC and HMI from SIMENS
■Automatic & Manual Operation Mode;
■Stable performance & precise control;
■Multiple sterilize cycles;
■Sterilizing parameters can be set on HMI;
■Print of time, temperature, pressure and etc.
■Display the real-time data and curve and valve status.
Application
This series of autoclave is widely used for for the sterilization of medicine powder.
Certifications
Product packaging
Use high quality wooden case
After loading

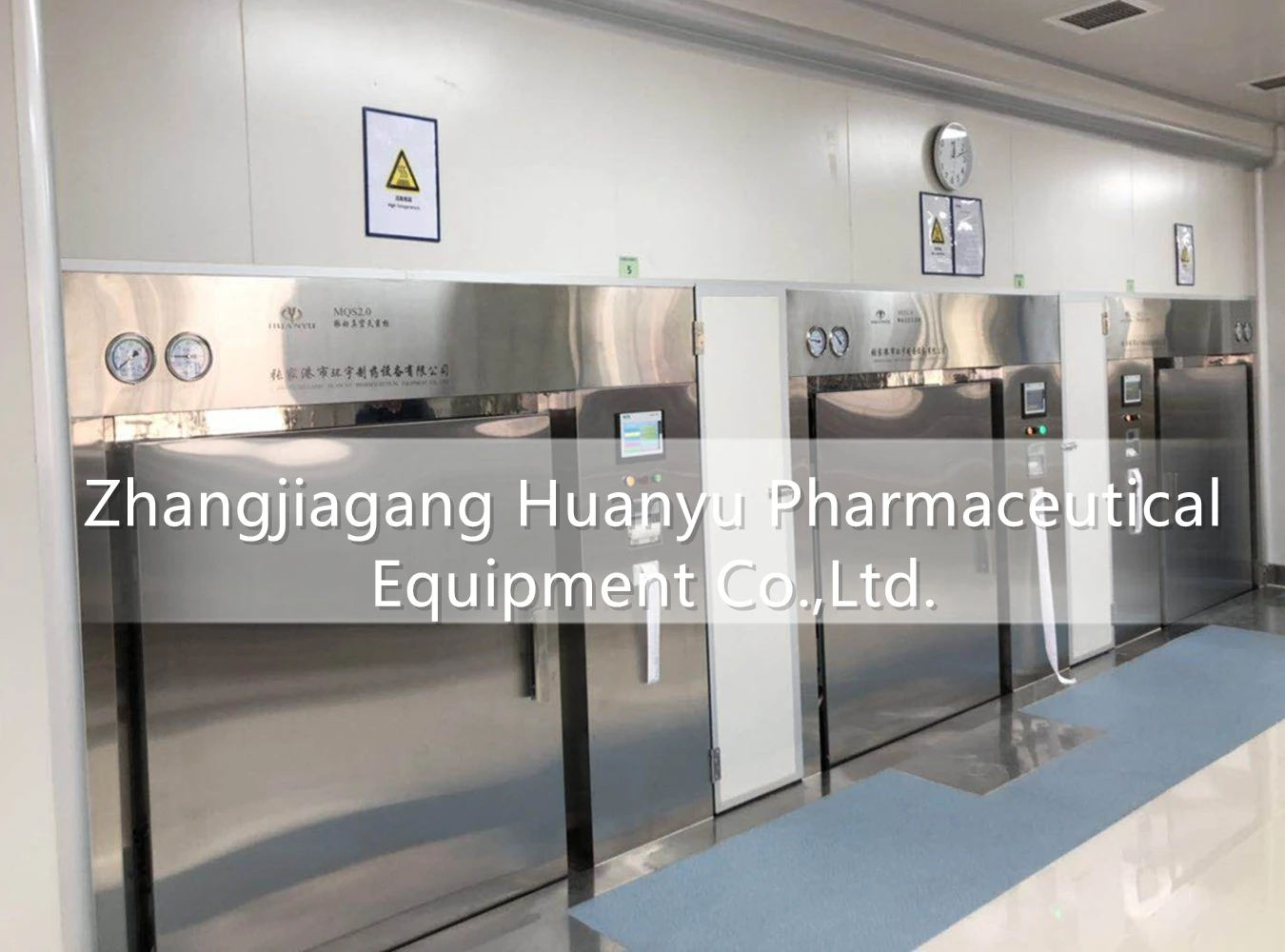

Customer Photos

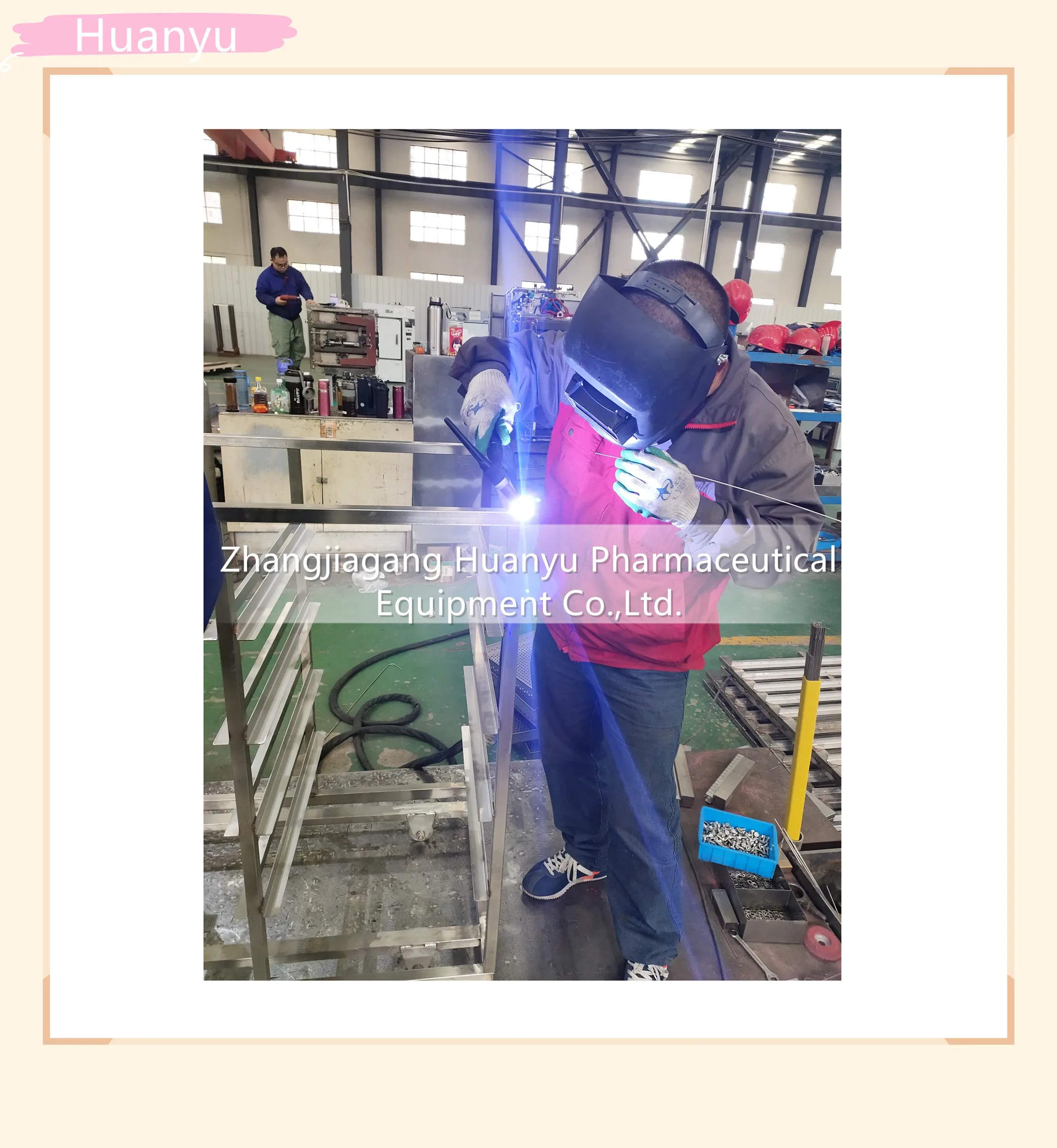

Company Profile
Why choose us:
1)More than 20 years manufacture experience,and 9 years export experience.
2) We value every inquiry sent to us, ensure quick and competitive offer.
3)We put your order into our tight production schedule,ensure your punctual delivery time.
4)We are a sales team ,with all technical support from our engineer team.
After-sales service:
1)We deal with your complains within 24 hours.
2)Product configuration design using modular approach can be developed and produced according to user needs all kinds of special specification products to meet the diverse needs of the market.
3)All staffs in our company with philosophy of "integrity,dedication, truth-seeking, enterprise", would be dedicated to provide high quality service and products for you, and wish to create better future with you!
