Металлическая проволочная гибочная машина для резки скелетной проволоки для декоративно прикладного искусства

Share on (60801047890):


Price:5 900,00 $ - 95 000,00 $

Quantity:


Product Overview

Description



Product Description


























































(Model No.)



BL-3D-5700



No. of Axis



5rolls



input OD of Wire






Φ3.0 ~ φ8.0mm






Φ6.0 ~ φ12 mm



No. of Feeding Round



3sets



     Power of Wire Feeding Motor



               3.5KW



Power of Turning Motor



2.7



Power of Wire Cuter Motor



1.0KW



Power of Moving Motor



1.0KW



Power of Angle Control Motor



2.0KW



Weight of Machine



2800KG



Input Power



380V/50HZ/3PH



Size of Machine



3310mm X 2000mm X 1900mm






Feature and functions


1:Taiwan Topcon Operation system and imported servo Motor


2:Computer had chinese, English language, easy use. All motor can be controlled together or individal


3:Self checking system is included in the machine. Machine can be stopped if machine is producing unquified product.


4: The lubrication oil suppy system can make sure machine long time running


5:If the machine computer found there is no more wire, wire break or kinking wire, the machiine will stop automatically. And our machine can be speed up automatically once machine is running in good suitation

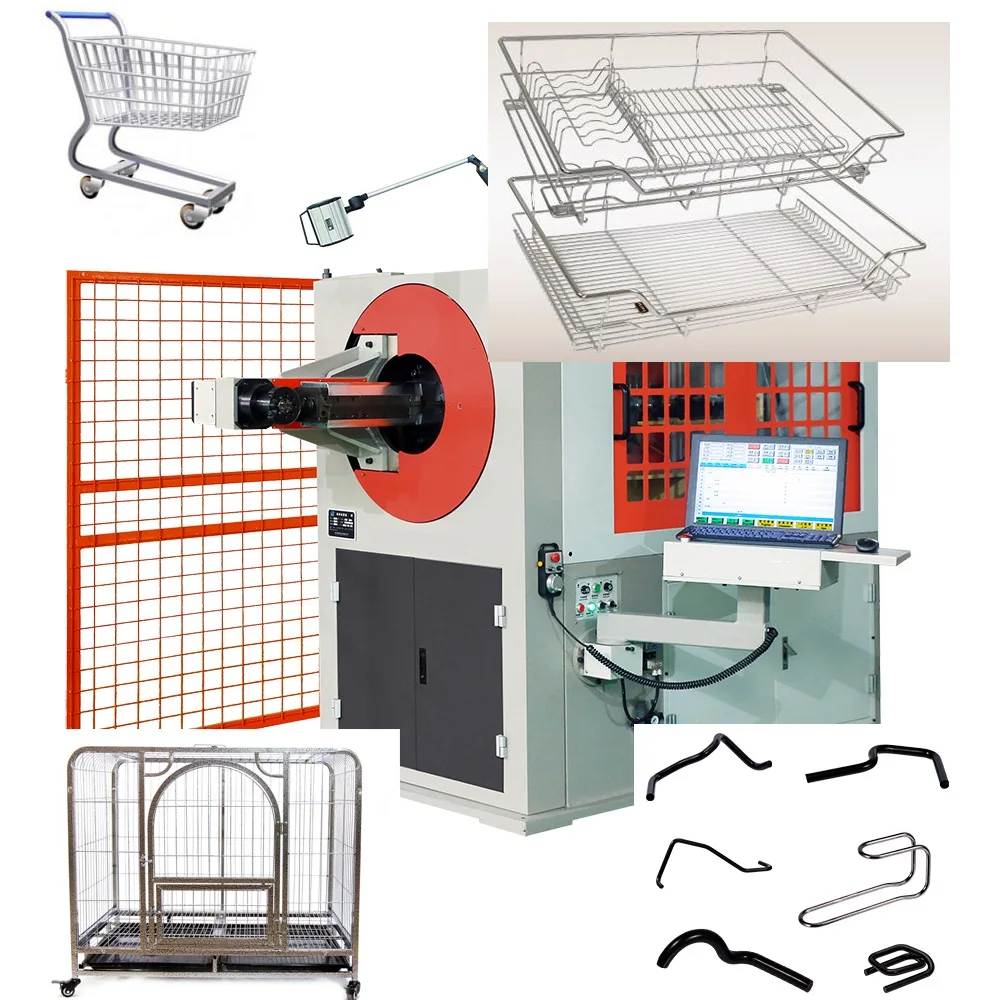

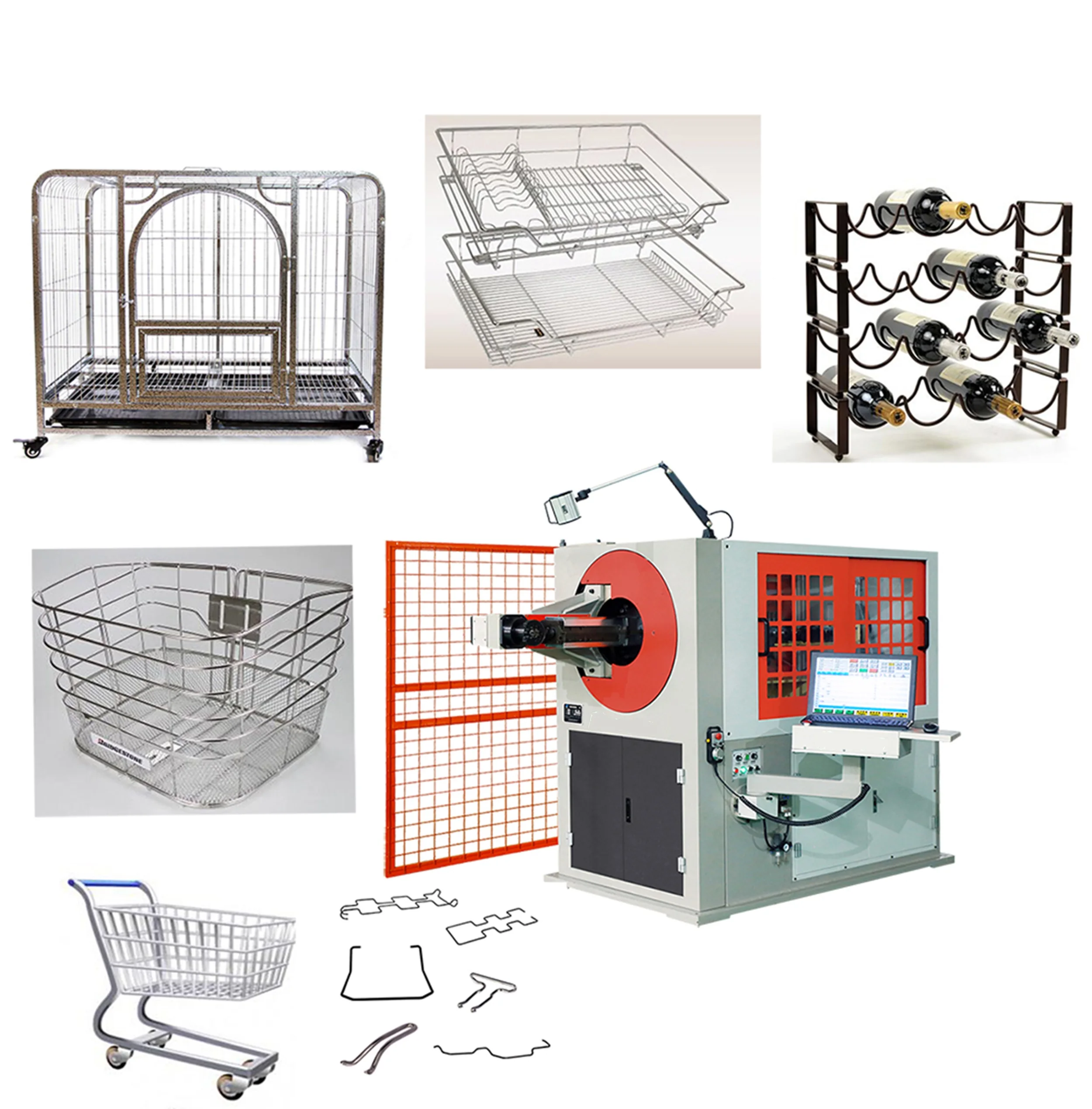

6: Our machine is good for product in following industrial :car seats skeleton, skeleton visor, car door lock rod, wire arts and crafts, kitechen utensils, table ware and other wire forming


wire forming machine.jpg


3.jpg4.jpg.jpg_20170419081108 (2).jpg
