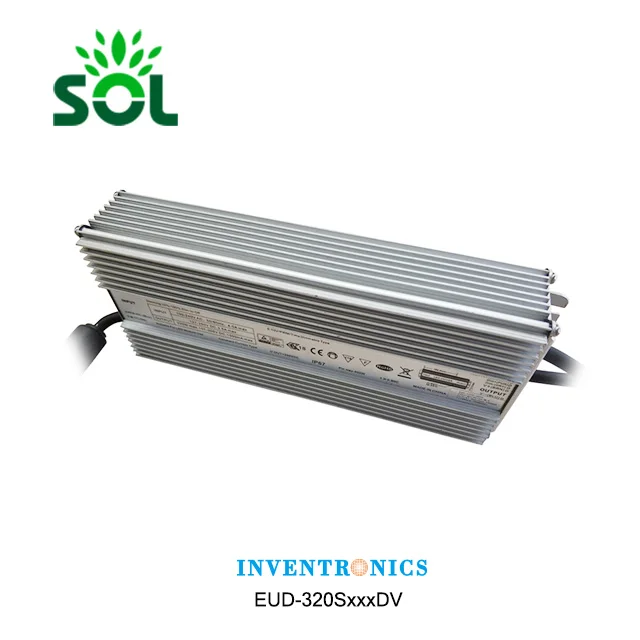

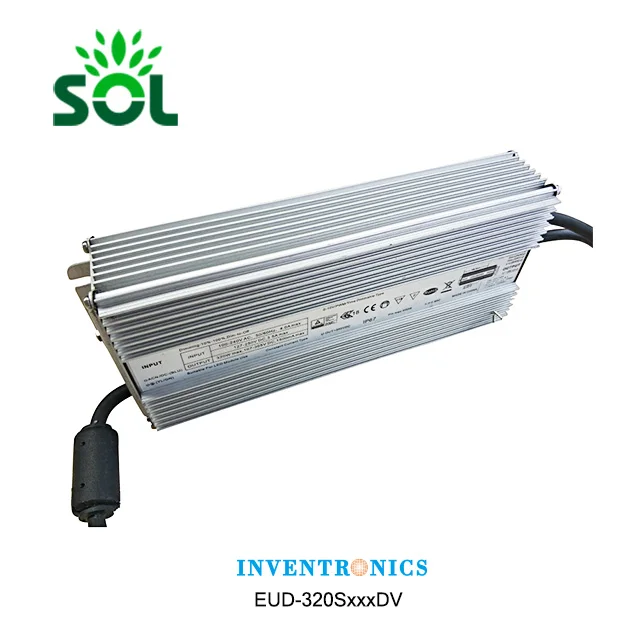

Inventronics EUD Series 600W 0 10V Timer Dimmable Programmable IP67 Led Driver

Product Overview

Description

600W LED Driver

---------------------------------------------------------------------------------------

Features;

* Ultra High Efficiency (Up to 95.0%)

* Full Power at Wide Output Current Range (Constant Power)

* Thermal Sensing and Protection for LED Module

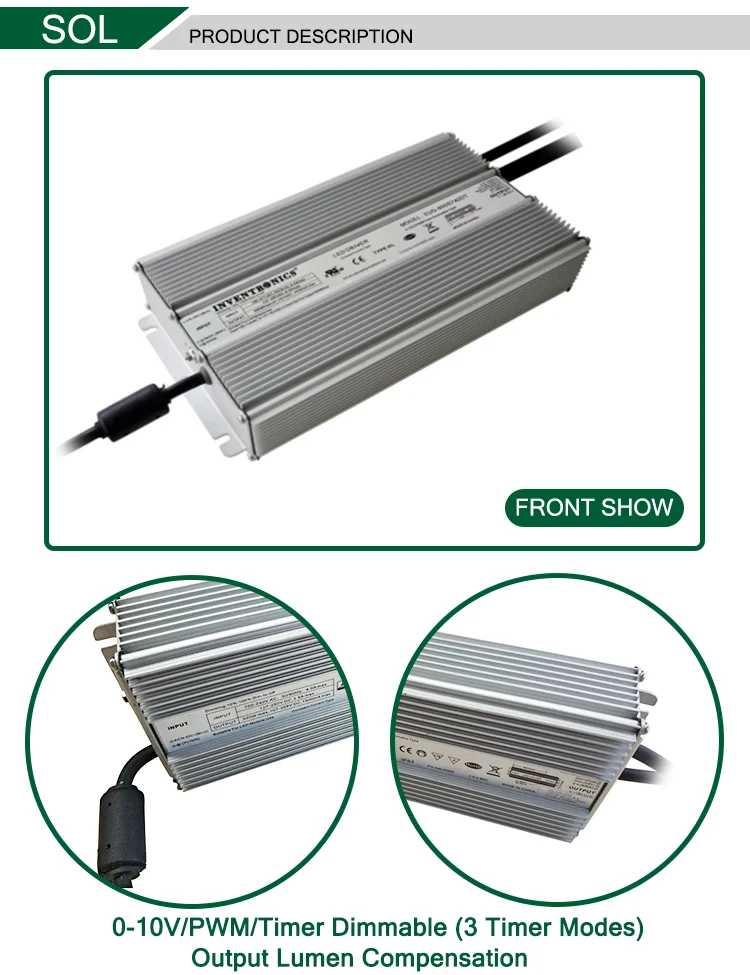

* 0-10V/PWM/Timer Dimmable (3 Timer Modes)

* Dim-to-Off with Standby Power ≤ 0.5 W

* Always-on Auxiliary Power: 12Vdc, 200mA

* Output Lumen Compensation

* Input Surge Protection: 6kV line-line, 10kV line-earth

* All-Around Protection: OVP, SCP, OTP

* Waterproof (IP67)

* SELV Output

* Suitable for Independent Use

* 7 Years Warranty

Description;

The EUD-600SxxxDV series is a 600W, constant-current, programmable LED driver that operates from 90-305 Vac input with excellent power factor. Created for many lighting applications including high bay, high mast, aquaculture and sports, it provides a dim-to-off mode with low standby power. The high efficiency of these drivers and compact metal case enables them to run cooler, significantly improving reliability and extending product life. To ensure trouble-free operation, protection is provided against input surge, output over voltage, short circuit, and over temperature.



Models;

Adjustable Output Current Range	Full-Power Current Range (1)	Default Output Current	Input Voltage Range(2)	Output Voltage Range	Max. Output Power	Typical Efficiency (3)	Power Factor		Model Number (4)
0.11–1.40A	1.10–1.40A	1.4 A	90~305 Vac/ 127~250 Vdc	214 ~ 545Vdc	600 W	95.0%	0.99	0.96	EUD-600S140DV
0.136-1.70A	1.36–1.70A	1.7 A	90~305 Vac/ 127~250 Vdc	176 ~ 441Vdc	600 W	94.0%	0.99	0.96	EUD-600S170DV
0.168–2.10A	1.68–2.10A	2.1A	90~305 Vac/ 127~250 Vdc	143 ~ 357Vdc	600 W	94.5%	0.99	0.96	EUD-600S210DV
0.224-2.80A	2.24–2.80A	2.8A	90 ~ 305 Vac 127~250 Vdc	108 ~ 268Vdc	600 W	95.0%	0.99	0.96	EUD-600S280DV
0.336-4.20A	3.36–4.20A	4.2 A	90 ~ 305 Vac 127~250 Vdc	72 ~ 178Vdc	600 W	94.5%	0.99	0.96	EUD-600S420DV
0.448-5.60A	4.48–5.60A	5.6 A	90 ~ 305 Vac 127~250 Vdc	54 ~ 134Vdc	600 W	94.5%	0.99	0.96	EUD-600S560DV
0.592-7.40A	5.92–7.40A	7.0 A	90 ~ 305 Vac 127~250 Vdc	41 ~ 101Vdc	600 W	94.0%	0.99	0.96	EUD-600S740DV(6)
0.784-9.80A	7.84–9.80A	7.8A	90 ~ 305 Vac 127~250 Vdc	31 ~ 76Vdc	600 W	94.0%	0.99	0.96	EUD-600S980DV(6)
1.0 – 12.5 A	10 – 12.5 A	12.5 A	90 ~ 305 Vac 127~250 Vdc	24 ~ 61Vdc	600 W	94.0%	0.99	0.96	EUD-600S12ADV(5)(6)

Notes;

(1)  Output current range with constant power at 600W

(2) Certified input voltage range: 100-240Vac or 127-250Vdc (except CCC, PSE, BIS and KCC)

(3) Measured at 100% load and 220Vac input (see below “General Specifications” for details)

(4) All the models are certificated to BIS and PSE, except EUD-600S140/170/210/12ADV

(5) All the models are certificated to Global-mark, except EUD-600S170/12ADV

(6) SELV Output

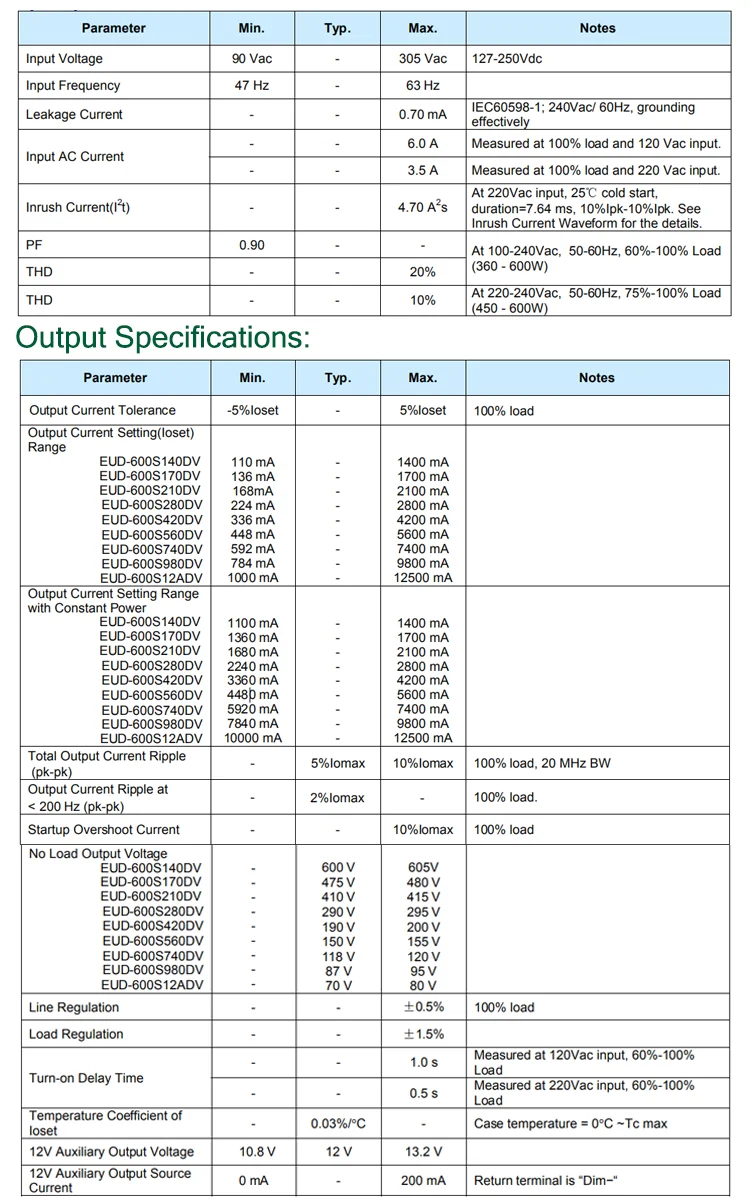

Input Specifications;

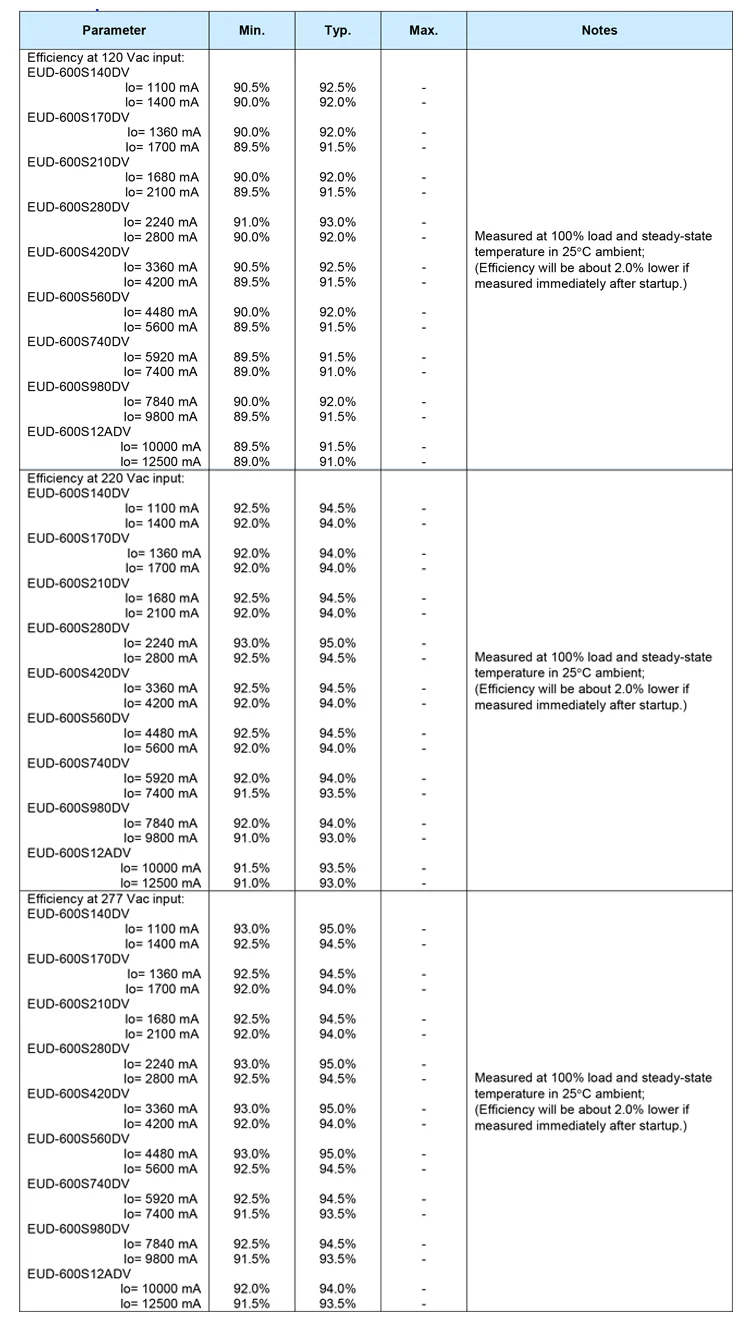

General Specifications;

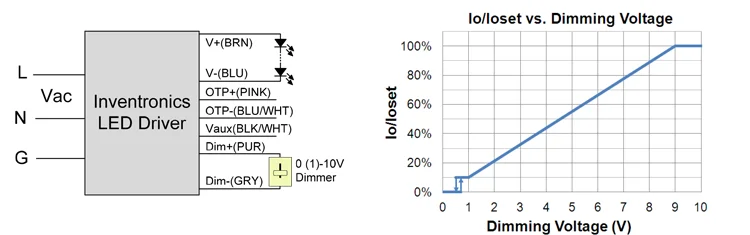

Dimming;

Notes;

Time Dimming Time

dimming control includes 3 kinds of modes, they are Self Adapting-Midnight, Self AdaptingPercentage and Traditional Timer.

(1) Self Adapting-Midnight: Automatically adjusts the dimming curve based on the on-time of past two days (if difference <15 minutes), assuming that the center point of the dimming curve is midnight local time.

(2) Self Adapting-Percentage: Automatically adjusts the on-time of each step by a constant percentage = (actual on-time for the past 2 days if difference <15 min) / (programmed on-time from the dimming curve).

(3)Traditional Timer: Follows the programmed timing curve after power on with no changes.

Output Lumen Compensation

Output Lumen Compensation (OLC) may be used to maintain constant light output over the life of the LEDs by driving them at a reduced current when new, then gradually increasing the drive current over time to counteract LED lumen degradation.

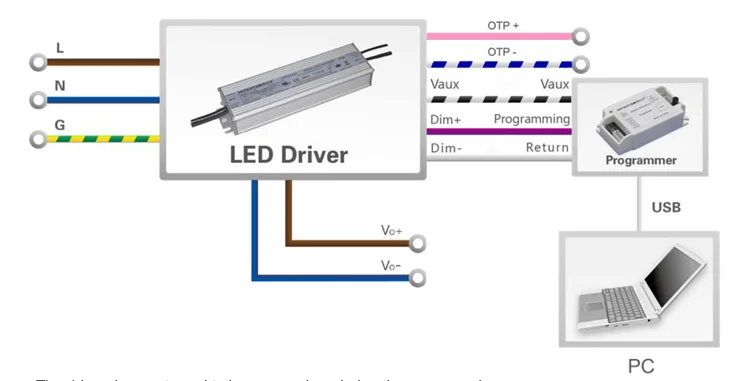

Programming Connection Diagram

Note;The driver does not need to be powered on during the programming process.

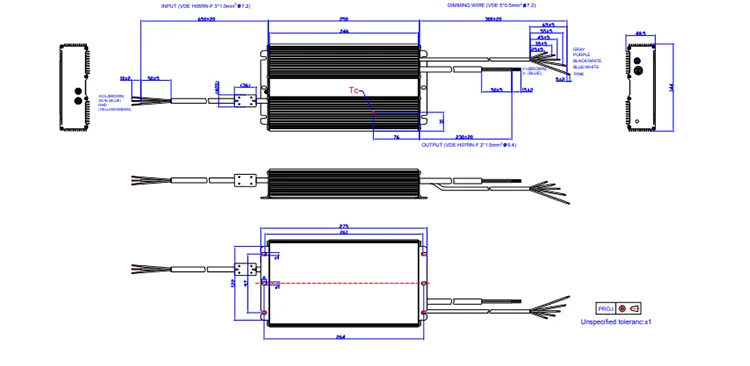

Mechanical Outline;

RoHS Compliance;

Our products comply with the European Directive 2011/65/EC, calling for the elimination of lead and other hazardous substances from electronic products.

Q1. What is the warranty of the module?

A1. It's 5 years warranty

Q2. Can we get  samples for testing?

A2. Yes,sample order welcomed.

Q3. What are Constant Power LED drivers?

A3. Constant power comes along with adjustable output current. When output current is adjusted, either through programming or other method, the output voltage range can change correspondingly and the output power remains at maximum
