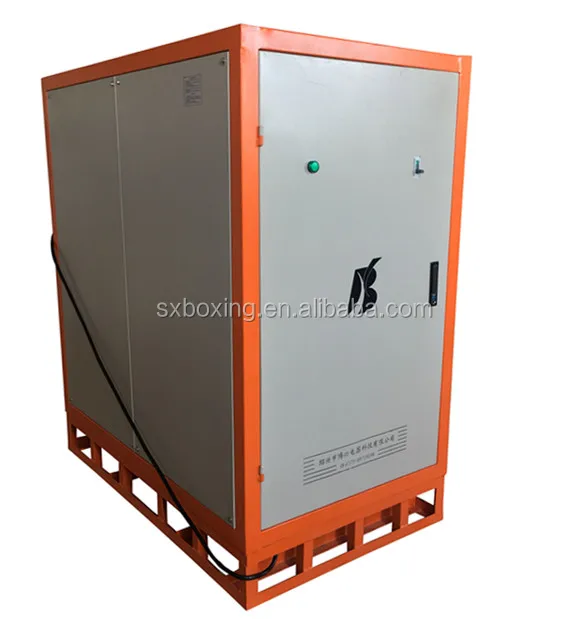

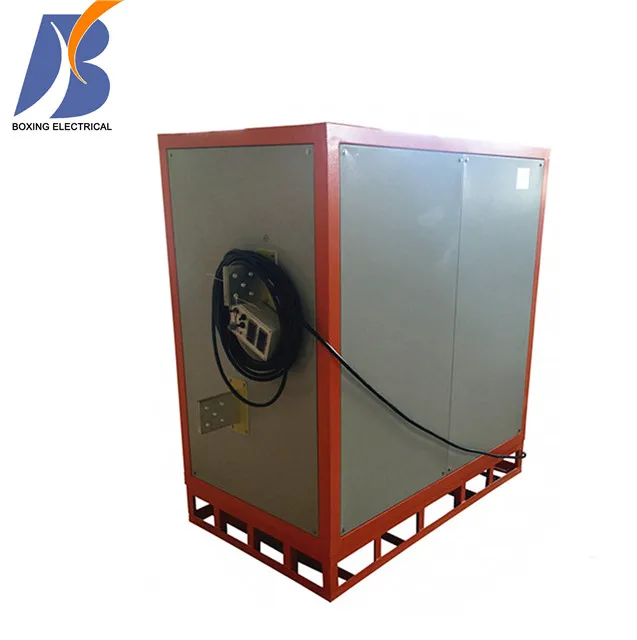

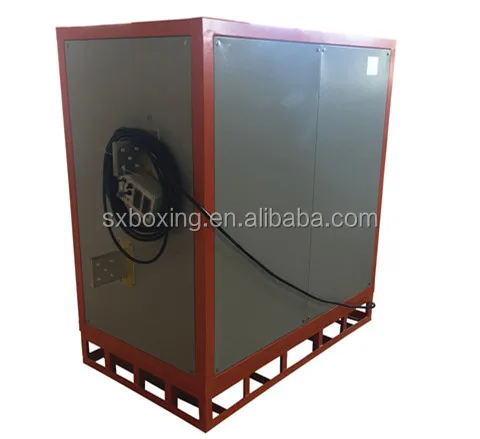

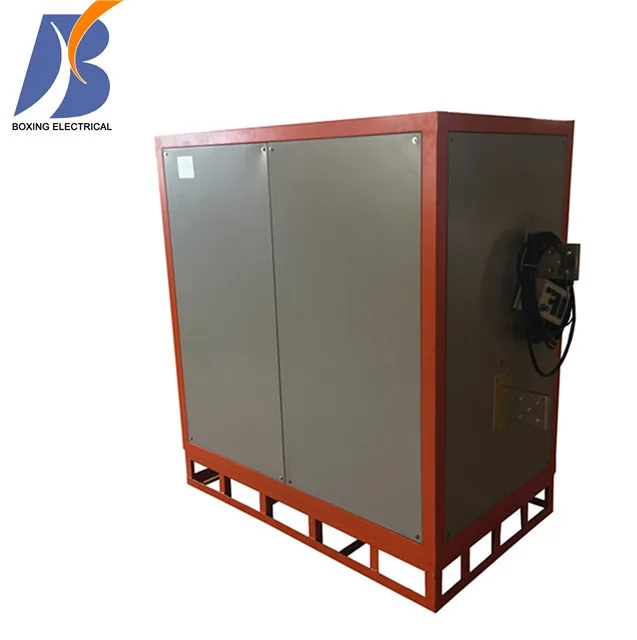

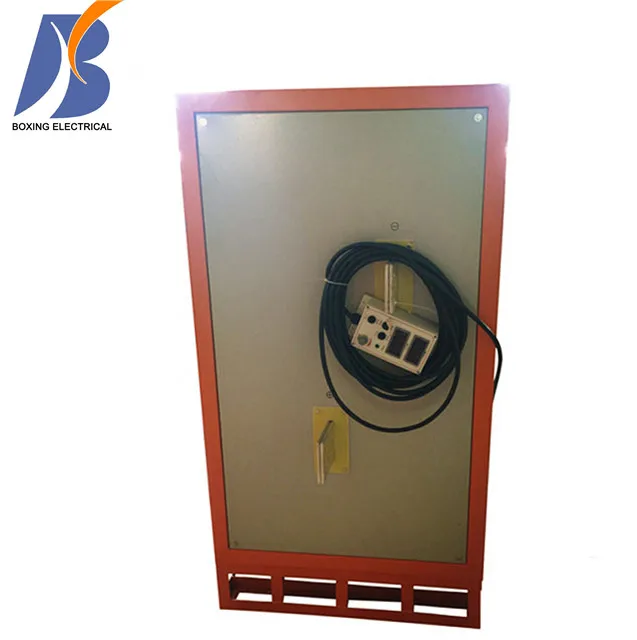

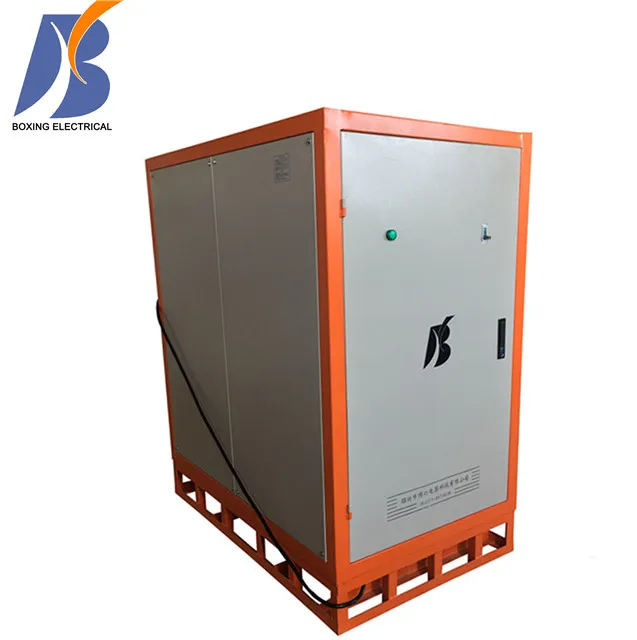

Hard Anodizing Pulse Superposition SCR Rectifier

Product Overview

Description

Input voltage	380V AC(Three-phase four-wire) 415V AC 50-60HZ
Output DC current	200-10000A  Arbitrary choice
Output DC voltage	40V,60V,70V,90V,110V,120V   Arbitrary choice
Pulse frequency	0.4-25HZ
Duty cycle	10%-90%
Soft start time	1-32  min adjustable
Output waveform	Pulse or pulse superposition or DC
Run time	1-256 min adjustable
Run mode	Standing current and  voltage limiting
Cooling Mode	Forced air cooled
Workload	Full capacity operation, more than 1,000 meters above sea level, reduced load operation Work condition Temperature range 0 ℃ ~ 40 ℃,Less than 90% humidity.



















Workshop



































1. Q: Are you a factory or trading company?

A: We are a factory and we have professional team of workers , Designers and inspectors

2. Q: How many workers in factory?

A: We have one factories which is more than 30 workers totally

3. Q: What is your main products?

A: High frequency plating rectifier, Silicon controlled rectifier, Lab power supply,water treatment

power supply

4.Q: What’s your advantage?

(1) competitive price

(2) high quality and special internal structure

(3) one stop purchasing

(4) fast response and professional suggestion on all inquiries

(5) fulfill European standard like CE and ISO 9001

5. Q:What is your Minimum quantity ?

A: One unit of rectifier.

6. Q: How long to deliver the products?

A: The exact delivery date need to according to your style and quantity. Usually within 10 work days

after receive the 100% payment If you choose the items which we have stock, we can deliver in 3 days.
