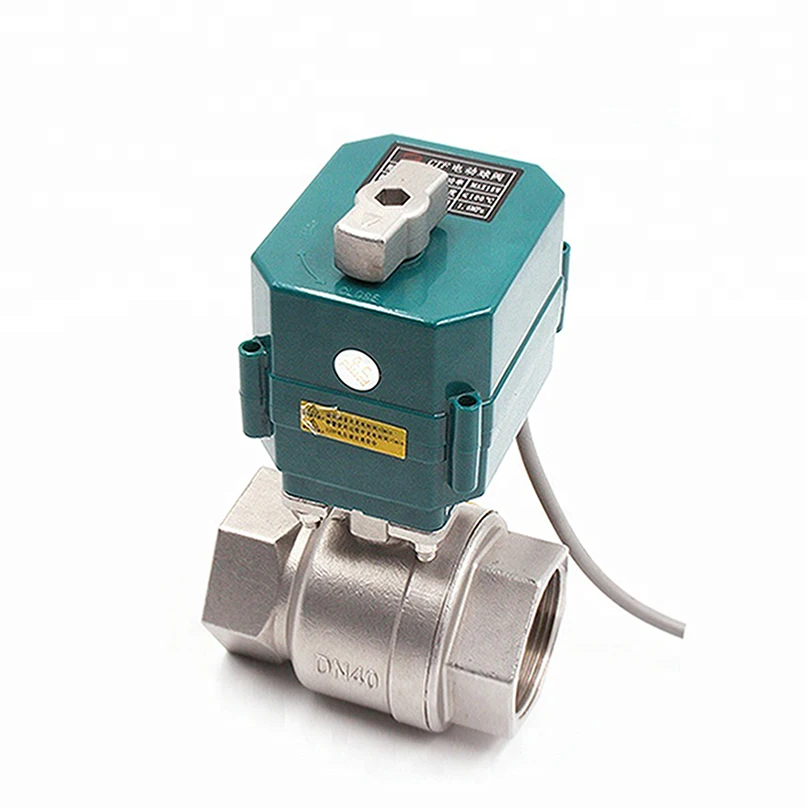

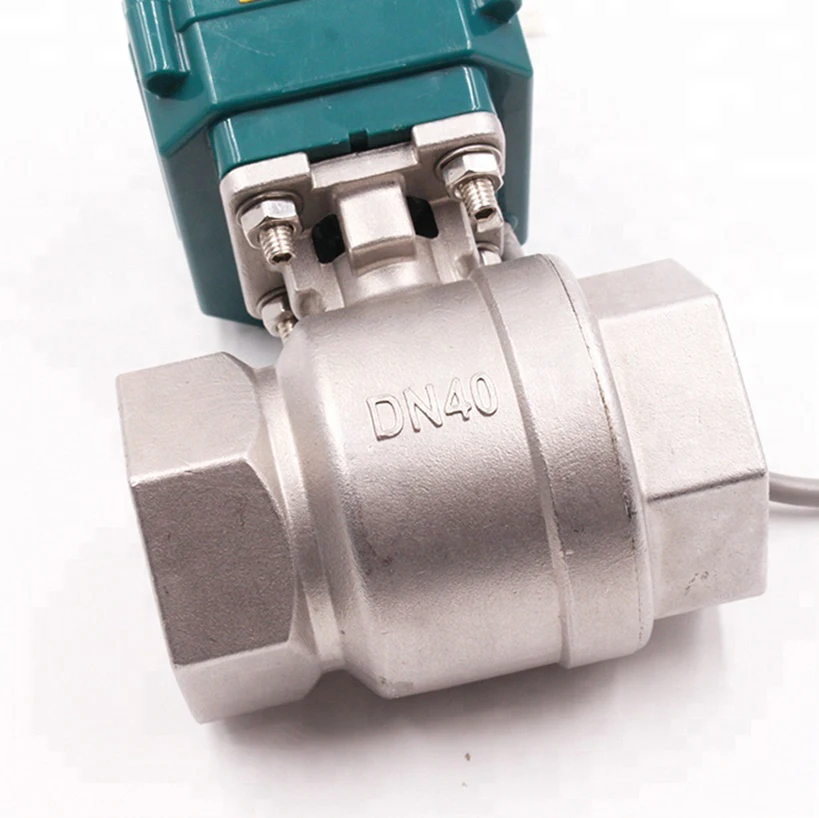

electric water valve 220v ss316 ball valve 2 inch stainless steel electrical ball valve 50 mm

Product Overview

Description

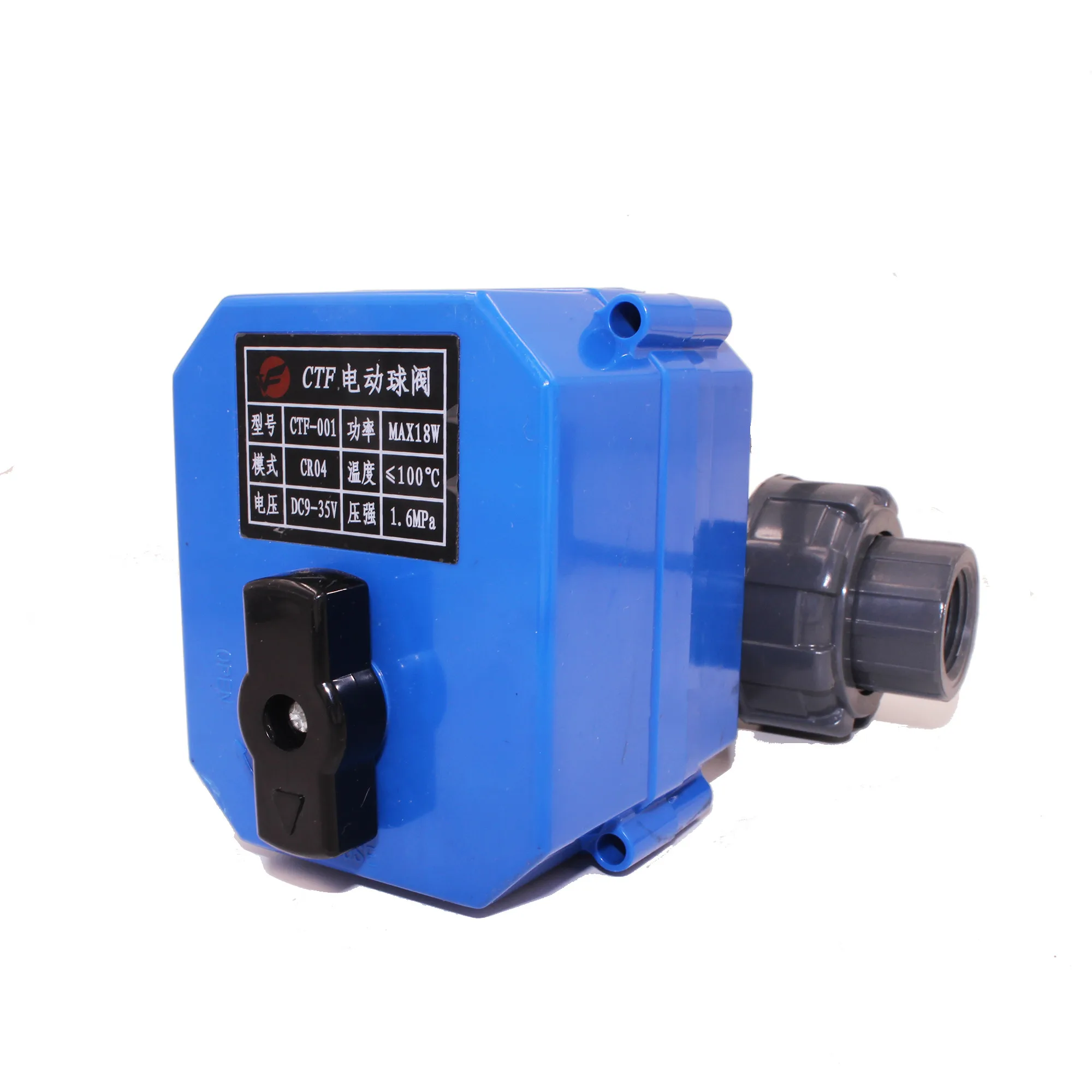

CTF-001-Series Motorized Valve/upvc electric valve PVC electric valve upvc ball valve industrial/motorized ball valve dn50 stainless steel ball valve industrial motorized valve electrical ball valve 50 mm



  1.Simple shape, small size, all-metal gear driving, reliable performance, large torque

up to 15NM, is the interface between mini and industrial-grade valve, the valve sealed

with float structure, no dripping and suitable for heavy dirt and long-term non-action occasions.

    2.Electrical and mechanical double limit, accurate positioning, high consistency.

    3.The connection of actuator and valve belong to ISO5211 standard, flange type

F03, F05,convenience for user choose valve body. And supply brass, stainless steel

ball valve and PVC ball valve, IP65 enclosure, can be used in a relatively humid environment.

    4.Position indicator and manual override function (suitable for sudden power failure

or accident emergency switch )





1. University LABS, automotive laboratories.

2. Drug production, diesel fuel saving, etc.

3. Small equipment such as water saving, automatic control system and industrial

automatic control in colleges and universities.

4. Agricultural irrigation, environmental protection, water supply and drainage, water treatment works.

5. Water-saving appliances, drinking water equipment, etc.





Product model	Rated voltage	Output torque	Open/close time	Control model	Working pressure	Special function

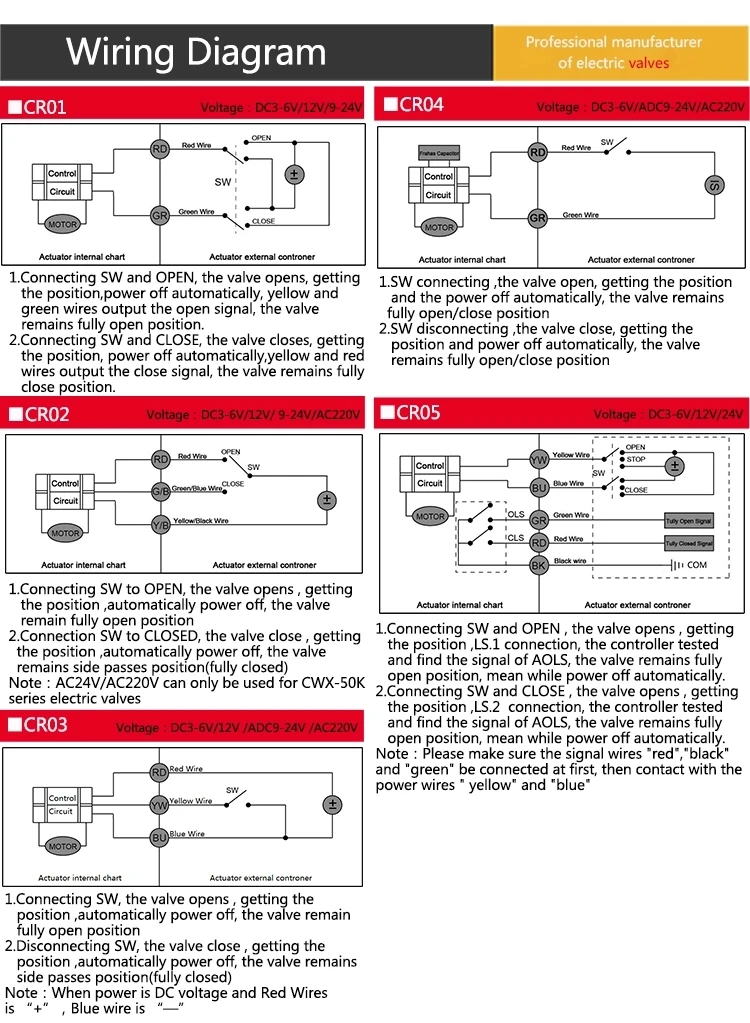

CTF001	DC3-6V DC12V A/DC9-24V AC220V AC85-265V	Max10NM	<12s	CR01   CR02  CR03   CR04  CR05	Max1.6Mpa	CR01 CR02 CR03 CR03 CR04(with singal feedback)
	Motor voltage	Power	Working current	Medium temperature	Size	IP Garde
	5V	Max18W	<500mA	0-90℃	DN8-50 Two-way DN15-25 Three-way	IP65
	12V	Max22W	<300mA
	24V	Max22W	<100mA





Material	Sizes	d	L	H
SS304/316	DN15	15	62	55
	DN20	20	71	63
	DN25	25	81	78
	DN32	32	93	84
	DN40	40	102	91
	DN50	50	118	107
UPVC	DN15	15	121	50
	DN20	20	135	62
	DN25	25	150	69
	DN32	32	165	82
	DN40	40	181	99
	DN50	50	206	122





Material	Sizes	d	L	W	H
Horizontal Three-way (Brass)	DN15	15	61	48	46
	DN20	20	67	48	54
	DN25	25	96	74	68
	DN32	32	89.32	68	57
Horizontal Three-way (SS304/316)	DN15	15	80	52	54
	DN20	20	82	62	59
	DN25	25	87	67	71
	DN32	32	115	90	89
