Product Overview

Description



Product Description


UHF Bandpass Duplexer


Specifications:



























































































NO.



Items



Parameters



RX



TX



1



Frequency Range






413 -415MHz



423-425MHz


 frequency can be made within 380~520MHz

2



Insertion Loss



≤2dB



≤2dB



3



Pass Band Ripple



≤1.0dB



≤1.0dB



4



Attenuation Out of Band



≥80dB






≥80dB






5



RX-TX Isolation



≥80dB



6



VSWR



≤1.3



7



Average Power



50W



8



RF Connection Mode



ANT:SMA/F,50Ω;


RX: SMA/F,50Ω;


TX: SMA/F,50Ω;



9



Operation Temperature



-25℃ ~ +70℃



10



Storage Temperature



-40℃ ~ +85℃



11



Humidity



≤95%



12



Dimension



177mm*98mm*85mm(L*W*H)



13



MTBF



≥100000h

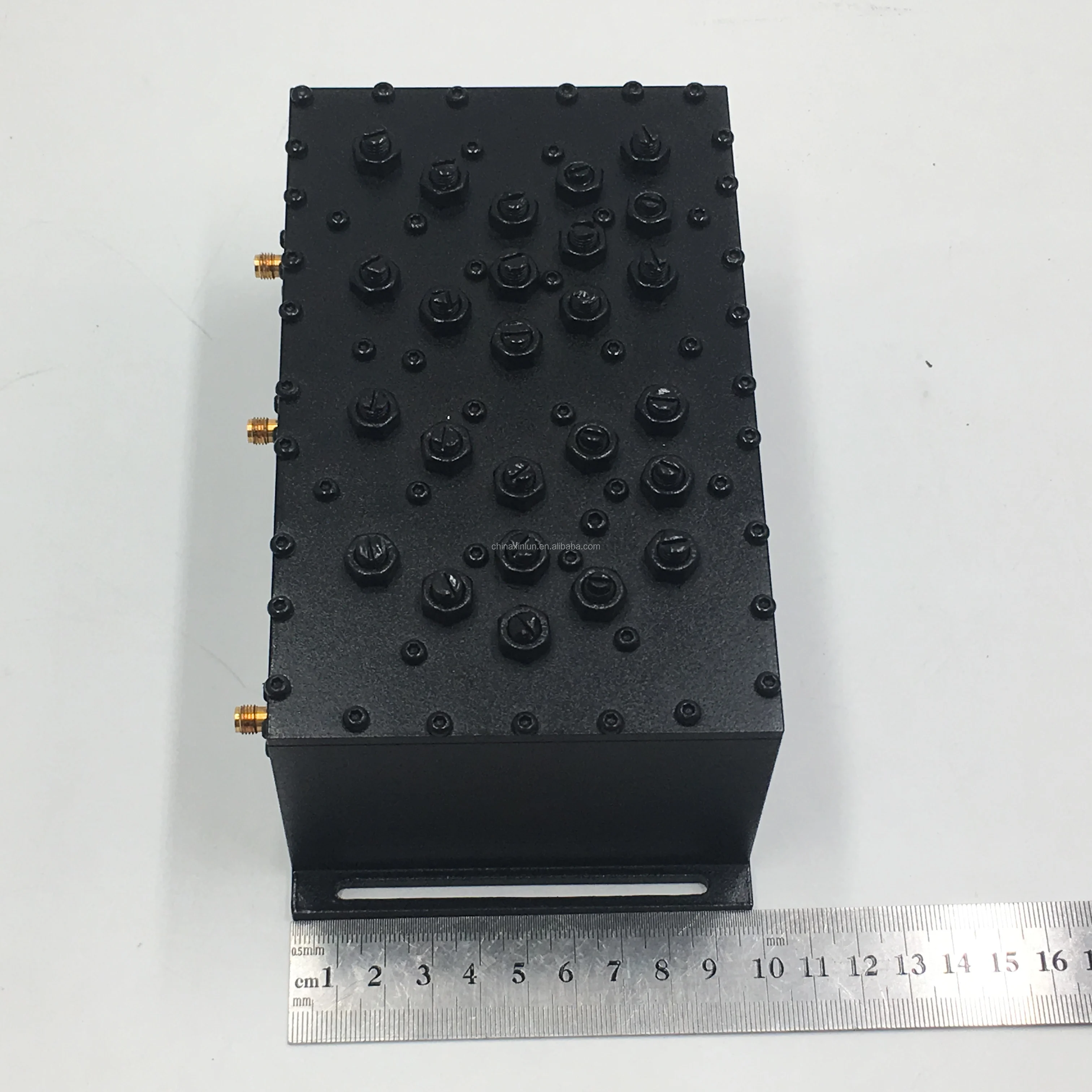

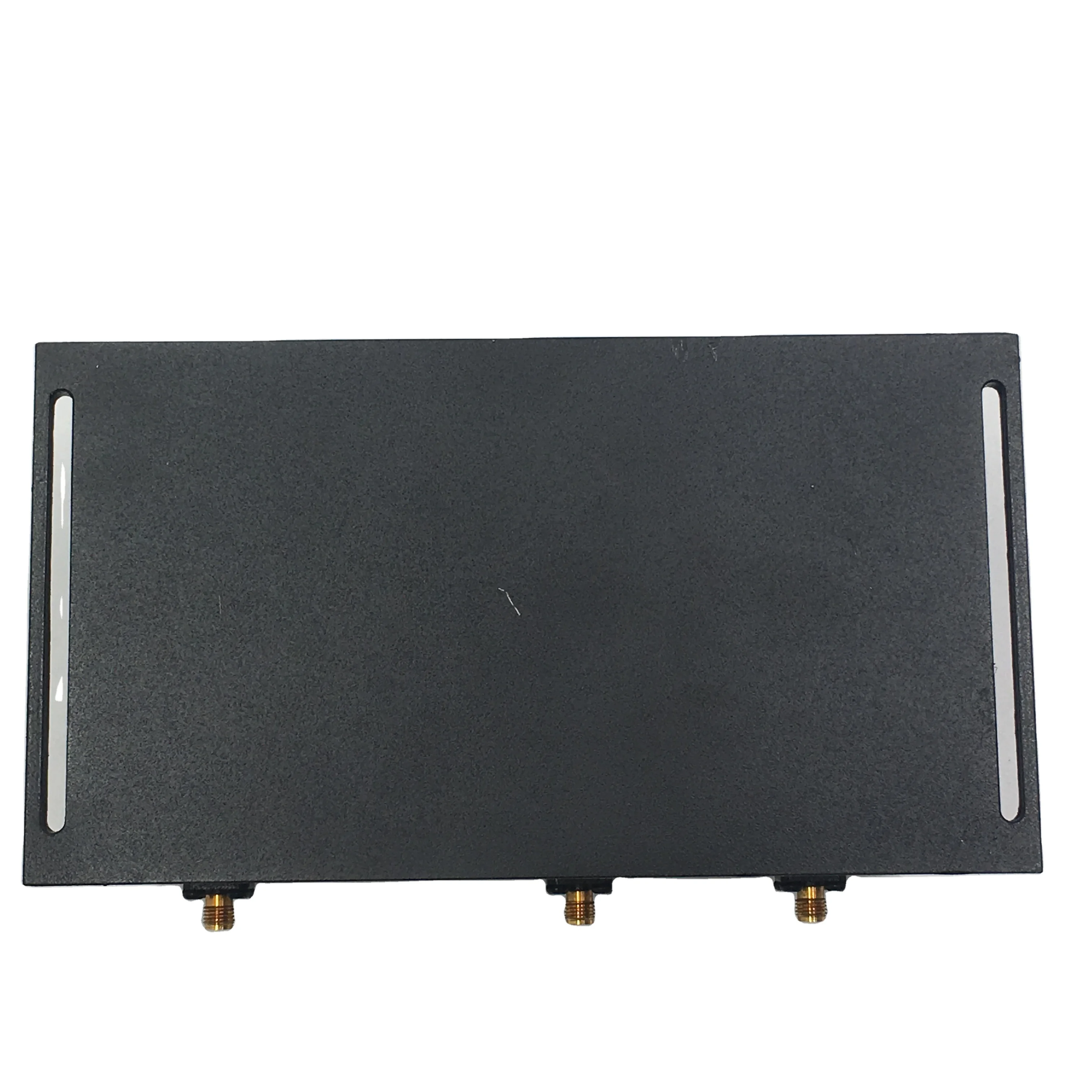

Detailed Images










Related Products


 Our company produce RF duplexers,power splitters,directional couplers,cavity filters,


TX combiners,RX multicouplers,dummy loads,RF attenuators,RF isolators,tetra repeaters,


pico repeaters,bi directional amplifiers,band selective repeaters,fiber optic repeaters,


power amplifiers low noise amplifiers and so on.
