Рекламная акция по низкой цене на Ali M3329 DVB S/S2 приемник цифрового ТВ в наличии
- Category: >>>
- Supplier: Shenzhen Indasina Technology Co. Ltd.
Share on (60801175349):
Product Overview
Description
Factory OEM DVB S2 satellite TV Receiver digital set top box upgrade software free to air
Product Description
1.
Key Features:
m DVB-S Compatible
m Video de-interlacing and post-processing
m Unique nine-picture browse and 5 plus 1 picture preview
m OSD dynamic color
m Video output: PAL/NTSC CVBS
m 2 channel audio DACs integrated
m Integrates high-speed 10 bits video DAC
m Support DiSEqC1.0/1.1/1.2/USALS
m High-speed Blind Scan for Automatic Channel Parameter Acquisition
m Patch: Biss Cryptoworks supported
m Support RS232 Protocol
2.
Specifications:
System
CPU | Ali M3329 high-performance 32-bit embedded CPU |
Flash | 1M-bit /512k -bit Serial Flash |
RAM | 16Mbit DDR SDRAM |
Tuner | AV2028 |
Video and Audio
Video Standard | MPEG-2 AV decoder, supporting MPEG2 MP@ML video and Layer I/II audio decoding |
Video Mode | CVBS |
Audio Standard | MPEG-1 Layer I&II,AAC,HEAAC |
Tuner and Demodulator
Type | DVB-S | |
Frequency Range | 950 ~ 2150MHz | |
RF Input Level | -60 ~ -25dBm | |
Transmission Mode | ISO/IEC 13818-1 MPEG-2 Transport stream Specification | |
Symbol Rate | DVB-S mode | 1 ~ 45Mbaud |
|
| |
Demodulation | DVB-S mode | QPSK |
|
| |
Code Rate | DVB-S mode | 1/2, 2/3, 3/4, 5/6, 7/8 |
|
| |
Power Supply
Input Voltage | AC 80-260V 50~60Hz |
Operating Power Consumption | Max.<5W |
Standby Power Consumption | Max. 1W |
Front Panel
Display | 4 Digital 7 Segment LED Display |
Indicator | Red: Standby ,Green: Run |
Buttons | Power, CH+, CH- |
Rear Panel
RF Input | F Type Female 75ohm |
RF Output | F Type Female 75ohm |
IR Extension | 1 × Earphone |
AV Out | 4 x RCA |
SCART | YES |
S/PDIF | NO |
|
|
USB | NO |
Ethernet | NO |
DC Input | 1 x Jack |
Accessories
Battery | 2 x 1.5V;AAA |
User Manual | A5 |
RCU | NEC Protocol |
Physical Specifications
Size(W×D×H) |
|
Weight(net) |

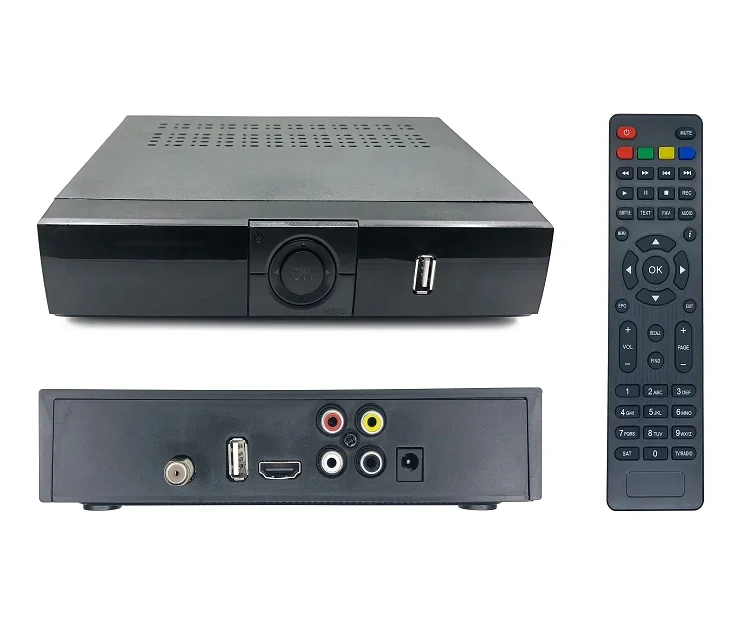

Product show

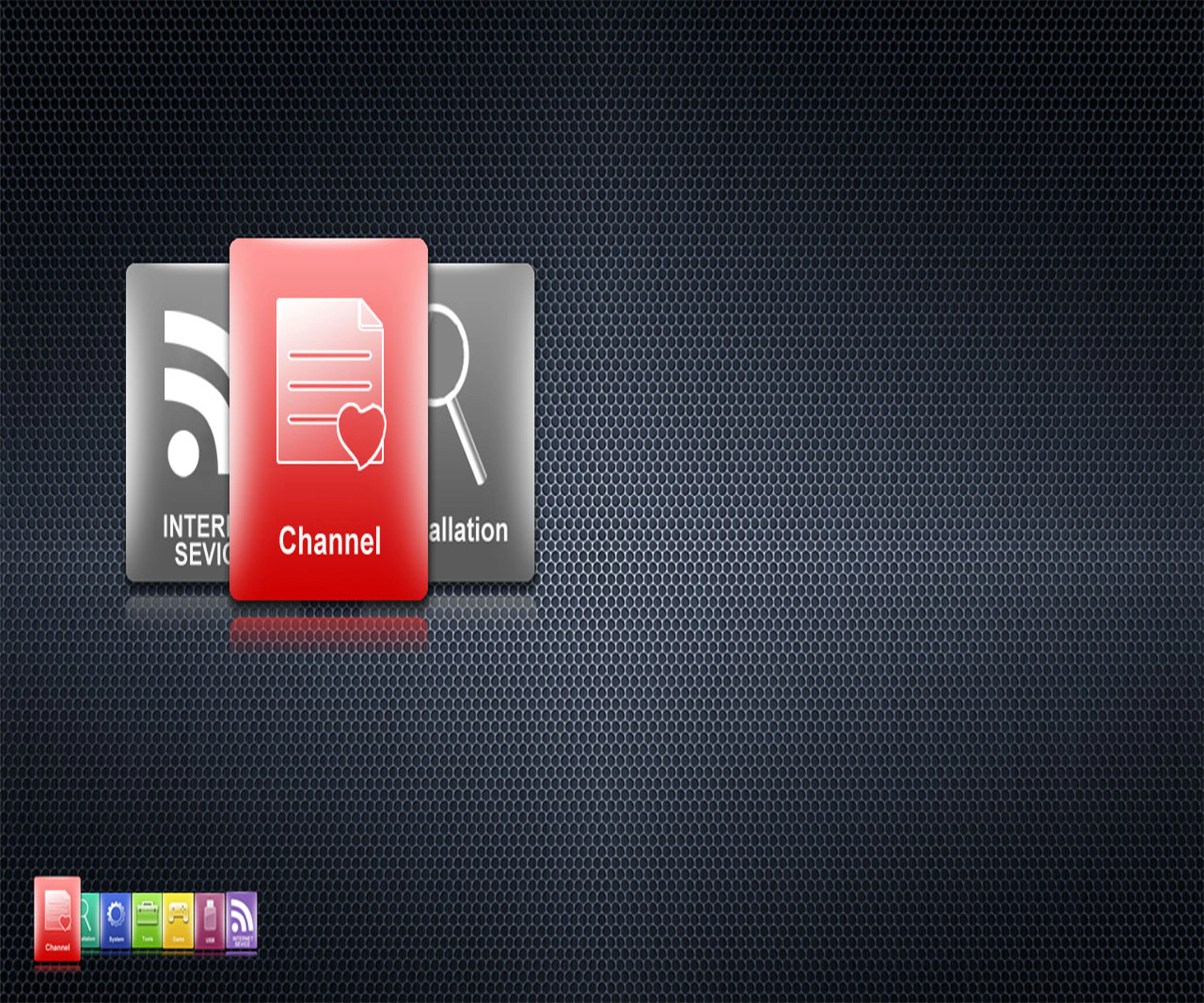

User interface
Packaging & Shipping
Our Company
Indasina Technology Co., Ltd., a group corporation composed of factories, is committed to a variety of electronic products and solutions with strong R&D Team and technology back up.
Satellite Receiver System, one of our major industries, is fairly welcomed in Asia, Europe and Middle East Markets. We adopt GX(National Chip), Ali, Montage and MStar solutions for DVB-S, DVB-S2, DVB-T, DVB-T2.
By owning manufacturing and assembly facilities, we control every aspect of production process and quality. That is why we can provide our customers with unprecedented quality, reliability and all-round support. Choose us, you will gain the benefit of unparalleled technical expertise at competitive prices and the most progressive solutions available.
FAQ
Q: How long is the warranty?
A: 1-year warranty since delivered out.
Q: What's the MOQ?
A: 1pc for sample, at least 5000pcs after sample order.
Q:How about the OEM/ODM service ?
A: We provide all kinds of OEM/ODM service,eg:Logo printing on housing,Customized package,Software Customization.
Q: How long is the delivery time?
A: Sample order about 3-5 working days, bulk order about 7-15 working days.
Normally, we ship goods by sea,air and express.
. By sea to your nearest sea port for 10~15 days
. By air to your nearest air port for 5~10 days
. By express(UPS,DHL.FEDEX,TNT...) to your door for 3~6 days
Q: What methods of payment accepted?
A: 1. We can accept T/T, L/C, Western Union, Escrow and Paypal before production.
2. If you have any doubt about payment, please contact us freely.
Q: Why do you choose us?
A: Indasina Technology Co., Ltd. is a qualified DVB Kit manufacturer! We will try our best to provide the products you need, we will provide you with the most satisfactory service. If you want to Know more, You can contact us. We also welcome you to visit our factory in Shenzhen.
