Product Overview

Description

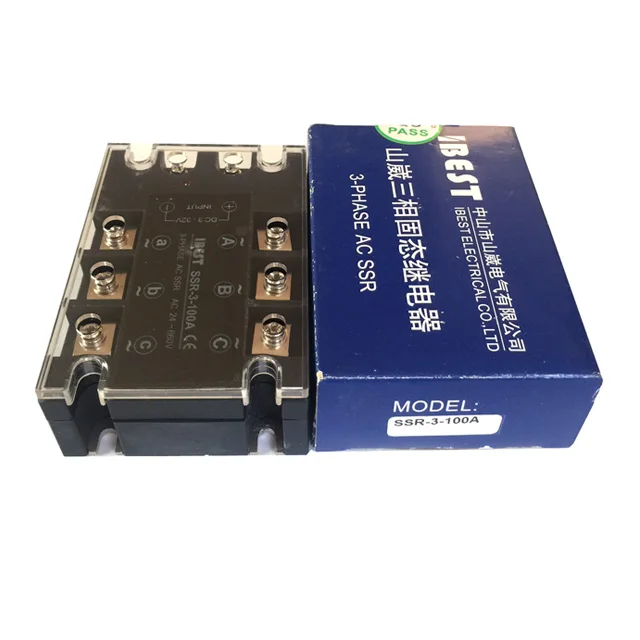

IBEST AC 3 Three Phase Solid State Relay

SSR-3-100A / DC 3-32V Control AC 24-660V



1.Features of IBEST Single Phase DC Control Voltage Solid State Relay :

-         Load current range:  2A, 15A, 25A, 40A, 50A, 80A, 100A.

-         Load voltage range: AC 24~660V AC. (or DC 24-66V DC load votlage can be specially ordered)

-         Control voltage: DC 3~32V  or  AC 90~250V.

-         Control current: 6mA~25mA.

-         Input constant current control, AC Zero point On and OFF function.

-         Adop technic of glass passivation triac square piece(>50A), good in dispersing heat.

-         Optic isolated (>or=2000V AC 1min ), dual triac strong output or single triac reversal parallel connection strong output.

-         Input or output LED indication.

-         Widely used in various automatic fields like chemical fibre machinery, temperature controller, electric cooker, rubber machinery, fountain control, numerical control machinery etc.

-          Reliable quality to replace famous brands .



2. Ordering Code

Model and Type Load Current Load Voltage Control Voltage Appearance   Buy SSR-3-15A  AC 15A  AC 24~660V  DC 3~32V  Normal     SSR-3-25A  AC 25A  AC 24~660V  DC 3~32V  Normal     SSR-3-40A  AC 40A  AC 24~660V  DC 3~32V  Normal     SSR-3-50A  AC 50A  AC 24~660V  DC 3~32V  Normal     SSR-3-60A  AC 60A  AC 24~660V  DC 3~32V  Normal     SSR-3-80A  AC 80A  AC 24~660V  DC 3~32V  Normal     SSR-3-100A  AC 100A  AC 24~660V  DC 3~32V  Normal

3. Technical Specifications:

Property project Specific parameter Max. Load Current AC 5A, 15A, 25A, 40A, 50A, 80A, 100A Load Voltage AC 24~660V Isolated Voltage >or= 2000V AC 1 min. Insulation Voltae >or=2000V AC 1 min. Control Voltage DC 3~32V Control Current 6mA~25mA Turn-On Voltage <or=1.3V Off-set leakage <or= 1.3mA Off state dv/dt 300v/us On - Off Time 100ms Frequency Range 47/63 Hz Status Indicator Red LED Ambient Temperature -40~80 C Net Weight 200g
