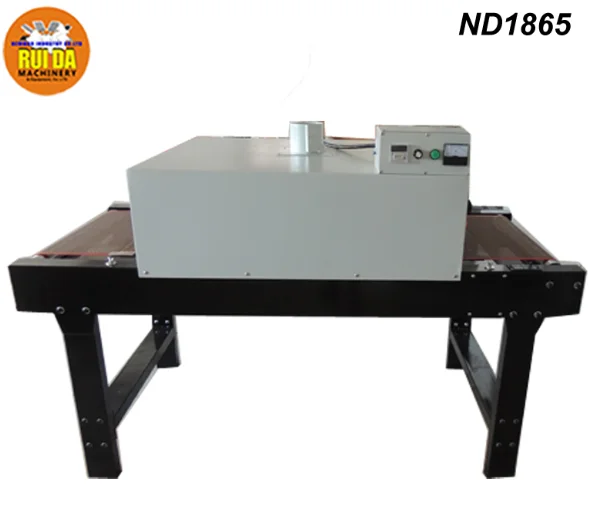

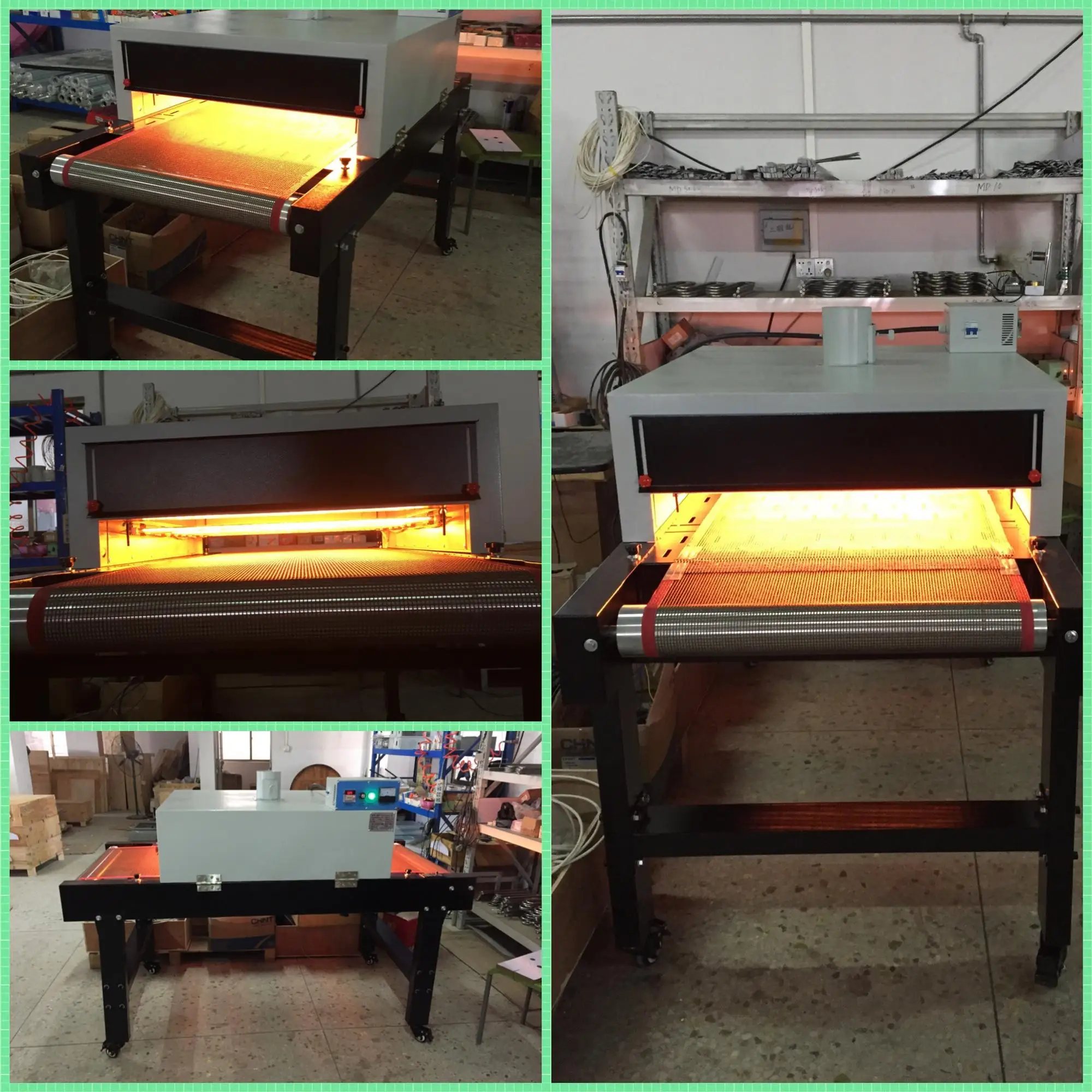

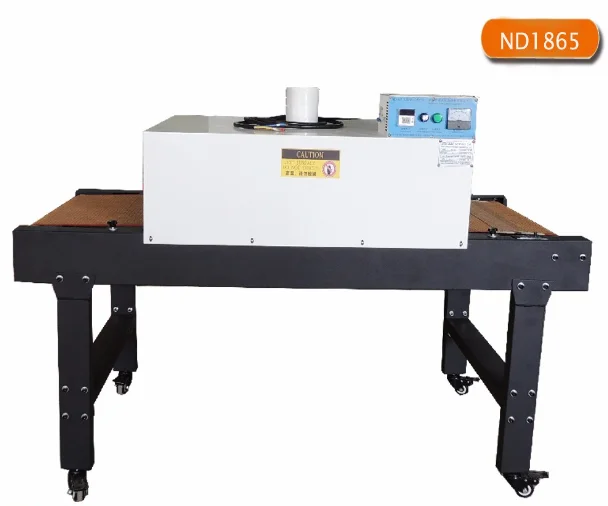

ND1865 IR tunnel dryer power saving for T shirt screen printing conveyor tunnel dryer

Product Overview

Description



This tunnel dryer is suitable for heating printing ink on clothes, even heat-set ink.
Nice designed structure to make sure the best drying effect.
Furnished with fire-resistant Teflon belt, efficient IR heating tube and constant heat circulation.
Adopting intelligent digital display temperature control system, temperature error within 1 centidegree.
Steady belt transport, little noise and stepless speed change.
Owning a very short warm-up time to reach operational temperature.
Energy-saving and high efficiency



Main feature:

1.All machine size be customized,we only showing some simple photos.

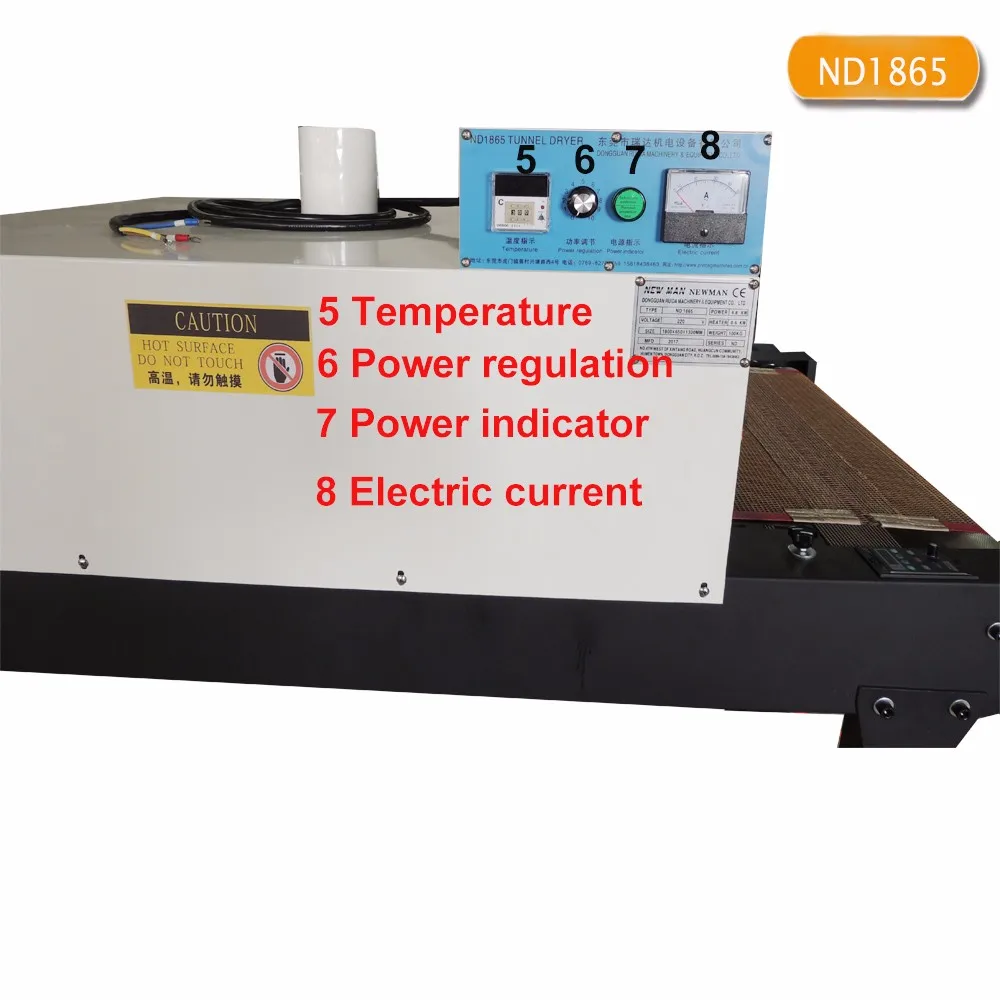

2.Temperture and working speed are simply and easily adjustable.

3.Digital speed meter enables operator to adjust working speed accurately.

4.The heating element is sillicon carbide tube,which has high efficienty light source to dry clothes exhaust fan elininates the scrape outside.

5.It is suitbale for drying various kinds of textile printing ink,such as plastional ink,silica gel printing ink,paste, and water based ink.



1.Power:220V/4800W

2.Lamp: IR heating lamp.

3.Machine length:180CM

4.Heating area:100*65cm or size can becustomized

5.Temp  range:0-250 degree

6.Pavking :1 plywood box

7.Gross weight:190KG

8.Packing dimension:188*90*80cm

9.Volume:1.55cbm



Parameters:

Model	ND1865
Heating length	1000mm
Belt width	650mm
operating belt speed	1-5meter/minute
Total power	220V 4.8KW
G.W,	300KG
Dimension	1800 X 820 X 1350 MM
